Devoko Trampoline Model GSD12FTK (12 FT Blue) Instruction Manual

1. Important Safety Information

This Devoko trampoline is designed for recreational use. To ensure the safety of all users, especially children, please read and understand all instructions and warnings before assembly and use. Failure to follow these instructions can result in serious injury.

• Certified Safety: Our garden trampoline is safety certified.
• Safety Enclosure Net: The polyethylene safety net covers the entire jumping surface and has a height of 180 cm with hinges and additional safety clips for increased protection.
• Padded Edges and Poles: The edges are padded with 15 mm thick EPE foam, and the poles are also padded with EPE foam to provide additional protection during jumping.
• Weight Capacity: The trampoline can support up to 150 kg (approximately 330 lbs) and can be used by 2 teenagers or 3 children simultaneously. Always adhere to the maximum weight limit.
• Supervision: Children must always be supervised by an adult when using the trampoline.
• One Jumper at a Time: For optimal safety, only one person should jump at a time, especially for smaller trampolines.

Image: The Devoko 12 FT Blue Trampoline fully assembled with its safety net, positioned in a green garden. This image illustrates the complete product setup.

2. Package Contents

Your Devoko Trampoline package includes all necessary components for assembly and safe use. Please verify all parts are present before beginning assembly. The trampoline is shipped in multiple packages.

• Trampoline Frame
• Jumping Mat (UV-resistant PP)
• Safety Net
• Net Poles with Padding
• Edge Covers (Spring Pad)
• Ladder
• Shoe Net (Side net for shoes)
• Galvanized Steel Springs (70 springs for 366 cm model)
• Spring Hooks (2 included)
• Assembly Gloves
• Instruction Manual (in 5 languages)

Image: A diagram illustrating the trampoline's dimensions (366cm diameter, 260cm total height, 180cm net height, 80cm frame height), maximum weight capacity (150kg), and details about the three shipping packages with their respective weights and dimensions. The jumping surface diameter is 323cm.

3. Setup and Assembly

Assembly typically requires two adults and can be completed in less than 2 hours. Follow the detailed instructions provided in the included manual. A pair of assembly gloves and spring hooks are provided to assist with the process.

3.1 Frame Assembly

• Assemble the 38mm steel frame tubes, ensuring the U-shaped legs are correctly oriented for stability.
• Connect frame sections using the T-connectors to reinforce the structure. The frame is fully galvanized steel with a 1.4 mm thickness.

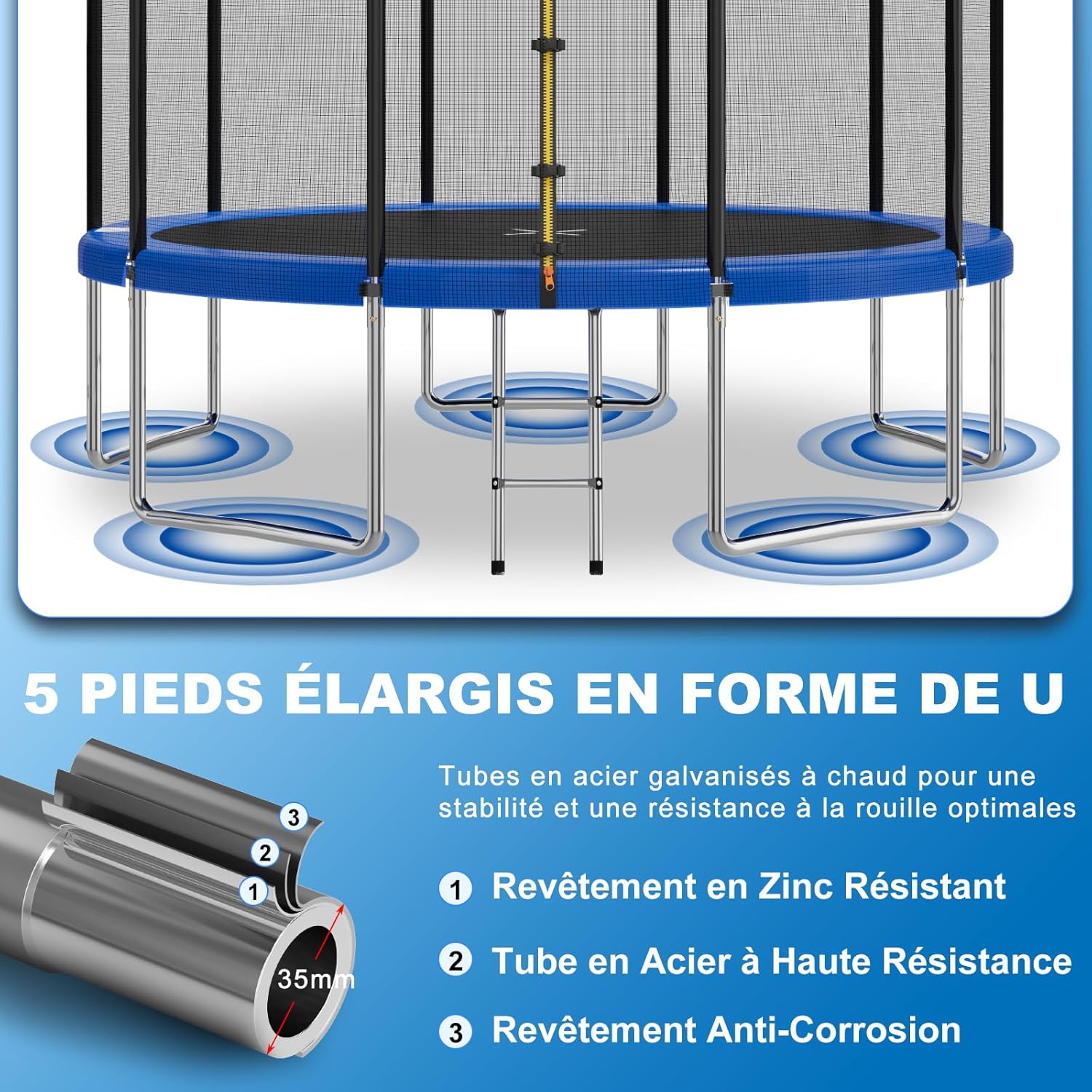

Image: A detailed view of the trampoline's five U-shaped legs, highlighting the galvanized steel construction. The diagram shows a cross-section of the tube with a zinc-resistant coating, high-strength steel tube, and anti-corrosion coating, indicating optimal stability and rust resistance.

3.2 Jumping Mat and Spring Installation

• Carefully attach the UV-resistant PP jumping mat to the frame using the provided 70 robust galvanized steel springs.
• Use the spring hooks to safely stretch and attach each spring. Ensure all springs are firmly secured to the jumping mat and frame.

Image: A close-up showing the coiled springs of the trampoline, labeled "Crochets enroulés pour ressorts" (Coiled hooks for springs), emphasizing their solid connection to the jumping mat. Details on spring weight (89.5g), quantity (70), and length (14.5cm) are provided, comparing them to other springs.

3.3 Safety Net and Accessories

• Install the padded net poles around the trampoline frame.
• Attach the safety net to the poles and the jumping mat, ensuring it is taut and securely fastened with hinges and safety clips.
• Place the edge covers (spring pad) over the springs and frame to prevent contact with metal parts.
• Attach the ladder for easy and safe access to the trampoline.
• Install the shoe net for convenient storage of footwear before jumping.

Image: A child ascending the trampoline ladder, with text "FACILE À MONTER, FACILE À DESCENDRE" (Easy to get on, easy to get off). Features like a child-adapted access ladder, multifunctional structure, stable rungs, and anti-slip feet are highlighted.

Image: A collage showing high-quality details of the trampoline: spring hooks and gloves for assembly, the shoe net for storage, a double zipper with safety buckle for the enclosure entrance, and the waterproof spring cover.

4. Operating Instructions

To ensure a safe and enjoyable experience, follow these operating guidelines:

• Access: Always use the provided ladder to enter and exit the trampoline. Do not jump onto or off the trampoline.
• Enclosure Use: Ensure the safety net zipper and clips are securely closed before anyone begins jumping.
• Supervision: Always have adult supervision when children are using the trampoline.
• Weight Limit: Do not exceed the maximum weight capacity of 150 kg (330 lbs).
• Single Jumper: For maximum safety, especially for younger children, encourage only one jumper at a time.
• No Flips or Stunts: Avoid performing flips or dangerous stunts unless properly trained and supervised.
• Clear Area: Ensure the area around the trampoline is clear of obstacles.
• Footwear: Remove shoes before jumping and store them in the shoe net.

5. Maintenance

Regular maintenance will extend the life of your Devoko Trampoline and ensure continued safety.

• Regular Inspection: Periodically check all components for wear, damage, or loose connections. This includes the frame, springs, jumping mat, safety net, net poles, padding, and ladder.
• Cleanliness: Keep the jumping mat and safety net clean. Use mild soap and water if necessary.
• Rust Prevention: The frame is made of galvanized steel for rust resistance. However, inspect for any signs of rust and address them promptly.
• UV Protection: The jumping mat is UV-resistant, but prolonged exposure to harsh sunlight can still cause degradation over many years.
• Winter Storage: Consider covering the trampoline during winter months or disassembling it for storage to protect it from extreme weather conditions.
• Spring Pad: Ensure the spring pad (edge cover) is always in place and in good condition to cover the springs and frame.

Image: A close-up view of the trampoline's jumping mat, labeled "Tapis de saut 270g/m²" (Jumping mat 270g/m²), with text "CONÇU POUR DURER" (Designed to Last). Icons indicate features such as waterproof, anti-UV, safe protection, and anti-tear, emphasizing the mat's durability and quality.

6. Troubleshooting

Here are solutions to common issues you might encounter:

• Missing Parts / Multiple Packages: The trampoline is often shipped in two or more separate packages. If you receive only one package, please wait a few days for the remaining packages to arrive. If parts are still missing after all packages have arrived, contact customer service.
• Unstable Frame: Ensure all frame connections are tight and the U-shaped legs are properly seated on a level surface.
• Loose Safety Net: Check that all net poles are securely attached and the net itself is properly fastened to the frame and poles. The vertical tubes supporting the net should be slightly bent outwards to keep the net taut.
• Reduced Bounce: Inspect all springs for damage or detachment. Replace any damaged springs. Ensure the jumping mat is free from tears or excessive stretching.

7. Specifications

8. Warranty and Support

Devoko is committed to providing quality products and excellent customer service.

• Warranty: This trampoline comes with a 5-year warranty.
• Return Policy: A 30-day free return policy is available.
• Customer Service: If you have any questions about the product, please contact us. We aim to respond within 24 hours.
• Spare Parts: Spare parts are available for 5 years.

For support, please refer to the contact information provided with your purchase documentation or visit the official Devoko website.
