1. Introduction
This manual provides essential information for the installation, operation, and maintenance of your new RATION Recoil Pull Starter, designed specifically for the Craftsman CMXGMAM2703840 21-inch 140cc Lawn Mower. Please read this manual thoroughly before attempting any installation or operation to ensure proper function and safety.

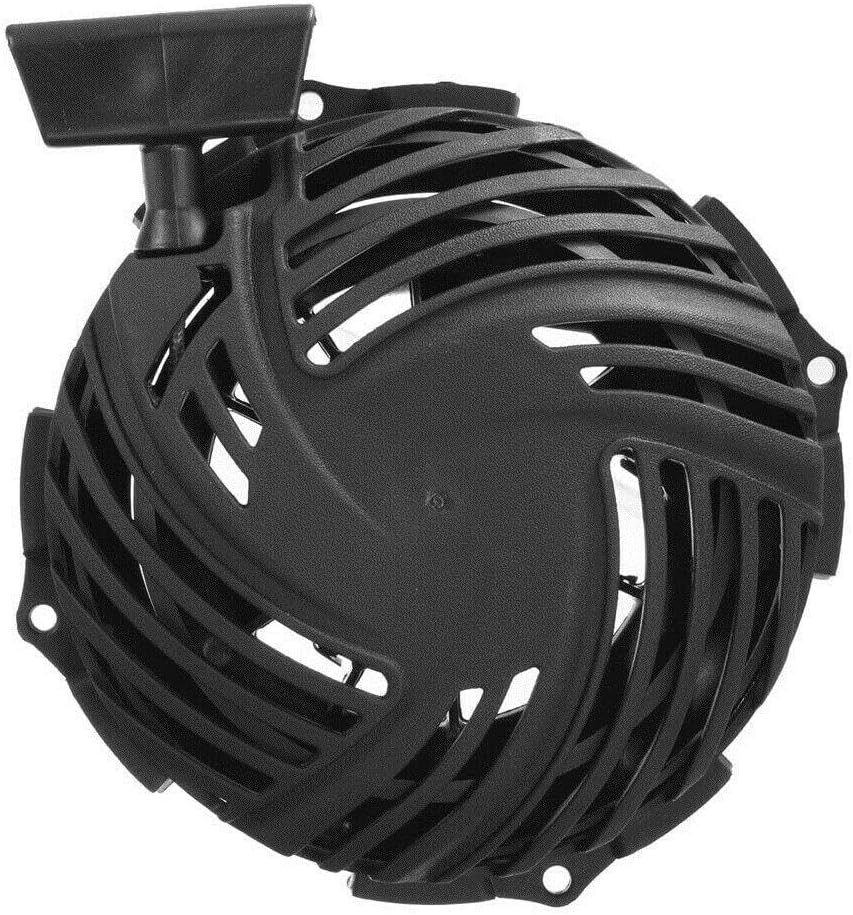

Figure 1: The RATION Recoil Pull Starter. This image displays the complete pull starter assembly, featuring the black plastic housing, the central recoil mechanism, and the pull handle.
2. Safety Information
Always prioritize safety when working with power equipment. Failure to follow these instructions may result in personal injury or damage to the equipment.
- Disconnect Spark Plug: Before performing any maintenance or installation, always disconnect the spark plug wire from the spark plug to prevent accidental engine starting.
- Wear Protective Gear: Use appropriate personal protective equipment, including gloves and eye protection.
- Engine Cool Down: Allow the engine to cool completely before handling any parts.
- Secure Work Area: Ensure the lawn mower is on a stable, level surface and cannot move during installation.
- Use Correct Tools: Use only the recommended tools for installation to avoid damaging fasteners or components.
3. Package Contents
Verify that all components are present and undamaged upon opening the package.
- 1 x RATION Recoil Pull Starter Assembly
- 1 x Instruction Manual (this document)
4. Setup and Installation
Follow these steps carefully to replace the recoil pull starter on your Craftsman CMXGMAM2703840 lawn mower.
- Prepare the Mower:
- Ensure the lawn mower engine is off and has cooled down.
- Disconnect the spark plug wire from the spark plug to prevent accidental starting.
- Position the mower on a flat, stable surface.
- Locate the Old Starter: The recoil pull starter is typically located on the top or side of the engine, often covered by a shroud.
- Remove the Old Starter:
- Identify and remove the bolts or screws securing the old recoil starter assembly to the engine. Keep track of these fasteners.
- Carefully lift and remove the old starter assembly. If the rope is still attached to the engine, you may need to cut it or unthread it.
- Install the New Starter:
- Align the new RATION Recoil Pull Starter with the mounting holes on the engine.
- Insert the previously removed bolts or screws and hand-tighten them.
- Once all fasteners are in place, tighten them securely with the appropriate tool. Do not overtighten.
- Final Checks:
- Ensure the new starter is firmly mounted and does not wobble.
- Gently pull the starter rope a few times to ensure it extends and retracts smoothly without binding.
- Reconnect the spark plug wire to the spark plug.
Figure 2: The RATION brand logo. This image displays the RATION company logo, which may be found on the product packaging or the product itself, signifying its authenticity.
5. Operating Instructions
Once the new recoil pull starter is installed, operate your lawn mower as per its original manufacturer's instructions. The pull starter functions identically to the original part.
- Ensure the mower's fuel tank is filled and the oil level is correct.
- Set the throttle to the "Start" or "Choke" position as required by your mower model.
- Grasp the starter handle firmly.
- Pull the rope with a smooth, steady motion until the engine starts. Do not yank or release the rope abruptly.
- Allow the rope to retract slowly back into the starter housing.
6. Maintenance
The RATION Recoil Pull Starter is designed for durability and requires minimal maintenance. However, periodic inspection can extend its lifespan.
- Keep Clean: Periodically clean any grass clippings, dirt, or debris from around the starter housing to prevent interference with the recoil mechanism.
- Inspect Rope: Check the starter rope for fraying or wear. If significant wear is observed, consider replacing the rope or the entire starter assembly if the rope is integrated.
- Check Mounting: Ensure the starter remains securely mounted to the engine. Tighten any loose fasteners.
7. Troubleshooting
If you encounter issues with your recoil pull starter, refer to the following common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Rope does not retract fully. | Spring issue, debris in housing, or rope binding. | Inspect for debris. If the spring is faulty, the starter may need replacement. |
| Starter rope pulls out but engine does not turn over. | Pawls not engaging flywheel, or engine issue. | Check if the pawls are extending. If not, the starter may be faulty. If pawls extend, consult your mower's engine manual for engine-related troubleshooting. |
| Starter feels stiff or hard to pull. | Engine compression, or internal starter friction. | Ensure spark plug is connected. If the engine is seized, consult a professional. If the starter itself is stiff, it may need replacement. |
8. Specifications
Key specifications for the RATION Recoil Pull Starter.
- Brand: RATION
- Compatible Mower Model: Craftsman CMXGMAM2703840 21 in. 140cc Lawn Mower
- Part Type: Recoil Pull Starter
- ASIN: B0DV4284W9
- Item Model Number: Description (as per product data)
9. Support
For further assistance, technical support, or inquiries regarding your RATION Recoil Pull Starter, please contact the manufacturer or your point of purchase. When contacting support, please have your product's ASIN (B0DV4284W9) and model information readily available.
You can often find contact information on the product packaging or the seller's page where you purchased the item.
