ACTIVLIFE Replacement Oil Cap Instruction Manual

1. Compatibility

The ACTIVLIFE Replacement Oil Cap (Model 310983001) is designed for use with specific RYOBI 40V Pole Saw models. Ensure your pole saw model is listed below for proper fit and function.

• RYOBI 40V Pole Saw Model RY40506
• RYOBI 40V Pole Saw Model RY40050
• RYOBI 40V Pole Saw Model RY40051
• RYOBI 40V Pole Saw Model RY40051VNM

Important Note: This oil cap is not compatible with all RYOBI 40V 10-inch chain saws, including models like RY40050 and RY40051 if they are not pole saw variants. Always verify your specific model number before installation.

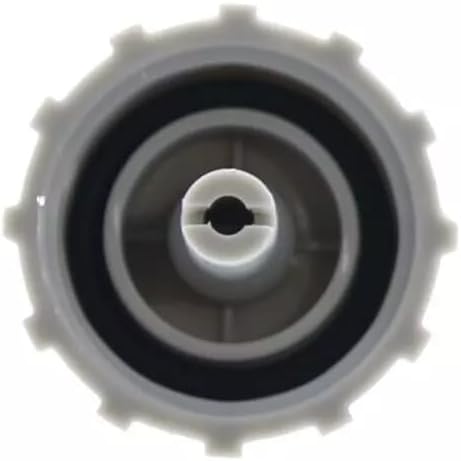

Image 1.1: Top view of the ACTIVLIFE Replacement Oil Cap, showing the internal threading and central oil passage.

Image 1.2: Side view of the ACTIVLIFE Replacement Oil Cap, featuring textured grips for easy handling and the 'bar oil' label.

2. Setup & Installation

This section outlines the procedure for replacing the oil cap on your compatible RYOBI 40V Pole Saw.

1. Preparation: Ensure the pole saw is turned off and the battery is removed before beginning any maintenance or installation. Place the pole saw on a stable, flat surface.
2. Remove Old Cap: Unscrew the existing oil cap from the bar oil reservoir. Turn counter-clockwise until it is completely detached.
3. Inspect Reservoir: Check the oil reservoir opening for any debris or damage. Clean if necessary.
4. Install New Cap: Align the ACTIVLIFE Replacement Oil Cap (Model 310983001) with the bar oil reservoir opening. Turn clockwise to screw it into place.
5. Secure Tightness: Hand-tighten the cap firmly to ensure a secure seal. Do not overtighten, as this may damage the cap or the reservoir threads.

3. Operation

The oil cap's primary function is to securely seal the bar oil reservoir and allow for easy refilling.

1. Checking Oil Level: Regularly check the bar oil level before and during operation of your pole saw.
2. Refilling Oil: To refill, unscrew the oil cap by turning it counter-clockwise. Fill the reservoir with the recommended bar and chain oil for your RYOBI pole saw.
3. Secure Sealing: After filling, replace the oil cap and hand-tighten it firmly. A secure seal prevents oil spillage and ensures proper lubrication of the saw chain during use, reducing friction and wear.

4. Maintenance

Regular maintenance of the oil cap ensures its longevity and the efficient operation of your pole saw.

• Cleaning: Periodically clean the oil cap and the reservoir opening to prevent dirt and debris from entering the oil system. Use a clean cloth to wipe away any oil residue.
• Inspection: Inspect the cap for any signs of wear, cracks, or damage to the threads or the sealing gasket. A damaged cap may lead to oil leaks.
• Gasket Integrity: Ensure the internal gasket (if present) is intact and pliable. A worn or hardened gasket can compromise the seal.
• Replacement: If the oil cap shows significant wear or damage, replace it with a new ACTIVLIFE Replacement Oil Cap (Model 310983001) to maintain optimal performance and prevent leaks.

5. Troubleshooting

This section addresses common issues related to the oil cap.

• Oil Leakage:
  • Cause: Cap not tightened sufficiently, damaged cap threads, worn gasket, or incorrect cap size.
  • Solution: Ensure the cap is hand-tightened firmly. Inspect the cap and reservoir threads for damage. Check the gasket for wear and replace the cap if necessary. Verify compatibility with your pole saw model.
• Cap Does Not Fit:
  • Cause: Incorrect model compatibility. Some RYOBI 40V models, particularly certain 10-inch chain saws, may have different oil cap specifications.
  • Solution: Double-check your pole saw's exact model number against the listed compatible models (RY40506, RY40050, RY40051, RY40051VNM). If your model is not listed or is a different type of saw, this cap may not be suitable.

6. Specifications
