1. Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of the eldoLED SOLOdrive 564/S 50W 'Dim to Dark' Constant Current 0-10V Dimmable LED Driver. The SOLOdrive 564/S is designed to provide high-quality, flicker-free dimming for LED modules and arrays, offering smooth brightness changes down to 0.1%.
2. Safety Information
WARNING: Risk of Electric Shock. Installation and servicing must be performed by qualified personnel only.
- Always disconnect power before installing, servicing, or cleaning the unit.
- Ensure all wiring complies with national and local electrical codes.
- Do not operate the driver with damaged wiring or if the casing is compromised.
- This device is intended for use with compatible LED modules and arrays. Refer to the specifications for appropriate load requirements.
- Ensure proper grounding to prevent electrical hazards.
- The driver is designed for use in damp and dry locations.
3. Product Overview
The eldoLED SOLOdrive 564/S is a high-performance, constant current LED driver featuring 'Dim to Dark' technology for superior dimming quality. It integrates seamlessly with various LED modules and control systems.
Key Features and Benefits:
- Natural Dimming: Provides smooth brightness changes, excellent flicker performance, adaptable dimming curves, and a configurable minimum dimming level, dimming down to 0.1%.
- LEDcode: Configurable design to work with most constant current LED modules and arrays, offering a connection point for integrated peripheral controls.
- Programmable: Allows fine-tuning of driver parameters for specific application requirements.
- Performance: Features a universal input voltage range (120-250V DC), low inrush current, low total harmonic distortion (THD), high power factor, and high efficiency.
- Camera Compatibility: Hybrid HydraDrive technology ensures flicker-free operation, suitable for TV studios and security camera environments.

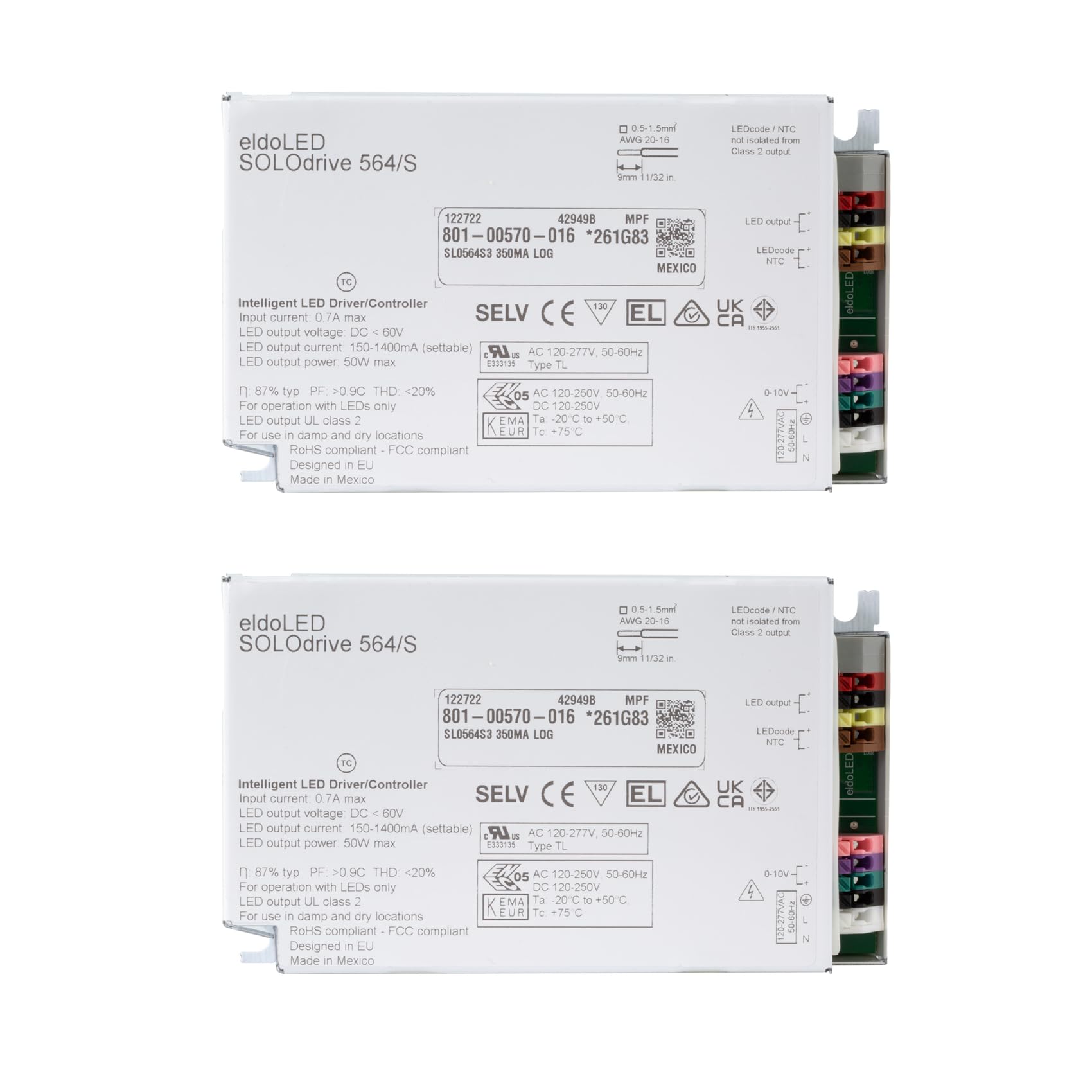

Figure 1: eldoLED SOLOdrive 564/S LED Driver, showing its compact form factor.
4. Specifications
Detailed technical specifications for the SOLOdrive 564/S LED Driver:
| Parameter | Value |
|---|---|
| Type | Constant Current |
| Form Factor | S |
| Output Power | 50W |
| Input Voltage | 120-250V DC |
| Output Voltage | 2-55V DC |
| Output Current | 150-1400mA (settable) |
| Dimming Control | 0-10V |
| Dimming Range | 100% - 0.1% |
| Dimming Method | Hybrid HydraDrive |
| Frequency Range | 50-60 Hz |
| Maximum Case Temperature (Tc point) | 75 °C |
| Ambient Operating Temperature | -20 °C to +50 °C |
| Dimensions (L x W x H) | 5" x 3" x 1.20" (12.7 cm x 7.62 cm x 3.05 cm) |
| Weight | 9 Ounces (approx. 255g) |
| ASIN | B0DTW5TFG3 |
| Item Model Number | SL0564S |
5. Setup and Installation
Proper installation is crucial for the performance and longevity of the LED driver. Always ensure power is disconnected before beginning installation.
Wiring Connections:
- Input Power: Connect the AC input (120-277V, 50-60Hz) to the designated input terminals (L, N). Ensure correct polarity.
- LED Output: Connect the LED module(s) to the LED output terminals (+, -). Observe correct polarity for the LED load. The output current is settable between 150-1400mA.
- Dimming Control (0-10V): Connect the 0-10V dimming wires to the dedicated dimming terminals. Ensure the dimming control signal is compatible with 0-10V standards.
- LEDcode/NTC: These terminals are for advanced control and temperature sensing. Refer to eldoLED documentation for specific programming and connection details. Note that LEDcode/NTC is not isolated from Class 2 output.
Figure 2: Top view of the SOLOdrive 564/S, highlighting input/output specifications and regulatory markings. Key identifiers include 801-00570-016, 122722, 42949B, and *261G83*.
Figure 3: Angled view of the SOLOdrive 564/S, illustrating the terminal blocks for power, LED output, and dimming control connections.
Figure 4: Top-down view of the SOLOdrive 564/S, providing a clear perspective of the wiring terminals for accurate connection.
Mounting: The driver is designed for wall mount installation. Ensure adequate ventilation around the unit to prevent overheating.
6. Operating Instructions
Once properly installed and powered, the SOLOdrive 564/S operates automatically. The primary control is through the 0-10V dimming input.
- Dimming: Apply a 0-10V signal to the dimming terminals. A 10V signal will result in 100% light output, while a 0V signal will dim the LEDs to 0.1% (near dark).
- Programming: The SOLOdrive 564/S is programmable. Custom output current, dimming curves, and minimum dimming levels can be configured using eldoLED's programming tools. Contact eldoLED support or your distributor for programming services or tools.
7. Maintenance
The eldoLED SOLOdrive 564/S is designed for long-term, reliable operation with minimal maintenance.
- Cleaning: Ensure the driver is clean and free from dust and debris. Disconnect power before cleaning. Use a dry, soft cloth. Do not use liquid cleaners.
- Inspection: Periodically inspect wiring for any signs of damage or loose connections.
- Ventilation: Ensure that the area around the driver remains clear to allow for proper heat dissipation.
8. Troubleshooting
If you encounter issues with your SOLOdrive 564/S, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| No light output | No input power Incorrect wiring Faulty LED module Dimming signal at 0V | Check power supply and circuit breaker Verify all wiring connections (input, output) Test LED module with a known good driver Check 0-10V dimming signal; ensure it's above 0V for light output |
| Flickering or unstable light | Loose connections Incompatible dimmer Overloaded driver | Check all wiring connections Ensure 0-10V dimmer is compatible and functioning correctly Verify LED load does not exceed driver's maximum output power (50W) |
| Driver is hot to touch | Insufficient ventilation Ambient temperature too high Overloaded driver | Ensure proper airflow around the driver Verify ambient operating temperature is within specified range (-20 °C to +50 °C) Check LED load against driver specifications |
If problems persist, contact eldoLED technical support.
9. Warranty and Support
Warranty:
The eldoLED SOLOdrive 564/S LED Driver comes with a 5-Year Warranty from the date of purchase, covering defects in materials and workmanship under normal use and service conditions. This warranty does not cover damage caused by improper installation, misuse, unauthorized modifications, or acts of nature.
Technical Support:
For technical assistance, programming inquiries, or warranty claims, please contact eldoLED customer support or your authorized distributor. Please have your product model number (SL0564S) and purchase information ready when contacting support.
You can find more information and contact details on the official eldoLED website: www.eldoled.com
