1. Introduction
Thank you for purchasing the VONLUCE LED Floor Lamp. This manual provides essential information for the safe and efficient operation of your new lamp. Please read these instructions thoroughly before assembly and use, and retain them for future reference.

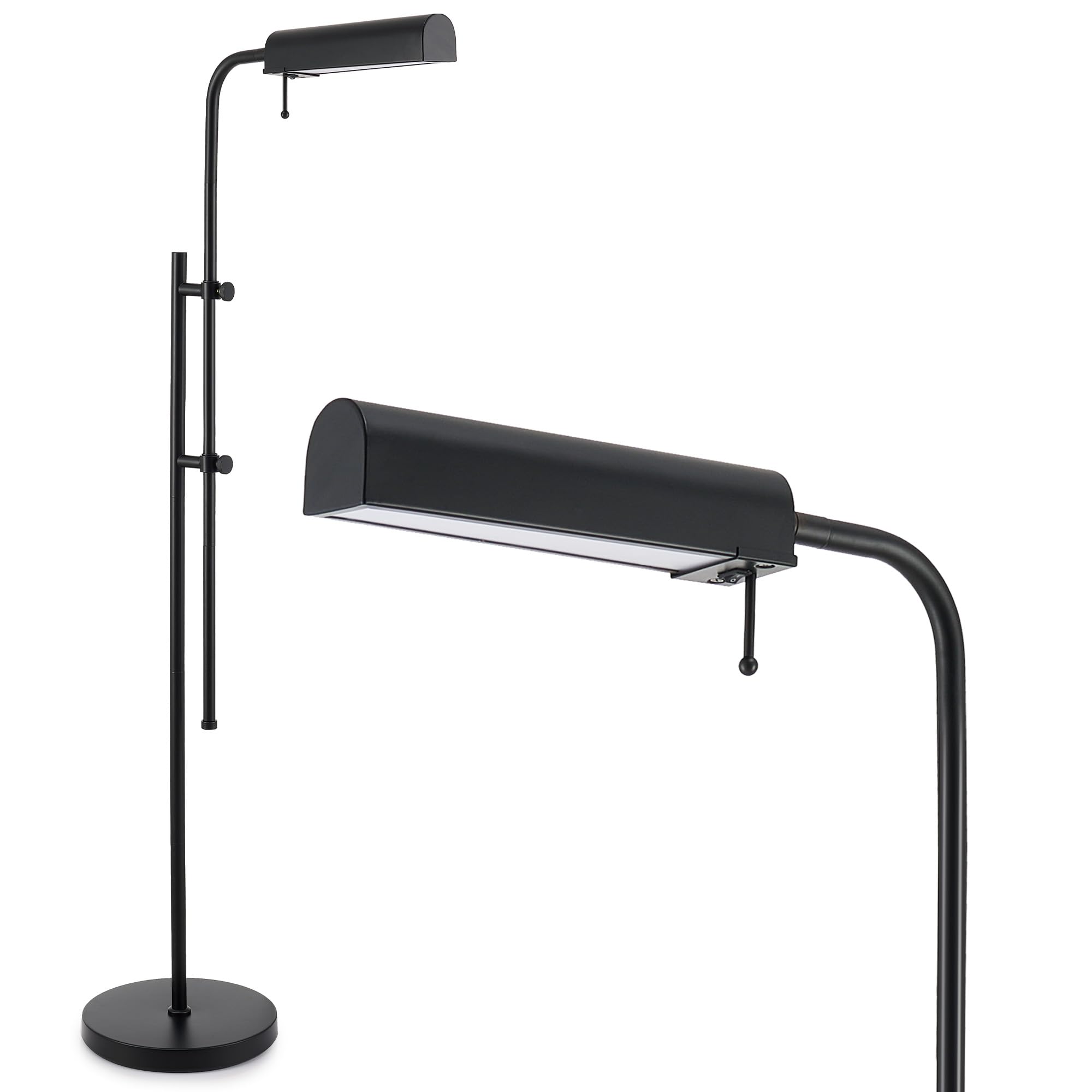

Figure 1: VONLUCE LED Floor Lamp (Black)
2. Safety Instructions
To reduce the risk of fire, electric shock, or injury, please follow these safety guidelines:
- Ensure the power supply is disconnected before assembly, disassembly, or cleaning.
- This lamp is for indoor use only. Do not expose to moisture or extreme temperatures.
- Do not operate the lamp with a damaged cord or plug. If damaged, contact customer support.
- Keep the lamp away from flammable materials.
- Do not attempt to modify or repair the lamp. Refer all servicing to qualified personnel.
- The LED light source is integrated and not replaceable.
3. Package Contents
Verify that all components are present before beginning assembly:
- Lamp Head with integrated LED
- Upper Pole Section
- Middle Pole Section
- Lower Pole Section
- Weighted Base
- Power Cord with Plug
- Cable Clips (optional for cable management)
- Instruction Manual
Figure 2: Unpacked components of the floor lamp.
4. Assembly Instructions
Assembly is quick and requires no tools. Follow these steps:
- Carefully unpack all components and place them on a flat, clean surface.
- Screw the pole sections together clockwise, starting from the bottom pole and working your way up to the lamp head. Ensure the power cord runs freely through the poles.
- Secure the assembled pole to the weighted base by screwing it clockwise until firm.
- Use the provided cable clips to neatly secure the power cord along the lamp pole, if desired.
- Plug the power cord into a suitable electrical outlet.
Assembly Video Guide
Video 1: Step-by-step guide on how to assemble the VONLUCE LED Floor Lamp.
5. Operating Instructions
Your VONLUCE LED Floor Lamp offers versatile lighting options and adjustability:
5.1 Power On/Off and Color Temperature Adjustment
The lamp features a pull-chain switch located on the lamp head. Each pull cycles through the available color temperatures:
- First Pull: 3000K Warm White
- Second Pull: 4000K Neutral White
- Third Pull: 5000K Cool White
- Fourth Pull: Off
Figure 3: Three distinct color temperatures for various moods and tasks.
5.2 Height Adjustment
The lamp's height can be adjusted from 42.5 inches to 62.5 inches. Loosen the adjustment knobs on the pole, slide the upper section to your desired height, and then tighten the knobs securely to lock it in place.
Figure 4: Adjustable height mechanism.
5.3 Swing Arm and Swivel Head Adjustment
The lamp features a 360° swing arm and a 270° swivel head, allowing you to direct light precisely where needed. Gently pivot the arm and rotate the lamp head to achieve the optimal lighting angle.
Figure 5: Flexible swing arm and swivel head for directional lighting.
Operating Features Video Guide
Video 2: Demonstration of the 3 color temperatures and adjustable features.
Video 3: Detailed look at the 360-degree adjustable features of the lamp.
6. Maintenance
To ensure the longevity and optimal performance of your lamp:
- Always unplug the lamp before cleaning.
- Wipe the lamp with a soft, dry cloth. Do not use abrasive cleaners, solvents, or polishes as they may damage the finish.
- The LED light source is integrated and does not require replacement.
7. Troubleshooting
If you encounter issues with your lamp, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Lamp does not turn on | Power cord not plugged in securely. No power to the outlet. | Ensure the plug is fully inserted. Test the outlet with another device. Check the circuit breaker. |
| Light flickers | Loose connection. Incompatible dimmer switch (if applicable). | Check all connections. This lamp is not designed for use with external dimmer switches. |
| Lamp head/arm is loose | Adjustment knobs are not tightened. | Tighten the adjustment knobs firmly. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | PTL-ISY6 |
| Product Dimensions | 9.8"D x 17"W x 62.5"H (Adjustable Height) |
| Item Weight | 4.66 Kilograms |
| Lamp Type | Floor Lamp |
| Shade Color | Black |
| Style | Modern Industrial |
| Light Source Type | LED (Integrated) |
| Color Temperatures | 3000K (Warm White), 4000K (Neutral White), 5000K (Cool White) |
| Brightness | Up to 1,000 lumens |
| Lifespan | 50,000 hours |
| Material Type | Metal |
| Room Type | Living Room, Bedroom, Office |
9. Warranty and Support
For warranty information or technical support, please refer to the product packaging or contact VONLUCE customer service directly. Keep your purchase receipt for any warranty claims.
