ModernLuxe Children's Loft Bed (90 x 200 cm) Instruction Manual

Introduction

This manual provides detailed instructions for the assembly, safe use, and maintenance of your ModernLuxe Children's Loft Bed. This versatile loft bed (90 x 200 cm) features an integrated desk, a movable wardrobe, and a sturdy ladder, designed to optimize space in a child's room. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

Safety Instructions

Your safety and the safety of your child are paramount. Please adhere to the following safety guidelines:

• Adult Assembly Required: This product must be assembled by a competent adult.
• Weight Limit: Do not exceed the recommended weight limit for the bed. Consult the specifications section for details.
• Top Bunk Age Restriction: The top bunk is not suitable for children under six years of age.
• Guardrails: Always ensure guardrails are properly installed and secured.
• Mattress Size: Use only a mattress of the specified size (90 x 200 cm) to ensure proper fit and safety with guardrails.
• Secure to Wall: For maximum stability and to prevent tipping, it is highly recommended to secure the loft bed to a wall using appropriate anchoring hardware (not always included, may need to be purchased separately).
• No Jumping: Do not allow jumping on the bed.
• Regular Inspection: Periodically check all bolts, screws, and connections to ensure they are tight and secure.
• Ladder Safety: Always use the ladder for access to the top bunk. Ensure the ladder is stable before use.
• Ventilation: Ensure adequate ventilation around the bed.

Package Contents

Before assembly, carefully unpack all components and verify that you have received all parts listed below. If any parts are missing or damaged, do not proceed with assembly and contact customer support immediately.

• Bed Frame Components (Side Rails, End Panels, Support Beams)
• Bed Base Slats
• Ladder Components
• Desk Components
• Wardrobe Components
• Hardware Pack (Screws, Dowels, Bolts, Allen Key, etc.)

Figure 1: Exploded view of all components. Please refer to this diagram to identify each part before assembly.

Setup (Assembly Instructions)

Follow these steps carefully for proper assembly. It is recommended to assemble the bed in the room where it will be used.

1. Prepare the Area: Clear a spacious area for assembly. Lay out all parts and hardware.
2. Assemble the Main Bed Frame:
   • Connect the side rails to the headboard and footboard panels using the provided bolts and an Allen key. Do not overtighten initially.
   • Ensure all connections are flush and stable.


   Figure 2: Basic bed frame assembly.

3. Install Bed Base Slats:
   • Place the bed base slats evenly across the support beams.
   • Secure each slat with the provided screws.
4. Attach the Ladder:
   • Connect the ladder side rails to the bed frame using the designated hardware.
   • Ensure the ladder is securely fastened and stable.
5. Assemble and Integrate the Desk:
   • Assemble the desk components according to the separate desk instructions (if provided) or by matching parts to the main diagram.
   • Slide the assembled desk into its designated position under the bed. The desk is designed to be movable for flexible use.


   Figure 3: Loft bed with integrated desk.
6. Assemble and Position the Wardrobe:
   • Assemble the wardrobe components, including the doors and internal shelving/hanging rod.
   • Position the wardrobe under the bed. Like the desk, the wardrobe is designed to be movable.

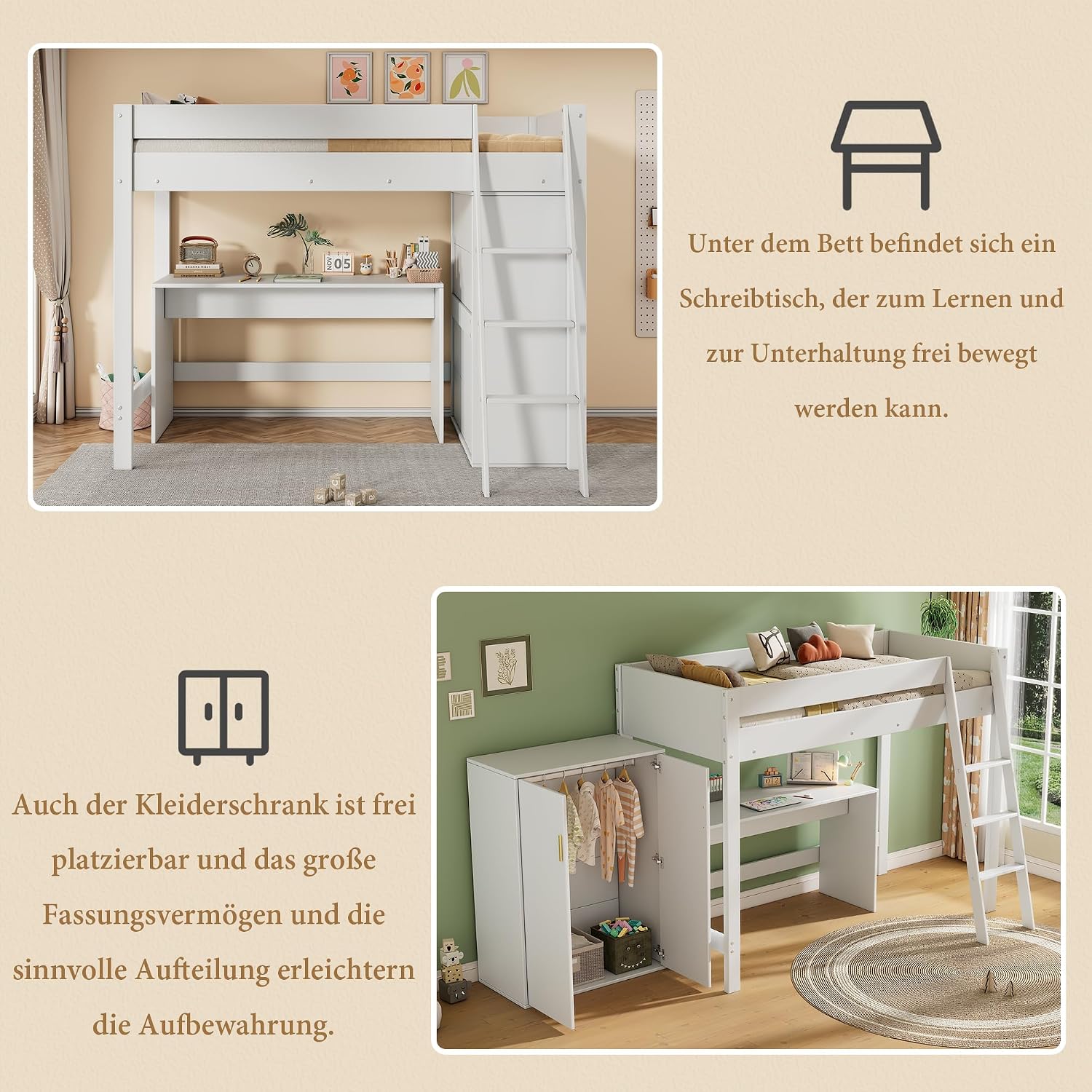

   Figure 4: Loft bed with desk and wardrobe.

7. Final Tightening and Wall Anchoring:
   • Once all components are in place, go back and tighten all bolts and screws firmly. Do not overtighten to avoid stripping threads.
   • Attach the anti-tip hardware to the bed frame and secure it to a wall stud. This step is crucial for safety.

Operating Instructions

This loft bed is designed for versatile use in a child's room.

• Using the Bed: Place a standard 90 x 200 cm mattress on the bed base slats. Ensure the mattress fits snugly within the guardrails.
• Using the Desk: The integrated desk can be pulled out or pushed in as needed, providing a flexible workspace for homework, drawing, or play.
• Using the Wardrobe: The wardrobe offers storage for clothes, toys, or books. Its movable design allows for repositioning to suit room layout or changing needs.

Figure 5: Flexible desk area.

Figure 6: Wardrobe interior for storage.

Maintenance

Regular maintenance will help prolong the life and safety of your ModernLuxe Loft Bed.

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that could damage the finish.
• Hardware Check: Periodically (e.g., every 3-6 months) inspect all bolts, screws, and connections. Tighten any that have become loose.
• Wood Care: Protect the wood from extreme temperature changes and direct sunlight. Address any spills immediately.
• Ladder Inspection: Ensure ladder rungs and connections remain secure.

Troubleshooting

If you encounter any issues, refer to the following common solutions:

• Bed feels wobbly: Check all assembly bolts and screws. Ensure they are tightened securely. Verify the bed is properly anchored to the wall.
• Desk or wardrobe difficult to move: Ensure the floor surface is clear of obstructions. Check if any components are misaligned or if the movable parts are on their intended tracks/wheels.
• Missing or damaged parts: Do not attempt to substitute parts. Contact ModernLuxe customer support for replacements.

Specifications

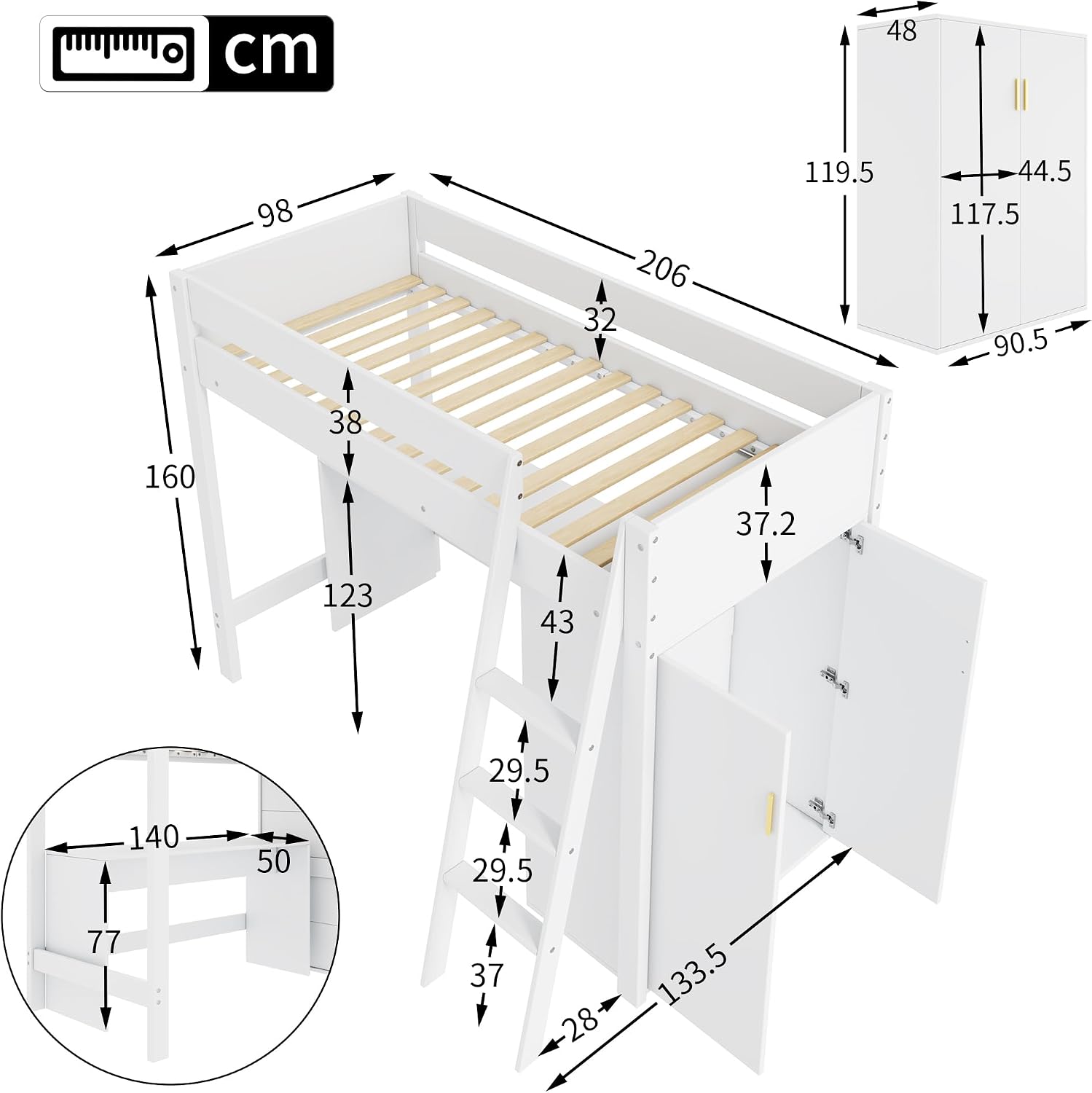

Figure 7: Product dimensions overview.

Warranty and Support

For warranty information, product support, or to order replacement parts, please contact ModernLuxe customer service. Refer to your purchase documentation for specific contact details.
