1. Introduction
This user manual provides essential information for the safe and efficient operation, installation, and maintenance of your Cecotec Bolero Squad G 5200F Inox 5-Burner Gas Hob. Please read this manual thoroughly before installation and use, and keep it for future reference. This appliance is designed for domestic cooking purposes and must be installed by a qualified technician in accordance with local regulations.
2. Safety Instructions
WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause property damage, injury, or death. Read the installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment.
- Ensure adequate ventilation in the kitchen area.
- Do not store flammable materials near the appliance.
- Keep children away from the hob during operation.
- Always use appropriate cookware for the burner size.
- In case of a gas leak, immediately turn off the gas supply, open windows, and do not operate electrical switches. Contact a qualified technician.
- The appliance is equipped with a valve safety system that automatically cuts off the gas supply if the flame extinguishes.
Image: The safety system icon indicates the automatic gas cut-off feature for enhanced safety.
3. Components Overview
Your Cecotec Bolero Squad G 5200F Inox gas hob features a robust design with high-quality components for optimal cooking performance.
- Stainless Steel Surface: Durable and easy to clean.
- Cast Iron Grates: Provide stable support for cookware and retain heat.
- 5 Burners:
- 1 x WOK Triple Crown Burner (3.5 kW)
- 1 x Large Burner (3 kW)
- 2 x Medium Burners (1.75 kW each)
- 1 x Small Burner (1 kW)
- Control Knobs: For precise flame adjustment and electronic ignition.
- Electronic Ignition: Integrated for quick and easy burner lighting.
- Valve Safety System: Automatically cuts off gas if the flame goes out.
- LPG Conversion Kit: Included for adapting to different gas types.
Image: Overhead view of the gas hob with all five burners ignited, showcasing the flame distribution.
Image: Detailed view of the five control knobs, indicating their position and design.
4. Setup and Installation
Installation must be performed by a qualified and certified technician in compliance with all local and national gas and electrical safety regulations. Ensure the installation area is well-ventilated.
4.1. Unpacking
Carefully remove the appliance from its packaging. Inspect for any damage during transit. Retain packaging materials for potential future transport or returns.
4.2. Dimensions and Cut-out
The hob requires a specific cut-out in your countertop. Refer to the diagram below for precise measurements.
- Product Dimensions: 50 cm (Depth) x 75 cm (Width) x 10 cm (Height)
- Recommended Cut-out Dimensions: Approximately 48 cm (Depth) x 56 cm (Width)

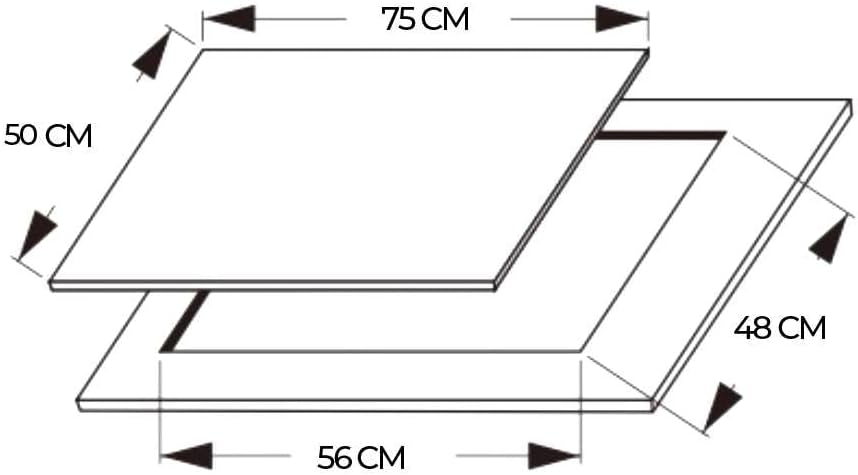

Image: Technical drawing illustrating the overall dimensions of the hob (75cm x 50cm x 10cm) and the recommended cut-out dimensions for installation (56cm x 48cm).
4.3. Gas Connection
This appliance is pre-set for natural gas. An LPG conversion kit is included if you need to adapt the hob for butane/propane gas. This conversion must be performed by a qualified technician.
Image: Graphic representation of the gas conversion process, showing the flexibility to switch between natural gas and LPG.
4.4. Electrical Connection
The hob requires an electrical connection for the electronic ignition system. Ensure the power supply matches the appliance's requirements and is properly grounded.
5. Operating Instructions
5.1. Before First Use
Before using the hob for the first time, clean the surface and grates with a damp cloth. Ensure all burner components are correctly assembled.
5.2. Lighting a Burner
- Place appropriate cookware on the desired burner grate.
- Push down the corresponding control knob and turn it counter-clockwise to the maximum flame position (large flame symbol).
- The electronic ignition will automatically spark. Hold the knob down for a few seconds after the flame ignites to activate the safety device.
- Release the knob. If the flame goes out, repeat the process.
- Adjust the flame size by turning the knob between the maximum and minimum flame positions.
Image: A hand demonstrating the action of turning a control knob to ignite or adjust the flame.
5.3. Using the WOK Burner
The triple crown WOK burner provides high intensity heat, ideal for stir-frying and rapid cooking. Ensure you use a wok or large pan suitable for this burner.
Image: A person actively cooking with a large wok on the central triple crown burner, demonstrating its use for high-heat cooking.
5.4. Turning Off a Burner
To turn off a burner, turn the control knob clockwise until it clicks into the "off" position (small dot symbol). Ensure the flame is completely extinguished.
6. Maintenance and Cleaning
Regular cleaning and maintenance will ensure the longevity and optimal performance of your gas hob. Always ensure the hob is cool and disconnected from the gas and electrical supply before cleaning.
6.1. Cleaning the Stainless Steel Surface
- Use a soft cloth and mild detergent or a specialized stainless steel cleaner.
- Avoid abrasive cleaners, scouring pads, or harsh chemicals that can scratch the surface.
- Wipe in the direction of the grain to prevent streaks.
6.2. Cleaning the Cast Iron Grates and Burner Components
- Remove the grates and burner caps/crowns.
- Wash them with warm soapy water. For stubborn stains, a non-abrasive brush can be used.
- Ensure all components are completely dry before reassembling them to prevent ignition issues.
- Periodically check burner holes for blockages and clean them if necessary.
7. Troubleshooting
Before contacting customer support, please refer to the following common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Burner does not ignite. | No gas supply, clogged burner holes, wet burner components, faulty igniter. | Check gas supply. Clean burner holes. Ensure components are dry. Contact technician if igniter is faulty. |
| Flame is irregular or yellow. | Clogged burner holes, incorrect gas type, improper air mixture. | Clean burner holes. Verify correct gas type and pressure. Contact technician for air mixture adjustment. |
| Gas smell detected. | Gas leak, loose connection. | Immediately turn off gas supply, ventilate area, do not operate electrical switches. Contact a qualified technician immediately. |
| Knobs get hot during use. | Large cookware covering the control panel area. | Use cookware appropriate for the burner size and ensure it does not overhang the control panel excessively. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Cecotec |
| Model Number | A01_EU01_100197 |
| Product Dimensions | 50 x 75 x 10 cm |
| Weight | 11.37 kg |
| Number of Burners | 5 |
| Total Power Output | 11 kW |
| Burner Types & Power | 1x WOK (3.5 kW), 1x Large (3 kW), 2x Medium (1.75 kW), 1x Small (1 kW) |
| Surface Material | Stainless Steel |
| Grate Material | Cast Iron |
| Ignition Type | Electronic |
| Safety Feature | Valve Safety System (Flame Failure Device) |
| Fuel Type | Natural Gas (LPG conversion kit included) |
| Country of Origin | Spain |
9. Warranty and Support
Your Cecotec Bolero Squad G 5200F Inox Gas Hob comes with a standard manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation included with your purchase or visit the official Cecotec website.
For technical support, spare parts, or service requests, please contact Cecotec customer service. Keep your purchase receipt and model number (A01_EU01_100197) readily available when contacting support.
Returns Policy: If you wish to return a product within 30 days of receipt because you have changed your mind, please consult the return policy on the platform where you made the purchase. If you have received a defective or damaged product, please refer to the specific help page for defective or damaged items.
For more information, you can visit the Cecotec Store on Amazon.
