Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your Sunjoy 12x20 ft. Wood Gazebo. Please read all instructions carefully before beginning assembly and retain this manual for future reference. This gazebo is designed to enhance your outdoor living space, offering shade and protection from various weather conditions.
The gazebo features a durable brown steel 2-tier roof and a premium cedar wood frame. It is engineered to withstand wind speeds of up to 50 MPH and support a snow load capacity of up to 3,800 lbs across the entire roof. Built-in ceiling hooks are provided for suspending lighting or other decorative items, and a dual rail system allows for easy installation of mosquito netting and privacy curtains (sold separately).
Image: The Sunjoy 12x20 ft. Wood Gazebo, showcasing its spacious design and elegant appearance in an outdoor patio setting.
Setup and Assembly
Assembly of the Sunjoy 12x20 ft. Wood Gazebo requires careful attention to detail. It is recommended to have at least two people for assembly. All necessary hardware and tools are included. Follow the step-by-step instructions provided in the assembly guide.
Assembly Video Guide
Video: An easy step-by-step assembly guide for the 12x20 ft. Wood Gazebo, demonstrating each stage of construction.
Key Assembly Steps:
- Post Assembly: Securely attach the base plates to the cedar wood posts using the provided screws and brackets.
- Beam Assembly: Connect the wooden beams using the metal plates and bolts, ensuring all connections are tight.
- Frame Erection: Carefully raise the assembled posts and beams to form the main structure. Ensure the frame is level and square before proceeding.
- Roof Frame Installation: Attach the metal roof frame components to the main wooden structure. This includes the outer perimeter and the central support system.
- Roof Panel Installation: Install the individual metal roof panels, starting from the lower tier and working upwards. Ensure panels overlap correctly for weather resistance.
- Upper Roof Tier Assembly: Construct and attach the smaller, upper roof tier, which provides ventilation.
- Final Securing: Double-check all bolts, screws, and connections for tightness. Anchor the gazebo securely to a stable foundation using the provided stakes or appropriate hardware for your surface.
Image: A close-up view highlighting the premium cedar wood frame and its reinforced construction, emphasizing strength and stability.
Image: An illustrative diagram detailing the frame construction, showing how the wooden components interlock for structural integrity.
Operating the Gazebo
Your Sunjoy gazebo is designed for permanent outdoor use, providing a sheltered area for relaxation and entertainment. No specific operational steps are required beyond its initial setup.
Features for Enhanced Use:
- Ceiling Hooks: Utilize the sturdy ceiling hooks to hang outdoor lighting, fans, or decorative elements. Ensure any suspended items do not exceed the weight limit specified in the product specifications.
- Dual Rail System: The integrated dual rail system allows for the addition of mosquito netting or privacy curtains (sold separately). These can be easily installed and adjusted to provide protection from insects or enhance privacy.
- Ventilated Two-Tier Roof: The two-tier roof design promotes airflow, reducing heat buildup and increasing stability in windy conditions.
Image: A detailed view of the two built-in ceiling hooks, illustrating their use for hanging various items like a chandelier or hanging basket.

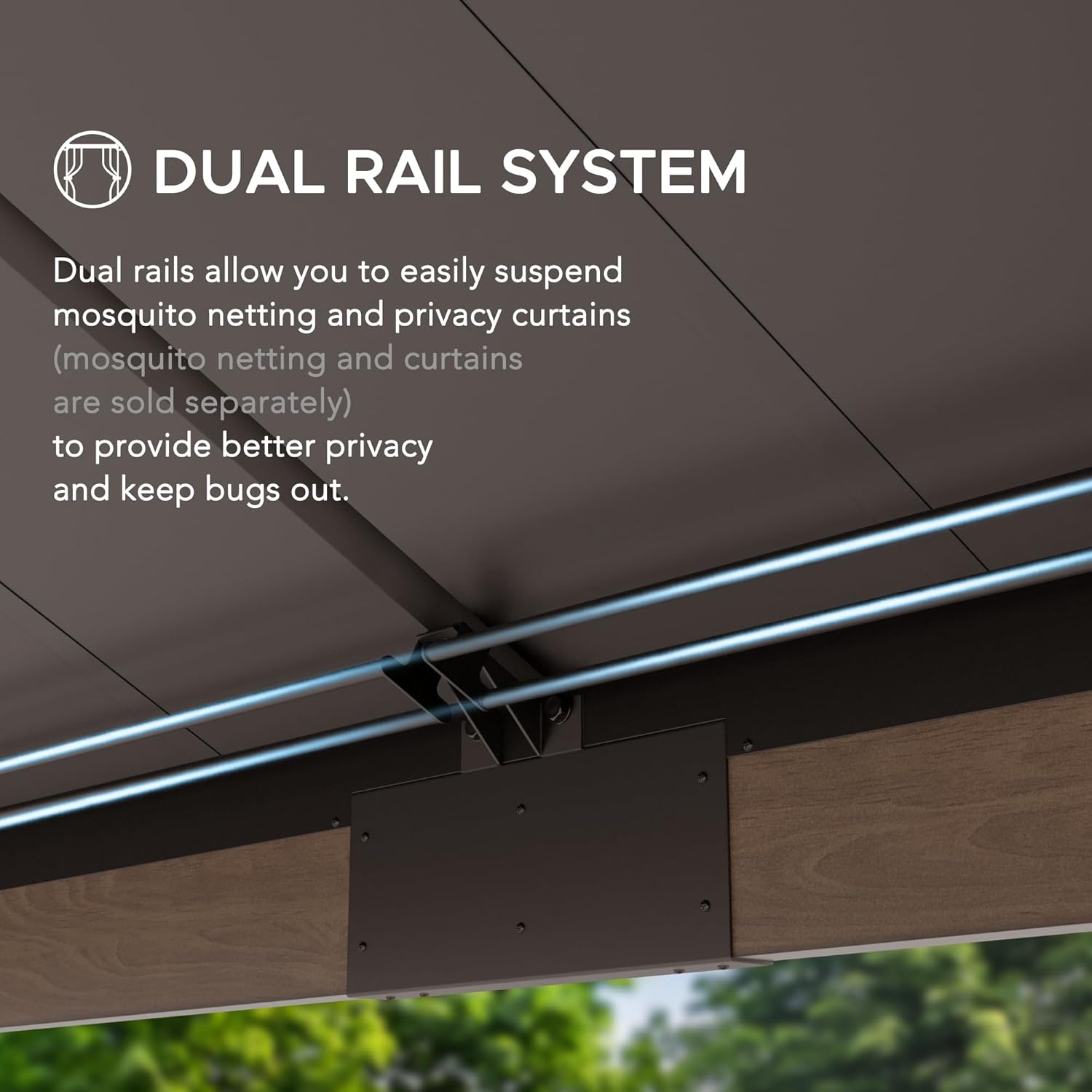

Image: A close-up of the built-in dual rail system, designed for easily suspending mosquito netting or privacy curtains.
Maintenance
Regular maintenance will prolong the life and appearance of your Sunjoy gazebo.
Wood Frame Care:
- Inspect the wood frame annually for any signs of wear, cracks, or insect damage.
- Clean the wood with a mild soap and water solution. Avoid harsh chemicals that may damage the finish.
- Apply a wood sealant or stain every 1-2 years, or as needed, to protect against UV rays and moisture.
Metal Roof Care:
- Periodically clean the metal roof panels to remove leaves, debris, and dirt. A soft brush and water are usually sufficient.
- Check for any loose screws or connections on the roof panels and tighten as necessary.
- In areas with heavy snowfall, it is recommended to clear excessive snow accumulation from the roof to prevent structural strain, although the roof is rated for up to 3,800 lbs.
General Maintenance:
- Regularly check all bolts and screws throughout the entire structure and tighten if loose.
- Ensure the gazebo remains securely anchored to its foundation, especially after strong winds.
- Keep the area around the gazebo clear of obstructions and ensure proper drainage to prevent water accumulation around the posts.

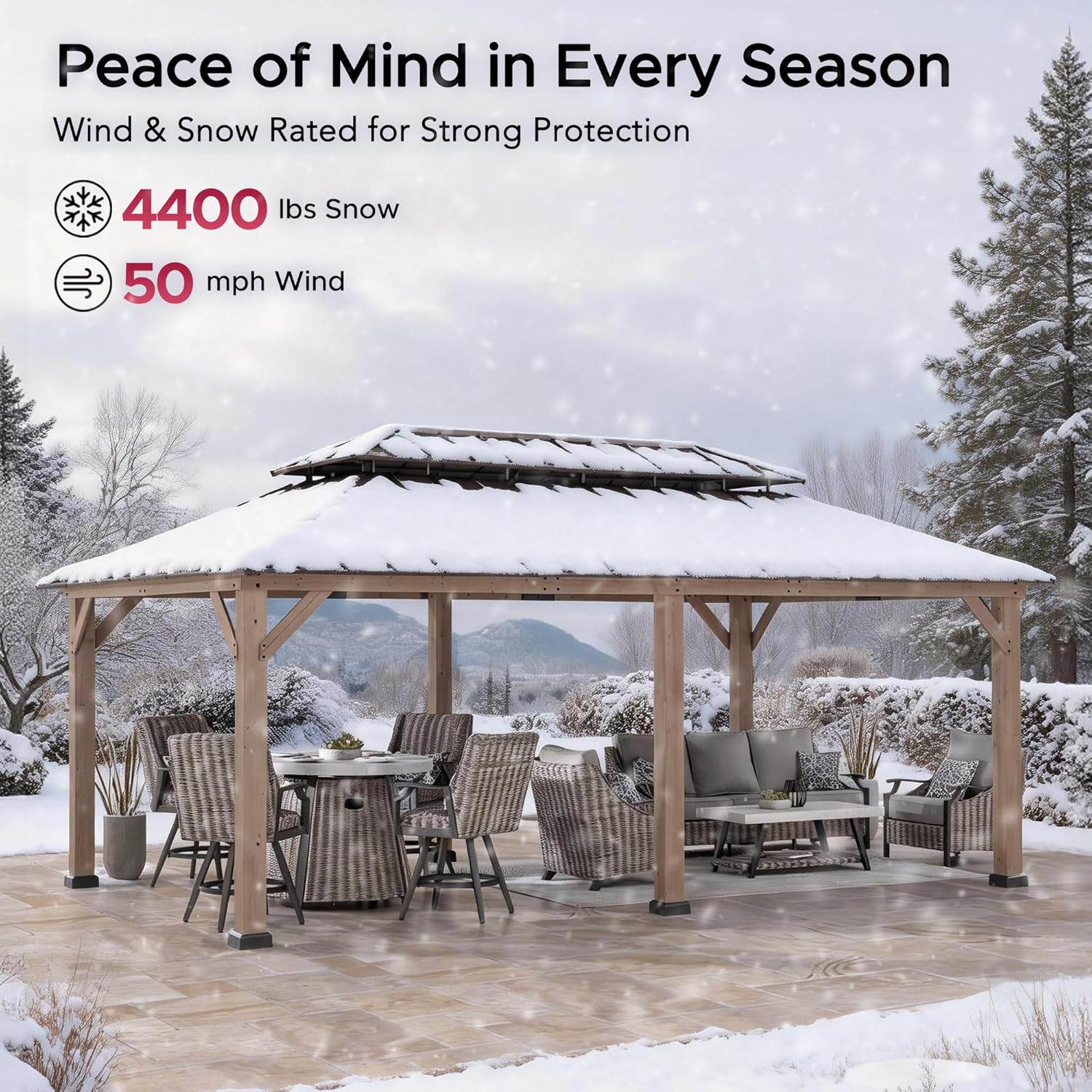

Image: The gazebo standing strong under a layer of snow, demonstrating its wind and snow protection capabilities (rated for 4400 lbs snow and 50 mph wind).
Troubleshooting
If you encounter any issues with your gazebo, refer to the following common troubleshooting tips:
- Wobbling or Instability:
- Check all connections: Ensure all bolts and screws are securely tightened. Over time, vibrations or weather changes can cause fasteners to loosen.
- Verify anchoring: Confirm that the gazebo is properly anchored to the ground. If using stakes, ensure they are fully driven into stable soil. For concrete, check anchor bolts. - Leaking Roof:
- Inspect roof panels: Check for any gaps between panels or loose screws. Ensure panels are correctly overlapped and sealed.
- Clear debris: Accumulated leaves or debris can block water runoff, leading to leaks. Clean the roof and gutters regularly. - Difficulty with Assembly:
- Review instructions: Double-check the illustrated assembly instructions for any missed steps or incorrect part orientations.
- Identify parts: Ensure you are using the correct parts for each step, as indicated by part numbers. - Damaged Parts:
- If any parts arrive damaged or become damaged during assembly, contact Sunjoy customer service for assistance.
Specifications
| Feature | Detail |
|---|---|
| Brand | Sunjoy |
| Model | 12 x 20 ft. Wood Gazebo |
| Material | Wood (Cedar Frame), Steel (Roof) |
| Product Dimensions (L x W x H) | 236.22 in. L x 141.73 in. W x 122.83 in. H (approx. 19.69 ft L x 11.81 ft W x 10.24 ft H) |
| Item Weight | 539.69 lbs |
| Roof Type | 2-Tier Metal Hardtop |
| Wind Resistance | Up to 50 MPH |
| Snow Load Capacity | Up to 3,800 lbs |
| Assembly Required | Yes |
| Water Resistance Level | Water Resistant |
| Occupancy | 4 Person (as per specification, but actual capacity may vary based on furniture arrangement) |
Image: A comprehensive diagram illustrating the precise dimensions of the gazebo, including length, width, and height measurements.
Warranty and Support
Sunjoy stands by the quality of its products. While specific warranty details are not provided in the product information, Sunjoy offers an experienced customer service team ready to answer any questions that may arise regarding your gazebo. For support, please refer to the contact information provided with your purchase or visit the official Sunjoy website.
It is important to follow all assembly and maintenance instructions to ensure the longevity of your product and to maintain any potential warranty coverage.
