1. Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Ice-O-Matic Commercial Ice Storage Bin, Model B40PS. Please read this manual thoroughly before installation and operation. Keep this manual for future reference.
The Ice-O-Matic B40PS is a commercial-grade ice storage bin designed to hold ice produced by a compatible modular ice maker (sold separately). This unit does not produce ice.
2. Safety Information
WARNING: Failure to follow these safety instructions could result in serious injury or property damage.
- Always disconnect power to the connected ice maker before performing any service or maintenance on the ice bin.
- This ice bin is designed for commercial use. Ensure it is installed and maintained by qualified personnel in accordance with local codes and regulations.
- Do not store flammable or explosive materials in or near the ice bin.
- Ensure the bin is placed on a level, stable surface capable of supporting its weight when full of ice.
- Keep hands and foreign objects out of the ice storage area to prevent contamination or injury.
- This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
3. Product Overview
The Ice-O-Matic B40PS is a robust ice storage solution for commercial environments. It features a durable construction and a design optimized for easy access and hygiene.
3.1 Key Features
- High Storage Capacity: 344 lb ice storage capacity.
- Compact Dimensions: 30"W x 31"D x 37.5"H, designed for efficient space utilization.
- Easy Access Design: Top-hinged, slope front door for convenient ice retrieval.
- Durable Construction: Polyethylene interior for easy cleaning and an aluminum exterior for longevity.
- Sturdy and Hygienic: Equipped with 6-inch adjustable legs for stability and NSF certification for sanitation standards.
3.2 Components

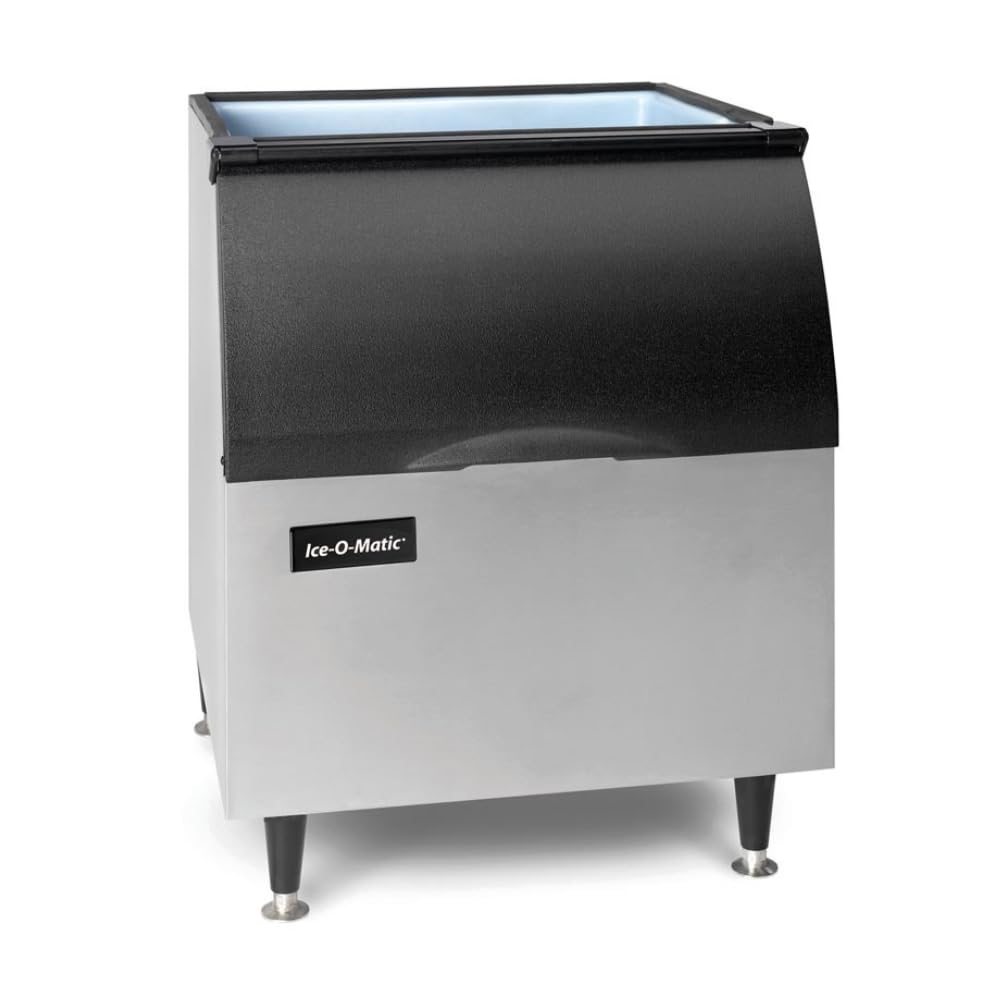

Figure 1: Ice-O-Matic B40PS Commercial Ice Storage Bin. This image shows the overall appearance of the ice storage bin, highlighting its compact design and front access door.
Figure 2: Dimensions of the Ice-O-Matic B40PS Ice Bin. This image illustrates the width (30"), depth (31"), and height (37.5") of the unit, including the 6-inch legs.
Figure 3: Close-up of the adjustable 6-inch legs. These legs provide stability and allow for proper cleaning underneath the unit, meeting hygiene standards.
4. Setup and Installation
Proper installation is crucial for the performance and longevity of your ice bin. This bin must be paired with a compatible modular ice maker.
- Unpacking: Carefully remove the ice bin from its packaging. Inspect for any shipping damage. Report any damage immediately to the carrier and your dealer.
- Location:
- Choose a location that is level and can support the combined weight of the bin, ice maker, and full ice load.
- Ensure adequate clearance around the unit for air circulation and maintenance.
- Avoid direct sunlight or heat sources, which can increase ice melt.
- Leveling: Use a level to ensure the bin is perfectly level. Adjust the 6-inch legs as needed. Proper leveling is essential for the ice maker to function correctly when mounted on top.
- Drain Connection: Connect the bin's drain to an open, indirect drain line. Ensure there is a continuous downward slope for proper drainage of melted ice. Do not create a sealed connection.
- Ice Maker Installation: Follow the specific installation instructions provided with your modular ice maker for mounting it securely on top of the ice bin. Ensure a proper seal between the ice maker and the bin to prevent air leakage and ice melt.
5. Operating Instructions
The Ice-O-Matic B40PS is a passive ice storage unit. Its operation is directly tied to the modular ice maker installed on top.
- Initial Use: Before first use, clean the interior of the ice bin according to the "Cleaning and Sanitation" section.
- Ice Production: Once the compatible ice maker is installed and operational, it will automatically drop ice into the bin.
- Ice Retrieval: Open the top-hinged, slope front door to access the ice. Use a clean ice scoop to retrieve ice. Close the door immediately after use to maintain ice quality and minimize melt.
- Monitoring Ice Level: Periodically check the ice level. The ice maker will typically have a sensor to stop production when the bin is full.
6. Maintenance
Regular maintenance ensures optimal performance and hygiene of your ice storage bin.
6.1 Daily Maintenance
- Visually inspect the interior for cleanliness.
- Ensure the drain is clear and free of obstructions.
6.2 Weekly/Bi-Weekly Cleaning and Sanitation
The frequency of cleaning depends on usage and environmental conditions. For commercial settings, more frequent cleaning may be required.
- Empty the Bin: Remove all ice from the bin.
- Clean Interior:
- Prepare a cleaning solution using a mild, food-safe detergent and warm water.
- Wipe down all interior surfaces, including the walls, bottom, and the underside of the lid.
- Pay attention to corners and crevices where debris might accumulate.
- Rinse: Thoroughly rinse all cleaned surfaces with clean water to remove all detergent residue.
- Sanitize:
- Prepare a sanitizing solution according to the manufacturer's instructions (e.g., a diluted bleach solution or commercial sanitizer).
- Apply the sanitizing solution to all interior surfaces and allow it to air dry, or follow the sanitizer's specific contact time and rinsing instructions.
- Clean Exterior: Wipe down the exterior surfaces with a damp cloth and mild detergent. Dry thoroughly.
- Check Drain: Ensure the drain is completely clear and functioning properly.
NOTE: Always use clean cloths and follow proper hygiene practices when cleaning the ice bin.
7. Troubleshooting
This section addresses common issues related to the ice storage bin. For issues related to ice production, refer to your ice maker's manual.
| Problem | Possible Cause | Solution |
|---|---|---|
| Excessive ice melt in bin. |
|
|
| Water pooling at the bottom of the bin. |
|
|
| Unpleasant odor or mold in the bin. |
|
|
8. Specifications
| Attribute | Value |
|---|---|
| Brand | Ice-O-Matic |
| Model Number | B40PS |
| Storage Capacity | 344 lbs |
| Product Dimensions (D x W x H) | 31" x 30" x 37.5" |
| Material | Polyethylene interior, Aluminum exterior |
| Item Weight | 103 pounds |
| Legs | 6-inch adjustable |
| Certification | NSF |
9. Warranty and Support
For warranty information and technical support, please refer to the documentation provided with your purchase or visit the official Ice-O-Matic website. Keep your purchase receipt as proof of purchase for warranty claims.
Contact Information: For specific support inquiries, please contact Ice-O-Matic customer service directly. Contact details can typically be found on the manufacturer's website or in your product's original packaging.
