1. Introduction
This manual provides essential information for the safe and efficient use of your Elica NikolaTesla Alpha B induction hob with an integrated extractor fan. Please read these instructions carefully before installation, operation, or maintenance, and keep them for future reference.
The Elica NikolaTesla Alpha B is designed for modern kitchens, featuring four induction cooking zones and a 60 cm width for efficient cooking. Its innovative Autocapture function automatically adjusts the extractor fan's power for effective fume removal. The appliance is finished with elegant black glass.
2. Safety Information
General Safety:
- This appliance is intended for domestic use only.
- Installation and electrical connection must be performed by a qualified technician in accordance with local regulations.
- Do not allow children to play with the appliance. Keep packaging materials away from children.
- Ensure the power supply voltage matches the rating plate on the appliance.
- Do not operate the appliance if it is damaged or malfunctioning. Contact authorized service personnel.
Induction Hob Safety:
- Do not place metallic objects such as knives, forks, spoons, or lids on the hob surface, as they can become hot.
- Avoid overheating oils and fats, as they can ignite.
- Do not use the hob as a work surface.
- Persons with pacemakers or similar medical implants should consult their doctor before using induction hobs.
Extractor Fan Safety:
- Ensure adequate ventilation in the room when the extractor fan is used simultaneously with gas or other fuel-burning appliances.
- Clean grease filters regularly to prevent fire hazards.
- Do not flambé under the extractor hood.
3. Product Overview
The Elica NikolaTesla Alpha B combines an induction cooktop with an integrated downdraft extractor system. It features four independent induction cooking zones and a central extraction grille.

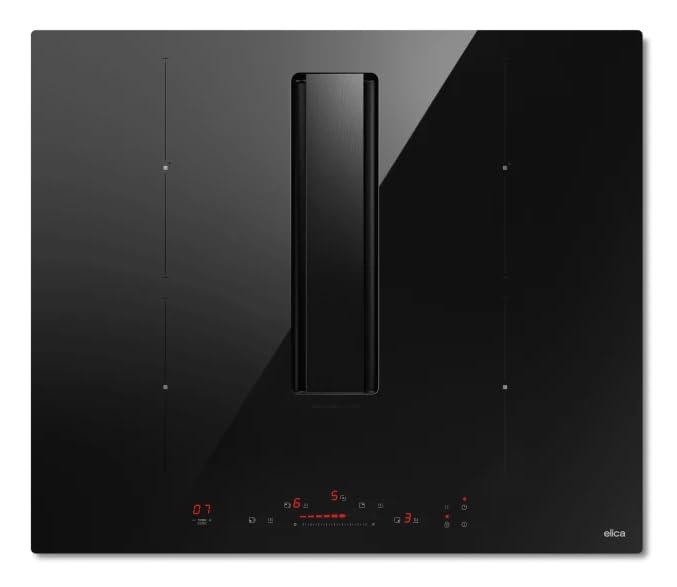

Image 1: Elica NikolaTesla Alpha B Induction Hob with Integrated Extractor Fan.
Key Features:
- Induction Cooking Zones: Four high-efficiency cooking zones with various power levels.
- Integrated Extractor Fan: Central downdraft system for efficient fume and odor removal.
- Autocapture Function: Automatically adjusts extraction power based on cooking intensity.
- Touch Controls: Intuitive touch-sensitive controls for both hob and extractor functions.
- Black Glass Finish: Durable and easy-to-clean ceramic glass surface.
4. Setup and Installation
Installation of the Elica NikolaTesla Alpha B must be carried out by a qualified and authorized technician, strictly following the provided installation template and local electrical and ventilation regulations.
Key Installation Considerations:
- Cabinet Cut-out: Ensure the kitchen cabinet has the correct dimensions for the appliance.
- Electrical Connection: The appliance requires a dedicated electrical circuit. Verify the voltage and frequency match the appliance's specifications.
- Ventilation System: The extractor fan can be configured for ducted (external exhaust) or recirculating (filter-based) operation. Ensure proper ducting or charcoal filter installation as per the chosen mode.
- Clearance: Maintain adequate clearance from adjacent walls and overhead cabinets as specified in the detailed installation guide (not included in this general manual).
After installation, perform a test run to ensure all functions operate correctly.
5. Operating Instructions
Turning On/Off the Hob:
- Touch the main power symbol to turn on the hob. The display will show '0' for each cooking zone.
- To turn off, touch the main power symbol again.
Selecting a Cooking Zone and Adjusting Power:
- Place suitable cookware on the desired cooking zone.
- Select the cooking zone by touching its corresponding control.
- Adjust the power level using the '+' and '-' symbols or the slider control for that zone. Power levels typically range from 1 (low) to 9 (high), with a Boost function for maximum power.
Using the Extractor Fan:
- Manual Operation: Touch the fan symbol to turn on the extractor. Adjust the fan speed using the '+' and '-' symbols or the slider control.
- Autocapture Function: Activate the Autocapture function by touching its dedicated symbol. The system will automatically detect the cooking intensity and adjust the extraction power accordingly. To deactivate, touch the Autocapture symbol again or manually adjust the fan speed.
Suitable Cookware:
- Use cookware made of ferromagnetic material (cast iron, enameled steel, stainless steel suitable for induction, or aluminum with a ferromagnetic base).
- The base of the cookware should be flat and cover the cooking zone adequately.
- A small magnet should stick to the bottom of the pan if it is suitable for induction.
6. Maintenance and Cleaning
Regular maintenance ensures optimal performance and extends the lifespan of your appliance.
Cleaning the Hob Surface:
- Always ensure the hob is cool before cleaning.
- Wipe the glass surface with a soft cloth and a mild detergent or a specialized ceramic hob cleaner.
- For stubborn stains, use a ceramic hob scraper, holding it at a shallow angle.
- Rinse with clean water and dry thoroughly to avoid streaks.
- Do not use abrasive cleaners, scouring pads, or harsh chemicals.
Cleaning/Replacing Grease Filters:
- The metallic grease filters should be cleaned regularly (approximately every 2-4 weeks of normal use) to maintain extraction efficiency and prevent fire hazards.
- Refer to the detailed product manual for instructions on how to remove the filters.
- Filters can be washed by hand with hot water and mild detergent or in a dishwasher at a low temperature.
- Ensure filters are completely dry before re-installing.
Cleaning/Replacing Charcoal Filters (for Recirculating Mode):
- If your appliance is set up for recirculating mode, it uses activated charcoal filters to remove odors. These filters cannot be washed and must be replaced periodically (typically every 3-6 months, depending on usage).
- Refer to the detailed product manual for instructions on how to access and replace the charcoal filters.
7. Troubleshooting
Before contacting service, please check the following common issues:
| Problem | Possible Cause | Solution |
|---|---|---|
| Hob does not turn on. | No power supply; child lock activated. | Check circuit breaker; deactivate child lock (refer to full manual for specific instructions). |
| Induction zone not heating. | Unsuitable cookware; cookware not centered; small diameter cookware. | Use induction-compatible cookware; center cookware; use cookware with appropriate base diameter. |
| Extractor fan not working effectively. | Grease filters clogged; charcoal filters saturated (recirculating mode); fan speed too low. | Clean grease filters; replace charcoal filters; increase fan speed. |
| Display shows an error code (e.g., 'E' followed by numbers). | Specific internal fault or operational issue. | Note the error code and consult the detailed manual or contact customer support. Try resetting the appliance by turning off power for a few minutes. |
8. Specifications
The following specifications are for the Elica NikolaTesla Alpha B model PRF0196211:
| Feature | Detail |
|---|---|
| Brand | Elica |
| Model Number | PRF0196211 |
| Power | 7400 Watts |
| Item Weight | 20.67 Kilograms |
| Country of Origin | France |
| Number of Cooking Zones | 4 Induction Zones |
| Integrated Extractor | Yes, with Autocapture function |
9. Warranty and Support
For warranty information, please refer to the documentation provided with your purchase or visit the official Elica website. In case of technical issues or if you require spare parts, please contact Elica customer support or an authorized service center. Always provide the model number (PRF0196211) and serial number of your appliance when seeking assistance.
