KMINA Ergonomic and Adjustable 4-Leg Walking Stick Instruction Manual

1. Introduction

The KMINA Ergonomic 4-Legged Walking Stick is designed to offer maximum comfort and stability for individuals requiring additional assistance with walking. Its anatomical and ergonomic rubber handle provides a secure grip, minimizing stress on hands and wrists. The four-legged base, equipped with non-slip tips, ensures superior stability and resistance to tipping on various surfaces. This design promotes balanced support, making it ideal for elderly individuals or those with reduced mobility. The cane is fully adjustable in height and can be adapted for both left- and right-handed users, ensuring a personalized fit. Constructed from robust materials, it supports up to 160 kg, guaranteeing durability and reliability for daily use.

Key Features

• Ergonomics and Comfort: The high-quality rubber grip conforms to the hand's shape, reducing tension and providing a secure, comfortable hold.
• Increased Strength and Stability: Features 4 anti-slip ferrules (2 wide and 2 narrow) for excellent resistance to tipping and a stable base on all surfaces. Optimal weight distribution ensures a stable and safe walk.
• Versatile Adjustment: An easy adjustment clip system allows adaptation for right or left-hand use. Height is fully adjustable to suit the user's exact requirements.
• Uniform Pressure Distribution: The anatomical handle evenly distributes pressure across the palm, enhancing support and comfort.
• Awarded and Patented Design: A strong and durable cane, made with high-quality materials supporting up to 160 kg. Its patented design has received the CLAP prize for innovation in mobility aids.

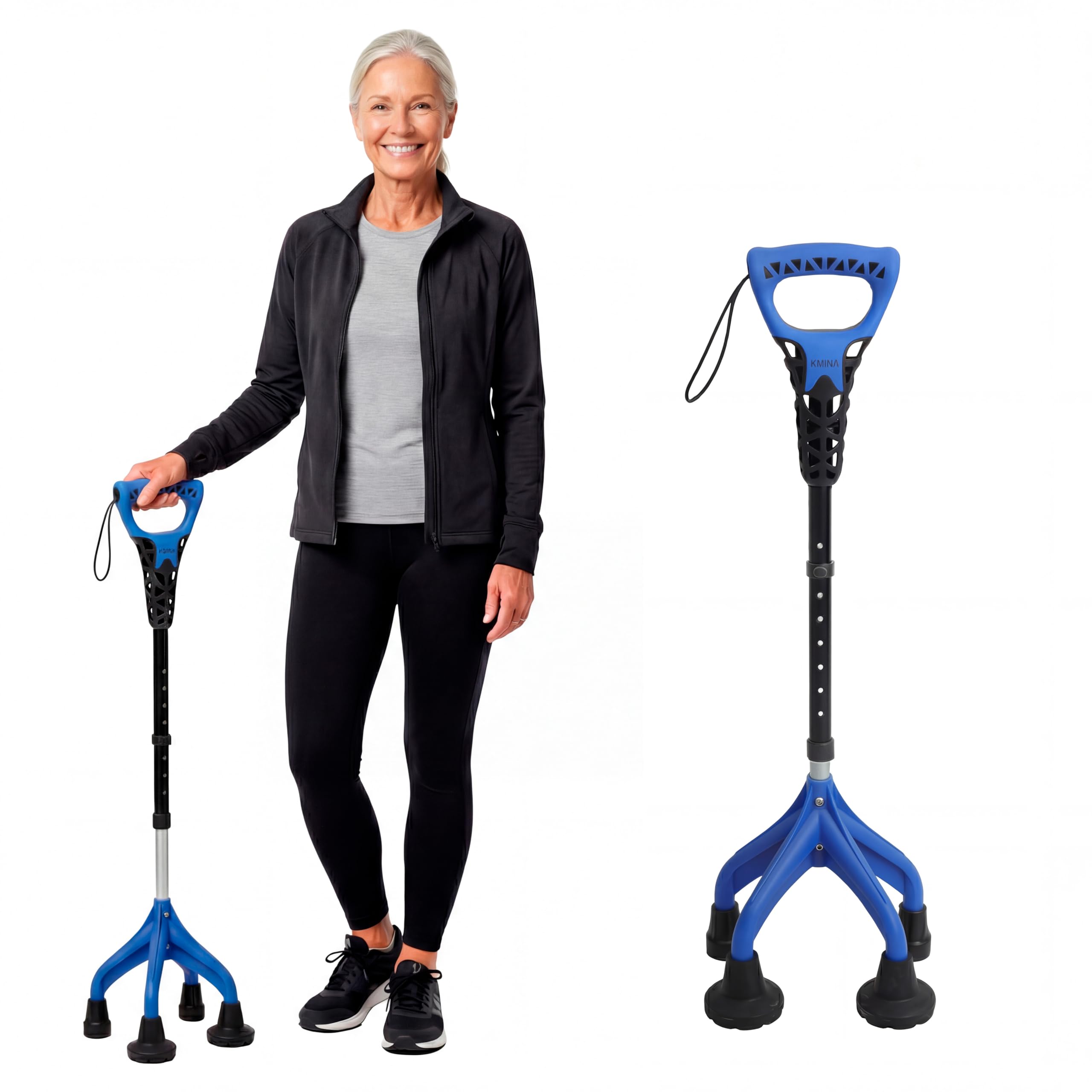

Figure 1: The KMINA Ergonomic 4-Leg Walking Stick, highlighting its award-winning and patented design.

2. Assembly and Initial Setup

2.1. Adjusting Height

To adjust the height of your KMINA walking stick, locate the adjustment clip on the shaft. Press the clip to release the locking pin, then slide the upper section of the cane up or down to your desired height. Ensure the locking pin securely clicks into one of the adjustment holes. The correct height allows your elbow to be slightly bent (approximately 15-20 degrees) when holding the handle with the cane tip flat on the floor.

Figure 2: Adjusting the cane's height by pressing the clip and sliding the shaft until it clicks into place.

2.2. Adapting for Left or Right Hand Use

The KMINA walking stick can be easily adapted for use in either the left or right hand. The handle's orientation can be changed by rotating the upper shaft section. Ensure the wider part of the handle faces forward, aligning with the direction of your stride, for optimal comfort and support. The base should be positioned to provide maximum stability for your preferred side.

Figure 3: The cane can be adjusted for comfortable use with either the left or right hand.

3. Proper Use

3.1. Proper Walking Technique

When walking with the KMINA 4-leg walking stick, hold it on the side opposite to your weaker leg. Move the cane forward simultaneously with your weaker leg, then step through with your stronger leg. Maintain an upright posture, looking forward, not down at your feet. Ensure the cane's base is fully on the ground before applying weight.

Figure 4: Illustration of correct (left) and incorrect (right) posture when using the walking stick.

3.2. Ergonomic Grip

The ergonomic handle is designed to fit comfortably in your palm, distributing pressure evenly and reducing strain on your wrist and hand. Grip the handle firmly but not too tightly. The integrated strap can be used to secure the cane to your wrist, preventing accidental drops.

Figure 5: The ergonomic handle provides a comfortable and secure grip.

3.3. Enhanced Stability

The 4-leg base provides superior stability compared to single-point canes. The anti-slip ferrules ensure excellent traction on various surfaces. Always ensure all four ferrules are in full contact with the ground before placing your weight on the cane to maximize stability and prevent slipping.

Figure 6: Detail of the stable 4-leg base with anti-slip ferrules.

4. Care and Maintenance

• Cleaning: Wipe the cane regularly with a damp cloth and mild soap. Avoid abrasive cleaners or solvents that could damage the materials. Dry thoroughly after cleaning.
• Ferrule Inspection: Periodically check the rubber ferrules (tips) on the base for wear and tear. Worn ferrules can reduce stability and increase the risk of slipping. Replace them if they show signs of significant wear or damage.
• Joints and Adjustments: Ensure all adjustment mechanisms and joints are clean and free of debris. Lubricate moving parts if necessary with a silicone-based spray, avoiding oil-based lubricants that can attract dirt.
• Storage: Store the walking stick in a dry place, away from extreme temperatures and direct sunlight, to prolong its lifespan.

5. Troubleshooting Common Issues

• Cane feels unstable:
  • Ensure all four ferrules are making full contact with the ground.
  • Check ferrules for wear; replace if worn or damaged.
  • Verify the height adjustment pin is fully engaged.
• Difficulty adjusting height:
  • Ensure the adjustment clip is fully pressed to release the locking pin.
  • Check for any debris or dirt obstructing the shaft. Clean if necessary.
• Handle feels uncomfortable:
  • Re-evaluate the cane's height adjustment. Incorrect height can lead to discomfort.
  • Ensure the handle is oriented correctly for your preferred hand (left or right).

6. Product Specifications

Figure 7: Key dimensions, weight, and load capacity of the KMINA walking stick.

7. Warranty Information

KMINA products are manufactured to high-quality standards. For specific warranty details regarding your KMINA Ergonomic and Adjustable 4-Leg Walking Stick, please refer to the warranty card included with your purchase or visit the official KMINA website. Keep your proof of purchase for any warranty claims.

8. Customer Support

If you have any questions, require assistance with setup, or encounter issues not covered in this manual, please contact KMINA customer support. Contact information can typically be found on the product packaging, the official KMINA website, or through your retailer.
