Introduction
The SUPERFLO ET-SG One-Piece Toilet is designed for modern bathrooms, offering a compact, egg-shaped bowl and an efficient 1.6 gallons per flush (GPF) siphon flush system. This manual provides essential information for the safe installation, proper operation, and routine maintenance of your new toilet. Please read these instructions thoroughly before beginning installation or use.
Safety Information
Always observe basic safety precautions when installing or servicing plumbing fixtures. Failure to do so may result in personal injury or property damage.
- Ensure the water supply is turned off before any installation or maintenance.
- Wear appropriate personal protective equipment, such as gloves and eye protection.
- Handle ceramic components with care to prevent chipping or breakage.
- If you are unsure about any step, consult a qualified plumber.
Package Contents
Verify that all components are present before beginning installation:
- One-Piece Toilet Bowl with Integrated Tank
- Soft-Close Toilet Seat
- Water Tank Internal Accessories (Fill Valve, Flush Valve)
- Wax Ring with Flange Bolts and Washers
Image: All-in-one package contents, including the toilet, soft-close seat, water tank accessories, and wax ring.
Specifications
| Model | ET-SG |
| Color | Green |
| Product Dimensions (D x W x H) | 26.38" x 17.32" x 25.98" |
| Material | Ceramic (Toilet), Plastic (Seat) |
| Item Weight | 119 Pounds |
| Installation Type | Floor Mounted |
| Rough-in | 12 inches |
| Flush System | 1.6 GPF Siphon Flush |
| Water Seal Size | 9" x 7" |
| Water Seal Height | 3" |
| Noise Level | ≤30dB (Silent Descent Design) |

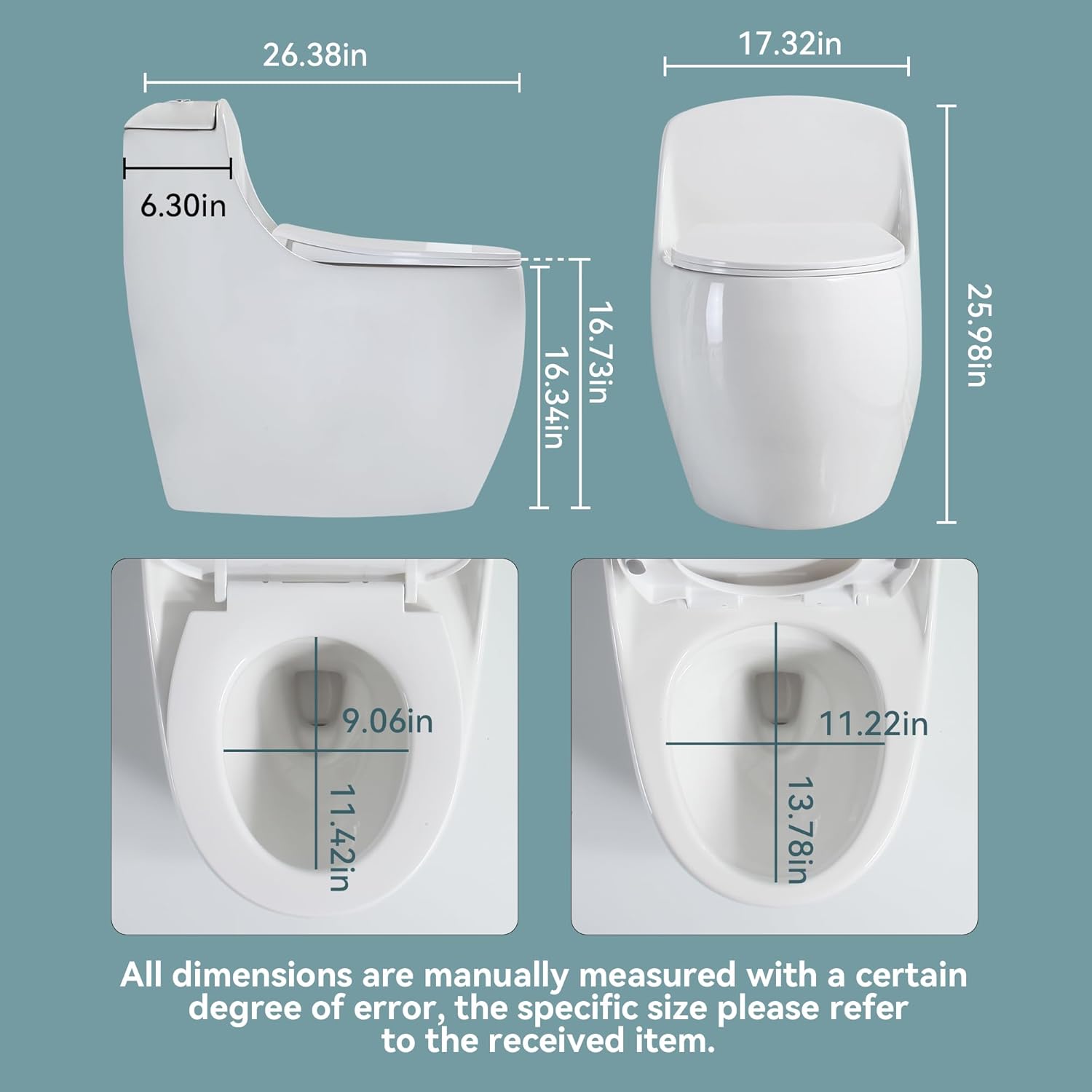

Image: Detailed dimensions of the toilet, including height, width, depth, and seat opening measurements.
Setup (Installation)
This toilet is designed for a standard 12-inch rough-in. Professional installation is recommended to ensure proper function and prevent leaks.
Required Tools (Not Included):
- Adjustable Wrench
- Screwdriver
- Level
- Measuring Tape
- Utility Knife
Installation Steps:
- Prepare the Area: Turn off the water supply to the bathroom. Remove the old toilet if applicable and clean the flange area thoroughly. Ensure the floor is level.
- Install Flange Bolts: Insert the flange bolts into the floor flange.
- Apply Wax Ring: Place the wax ring onto the toilet's waste outlet or directly onto the floor flange, ensuring it is centered.
- Set the Toilet: Carefully lower the toilet onto the flange bolts, aligning the bolt holes. Press down firmly and evenly to compress the wax ring. Do not rock the toilet.
- Secure the Toilet: Install washers and nuts onto the flange bolts. Hand-tighten first, then use a wrench to tighten evenly, alternating between bolts to prevent cracking the ceramic. Do not overtighten.
- Connect Water Supply: Connect the water supply line to the toilet's fill valve. Hand-tighten, then use a wrench for a final quarter-turn. Do not overtighten.
- Install Toilet Seat: Attach the soft-close toilet seat according to its specific instructions.
- Test for Leaks: Turn on the water supply slowly and check for any leaks around the base of the toilet and the water supply connection. Flush the toilet several times to ensure proper function.
Image: Internal diagram illustrating the 12-inch rough-in, large diameter water fittings, soft closing cover, and vortex siphon system.
Operating Instructions
Flushing the Toilet:
The SUPERFLO ET-SG features a powerful 1.6 GPF siphon flush system. To flush, simply press the flush button located on top of the tank. The siphon action ensures efficient waste removal with each flush.
Image: A hand pressing the single flush button on the toilet tank, demonstrating the 1.6 GPF powerful flushing system.
Image: Diagram showing the vortex siphon flushing action within the toilet bowl, indicating powerful washing and fast cleaning.
Soft-Close Toilet Seat:
The toilet is equipped with a soft-close seat and lid, designed to close slowly and quietly, preventing slamming and reducing wear. This feature also contributes to a quieter bathroom environment.

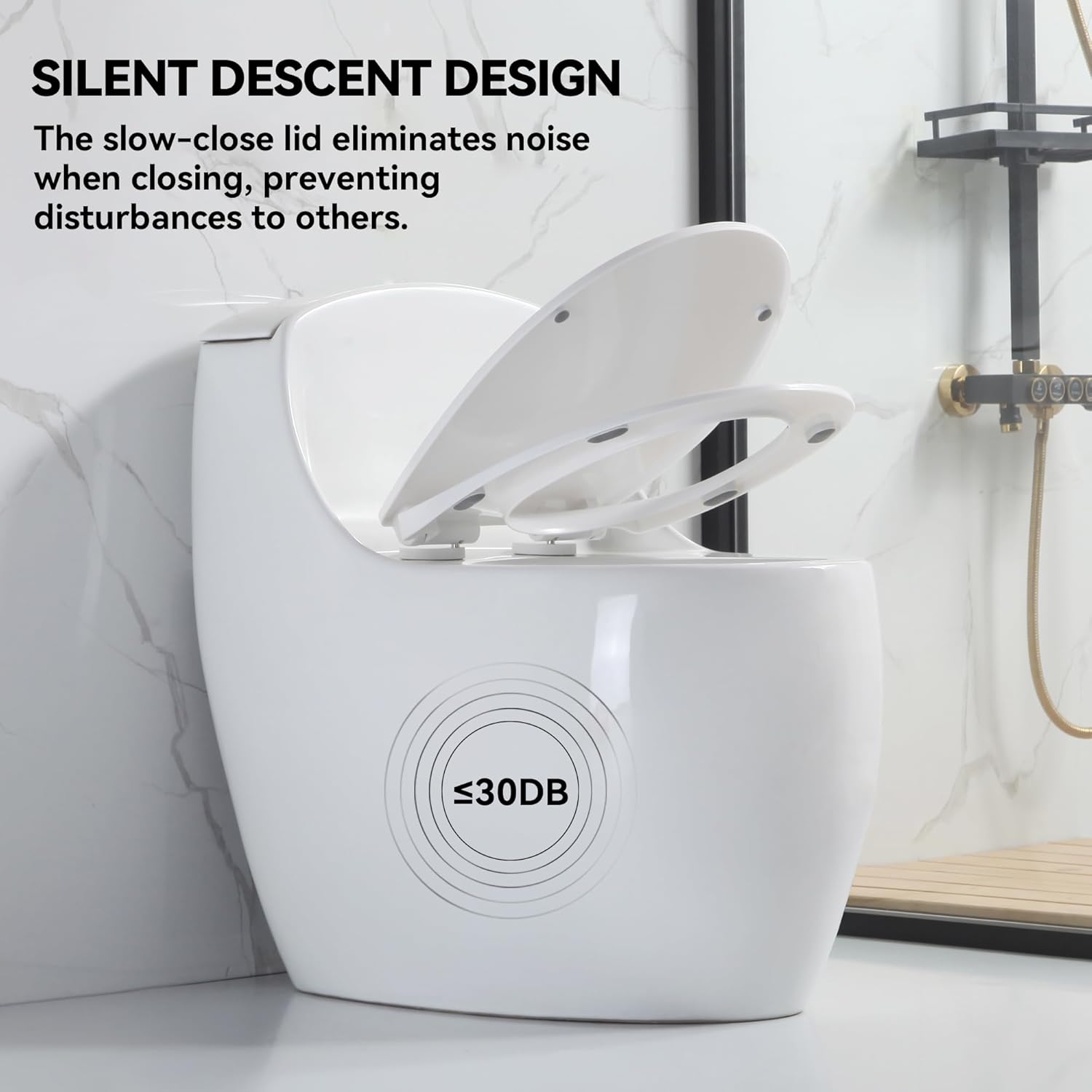

Image: The toilet with its lid slowly closing, highlighting the silent descent design which eliminates noise and prevents disturbances.
Ergonomic Design:
The egg-shaped toilet bowl and overall design are crafted for comfort and ease of use, suitable for various users.
Image: A silhouette of a person sitting on the toilet, illustrating the ergonomic armrest design for comfort and ease of use, including benefits for elderly, children, and ease of getting up.
Maintenance
Cleaning the Toilet:
Regular cleaning will maintain the appearance and hygiene of your toilet. Use mild, non-abrasive cleaners. Avoid harsh chemicals or abrasive pads that can damage the ceramic glaze or plastic seat.
Quick-Release Toilet Seat:
The toilet seat features a quick-release mechanism for easy removal, allowing for thorough cleaning of the seat and the ceramic area underneath.
- Locate the release buttons or tabs near the hinges of the toilet seat.
- Press the buttons or lift the tabs to disengage the seat from the mounting posts.
- Lift the seat straight up to remove.
- Clean the seat and toilet rim.
- To reattach, align the seat with the mounting posts and press down until it clicks into place.
Image: A close-up of hands demonstrating how to push buttons to easily disassemble the quick-release toilet seat for cleaning.
Water Seal:
The toilet features a 9"x7" water seal with a 3" height to prevent odors. Ensure the water level in the bowl is maintained for effective odor prevention.
Image: A cross-section diagram of the toilet illustrating the splash prevention design, showing the water seal size of 9"x7" and a water seal height of 3".
Troubleshooting
If you encounter issues with your SUPERFLO ET-SG toilet, refer to the common problems and solutions below:
- Weak Flush:
- Check if the water supply valve is fully open.
- Ensure the water level in the tank is at the recommended mark.
- Inspect the flush valve for any obstructions or damage.
- Toilet Runs Continuously:
- Check the flapper or flush valve for proper seating.
- Adjust the fill valve to ensure the water level is not too high, causing overflow into the flush valve.
- Inspect the fill valve for damage or debris.
- Leaks at the Base:
- Ensure the flange bolts are tightened evenly (do not overtighten).
- The wax ring may be improperly seated or damaged. This typically requires removing the toilet and replacing the wax ring.
- Leaks at Water Supply Connection:
- Tighten the connection (do not overtighten).
- Check the washer inside the supply line for proper seating or damage. Replace if necessary.
For persistent issues, please contact SUPERFLO customer support.
Warranty and Support
For warranty information or technical assistance, please contact SUPERFLO customer support. Keep your purchase receipt as proof of purchase.
Contact Information: Refer to the SUPERFLO official website or your purchase documentation for the most current contact details.
