Introduction
This manual provides essential information for the safe and efficient use of your Hitachi R-HWC62X N 617L French Door Refrigerator. Please read these instructions thoroughly before operating the appliance and retain them for future reference.

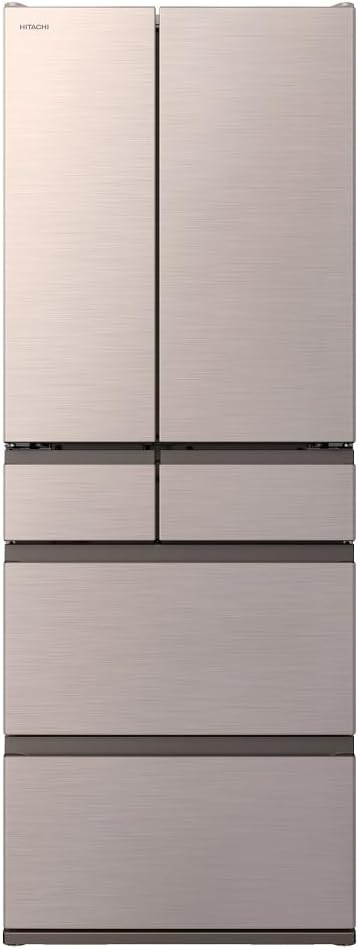

Front view of the Hitachi R-HWC62X N refrigerator, showcasing its six-door French door design and light gold finish.
Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury. This refrigerator is designed for household use only.
- Ensure the power cord is not damaged and is properly plugged into a grounded outlet.
- Do not store volatile or flammable materials inside the refrigerator.
- Keep ventilation openings clear of obstruction.
- Do not allow children to play with or inside the refrigerator.
- For repairs, contact qualified service personnel. Do not attempt to repair the appliance yourself.
Setup and Installation
Proper installation is crucial for the refrigerator's performance and longevity. Please adhere to the following guidelines:
Location Requirements
- Place the refrigerator on a firm, level floor.
- Avoid direct sunlight or heat sources.
- Ensure adequate ventilation around the unit.
Minimum Installation Space
To ensure proper cooling and energy efficiency, maintain the following minimum clearances:
- Width: 695 mm (at least 10mm wider than the unit's 685mm width)
- Depth: 740 mm
- Height: 1873 mm (at least 10mm higher than the unit's 1839mm height)
- Side Clearance: At least 0.5 cm on both sides.
- Top Clearance: At least 5 cm.
- Ensure sufficient space for door opening (90 degrees or more for each door).
Diagram illustrating the minimum required space for refrigerator installation, including clearances for width, depth, height, and door opening. This ensures proper ventilation and access.
Electrical Connection
Connect the refrigerator to a dedicated 100V, 50/60Hz grounded electrical outlet. Do not use extension cords or multi-plugs.
Operating Instructions
Your Hitachi R-HWC62X N refrigerator features advanced technologies for optimal food preservation and convenience.
Refrigerator Compartment: Whole Chilled (Marugoto Chilled)
The entire refrigerator compartment maintains a temperature of approximately 2°C, suppressing bacterial growth and extending food freshness. Moist air helps prevent drying and discoloration, even without plastic wrap.
The 'Whole Chilled' section of the refrigerator, maintaining approximately 2°C, designed to keep food fresh and moist without needing plastic wrap. This image shows various food items stored in the compartment.
Special Ice Temperature Room (Tokusen Hyon-on Room)
This dedicated compartment maintains a temperature of approximately -1°C, ideal for preserving meat and fish. It prevents drying and maintains flavor without fully freezing the items.
The 'Special Ice Temperature Room' set at approximately -1°C, ideal for preserving meat and fish without freezing, preventing dryness. The image displays various cuts of fresh meat and fish.

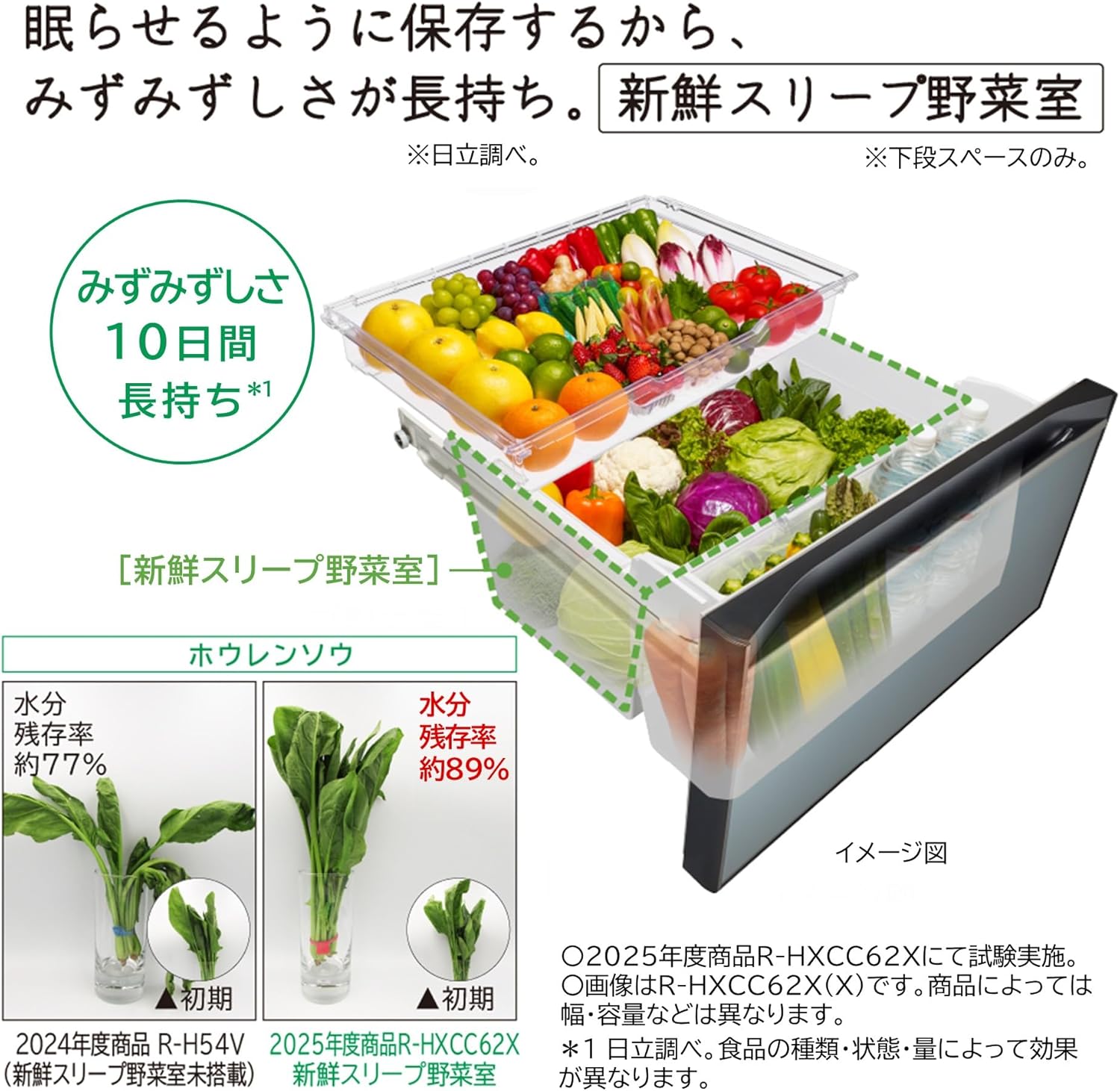

Fresh Sleep Vegetable Compartment (Shinsen Sleep Yasai-shitsu)
Located in the lower space, this compartment is designed to extend the freshness of vegetables for approximately 10 days by maintaining optimal humidity and temperature conditions.
The lower 'Fresh Sleep Vegetable Compartment' designed to extend the freshness of vegetables for up to 10 days by maintaining optimal humidity. The drawer is shown filled with a variety of fresh produce.
Freezer Compartment: Easy! Wide Freezing Plus (Rakuuma! Hiroin Reito Plus)
This 182L freezer features a 3-tier case for organized storage. The first tier includes a 'Delicious Freezing' aluminum tray for quick freezing, while the first and second tiers incorporate 'Frost Block' technology to minimize frost buildup.
The 'Easy! Wide Freezing Plus' freezer, featuring three tiers for organized storage, including a 'Delicious Freezing' aluminum tray and 'Frost Block' technology. Various frozen food items are visible.
Hitachi Refrigerator Concierge App
Manage your refrigerator's contents and food inventory using the dedicated smartphone app. Features include checking internal contents via camera, managing expiration dates, and receiving storage recommendations.
- Refrigerator Content Check: Take photos of your refrigerator's interior to easily track items.
- Food Management: Register food items and their expiration dates to receive notifications.
- Usage Concierge: Get recommendations for optimal storage locations and methods.
Note: The app is set to OFF by default at shipment. Turning it ON will increase power consumption.
The Hitachi Refrigerator Concierge App interface, demonstrating features like checking refrigerator contents via camera, managing food expiration dates, and receiving storage recommendations on a smartphone screen.
Maintenance
Regular cleaning and maintenance ensure optimal performance and hygiene of your refrigerator.
Cleaning the Interior
- Unplug the refrigerator before cleaning.
- Wipe interior surfaces with a soft cloth dampened with mild detergent and warm water.
- Rinse with clean water and dry thoroughly.
- Remove shelves and drawers for separate cleaning if necessary.
Cleaning the Exterior
- Wipe exterior surfaces with a soft cloth and mild detergent.
- Avoid abrasive cleaners or solvents that may damage the finish.
Condenser Coils
Periodically clean the condenser coils at the back or bottom of the refrigerator to maintain energy efficiency. Refer to the full instruction manual for detailed steps.
Troubleshooting
Before contacting service, please check the following common issues:
| Problem | Possible Cause | Solution |
|---|---|---|
| Refrigerator not cooling | Power cord unplugged; thermostat set too high; door left open; excessive food load. | Check power connection; adjust temperature setting; ensure door is closed; reduce food load. |
| Unusual noise | Refrigerator not level; items vibrating inside; normal operating sounds (e.g., refrigerant flow). | Adjust leveling feet; rearrange items; normal sounds are not a fault. |
| Water leakage | Drain hose clogged; water tray overflowing. | Clear drain hose; empty and clean water tray. |
If the problem persists after checking these points, please contact Hitachi customer support.
Specifications
Detailed technical specifications for the Hitachi R-HWC62X N refrigerator.
| Feature | Detail |
|---|---|
| Brand | Hitachi |
| Model | R-HWC62X N |
| Capacity (Total) | 617 Liters |
| Refrigerator Compartment | 317 Liters (including Whole Chilled 156L / Special Ice Temperature Room 18L) |
| Ice Making Compartment | 24 Liters |
| Upper Freezer Compartment | 33 Liters |
| Lower Freezer Compartment | 125 Liters |
| Vegetable Compartment | 118 Liters |
| Dimensions (W x D x H) | 68.5 cm x 74 cm x 183.9 cm |
| Weight | 119 kg |
| Annual Energy Consumption | 270 kWh/year (50/60Hz) |
| Number of Doors | 6 (French Door) |
| Defrost Function | Frost-free |
| Refrigerant | Non-CFC (R600a) |
| Country of Origin | Japan |
A technical diagram providing precise dimensions of the refrigerator and the rated capacities for each compartment (refrigerator, freezer, ice maker, vegetable).
Energy Efficiency

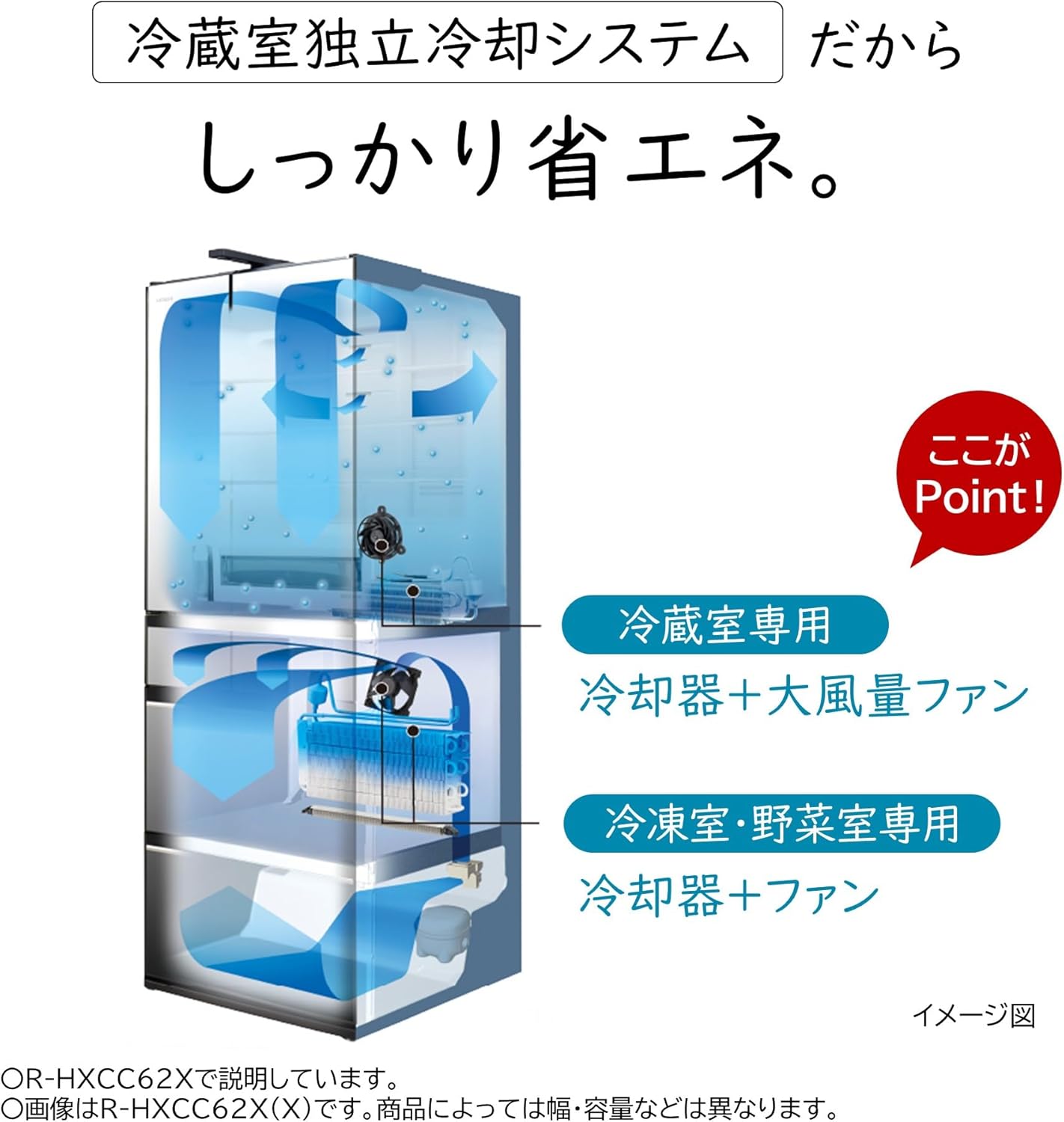

The refrigerator features an independent cooling system for the refrigerator compartment, utilizing two cooling units. This design allows for higher temperatures in the refrigerator compartment's dedicated cooling unit, contributing to significant energy savings.
A cutaway diagram showing the separate cooling units for the refrigerator and freezer/vegetable compartments, designed for enhanced energy efficiency.
Environmental Design
- Recycled Plastic: Over 10% of the total plastic used in certain parts, such as air duct covers, is recycled plastic.
- Non-CFC Refrigerant: Uses R600a, which has a lower environmental impact compared to alternative refrigerants like R134a.
Details on the refrigerator's environmental features, including the use of recycled plastics, an independent cooling system for energy saving, and non-CFC R600a refrigerant.
Warranty and Support
Warranty Information
This product comes with a one-year warranty from the date of purchase. Please retain your proof of purchase for warranty claims. The warranty covers defects in materials and workmanship under normal use.
Customer Support
For technical assistance, service requests, or inquiries regarding your Hitachi refrigerator, please contact Hitachi customer support. Refer to the contact information provided in your warranty card or on the official Hitachi website.
When contacting support, please have your model number (R-HWC62X N) and serial number ready.
