Raddy WS-74 Solar Drip Irrigation System User Manual

1. Introduction

The Raddy WS-74 Solar Drip Irrigation System is an advanced automatic watering solution designed for both indoor and outdoor potted plants. This system integrates smart app control, an adjustable soil moisture sensor, and a hybrid solar/battery power source to ensure your plants receive precise and consistent hydration. Its IPX7 waterproof rating makes it suitable for various environments, supporting up to 15 plants with reliable water delivery.

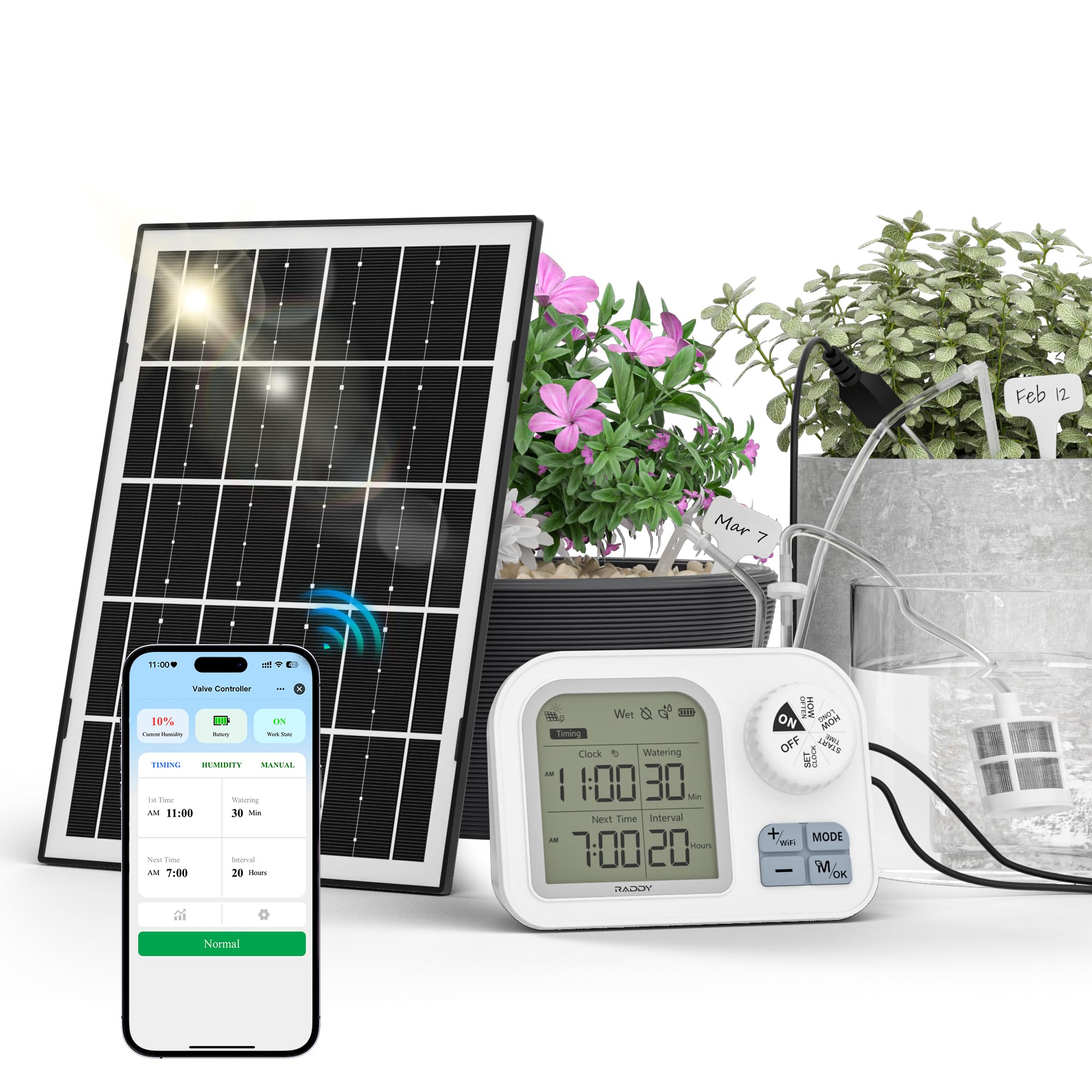

Figure 1: Raddy WS-74 Solar Drip Irrigation System in use.

2. What's in the Box

Carefully unpack all components and verify that you have received the following items:

Figure 2: Contents of the Raddy WS-74 package.

• Water Timer (1)
• 7W Solar Panel (1)
• Solar Panel Bracket (1)
• 1/4" Pipe (1 roll)
• Tag Plate (10)
• Micro Dripper (15)
• T-barb Connector (15)
• Cross Connector (1)
• Filter (1)
• Regulating Valve (1)
• Check Valve (1)
• Sealing End (3)
• Hook (1)
• Charging Cable (1)
• Soil Moisture Sensor (1)
• Cable Tie (10)

3. Setup Guide

Follow these steps to set up your Raddy WS-74 irrigation system:

Figure 3: Easy Setup Guide.

1. Plan Your Layout: Determine the placement of your plants and the water source. For optimal performance, keep all pots at roughly the same height, and ensure the highest pot is no more than 3 meters (10 feet) above the pump. For plants requiring more water, consider placing them closer to the pump or using 2-3 drippers per pot.
2. Connect Solar Panel: Attach the solar panel to its bracket and position it in a shadow-free area to maximize sunlight exposure. Connect the solar panel cable to the main unit.
3. Prepare Water Inlet: Insert one end of the 1/4" pipe into the water inlet port of the main unit. Attach the filter to the other end of this pipe and place it securely in your water reservoir (e.g., a bucket). Ensure the filter remains submerged.
4. Install Anti-Siphon Device: Install the check valve (anti-siphon device) at the water outlet of the main unit. Ensure it is positioned above the water level of your reservoir to prevent backflow, leaks, and overwatering.
5. Connect Distribution Pipes: Cut the 1/4" pipe to the required lengths for your plant layout. Use the T-barb connectors and cross connectors to create a network that reaches all your plants. Secure all connections firmly.
6. Insert Drippers: Insert a micro dripper into the soil of each potted plant. Ensure the dripper is placed near the plant's roots for efficient water delivery.
7. Seal Ends: Use the sealing ends to close off any unused pipe branches at the end of your irrigation lines.

4. Operating Instructions

The Raddy WS-74 offers flexible watering options through its integrated controls and smart app.

4.1 Intelligent Watering System

The system features both time-based scheduling and smart soil moisture detection.

Figure 4: Intelligent Watering System display.

• Scheduling: Set watering durations from 0 seconds to 30 minutes and watering intervals from 1 hour to 30 days.
• Smart Soil Sensor: The anti-corrosion soil moisture sensor triggers irrigation only when the soil is dry, preventing overwatering. You can preset moisture levels between 30% and 80% to suit different plant types.

4.2 Adjustable Water Flow

A built-in regulating valve allows you to adjust the water flow rate to individual plants or sections of your irrigation system.

Figure 5: Adjustable Water Flow Control.

4.3 Manual Watering

You can initiate manual watering cycles directly from the control unit if needed.

Figure 6: Manual Watering Option.

5. Smart App Control

The Raddy WS-74 can be controlled and monitored remotely via a smart application.

5.1 App Connection Guide

To connect your device to the smart app:

Figure 7: Easy Connection Guide for the Smart App.

1. Download the "Smart Life" or "Tuya Smart" application from your device's app store.
2. Hold the "+/WiFi" button on the Raddy WS-74 control unit to enter pairing mode.
3. Open the app, add a new device, and follow the on-screen prompts to enter your WiFi password.
4. Once connected, the app will confirm a successful connection.

5.2 Remote Management Features

• Real-time Monitoring: View current soil moisture levels and battery status from anywhere.
• Schedule Adjustment: Modify irrigation schedules, watering durations, and intervals remotely.
• Moisture Level Customization: Adjust the soil moisture trigger levels (30%-80%) to cater to specific plant needs.
• Water Shortage Reminder: Receive notifications when the water reservoir needs refilling.

Figure 8: Water Shortage Reminder in the app.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your Raddy WS-74 system.

• Clean Water Filter: Periodically check and clean the water filter to prevent blockages and ensure consistent water flow. A floating filter can affect suction; ensure it remains submerged.
• Inspect for Leaks: Regularly check all pipe connections and the regulating valve for any leaks. Ensure the O-ring inside the regulating valve is properly seated to prevent drips.
• Solar Panel Care: Keep the solar panel clean and free from dust or debris to maintain charging efficiency.
• Pipe Algae Prevention: While the system uses clear piping, which can be prone to algae buildup in direct sunlight, regular flushing or using an opaque cover for exposed sections can help mitigate this.
• Winter Storage: If using outdoors in cold climates, bring the unit indoors during winter to prevent potential battery damage from freezing temperatures.

7. Troubleshooting

Refer to this section for common issues and their solutions.

8. Specifications

Figure 9: Product Dimensions.

9. Warranty and Support

For warranty information, technical support, or any inquiries regarding your Raddy WS-74 Solar Drip Irrigation System, please refer to the contact details provided with your purchase or visit the official Raddy website. Keep your purchase receipt for warranty claims.
