1. Product Overview
The Aoxun 12'x12' Hardtop Gazebo is designed to enhance your outdoor living space with its durable construction and functional features. This permanent pavilion includes an aluminum frame, a polycarbonate double roof, and integrated curtains with netting for comfort and protection. It is suitable for gardens, lawns, and patios.
Figure 1: Aoxun 12'x12' Hardtop Gazebo in an evening setting.
2. Safety Information
Always follow the provided instructions for assembly and disassembly. Secure the gazebo to a stable foundation to prevent it from tipping over in windy conditions. Do not use the gazebo during severe weather conditions. Keep the gazebo clean and free of debris to prevent fire hazards. Always supervise children when they are near the gazebo.
3. Components List
Before beginning assembly, ensure all parts are present and undamaged. All components are clearly numbered for easy identification. The main components include:
- Aluminum Frame Sections
- Polycarbonate Roof Panels
- Curtains (Privacy)
- Netting (Insect Protection)
- Hardware (Screws, bolts, anchors)
Figure 2: Key structural and accessory details of the gazebo.
4. Setup and Assembly
Assembly of the Aoxun Hardtop Gazebo typically requires 2-3 people and can take approximately 2-3 hours. Detailed and illustrated instructions are provided with the product. Follow these steps carefully:
- Unpack and Identify Parts: Lay out all components and verify against the parts list. Ensure no parts are missing or damaged.
- Assemble the Frame: Connect the aluminum frame sections according to the numbered instructions. Do not fully tighten all bolts until the entire frame is aligned.
- Install Roof Panels: Carefully place the polycarbonate roof panels into their designated grooves. Ensure proper alignment before securing.
- Attach Curtains and Netting: Hang the curtains and netting onto the frame using the integrated hooks or straps.
- Anchor the Gazebo: Secure the gazebo to the ground using the provided expansion bolts or ground nails for maximum stability.

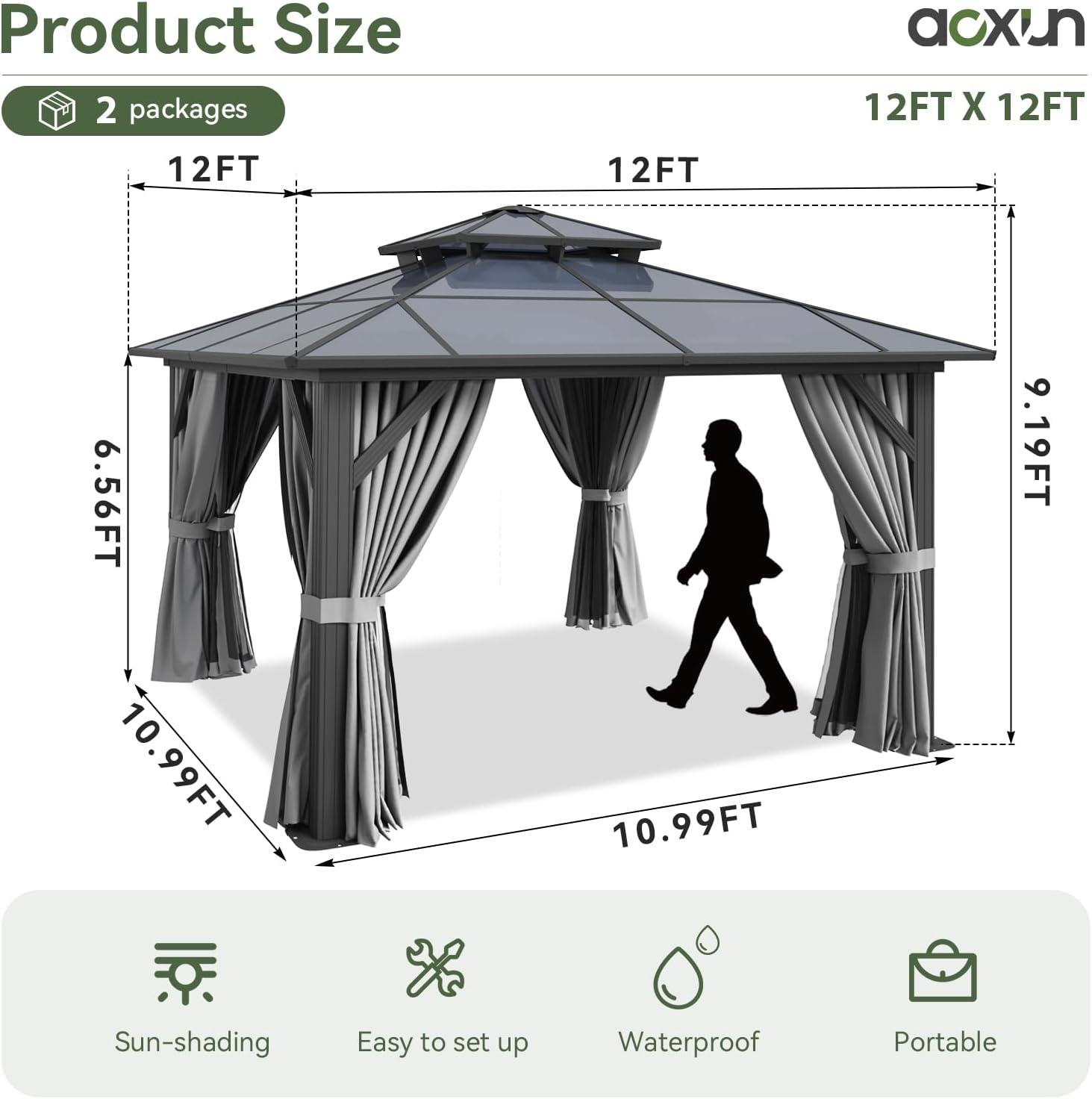

Figure 3: Product dimensions for planning your setup space.
Figure 4: Detailed size specifications for the gazebo.
5. Operating Instructions
The Aoxun Hardtop Gazebo is designed for versatile outdoor use:
- Curtains and Netting: The removable curtains provide privacy and protection from light rain or sun. The inner netting with zippers effectively prevents mosquitoes and other insects while allowing ventilation. Adjust them as needed for your comfort.
- Double Roof System: The double-layer polycarbonate top promotes excellent airflow, reducing heat buildup and preventing harmful UV rays from reaching the interior.
- Water Gutter Design: The professional drainage system directs rainwater from the edge of the roof into the poles and then to the ground, preventing water accumulation on the roof.
- Multifunctional Hook: A central hook is integrated into the roof structure, allowing you to hang fans, lights, or other decorations to personalize your space.
Figure 5: Curtains and netting providing privacy and insect barrier.
Figure 6: Double roof for ventilation and integrated water gutter system.
Figure 7: Central hook for hanging accessories.
6. Maintenance
Regular maintenance will prolong the life and appearance of your gazebo:
- Cleaning: Clean the aluminum frame and polycarbonate roof panels with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the surfaces. Rinse thoroughly with clean water.
- Fabric Care: The curtains and netting can be removed for cleaning. Follow the care instructions on the fabric labels. Typically, gentle washing and air drying are recommended.
- Fastener Check: Periodically inspect all screws and bolts to ensure they are tight. Re-tighten any loose fasteners to maintain structural integrity.
- Seasonal Care: In areas with heavy snowfall, it is recommended to clear snow from the roof to prevent excessive weight accumulation. During periods of strong winds, ensure the gazebo is securely anchored and consider tying back or removing curtains to reduce wind resistance.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Water accumulation on roof | Drainage system clogged or improper installation of roof panels. | Clear any debris from the water gutters. Ensure roof panels are correctly seated and sealed. |
| Gazebo feels unstable in wind | Insufficient anchoring or loose frame connections. | Verify that the gazebo is properly anchored to the ground using expansion bolts or ground nails. Check and tighten all frame fasteners. The maximum wind resistant grade is 7 (31-38mph). |
| Curtains/Netting not closing properly | Zippers or tracks are obstructed, or fabric is misaligned. | Check for debris in zippers or tracks. Realign fabric and ensure smooth operation. |
| Snow buildup on roof | Heavy snowfall exceeding design limits. | Regularly remove snow from the roof. The maximum snow loading depth is 4 inches. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Aoxun |
| Model Number | SG401GR08A-LH |
| Product Dimensions (L x W x H) | 145.67" x 145.67" x 98.43" (12'x12'x8.2') |
| Floor Area | 144 Square Feet |
| Item Weight | 164.5 Pounds |
| Frame Material | Aluminum |
| Roof Material | Polycarbonate |
| Color | Gray |
| Water Resistance Level | Waterproof |
| UV Protection | Yes |
| Assembly Required | Yes |
| Max Wind Resistance | Grade 7 (31-38mph) |
| Max Snow Loading Depth | 4 inches |
9. Warranty and Support
For warranty information, replacement parts, or technical support, please contact Aoxun customer service directly. Refer to your purchase documentation for specific contact details or visit the official Aoxun website.
