Infanti Nest LX Group 0+ Infant Car Seat Instruction Manual

1. Introduction

Thank you for choosing the Infanti Nest LX Group 0+ Infant Car Seat. This manual provides essential information for the safe installation, operation, and maintenance of your car seat. Please read it thoroughly before use and keep it for future reference.

1.1 Important Safety Information

WARNING: Failure to follow these instructions could result in serious injury or death to your child.

• Always ensure the car seat is correctly installed according to this manual.
• This car seat is designed for Group 0+ (newborns up to 13 kg) and must be installed rear-facing only.
• Never place an infant car seat on a front passenger seat with an active airbag.
• Always secure your child with the 3-point harness system.
• Do not modify the car seat in any way.
• Refer to your vehicle's owner's manual for specific car seat installation guidelines.

This product complies with European standard ECE R44/04.

2. Product Overview

The Infanti Nest LX Infant Car Seat with Base is designed to provide maximum safety and comfort for your newborn during travel. It features a padded support, an adjustable 3-point harness, and a removable, washable cover for easy maintenance. The foldable canopy offers protection from sunlight and external elements.

2.1 Key Features

• Group 0+ (Newborns up to 13 kg): Provides maximum safety and comfort in a rear-facing orientation.
• Padded Support and 3-Point Harness: Soft padding and an adjustable harness ensure comfort and reliable restraint.
• Easy-to-Install Base: Compatible with 3-point vehicle seat belts for quick and secure installation.
• Easy to Clean and Maintain: Removable and washable cover keeps the car seat clean and fresh.
• Protective and Functional Design: Foldable canopy protects the baby from sunlight and external elements.

2.2 Components

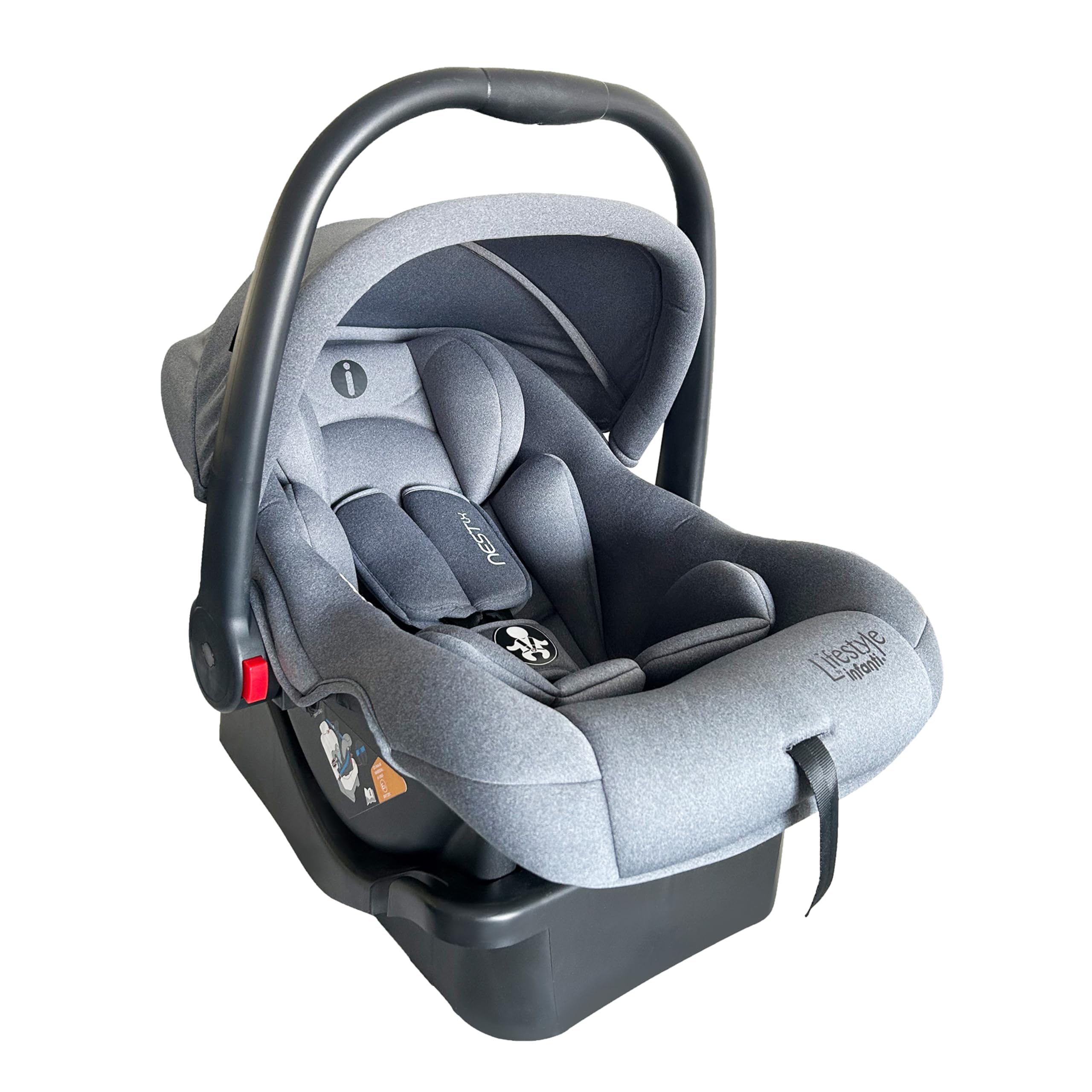

Figure 1: Infanti Nest LX Infant Car Seat with Base. This image shows the complete car seat unit, including the infant carrier and its separate base.

Figure 2: Detailed view of the Infanti Nest LX car seat highlighting key features such as the padded support, 3-point harness, removable and washable cover, and the weight capacity from 0 months up to 13 kg.

3. Installation

3.1 Car Seat Base Installation (Rear-Facing Only)

The Infanti Nest LX car seat base is designed for secure installation using your vehicle's 3-point seat belt system. Always install the base in a rear-facing position.

1. Place the car seat base on the vehicle seat in a rear-facing orientation. Ensure it is positioned firmly against the vehicle's seat back.
2. Thread the vehicle's lap belt through the blue belt guides on the car seat base.
3. Buckle the vehicle's seat belt.
4. Press down firmly on the car seat base while pulling the shoulder belt to remove any slack. Ensure the base is tightly secured and does not move more than 1 inch (2.5 cm) side-to-side or front-to-back at the belt path.
5. Check the recline angle indicator (if present) to ensure the base is at the correct angle for your child's age and weight. Adjust if necessary.

3.2 Attaching the Infant Carrier to the Base

1. Align the infant carrier with the base.
2. Lower the infant carrier onto the base until you hear an audible "click," indicating it is securely latched.
3. Always pull up on the infant carrier to confirm it is firmly attached to the base before placing your child in it.

Figure 3: Side view of the Infanti Nest LX car seat and base, emphasizing its Group 0+ classification and rear-facing installation for maximum safety for newborns.

4. Operation

4.1 Securing Your Child

1. Place your child in the car seat.
2. Bring the 3-point harness straps over your child's shoulders and between their legs.
3. Insert both buckle tongues into the buckle until they click.
4. Pull the harness adjustment strap to tighten the harness until it is snug against your child's body. You should not be able to pinch any excess webbing at the child's shoulder.
5. Ensure the chest clip is positioned at armpit level.

4.2 Adjusting the Canopy

The car seat features a foldable canopy to protect your child from sunlight and other elements. Simply pull the canopy forward or push it back to adjust its position.

4.3 Carrying the Infant Carrier

The handle can be adjusted to different positions for carrying or stability. Refer to the labels on the car seat for approved handle positions during travel and when the car seat is out of the vehicle.

5. Maintenance

5.1 Cleaning Instructions

The Infanti Nest LX car seat features a removable and washable cover for easy cleaning.

1. Removing the Cover: Carefully detach the fabric cover from the car seat frame. Refer to the car seat's labels for specific attachment points.
2. Washing: Machine wash the fabric cover in cold water on a delicate cycle with mild detergent. Do not use bleach.
3. Drying: Air dry the cover completely. Do not tumble dry or iron.
4. Cleaning the Harness: Wipe the harness straps with a damp cloth. Do not immerse harness straps in water or use harsh cleaners, as this may weaken them.
5. Cleaning the Frame and Base: Wipe the plastic and metal parts of the car seat and base with a damp cloth and mild soap.
6. Reattaching the Cover: Once dry, carefully reattach the cover to the car seat frame, ensuring all straps and openings are correctly aligned.

Figure 4: Front view of the Infanti Nest LX car seat, highlighting the removable and washable cover for easy cleaning and maintenance.

6. Troubleshooting

If you encounter any issues with your Infanti Nest LX car seat, please review the following common solutions:

• Car Seat Not Secure: Ensure the vehicle's 3-point seat belt is threaded correctly through the blue belt guides and pulled tight. The base should not move more than 1 inch (2.5 cm) at the belt path.
• Harness Too Loose: Re-check that the harness straps are snug against your child's body and the chest clip is at armpit level. Adjust the harness length as needed.
• Infant Carrier Not Latching to Base: Ensure the infant carrier is properly aligned with the base and pushed down firmly until an audible "click" is heard. Verify by pulling up on the carrier.
• Canopy Not Functioning: Check for any obstructions preventing the canopy from folding or extending smoothly.

If problems persist, please contact Infanti customer support for assistance.

7. Specifications

Figure 5: Diagram illustrating the dimensions of the Infanti Nest LX car seat when assembled, showing its height, width, and depth.

8. Warranty and Support

8.1 Return Policy

This product is eligible for a 30-day free return policy. Please refer to the retailer's return policy for full details.

8.2 Customer Support

For any questions, concerns, or technical support regarding your Infanti Nest LX Infant Car Seat, please contact Infanti customer service or visit the official Infanti website. Keep your purchase receipt and product model information handy when contacting support.
