Introduction
This manual provides essential information for the safe and effective use of your VEVOR BR30 LED Flood Light Bulbs. Please read these instructions thoroughly before installation and operation, and retain them for future reference.
Safety Instructions
- Ensure power is turned off at the circuit breaker before installing or replacing bulbs.
- Do not use with incompatible dimmer switches. Refer to the specifications for dimming compatibility.
- These bulbs are designed for indoor use only. Do not expose to water or excessive moisture.
- Avoid touching the bulb immediately after use, as it may be hot.
- Do not disassemble or modify the bulb. This may void the warranty and create a safety hazard.
- Install in fixtures that provide adequate ventilation.
Package Contents
- 12 x VEVOR BR30 LED Flood Light Bulbs (Model L12-BR30D-10W)
Setup and Installation
- Turn Off Power: Before beginning installation, ensure the power to the light fixture is completely turned off at the circuit breaker to prevent electrical shock.
- Remove Old Bulb: Carefully unscrew and remove the existing bulb from the fixture. Allow it to cool if it was recently in use.
- Install New Bulb: Gently screw the VEVOR BR30 LED Flood Light Bulb into the E26 standard base socket. Ensure it is securely tightened but do not overtighten.
- Restore Power: Once the bulb is installed, turn the power back on at the circuit breaker.
- Test Functionality: Turn on the light switch to verify the bulb is working correctly.
A hand installing a VEVOR BR30 LED Flood Light Bulb into a recessed ceiling fixture, demonstrating its easy installation into standard E26 bases.
Operating Instructions
The VEVOR BR30 LED Flood Light Bulbs feature stepless dimming capabilities, allowing for brightness adjustment from 10% to 100%. To operate the dimming function, ensure your light fixture is connected to a compatible dimmer switch.
- Standard Operation: Turn the light switch on to illuminate the bulb.
- Dimming: Use a compatible dimmer switch to adjust the light output to your desired brightness level.
A visual representation of the VEVOR BR30 LED Flood Light Bulbs' stepless dimming feature, showing a kitchen environment transitioning from bright to dim lighting.
Maintenance
- Cleaning: Ensure the bulb is cool and the power is off before cleaning. Wipe the bulb with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
- Storage: If storing bulbs, keep them in their original packaging in a cool, dry place.
- Disposal: Dispose of old or damaged LED bulbs according to local regulations for electronic waste.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Bulb does not light up | No power to the fixture; Bulb not screwed in properly; Faulty bulb or fixture. | Check circuit breaker; Ensure bulb is securely tightened; Test bulb in another fixture or replace. |
| Bulb flickers | Incompatible dimmer switch; Loose connection; Voltage fluctuations. | Replace with a compatible LED dimmer; Ensure bulb is securely tightened; Consult an electrician if voltage issues persist. |
| Dimming not working | Incompatible dimmer switch; Dimmer not properly installed. | Ensure a compatible LED dimmer is used; Verify dimmer installation. |
Specifications
A detailed diagram displaying the dimensions (0.31 in x 0.43 in / 95 mm x 130 mm) and key specifications of the VEVOR BR30 LED Flood Light Bulb.
| Feature | Detail |
|---|---|
| Brand | VEVOR |
| Model Name | BR30 Flood Light Bulb (L12-BR30D-10W) |
| Light Type | LED |
| Bulb Shape Size | BR30 |
| Bulb Base | E26 Standard |
| Wattage | 10 Watts |
| Brightness | 850 Lumens |
| Light Color | 3000K Warm Light |
| Dimmable | Stepless (10%-100%) |
| Beam Angle | 110° |
| Lifetime | 15,000 Hours |
| Voltage | 110 Volts |
| Indoor/Outdoor Usage | Indoor |
| Material | PA |
| Item Weight | 1.79 pounds (for the pack) |
| UPC | 197988648840 |
Warranty and Support
Warranty: The manufacturer states that there is no specific warranty description provided for this product.
Support: For technical assistance or inquiries, please visit the official VEVOR website or contact their customer service department. Refer to the product packaging for specific contact details.
Additional Product Information
A single VEVOR BR30 LED Flood Light Bulb, showcasing its design and E26 base, with a pack of 11 additional bulbs visible in the background.

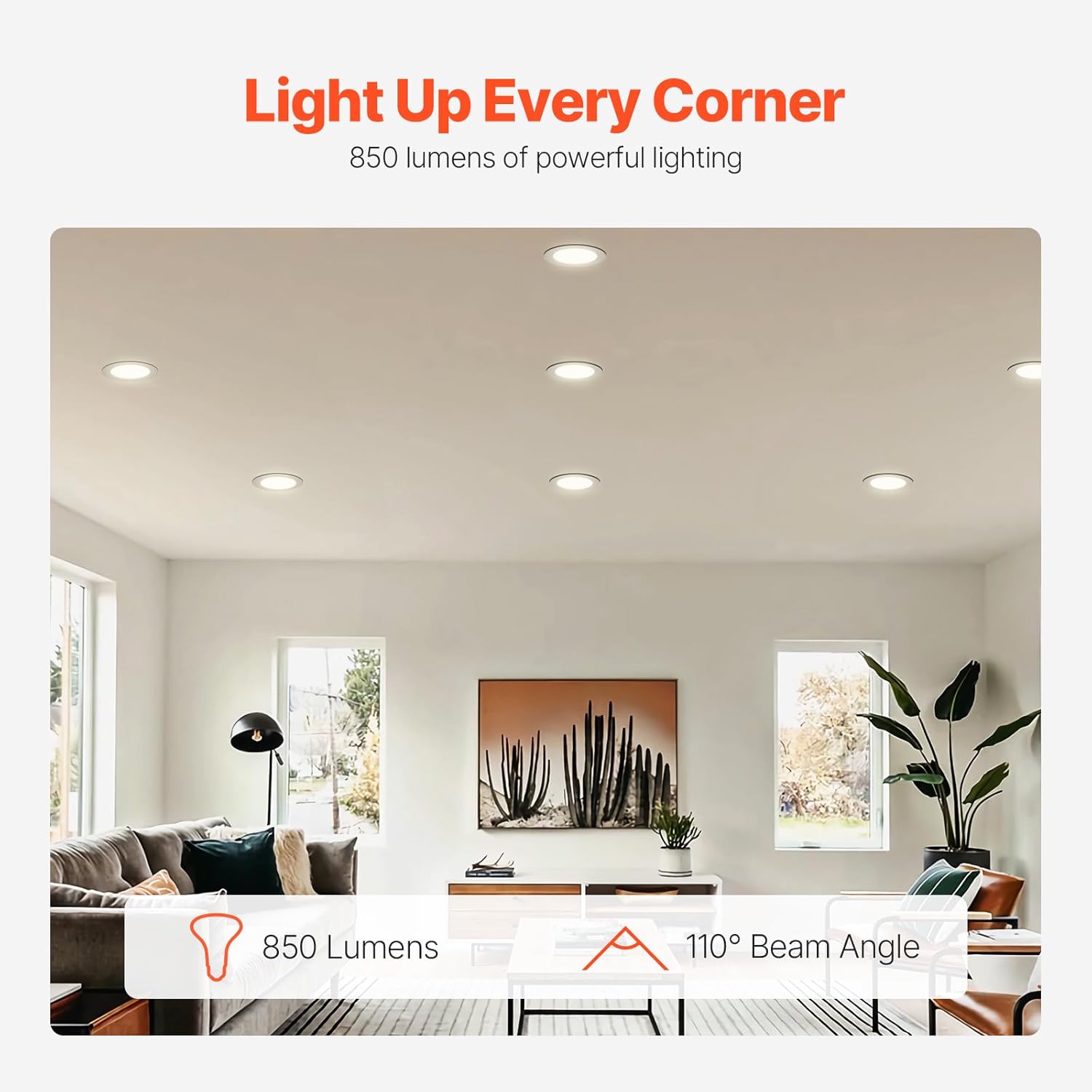

An image depicting a modern living room brightly illuminated by multiple VEVOR BR30 LED Flood Lights installed in recessed fixtures, highlighting their wide area coverage.
A bedroom scene featuring VEVOR BR30 LED Flood Light Bulbs emitting a warm, inviting 3000K light, creating a cozy atmosphere.
A graphic illustrating the VEVOR BR30 LED Flood Light Bulb's extended lifespan of up to 15,000 hours, emphasizing reduced replacement frequency.
A comparison graphic highlighting the energy efficiency of the VEVOR BR30 LED Flood Light Bulb (80 lm/W) against a traditional incandescent bulb (10 lm/W).
A close-up view of the VEVOR BR30 LED Flood Light Bulb's internal components, including the standard E26 base, durable shell, and premium LED chips, emphasizing energy efficiency.
