LICAEVEY MP3 MP4 Player User Manual

Introduction

This manual provides detailed instructions for the safe and efficient operation of your LICAEVEY MP3 MP4 Player. Please read this manual thoroughly before using the device and retain it for future reference. This portable multimedia player combines music playback, video viewing, voice recording, FM radio, and a unique fingertip gyroscope feature for an enhanced user experience.

Package Contents

Please check the package contents carefully. If any items are missing or damaged, contact your retailer.

• 1 x LICAEVEY MP3 MP4 Music Player
• 1 x Earphone
• 1 x Data Cable (USB)
• 1 x Storage Box
• 1 x User Manual (this document)

Product Overview

The LICAEVEY MP3 MP4 Player features a compact design with a 1.77-inch color screen and intuitive controls. It includes a built-in speaker and a unique fingertip gyroscope for interactive use.

Figure 1: Front view of the MP3 MP4 Player highlighting the 1.77-inch color screen and main controls. The screen supports AVI and AMA video formats, and the device features FM radio, speaker output, picture browsing, and video playback.

Figure 2: Illustration of the fingertip gyroscope feature, designed for stress relief and interactive play. The device can be spun like a fidget spinner.

Figure 3: Rear view of the player, showing the built-in speaker grille, TF-CARD slot for expandable memory, the On/Off switch, and the USB charging port.

Figure 4: Close-up of the player's front, displaying the screen with the 'Music' icon selected and other menu options visible, along with the central control buttons.

Figure 5: The MP3 MP4 Player shown alongside its included accessories: a pair of wired earphones and a USB data cable for charging and data transfer.

Figure 6: Side profile of the player, illustrating the sleek design and the location of a control button or port.

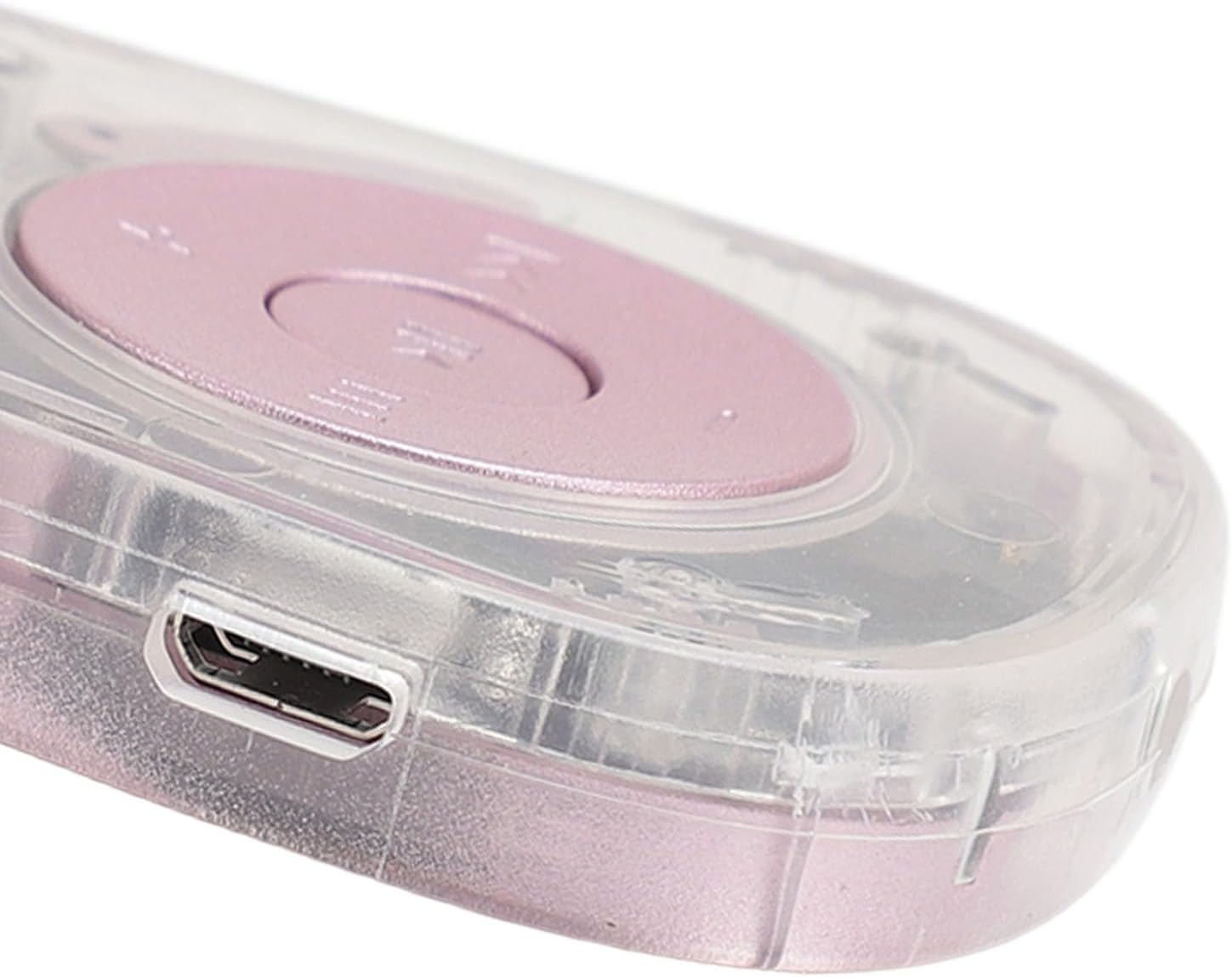

Figure 7: Detailed view of the micro-USB charging and data transfer port located on the side of the device.

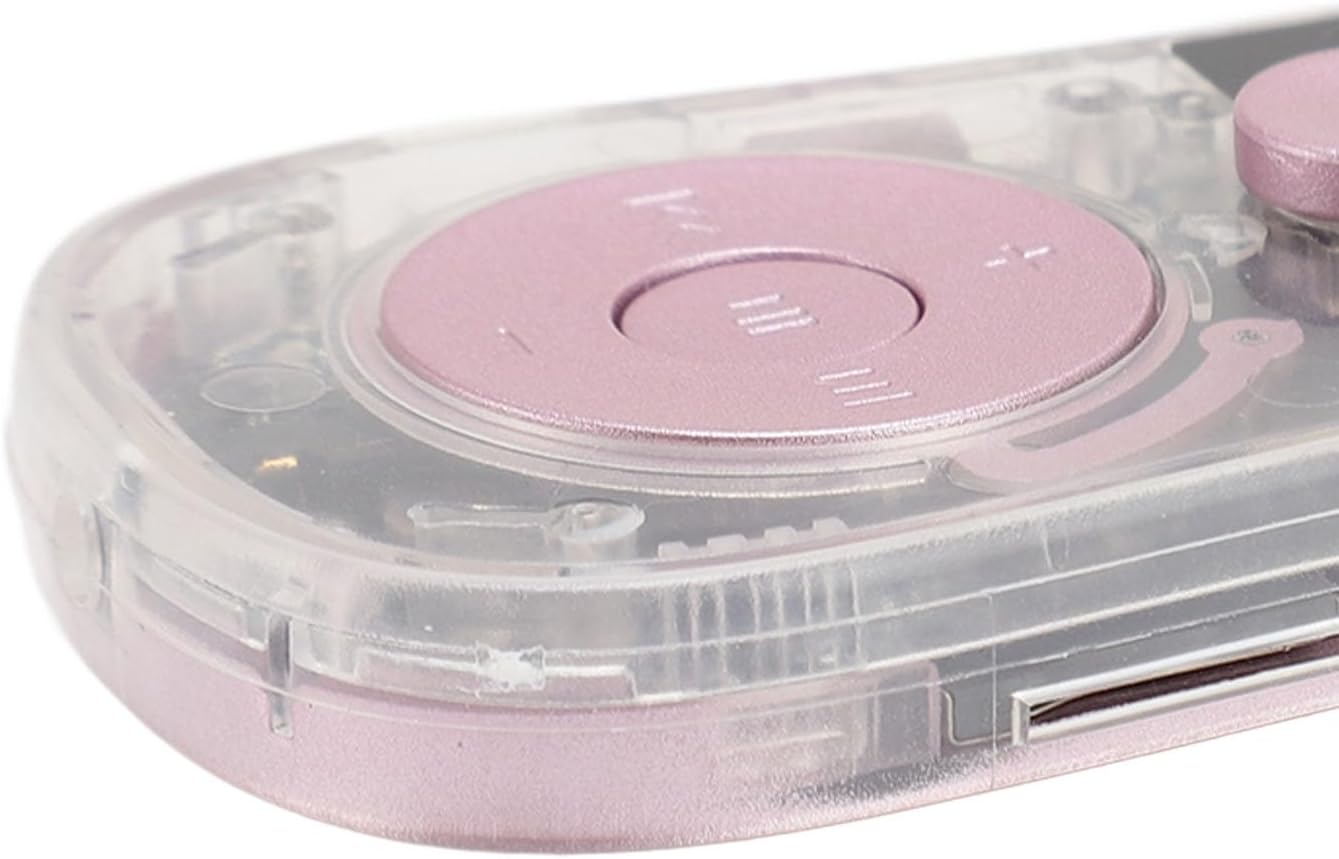

Figure 8: Detailed view of the TF-CARD (microSD card) slot, allowing for expandable storage up to 128GB.

Setup

1. Charging the Device

Before first use, fully charge the MP3 MP4 Player. Connect the provided USB data cable to the device's charging port (refer to Figure 7) and plug the other end into a USB power adapter (not included) or a computer's USB port. A full charge typically takes approximately 2 hours. The battery indicator on the screen will show charging status.

2. Inserting a Memory Card

The device supports a TF-CARD (microSD card) up to 128GB for expanded storage (card not included). Locate the TF-CARD slot on the side of the player (refer to Figure 8). Gently insert the memory card into the slot until it clicks into place. To remove, push the card in slightly until it springs out.

3. Power On/Off

• To Power On: Slide the 'ON/OFF' switch (refer to Figure 3) to the 'ON' position. The screen will light up.
• To Power Off: Slide the 'ON/OFF' switch to the 'OFF' position. The device will shut down.

Operating Instructions

1. Basic Navigation

Use the central control buttons (refer to Figure 4) to navigate through menus and select options. The central button typically acts as 'Enter' or 'Confirm', while surrounding buttons control direction or specific functions like volume and track skipping.

2. Music Playback

• From the main menu, select the 'Music' icon.
• Browse your music files by artist, album, or folder.
• The player supports MP3, WAV, WMA, FLAC, and APE audio formats.
• Connect the included earphones for private listening or use the built-in speaker.

3. Video Playback

• Select the 'Video' icon from the main menu.
• The device supports AVI and AMA video formats. Ensure your video files are in a compatible format for playback.

4. FM Radio

• To use the FM radio, connect the wired earphones as they act as an antenna.
• Select the 'Radio' icon from the main menu.
• Use the navigation buttons to scan for stations or manually tune to a frequency.

5. Voice Recording

• Select the 'Recording' icon.
• Follow the on-screen prompts to start, pause, and save recordings.

6. E-Book Reading

• Select the 'E-Book' icon.
• The player supports TXT format e-books.
• Navigate through pages using the control buttons.

7. Fingertip Gyroscope Function

The device incorporates a fingertip gyroscope design. Hold the player and spin the central part to engage this stress-relieving feature. This can be used independently or while listening to music.

8. Other Functions

The player also includes additional utilities:

• Stopwatch: For timing events.
• Dictionary: For quick word lookups.
• Calendar: To view dates.
• Picture Browsing: View JPG and JPEG image files.

Maintenance

• Cleaning: Use a soft, dry cloth to clean the device. Avoid liquid cleaners or abrasive materials.
• Battery Care: To prolong battery life, avoid fully discharging the battery frequently. Charge the device regularly, even if not in use for extended periods.
• Storage: Store the player in a cool, dry place away from direct sunlight, extreme temperatures, and humidity.
• Data Management: Regularly back up important files from your device to a computer to prevent data loss.

Troubleshooting

Specifications

Warranty and Support

Specific warranty information is not provided in the product data. For warranty claims or technical support, please refer to the contact information provided by your retailer or the manufacturer's official website.
