1. Introduction
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Babelio R30 Flex Pro Removable Baby Gate. Designed for stairs and doorways, this hardware-mounted gate offers a trip-free design and adjustable width for various openings. Please read all instructions carefully before assembly and use to ensure proper function and safety.
Image: The Babelio gate in a home setting, highlighting its safety certifications.
2. Safety Information
WARNING: Failure to follow these warnings and instructions could result in serious injury or death.
- Always install and use the gate as instructed.
- This safety gate is intended for use with children from 6 to 24 months.
- Never use this gate to keep a child from accessing a pool or other body of water.
- Regularly check all fasteners to ensure they are tight and secure.
- Never leave children unattended.
- This gate is designed with no bottom bar to minimize tripping hazards, making it suitable for top-of-stairs use.
- The gate features a double lock design to prevent children from opening it.
- This product has passed CPSIA testing for safety.

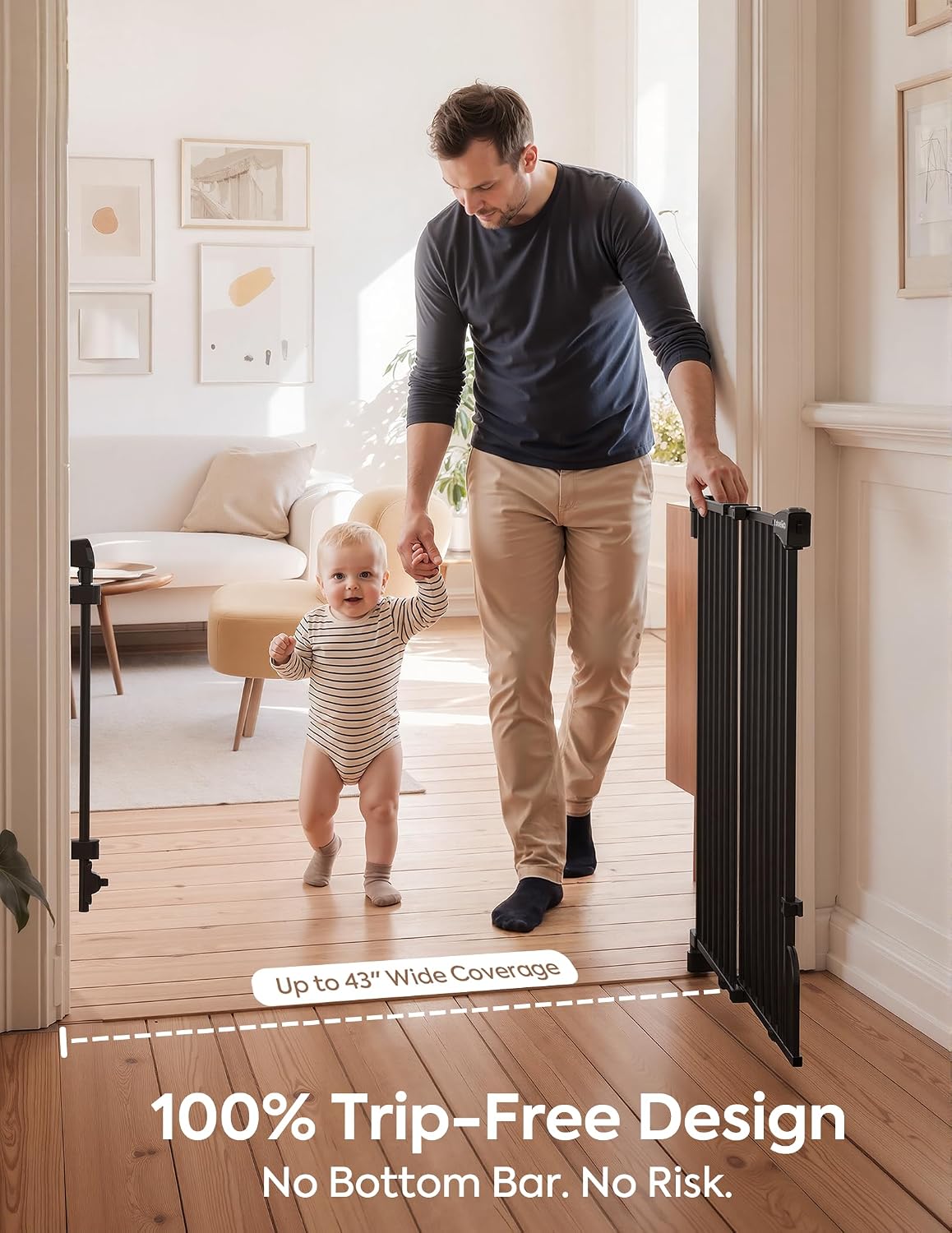

Image: A father and baby demonstrate the gate's trip-free design, emphasizing safety with no bottom bar.
Image: A child exploring near the gate, showcasing its smooth, anti-pinch curved edges for safety.
3. Package Contents
Before beginning assembly, ensure all parts are present and undamaged. If any parts are missing or damaged, do not use the gate and contact customer support.
- 2 x Vertical Bars
- 1 x Door Frame
- Plastic Pads (for skirting adjustment)
- Screws and Mounting Hardware
- Instruction Manual
4. Setup and Installation
The Babelio R30 Flex Pro gate is a hardware-mounted system designed for secure installation in openings from 29 to 43 inches wide. It requires drilling for proper installation.
4.1 Measuring and Positioning
Measure the width of your opening to ensure it falls within the gate's adjustable range (29-43 inches). The gate is 30 inches high. Ensure the mounting surface is stable and capable of holding the gate securely.

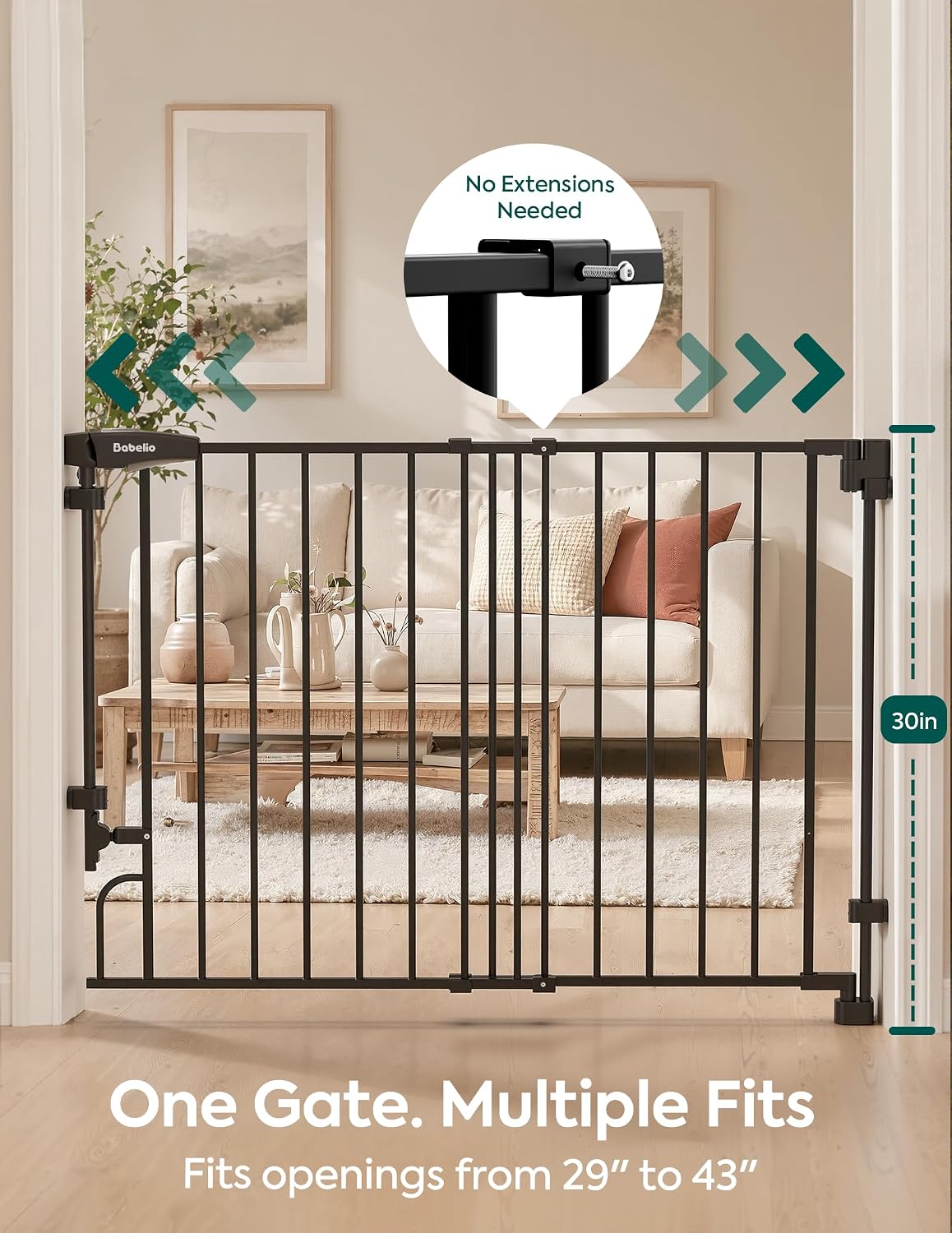

Image: The gate installed, illustrating its adjustable width (29" to 43") and height (30").
4.2 Hardware Mounting Steps
- Prepare the Surface: Identify the exact punching position for the hinges on both sides. Ensure they are on the same vertical plane. Plastic pads are provided to compensate for differences of 7-13mm, allowing for adaptation to uneven walls and baseboards.
- Drill Pilot Holes: Using appropriate tools, drill pilot holes for the mounting hardware. The ProFlex system is designed for one-step installation without extensive measuring or guesswork.
- Attach Mounting Brackets: Securely fasten the mounting brackets to the wall or banister using the provided screws. The gate's design allows for adjustments up and down to fit over baseboards or uneven surfaces.
- Install the Gate: Attach the gate frame to the installed mounting brackets. Ensure the gate swings freely and latches securely.
- Check Stability: After installation, gently push and pull on the gate to confirm it is firmly mounted and does not wobble. The gate is designed to be stable and level.
Image: Illustration of suitable banister types for installation, indicating which shapes are compatible.

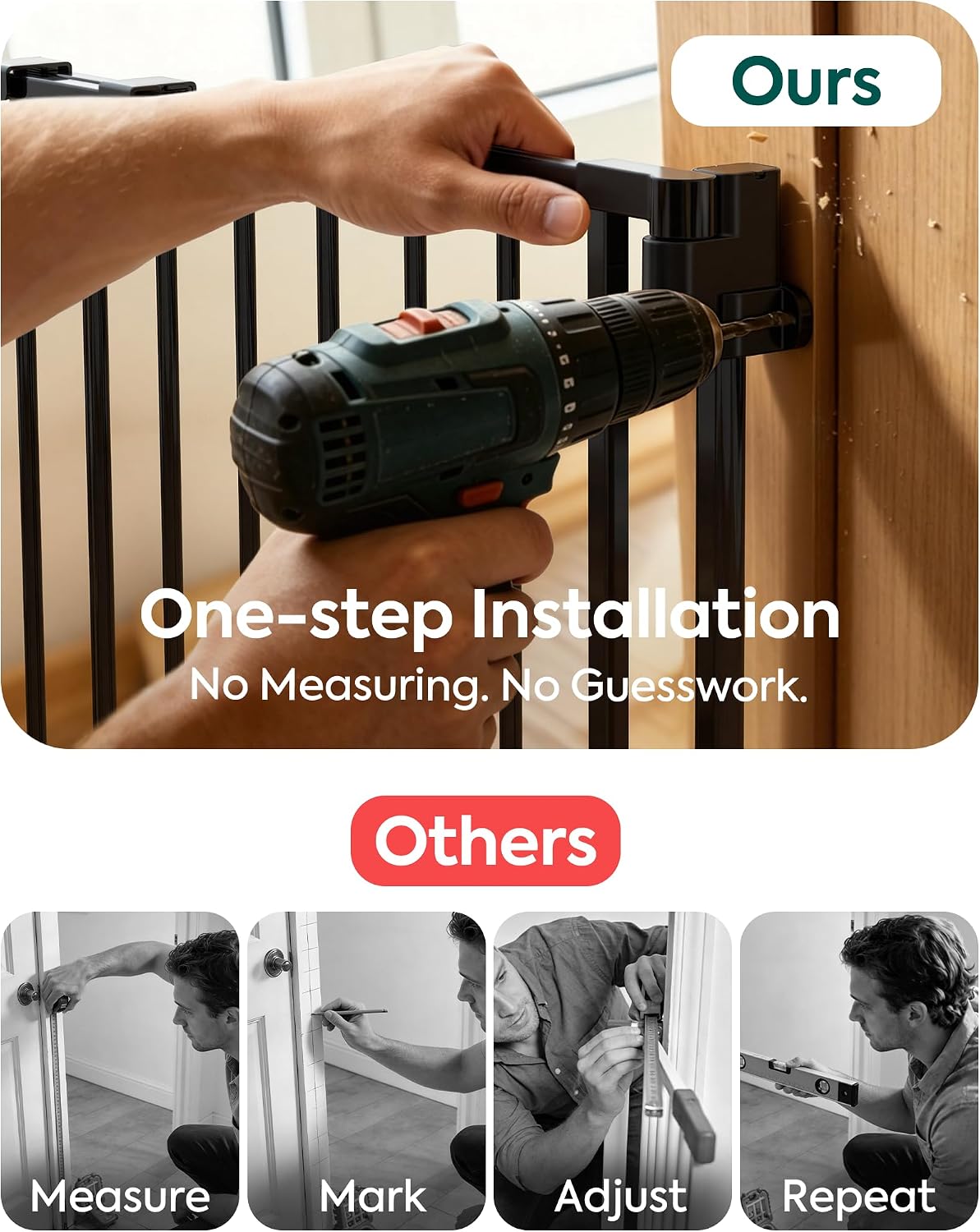

Image: A person drilling to install the gate, demonstrating the one-step installation process.
Image: Detail of the gate's adjustable mounting, illustrating how it adapts to uneven walls and baseboards.
Image: A child at the gate, demonstrating its stable and level installation without wobbling.
4.3 Removing the Gate
The modular design allows for quick removal of the gate frame when not needed, providing full access to the opening.
- Uncover: Remove the protective cap from the top of the vertical bar.
- Unscrew: Loosen the screw that secures the gate to the vertical bar.
- Dismantle: Lift the gate frame from the mounting points.
Image: A visual guide demonstrating the three steps to quickly remove the gate for full access.
Image: The gate removed and stored, showing how it clears the opening for unobstructed passage.
5. Operating Instructions
5.1 Opening the Gate
The gate is designed for easy one-hand operation. To open, slide the latch at the top and lift the gate slightly to clear the bottom catch, then swing it open. The gate can open the full width of your staircase for easy walk-through.
Image: A person opening the gate with one hand while carrying a child, highlighting the smooth operation.
5.2 Auto-Close and Stay-Open Features
- Auto-Close: If the gate is opened less than 90 degrees, it will gently swing shut and latch automatically for added convenience and safety.
- Stay-Open: If the gate is opened past 90 degrees, it will remain open, allowing for continuous passage.
Image: A person pushing a stroller through the gate, demonstrating the clear path and ease of movement.
6. Maintenance
Regular maintenance ensures the longevity and safe operation of your Babelio baby gate.
- Cleaning: Wipe the gate with a damp cloth and mild soap. Do not use abrasive cleaners or harsh chemicals, as these can damage the finish.
- Inspection: Periodically inspect all parts for wear, damage, or loose connections. Pay close attention to hinges, latches, and mounting points.
- Lubrication: If the gate mechanism becomes stiff, apply a small amount of silicone-based lubricant to the hinges and latch mechanism.
7. Troubleshooting
If you encounter issues with your gate, refer to the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Gate does not close or latch properly. | Misalignment of the gate frame or latch mechanism. | Check mounting points for tightness. Adjust the gate's position using the ProFlex sliding system to ensure proper alignment. Ensure plastic pads are correctly used for skirting. |
| Gate feels wobbly after installation. | Loose mounting hardware or improper installation. | Re-tighten all screws and mounting hardware. Verify that the gate is installed on a stable surface according to instructions. |
| Gate is difficult to open. | Latch mechanism is stiff or misaligned. | Apply a small amount of silicone lubricant to the latch. Check for any obstructions. Ensure the gate is not being lifted too high or too low when attempting to open. |
| Gate does not auto-close. | Gate opened past 90 degrees or mechanism obstruction. | Ensure the gate is not opened fully past 90 degrees if auto-close is desired. Check hinges for any debris or damage. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | BEBAM63 |
| Brand | Babelio |
| Material | Carbon Steel |
| Colour | Black |
| Product Dimensions (W x H) | 109W x 76.2H centimetres (approx. 43W x 30H inches) |
| Item Weight | 3.49 kg |
| Mounting Type | Banister Mount (Hardware Mounted, Drill Needed) |
| Age Range (Description) | Baby (6-24 months) |
| Closure Type | Automatic Closing |
| Target Species | Dog, Cat |
9. Warranty and Support
Babelio stands behind the quality of its products. For warranty information, product support, or to report missing/damaged parts, please contact Babelio customer service.
Contact Information:
- Manufacturer: Babelio
- Manufacturer Contact Information: OFFICE 3A-9,12/F.,KAISER CENTRE,NO.18 CENTRE STREET,SAI YING PUN,HONGKONG
- Please refer to your purchase documentation or the Babelio official website for the most current support contact details.
