Lavazza A Modo Mio Jolie EVO (LM860) Espresso Capsule Coffee Machine User Manual

1. Important Safety Instructions

Please read all instructions carefully before using the appliance. Keep this manual for future reference.

Do not immerse the appliance, power cord, or plug in water or other liquids.
Ensure the voltage indicated on the appliance corresponds to your mains voltage.
Do not operate the appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
Always unplug the appliance from the power outlet before cleaning and when not in use.
Keep children away from the appliance during operation.
Use the appliance only for its intended purpose, which is preparing coffee using Lavazza A Modo Mio capsules.
Avoid contact with hot surfaces.

2. Product Overview

The Lavazza A Modo Mio Jolie EVO (LM860) is a compact espresso capsule coffee machine designed for ease of use and quality coffee preparation.

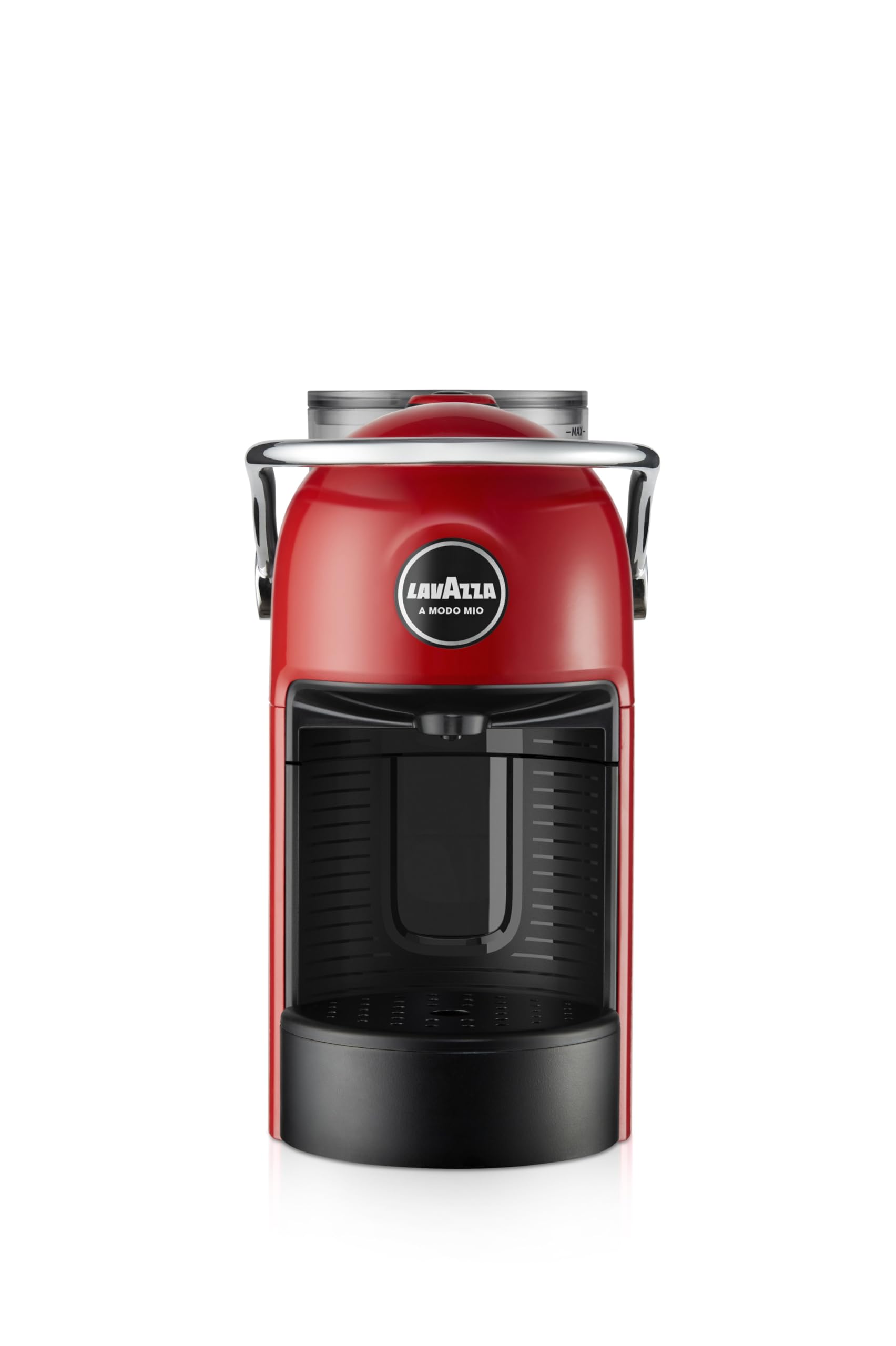

Image 1: Lavazza A Modo Mio Jolie EVO (LM860) Espresso Capsule Coffee Machine. This image shows the front view of the red coffee machine with its water tank and cup support grid.

Components Included:

Lavazza A Modo Mio Jolie EVO (LM860) Coffee Machine
Removable Cup Support Grid
Removable Water Tank
Used Capsule Container
Drip Tray

3. Setup

3.1 Unpacking

Remove the coffee machine and all packaging materials from the box.
Place the machine on a stable, flat surface.

3.2 Initial Cleaning

Wash the removable water tank, cup support grid, and drip tray with warm water and a mild detergent. Rinse thoroughly.
Wipe the exterior of the machine with a damp cloth.

3.3 Filling the Water Tank

Remove the water tank from the back of the machine.
Fill the tank with fresh, potable water up to the 'MAX' level indicator. Do not exceed this level.
Place the water tank back into its position on the machine, ensuring it is securely seated.

3.4 First Use / Priming

Plug the machine into a suitable power outlet. The power button will illuminate.
Place an empty cup under the coffee dispenser.
Press the coffee dispensing button (Stop&Go). The machine will start pumping water to prime the circuit. Allow the water to flow until the tank is almost empty.
Refill the water tank. The machine is now ready for use.

4. Operating Instructions

4.1 Preparing Coffee

Ensure the water tank is filled with fresh water.
Lift the capsule loading lever.
Insert one Lavazza A Modo Mio capsule into the capsule compartment.
Close the capsule loading lever firmly until it clicks into place.
Place your desired cup on the cup support grid. The grid can be removed for taller mugs.
Press the backlit Stop&Go button. The machine will begin brewing coffee.
To stop the coffee flow at your desired quantity, press the Stop&Go button again.
After brewing, lift the capsule loading lever to eject the used capsule into the internal container.

4.2 Stand-by Mode

The Lavazza Jolie EVO is designed for energy saving. It will automatically enter stand-by mode after 2 minutes of inactivity. To reactivate the machine, press the Stop&Go button.

5. Maintenance

5.1 Daily Cleaning

Water Tank: Empty and rinse the water tank daily. Refill with fresh water.
Used Capsule Container: Empty the transparent used capsule container when full or at the end of the day. Wash it with warm water and mild detergent.
Drip Tray and Cup Support Grid: Remove and wash these parts with warm water and mild detergent. All removable parts are dishwasher safe.
Machine Exterior: Wipe with a soft, damp cloth. Do not use abrasive cleaners or solvents.

5.2 Descaling

Regular descaling is essential to maintain machine performance and coffee quality. The frequency depends on water hardness and usage. Refer to the descaling instructions provided with a suitable descaling solution for coffee machines. Generally, descaling is recommended every 3-6 months.

6. Troubleshooting

If you encounter issues with your Lavazza Jolie EVO, please consult the following table:

Problem	Possible Cause	Solution
Machine does not turn on.	No power supply.	Check if the power cord is securely plugged into the outlet and the machine.
No coffee is dispensed.	Water tank is empty; Machine not primed; Capsule not inserted correctly; Machine is descaled.	Fill water tank; Perform priming cycle; Ensure capsule is correctly inserted and lever is closed; Descale the machine.
Coffee is cold or not hot enough.	Machine not preheated sufficiently.	Allow the machine to heat up for a few minutes after turning it on. Run a cycle without a capsule to preheat the system.
Indicator light flashes continuously.	Machine is heating up; Water tank is low/empty; Descaling required.	Wait for the light to become steady; Refill water tank; Consider descaling if the issue persists after refilling.
Water leaks from the machine.	Water tank not correctly seated; Internal component issue.	Ensure the water tank is properly inserted. If leaking persists, contact customer support.

7. Specifications

Feature	Detail
Brand	Lavazza
Model Number	LM860
Product Dimensions (D x W x H)	20 x 33 x 12 cm
Item Weight	3.9 kg
Power	1250 W
Pressure	10 bar
Water Tank Capacity	0.6 L
Capsule Type	Lavazza A Modo Mio
Removable Water Tank	Yes
Removable Drip Tray	Yes
Dishwasher Safe Parts	Yes (removable parts)
Automatic Shut-off	Yes (after 2 minutes of inactivity)
Adjustable Coffee Quantity	Yes (Stop&Go button)
Adjustable Cup Support	Yes

8. Warranty and Support

8.1 Product Warranty

This product is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase or visit the official Lavazza website for detailed terms and conditions regarding warranty coverage, duration, and claims procedures.

8.2 Customer Support

For technical assistance, spare parts, or any questions regarding your Lavazza A Modo Mio Jolie EVO coffee machine, please contact Lavazza Customer Service. Contact details can typically be found on the official Lavazza website or on the packaging of your product.

You can also visit the Lavazza Store on Amazon for more information.
