Fohere Cold Press Juicer JC-3005 User Manual

Introduction

This manual provides essential instructions for the safe and efficient operation, maintenance, and care of your Fohere Cold Press Juicer, model JC-3005. Please read this manual thoroughly before first use and retain it for future reference.

Image: The Fohere Cold Press Juicer, model JC-3005, shown fully assembled with a variety of fresh fruits and vegetables surrounding it, illustrating its purpose for juicing.

Safety Precautions

• Always ensure the juicer is properly assembled before operation.
• Do not insert fingers or other objects into the feed chute while the juicer is operating. Use the provided food pusher.
• Unplug the appliance from the power outlet before cleaning, disassembling, or assembling parts.
• Keep the appliance out of reach of children.
• Do not immerse the motor base in water or other liquids.
• Avoid juicing hard seeds, pits, or frozen fruits, as these can damage the auger and motor.
• If the appliance jams, use the reverse function to clear the blockage before attempting to disassemble.

Product Components

Familiarize yourself with the parts of your Fohere Cold Press Juicer:

• Motor Base
• Juicing Bowl
• Auger (Squeezing Screw)
• Strainer (Filter)
• Lid with Feed Chute and Safety Sensor
• Food Pusher
• Juice Cup (800ml)
• Pulp Container (1000ml)
• Cleaning Brush

Setup and Assembly

Follow these steps to assemble your juicer before first use:

1. Place the motor base on a stable, flat surface.
2. Align the juicing bowl with the motor base and rotate it clockwise until it locks into place.
3. Insert the strainer into the juicing bowl, ensuring it is seated correctly.
4. Place the auger into the center of the strainer, pushing down firmly.
5. Attach the lid to the top of the juicing bowl, aligning the arrows and rotating clockwise until it locks. The safety sensor must be engaged for the juicer to operate.
6. Position the juice cup under the juice spout and the pulp container under the pulp spout.

Image: A close-up view of the Fohere Juicer's wide feed chute, measuring 4.72 inches in diameter, with fruits being placed inside. This illustrates the ease of feeding whole fruits without extensive pre-cutting.

Operating Instructions

Before juicing, wash all fruits and vegetables. For best results, cut larger items into pieces that fit comfortably into the feed chute, though the 4.72-inch wide chute accommodates many whole fruits.

1. Ensure the juicer is correctly assembled and the juice cup and pulp container are in place.
2. Plug the power cord into a grounded electrical outlet.
3. Turn the juicer ON using the control switch.
4. Gradually feed fruits and vegetables into the feed chute. Use the food pusher only if necessary to guide ingredients. Do not force ingredients.
5. Allow the juicer to process the ingredients completely before adding more.
6. If the juicer becomes clogged, switch to the "Reverse" function for a few seconds to clear the blockage, then switch back to "ON".
7. Once juicing is complete, turn the juicer OFF and unplug it from the outlet.
8. Remove the juice cup and pulp container.

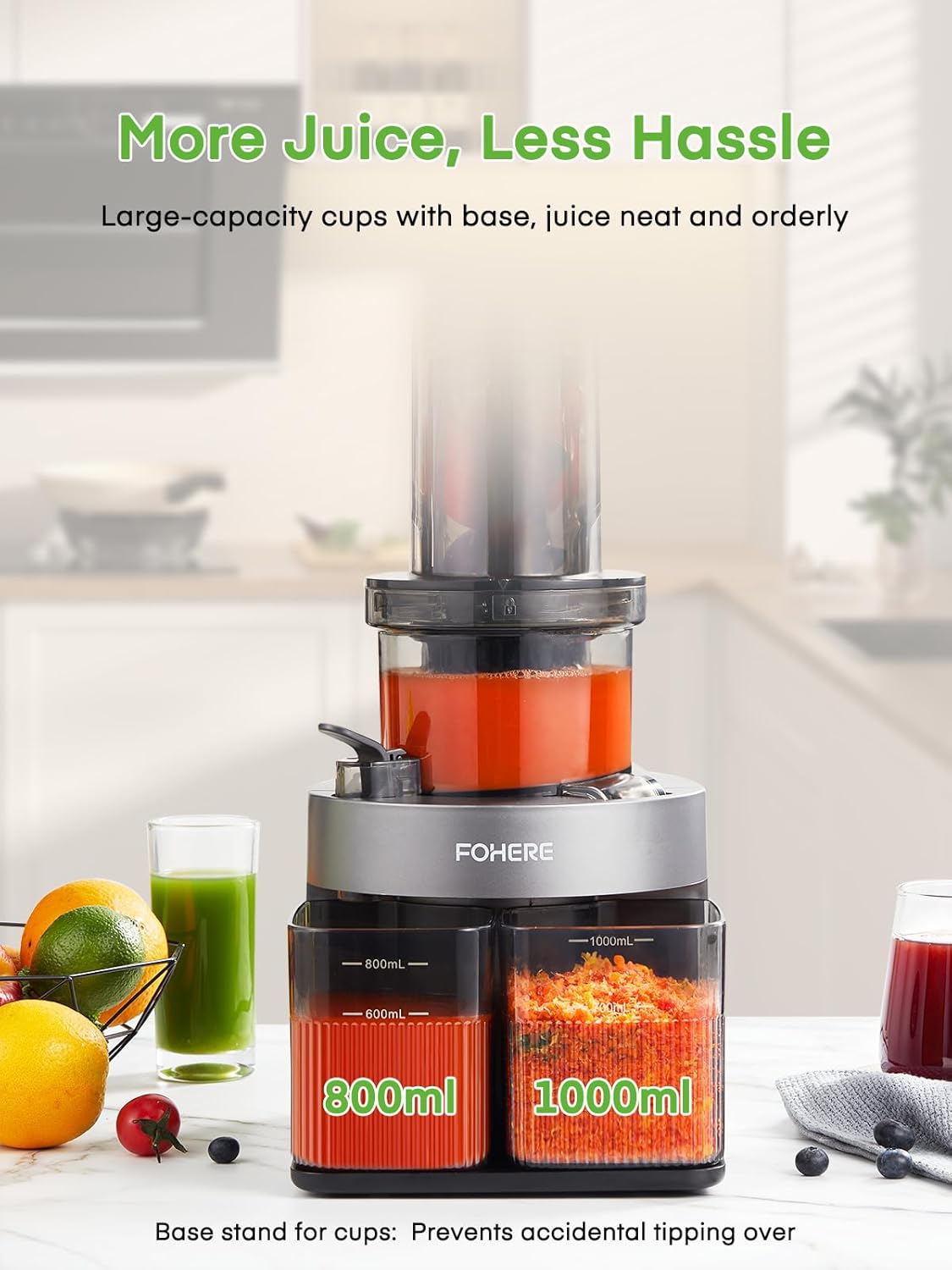

Image: The Fohere Juicer in operation, showing the 800ml juice cup filled with fresh juice and the 1000ml pulp container collecting pulp. Both containers are clearly labeled with their capacities and sit on a stable base.

Maintenance and Cleaning

Regular cleaning ensures optimal performance and longevity of your juicer. Clean the appliance immediately after each use.

1. Unplug the juicer from the power outlet.
2. Disassemble the juicer by rotating the lid counter-clockwise, then removing the auger, strainer, and juicing bowl.
3. Empty the juice cup and pulp container.
4. Rinse all removable parts (lid, food pusher, auger, strainer, juicing bowl, juice cup, pulp container) under running water.
5. Use the provided cleaning brush to thoroughly clean the strainer, especially the fine mesh, to remove any pulp residue. The dual-layer filter can be separated for easier cleaning.
6. Wash all removable parts with warm, soapy water. Rinse thoroughly.
7. Wipe the motor base with a damp cloth. Never immerse the motor base in water.
8. Allow all parts to air dry completely before reassembling or storing.

Image: A detailed view of the Fohere Juicer's internal components, highlighting the 7-stage auger and the dual-layer easy-clean strainer. The image shows how the strainer can be separated for thorough cleaning, contributing to efficient juice extraction.

Image: A person cleaning the Fohere Juicer's strainer under running water using the included cleaning brush. Various disassembled parts are shown on a kitchen counter, emphasizing the ease of cleaning and maintenance.

Troubleshooting

If you encounter issues with your juicer, refer to the following common problems and solutions:

• Juicer does not turn on:
  • Ensure the power cord is securely plugged into a working outlet.
  • Verify that all parts are correctly assembled and locked into place, especially the lid, to engage the safety sensor.
• Juicer stops during operation or jams:
  • Too much produce may have been fed at once. Turn the juicer OFF, then use the "Reverse" function for a few seconds to clear the blockage.
  • Hard ingredients (e.g., large seeds, frozen fruit) may be causing a jam. Disassemble and remove the obstruction. Avoid juicing such items.
• Low juice yield or excessive pulp in juice:
  • Ensure the strainer is clean and free of blockages. A clogged strainer can reduce efficiency.
  • Some softer fruits may naturally produce more pulp.
• Loud noise or vibration:
  • Check that all components are correctly assembled and securely locked.
  • Ensure the juicer is on a stable, flat surface.

Specifications

Warranty and Support

For warranty information or technical support, please refer to the warranty card included with your product or contact FOHERE customer service. You can also visit the official FOHERE store for more information:

FOHERE Official Store
