Mould King 10206 V8 Engine Model Kit

1. Product Overview

The Mould King 10206 V8 Engine Model Kit is a 1:4 scale, 737-piece construction set designed to replicate a functional V8 engine. This STEM toy allows users to build and understand the intricate mechanics of an internal combustion engine, featuring a classic camshaft structure, chain, and gear system that transmits power and regulates valve movements. Many parts are electroplated to provide an authentic metallic texture, making the finished model suitable for display.

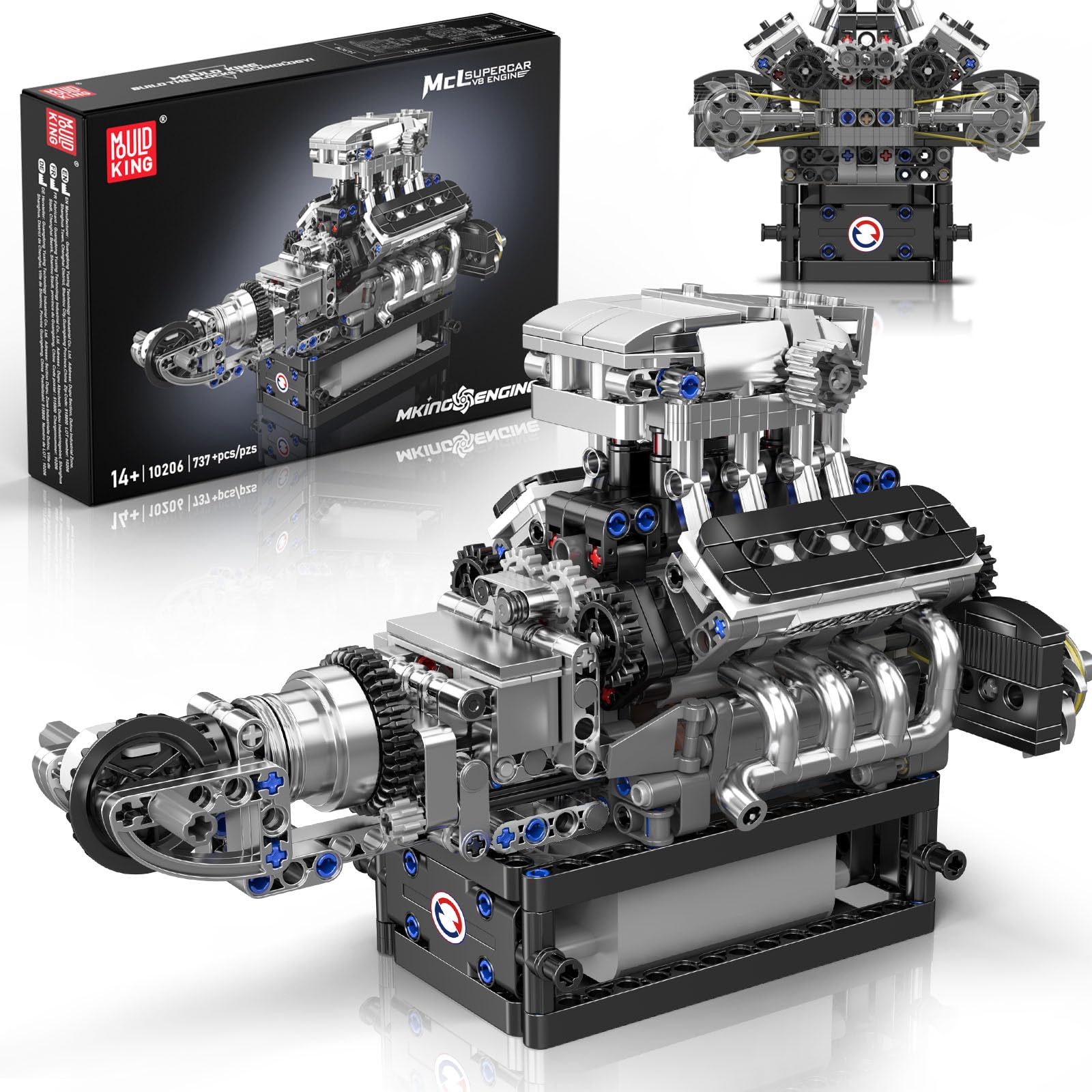

Image 1.1: The assembled Mould King 10206 V8 Engine Model Kit, showcasing its detailed design and functional components.

2. What's Included

Your Mould King 10206 V8 Engine Model Kit package contains the following items:

• 737 Building Pieces
• 1x XL Motor
• 1x 9V Battery Box
• 1x Instruction Manual

Note: 6 AAA batteries are required for operation and are not included in this kit.

Image 2.1: The kit contents, including the building pieces, motor, battery box, and instruction manual.

3. Setup (Assembly Instructions)

Follow the detailed, step-by-step instructions provided in the included manual to assemble your V8 engine model. It is recommended to organize the parts by type or step before beginning construction.

3.1. Prepare Components

Unpack all building pieces and verify against the parts list in your manual. Familiarize yourself with the different types of blocks and connectors.

3.2. Build the Core Engine Structure

Begin by constructing the main block of the engine, paying close attention to the placement of the camshaft and crankshaft components. These form the foundation for the moving parts.

Image 3.1: Detailed view of the gear and camshaft assembly during construction.

3.3. Assemble the Camshaft and Valve System

Connect the camshaft to the gear system using the provided chain. This mechanism is crucial for regulating the valve movements, simulating a real V8 engine's operation.

Image 3.2: Illustration of the internal mechanical motion, highlighting the camshaft and valve system.

3.4. Integrate the Motor and Battery Box

Once the mechanical components are in place, integrate the XL Motor and the 9V Battery Box into the model as indicated in the manual. Ensure all connections are secure.

Image 3.3: The electric powered aspect of the model, showing the motor and battery box integration.

3.5. Final Assembly and Details

Complete the remaining sections of the engine, including the exhaust manifolds and other aesthetic details. Double-check all connections and moving parts to ensure smooth operation.

Image 3.4: A close-up of the electroplated exhaust manifold, adding to the realistic appearance.

4. Operating the Model

Once assembly is complete, you can activate your V8 engine model to observe its mechanical movements.

1. Install Batteries: Open the battery compartment on the 9V Battery Box and insert 6 AAA batteries, ensuring correct polarity. Close the compartment securely.
2. Connect Power: Ensure the XL Motor is correctly connected to the 9V Battery Box.
3. Activate: Locate the power switch on the battery box and slide it to the 'ON' position. The motor will start, and the camshaft, gears, and valves will begin to move, simulating a running V8 engine.
4. Deactivate: To stop the engine, slide the power switch to the 'OFF' position.

5. Maintenance

To ensure the longevity and optimal performance of your Mould King V8 Engine Model Kit, follow these maintenance guidelines:

• Cleaning: Use a soft, dry cloth to gently wipe away dust and debris from the model. Avoid using harsh chemicals or abrasive materials.
• Storage: Store the model in a cool, dry place away from direct sunlight and extreme temperatures to prevent material degradation.
• Battery Care: Remove batteries from the battery box if the model will not be used for an extended period to prevent leakage and damage.
• Component Check: Periodically inspect moving parts (gears, chain) for any obstructions or signs of wear.

6. Troubleshooting

If you encounter any issues with your V8 Engine Model Kit, refer to the following troubleshooting tips:

• Model Not Running:
  • Ensure 6 AAA batteries are correctly installed in the battery box with the proper polarity.
  • Check if the batteries are fresh and fully charged.
  • Verify that the XL Motor is securely connected to the 9V Battery Box.
  • Confirm the power switch on the battery box is in the 'ON' position.
  • Inspect for any physical obstructions preventing the gears or camshaft from moving freely.
• Missing Parts:

  If you find any parts missing from your set upon opening, please refer to the 'Warranty and Support' section for contact information to request replacements.

• Parts Not Fitting Correctly:

  Carefully re-examine the instruction manual for the specific step. Ensure you are using the correct pieces and that they are oriented as shown in the diagrams. Building blocks sometimes require firm but gentle pressure to connect.

7. Product Specifications

8. Warranty and Support

Mould King is committed to providing quality products. If you encounter any issues or have questions regarding your V8 Engine Model Kit, please refer to the following:

• Missing Parts: If any parts are missing from your set, please contact Mould King customer service directly. They will assist you in obtaining the necessary replacement parts.
• Returns: This product is eligible for a refund or replacement within 30 days of purchase, subject to the retailer's return policy.
• General Inquiries: For further assistance or product information, please visit the official Mould King store or contact their customer support channels.

For more information, you can visit the Mould King Store on Amazon.
