Introduction

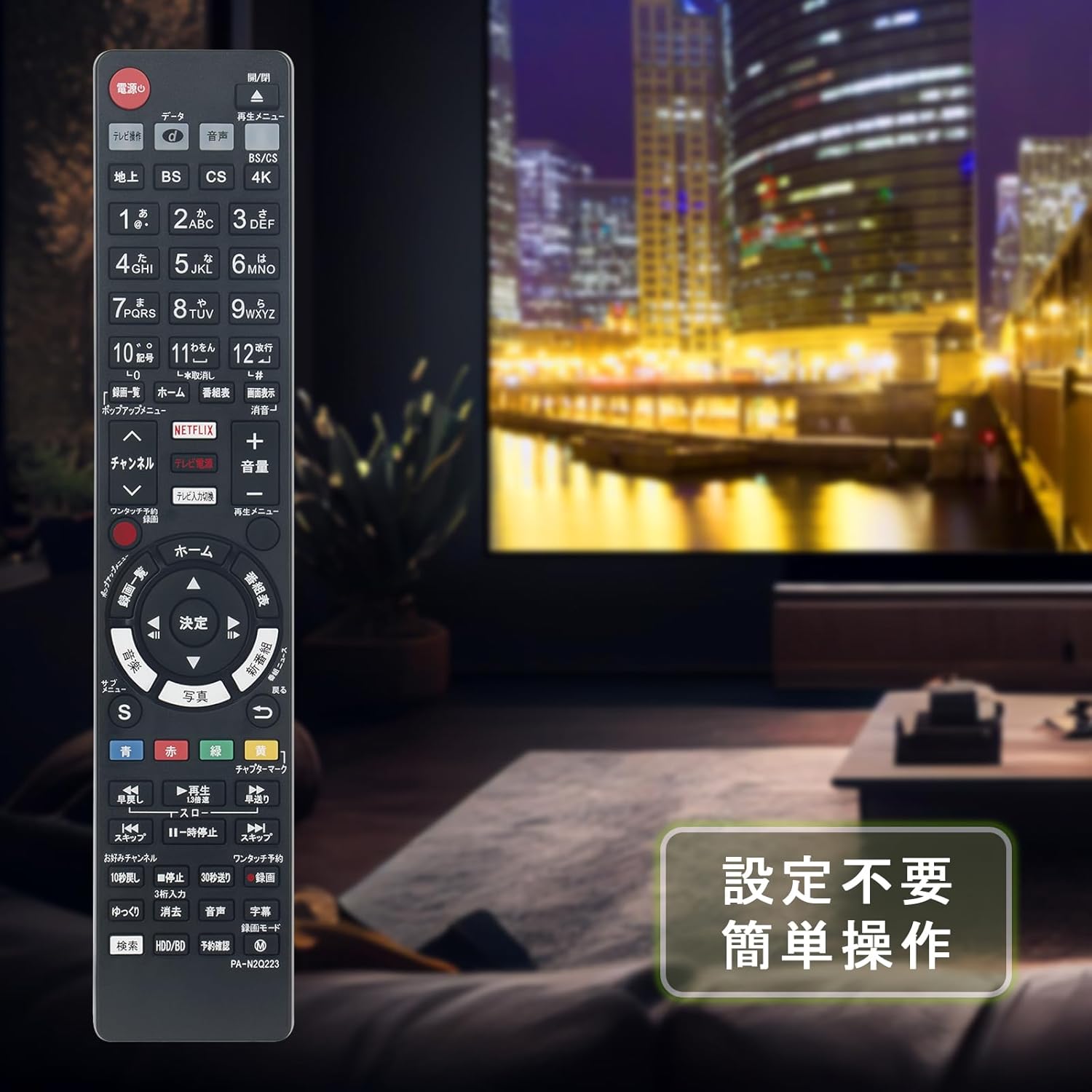

This ALLIMITY replacement remote control (Model N2QAYB001223) is designed to function identically to your original Panasonic recorder remote. It provides full access to all primary functions for compatible Panasonic recorder models.
Compatible Panasonic Recorder Models:
- DMR-4CW400
- DMR-4CS100
- DMR-SUZ2060
- DMR-4W300
- DMR-4W400
- DMR-4S100
- DMR-SCZ2060
- DMR-4W100
- DMR-4W200
- DMR-4CW200
Setup
The remote control requires no complex setup. Simply insert two AAA batteries to begin operation.
Battery Installation:
- Open the battery compartment cover on the back of the remote control.
- Insert two AAA (UM-4) alkaline batteries, ensuring correct polarity (+/-).
- Close the battery compartment cover securely.
Note: Batteries are not included and must be purchased separately.

Operating Instructions
This remote control is designed for immediate use with compatible Panasonic recorders once batteries are installed. All buttons are pre-configured to match the functions of the original remote.
Refer to your Panasonic recorder's original manual for specific function details of each button.


Maintenance
To ensure optimal performance and longevity of your remote control, follow these maintenance guidelines:
Cleaning:
Wipe the remote control with a soft, dry cloth. Do not use liquid cleaners, solvents, or abrasive materials, as these can damage the surface or internal components.
Storage:
Store the remote in a dry place, away from direct sunlight, high humidity, and extreme temperatures. Avoid placing heavy objects on the remote.
Battery Replacement:
Replace batteries when the remote's response becomes sluggish or stops working. Remove batteries if the remote will not be used for an extended period (e.g., more than a month) to prevent potential battery leakage and damage.
Troubleshooting
If you experience issues with your remote control, please refer to the following common solutions:
Remote not responding:
- Check if the batteries are inserted correctly with the correct polarity (+/-).
- Replace old batteries with new AAA alkaline batteries.
- Ensure there are no physical obstructions between the remote control and the Panasonic recorder's infrared sensor.
- Verify that the remote control is pointed directly at the recorder's infrared receiver.
Limited functionality:
- Confirm that your Panasonic recorder model is listed as compatible in the Introduction section.
- Ensure the remote is within the maximum operating range of 10 meters (approximately 33 feet) from the recorder.
Specifications
| Brand | ALLIMITY |
| Model (Replacement Remote) | N2QAYB001223 |
| Manufacturer Model Number | XK-Q223-ALI |
| Compatible Recorder Models | DMR-4CW400, DMR-4CS100, DMR-SUZ2060, DMR-4W300, DMR-4W400, DMR-4S100, DMR-SCZ2060, DMR-4W100, DMR-4W200, DMR-4CW200 |
| Color | Black |
| Connectivity Technology | Infrared (IR) |
| Maximum Operating Range | 10 meters (approx. 33 feet) |
| Battery Type | 2 x AAA Alkaline batteries (not included) |
| Dimensions (Approximate) | 23.5 cm (Length) x 4.5 cm (Width) x 2 cm (Thickness) |
| Country of Origin | China |

Warranty and Support
Warranty:
This ALLIMITY remote control comes with a 1-year warranty against manufacturer defects from the date of purchase. Please retain your proof of purchase for warranty claims.
Support:
For technical assistance, troubleshooting not covered in this manual, or to make a warranty claim, please contact your retailer or ALLIMITY customer support. Refer to the product packaging or the official ALLIMITY website for specific contact information.
