Tayogo Swimming Headphones with Bluetooth Receiver User Manual

1. Product Overview

The Tayogo T6-W23 Swimming Headphones with Bluetooth Receiver offer an innovative solution for enjoying audio during swimming and other water activities. This combo includes IPX8 waterproof bone conduction headphones (W23) and a Bluetooth transmitter (T6), allowing you to stream music and receive real-time coaching instructions underwater.

Image: The Tayogo T6 Bluetooth transmitter and the W23 bone conduction swimming headphones, shown together as a complete system.

The system features a dual mode for versatile use: Bluetooth for standard wireless connection and a dedicated receiving mode for underwater audio transmission from the T6 transmitter. The open-ear design of the headphones ensures comfort and situational awareness.

2. What's Included

Your Tayogo T6-W23 package contains the following items:

• 1 x Tayogo W23 Bone Conduction Waterproof Headphones
• 1 x Tayogo T6 Bluetooth Transmitter
• 1 set of ear buds (for optional use)
• 2 x Charging Cables

Image: A visual representation of the items included in the product package, featuring the headphones, transmitter, charging cables, and a carrying case.

3. Setup and Pairing

3.1 Charging the Devices

Before first use, fully charge both the Tayogo W23 headphones and the T6 transmitter. Use the provided charging cables. The charging time for both devices is approximately 2 hours.

3.2 Pairing the T6 Transmitter with Your Smartphone

1. Ensure the T6 transmitter is powered on.
2. On your smartphone, go to the Bluetooth settings.
3. Search for available devices and select "Tayogo T6" to connect.
4. Once connected, your phone's audio will be transmitted to the T6.

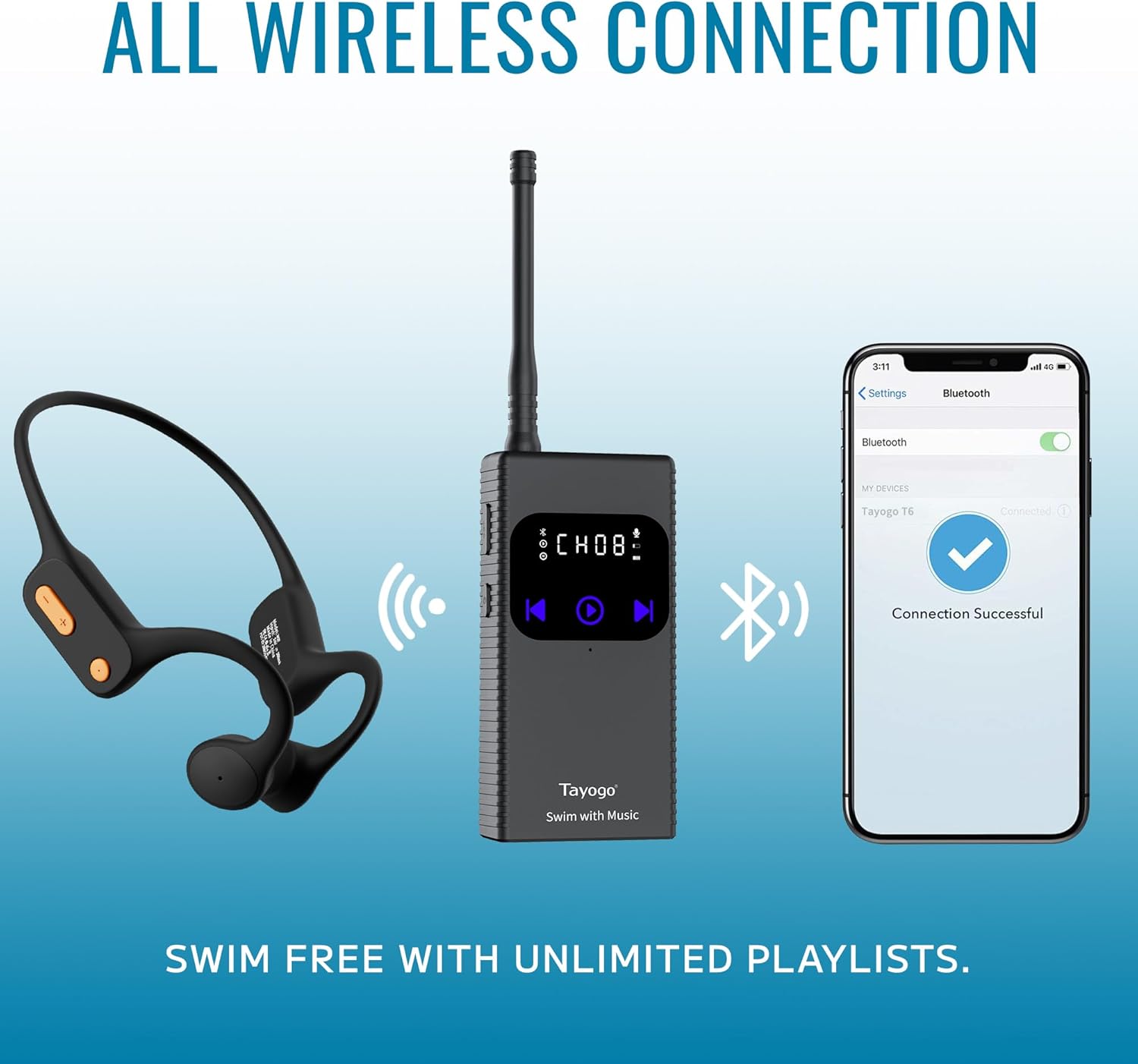

Image: Diagram illustrating the wireless connection flow from a smartphone via Bluetooth to the Tayogo T6 transmitter, and then wirelessly to the W23 headphones.

3.3 Preparing for Swimming

For optimal performance during swimming, ensure the T6 transmitter's antenna is fully extended. The transmitter and your phone should remain on the shore, within the 150-meter transmission range. The W23 headphones will receive the signal underwater.

4. Operating Instructions

4.1 Dual Mode Functionality

• Bluetooth Mode: For normal, dry-land use, the W23 headphones can connect directly to your smartphone via Bluetooth 5.4. This mode offers up to 15 hours of battery life.
• Receiving Mode: For swimming, switch the W23 headphones to Receiving Mode. This allows them to receive audio transmitted from the T6 transmitter. This mode offers up to 8 hours of battery life.

Image: A swimmer wearing the Tayogo W23 bone conduction headphones in a pool, demonstrating their use during aquatic activities.

4.2 Using the T6 Transmitter

The T6 transmitter features a digital display screen and touch-sensitive buttons for easy operation. It supports streaming from various mobile playlists and apps like Spotify, Amazon Music, and Audible.

• Channel Selection: The T6 and W23 support up to 16 channels. Ensure both devices are set to the same channel for proper audio transmission. This is particularly useful for multiple users in the same pool or for coach-to-swimmer communication.
• Range: The T6 transmitter has a working range of up to 150 meters and can transmit signals up to 2 meters underwater, ensuring clear audio throughout the pool.

Image: The Tayogo T6 transmitter and W23 headphones alongside various music streaming app logos, emphasizing the ability to stream content from platforms like Spotify and Audible.

4.3 Swim Coach Communication

The T6-W23 system is an excellent tool for swim coaches. With 16 available channels, coaches can provide real-time instructions to individual swimmers or groups without shouting, enhancing training efficiency.

Image: A swim coach holding the Tayogo T6 transmitter, with children in a swimming pool in the background, illustrating the multi-channel communication feature for different groups.

5. Care and Maintenance

To ensure the longevity and optimal performance of your Tayogo T6-W23 system, follow these care instructions:

• Waterproof Design: The W23 headphones are IPX8 waterproof, suitable for continuous immersion in water. After use in chlorinated or saltwater, rinse them with fresh water.
• Cleaning: Wipe both the headphones and transmitter with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Storage: Store the devices in a cool, dry place away from direct sunlight and extreme temperatures.
• Charging Ports: Ensure charging ports are dry before connecting charging cables to prevent corrosion.

Image: The Tayogo W23 bone conduction headphones partially submerged in water, highlighting their IPX8 waterproof capability for diving depths up to 3 meters.

6. Troubleshooting

7. Technical Specifications

Image: An illustration showing the battery life of the Tayogo T6 transmitter (9 hours) and W23 headphones (15 hours), with a 2-hour charging time indicated.

8. Warranty and Support

For warranty information and customer support, please refer to the official Tayogo website or contact their customer service directly. Keep your purchase receipt for warranty claims.

You can also find additional support and information by visiting the Tayogo Store on Amazon.
