Tendparts H32412 Ignition Keys User Manual

1. Introduction

This manual provides essential information for the proper use and maintenance of your Tendparts H32412 ignition keys. These keys are designed as replacement parts for various Kubota G, L, and M Series tractor models, as well as certain Case, Mahindra, and Mitsubishi tractors. Please read this manual thoroughly before use to ensure correct application and longevity of the product.

2. Safety Information

• Always ensure the tractor is in neutral and the parking brake is engaged before attempting to start the engine.
• Never leave keys in the ignition when the tractor is unattended, especially if children are present.
• Keep keys clean and free from debris to prevent damage to the ignition cylinder.
• Store spare keys in a secure and easily accessible location, separate from the primary key.

3. Product Overview

The Tendparts H32412 ignition keys are precision-cut metal keys designed to operate the ignition systems of compatible tractor models. Each key is stamped with "32412" for easy identification.

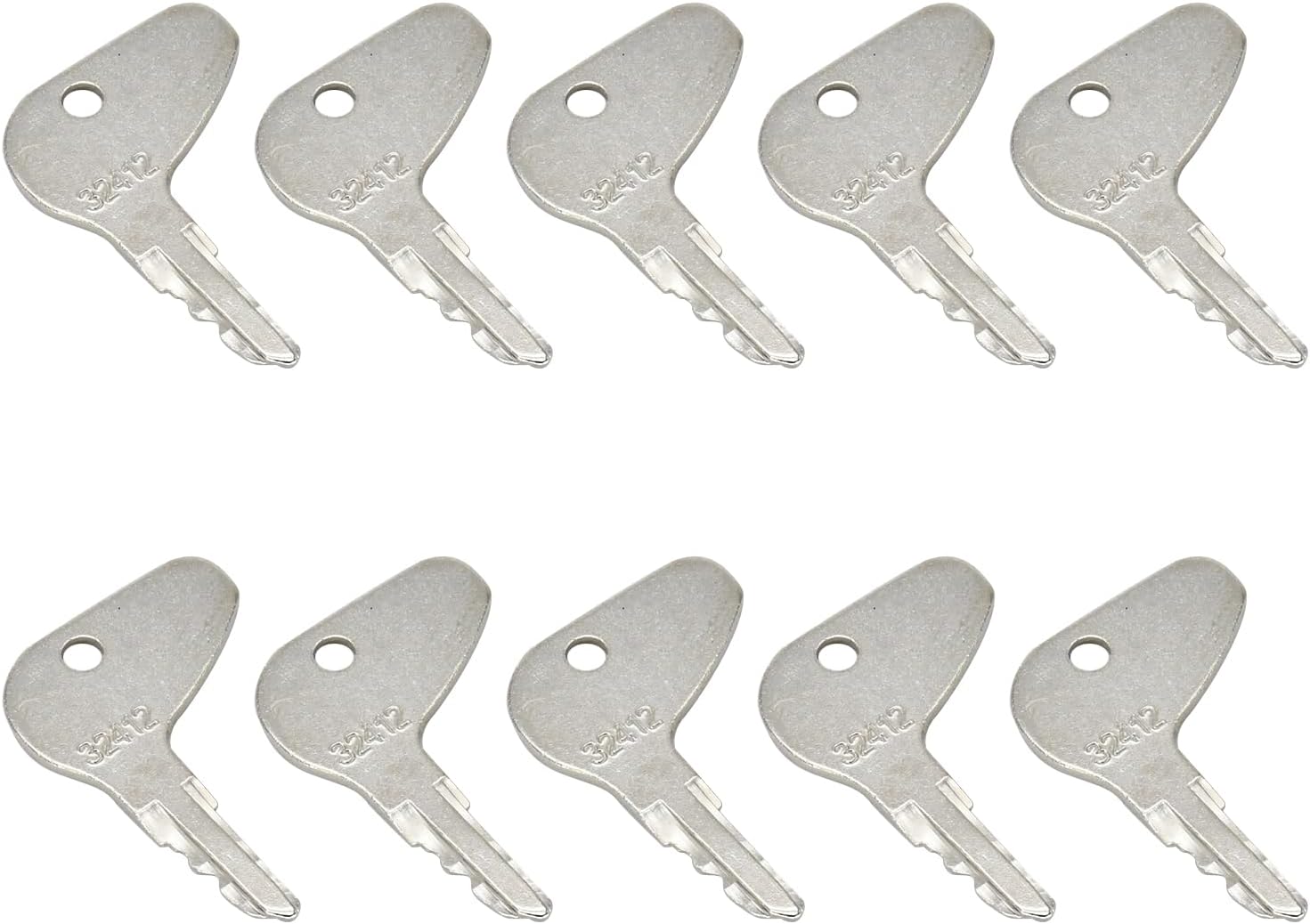

Figure 3.1: A set of ten Tendparts H32412 ignition keys.

Figure 3.2: Detailed view of a single H32412 ignition key.

4. Compatibility

These H32412 ignition keys are compatible with a wide range of tractor models. Please verify your tractor's model number against the lists below to ensure compatibility.

4.1. Kubota G Series Tractors

• G3200, G4200, G5200, G6200

4.2. Kubota L Series Tractors

• L1275, L2050, L2250, L235, L2350, L2500, L2550, L2600, L2650, L275, L2800, L2850, L2900, L2950, L3000, L3010, L3240, L3250, L3300, L3350, L3400, L3410, L3450, L35, L3600, L3750, L3830, L3940, L4150, L4200, L4240, L4310, L4330, L4350, L4400, L4610, L4740, L4850, L5030, L5040, L5240, L5450, L5740

4.3. Kubota M Series Tractors

• M4700, M4700DT, MX4700H, MX4700X, M4800, MX4800DT, MX4800F, MX4800H, M4800SU-F, M4800SUD-F, M4900SU, M4900SUDT, MX5000, MX5000DT, MX5000F, MX5000SU, MX5100DT, MX5100F, MX5100H, MX5200DT, MX5200H, M5400, M5400DT, M5400DT-N, MX5800H

4.4. Other Compatible Tractors

• Case Tractors
• Mahindra Tractors: 2015, 2615, 3015, 2216, 2816
• Mitsubishi Tractors

5. Setup and Installation

The H32412 ignition keys are designed for direct replacement. No special tools or complex installation procedures are required.

1. Identify the correct key: Ensure the key you are using is an H32412 key, matching the part number for your tractor's ignition.
2. Insert the key: Gently insert the key into the tractor's ignition switch. Do not force the key if it does not slide in smoothly.
3. Test functionality: Turn the key to the "ON" position to verify electrical power, then to the "START" position to engage the starter.

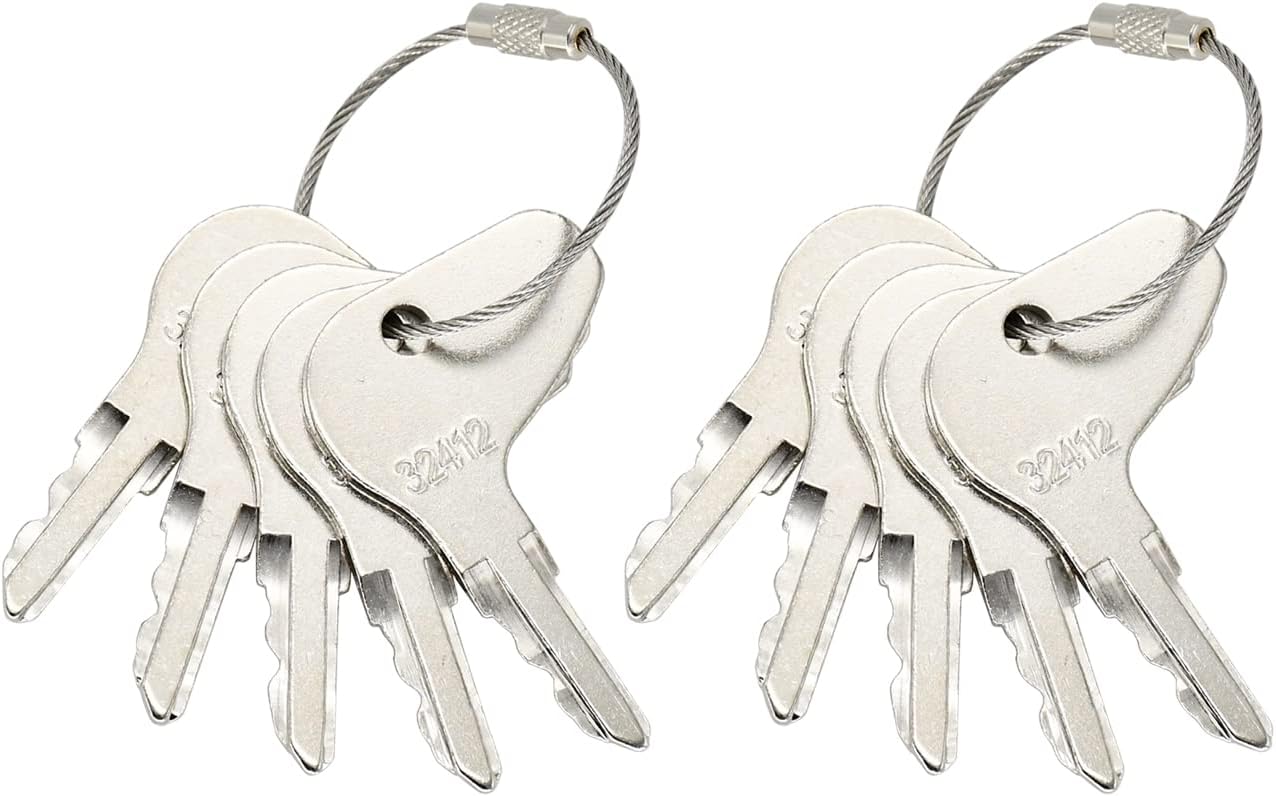

Figure 5.1: Keys organized on wire keyrings for easy access and storage.

6. Operating Instructions

To operate your tractor using the H32412 ignition key:

1. Preparation: Ensure all safety checks are performed, including checking fluid levels, tire pressure, and ensuring no obstructions are around the tractor.
2. Insert Key: Insert the H32412 key into the ignition switch.
3. Turn to ON: Turn the key clockwise to the "ON" position. This will activate the tractor's electrical system. Observe the dashboard indicator lights.
4. Start Engine: Continue turning the key clockwise to the "START" position. Hold it until the engine starts, then release the key. The key will automatically return to the "ON" position.
5. Shut Down: To turn off the tractor, turn the key counter-clockwise to the "OFF" position and remove it.

7. Maintenance

Proper maintenance of your ignition keys will ensure their longevity and reliable performance.

• Keep Clean: Regularly wipe the keys with a dry cloth to remove dirt, grease, or moisture. Avoid using harsh chemicals.
• Avoid Bending: Do not apply excessive force or attempt to bend the keys, as this can damage their structure and render them unusable.
• Proper Storage: Store keys in a dry, safe place away from extreme temperatures and corrosive materials. Using a keyring (as shown in Figure 5.1) can help prevent loss.
• Inspect for Wear: Periodically inspect the key blade for signs of wear or damage. A worn key may not operate the ignition smoothly.

8. Troubleshooting

8.1. Key Does Not Insert Smoothly

• Check for Obstructions: Inspect the ignition cylinder for any foreign objects or debris.
• Verify Key: Ensure you are using the correct H32412 key for your tractor model.
• Lubrication: A small amount of graphite lubricant can be applied to the key or ignition cylinder if stiffness persists.

8.2. Engine Does Not Start

• Battery Check: Ensure the tractor battery is charged and connections are secure.
• Safety Interlocks: Verify that all safety interlocks (e.g., neutral safety switch, PTO disengaged, parking brake) are correctly engaged.
• Ignition System: If the key turns but the engine does not crank, there may be an issue with the tractor's starter motor or ignition system, which requires professional diagnosis.

9. Specifications

10. Warranty and Support

These Tendparts H32412 ignition keys are provided as replacement parts. For any issues or questions regarding compatibility or performance, please contact the seller or manufacturer directly. Keep your purchase records for reference.
