1. Product Overview
The IGLOO ICF 18 is a versatile 19-liter compressor cooler designed for portable refrigeration and freezing. It operates on 12V, 24V, and 230V power sources, making it suitable for use in vehicles, boats, RVs, or standard electrical outlets. Its robust construction and efficient cooling technology allow it to maintain temperatures from +20°C down to -18°C, ensuring your food and beverages remain fresh or frozen during extended trips and outdoor activities.
Figure 1.1: The IGLOO ICF 18 Compressor Cooler with its lid open, showcasing the interior compartment.
2. Safety Information
- Read all instructions before operating the appliance.
- Ensure the power source matches the voltage requirements of the cooler (12V, 24V, or 230V).
- Do not immerse the cooler in water or expose it to excessive moisture.
- Keep ventilation openings clear of obstructions to ensure proper airflow.
- Avoid placing hot items directly into the cooler; allow them to cool first.
- Do not use abrasive cleaners or sharp objects inside the cooler.
- Unplug the cooler from the power source before cleaning or performing maintenance.
3. Setup and Installation
3.1 Unpacking
Carefully remove the cooler from its packaging. Inspect the unit for any signs of damage during transit. Retain the packaging for future storage or transport if needed.
3.2 Placement
Place the cooler on a stable, level surface. Ensure there is adequate space around the ventilation grilles for proper heat dissipation. Avoid direct sunlight or heat sources.

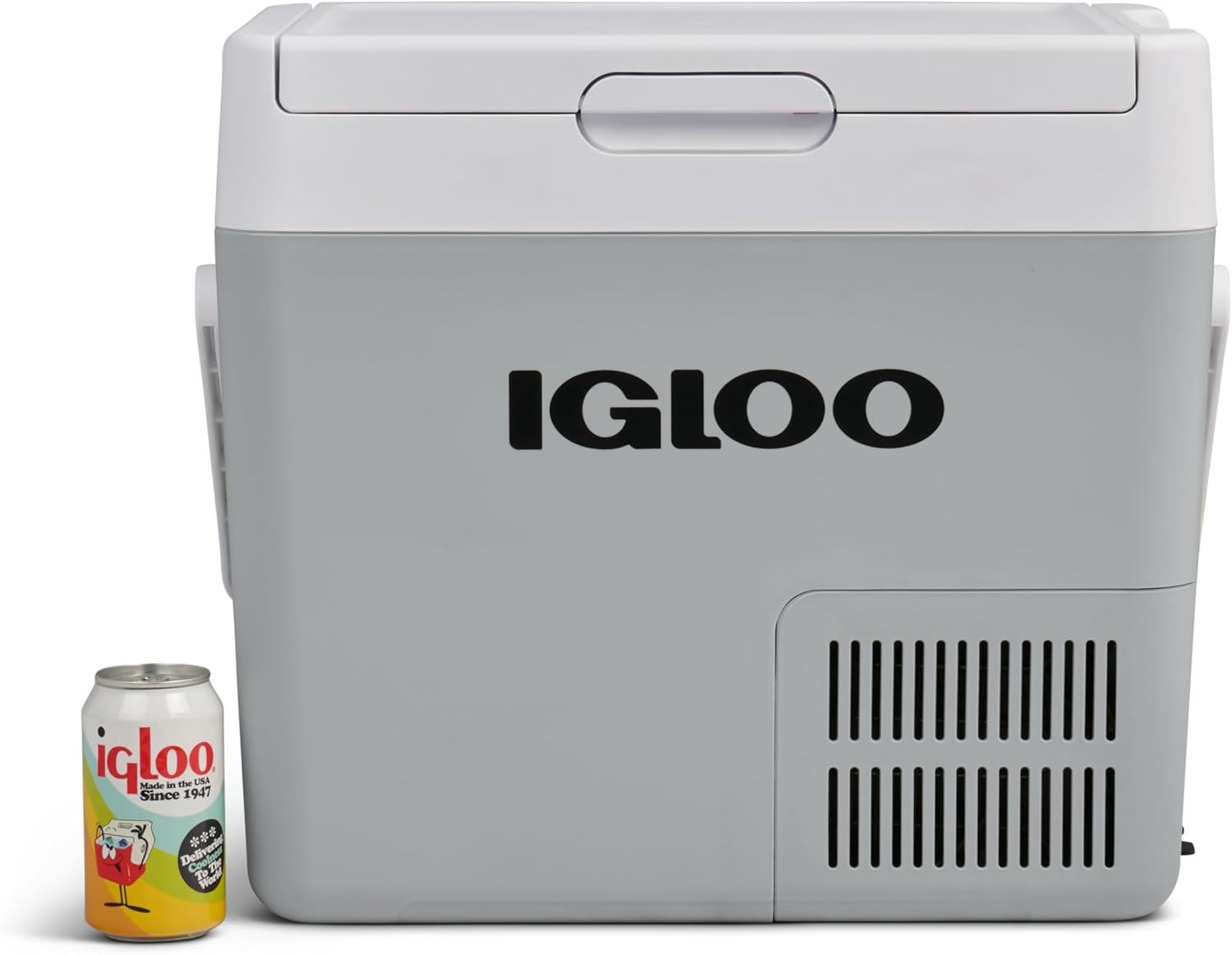

Figure 3.1: Front view of the cooler, demonstrating its compact size relative to a standard beverage can.
3.3 Power Connection
The IGLOO ICF 18 supports multiple power inputs:
- 12V/24V DC: Use the provided DC power cable to connect the cooler to your vehicle's cigarette lighter socket or a compatible 12V/24V power outlet. The cooler features a 3-level battery controller to protect your vehicle's battery from excessive discharge.
- 230V AC: Use the provided AC power cable to connect the cooler to a standard 230V wall outlet.
Figure 3.2: The cooler shown with its included AC and DC power cables, ready for connection.
4. Operating Instructions
4.1 Control Panel
The cooler is equipped with a digital thermostat and an LED indicator for precise temperature control and status monitoring.
Figure 4.1: Detailed view of the digital control panel, featuring power, set, and temperature adjustment buttons.
- Power Button: Press to turn the cooler on or off.
- SET Button: Press to enter temperature setting mode. Use the '+' and '-' buttons to adjust the desired temperature. Press SET again to confirm.
- '+' / '-' Buttons: Adjust the temperature up or down. The temperature range is from +20°C to -18°C.
- LED Indicator: Displays the current operating status (e.g., cooling, temperature reached).
4.2 Loading the Cooler
The 19-liter capacity provides ample space for various items. A removable separation grid helps organize contents, allowing for efficient use of space.
Figure 4.2: The cooler's interior, demonstrating its capacity and the use of the separation grid for organized storage of food and drinks.
- For optimal cooling, pre-chill items before placing them in the cooler.
- Distribute items evenly to allow for proper air circulation.
- Utilize the separation grid to create distinct compartments for different types of items (e.g., chilled vs. frozen).
5. Maintenance and Care
- Cleaning: Clean the interior and exterior of the cooler with a damp cloth and mild detergent. Do not use abrasive cleaners or solvents. Ensure the cooler is unplugged before cleaning.
- Defrosting: If ice buildup occurs, turn off the cooler and allow the ice to melt naturally. Wipe away any water with a clean cloth.
- Storage: When not in use for extended periods, ensure the cooler is clean and dry. Store it in a cool, dry place with the lid slightly ajar to prevent odors and mildew.
- Ventilation: Regularly check that the ventilation grilles are free from dust and debris to ensure efficient operation.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Cooler not turning on | No power supply; faulty cable; vehicle battery low (12V/24V). | Check power connection; try a different outlet/cable; charge vehicle battery. |
| Cooling performance is poor | Blocked ventilation; lid not sealed properly; ambient temperature too high; overloaded. | Clear vents; ensure lid is closed tightly; move to a cooler environment; reduce contents. |
| Unusual noise from cooler | Cooler not level; fan obstruction. | Place on a level surface; check for and remove any fan obstructions. |
| Digital display not working | Power issue; internal fault. | Check power connection; if problem persists, contact customer support. |
7. Specifications
| Feature | Detail |
|---|---|
| Brand | IGLOO |
| Model Name | ICF 18 |
| Model Number | 97000133121 |
| Capacity | 19 Liters |
| Cooling Range | +20°C to -18°C |
| Power Input | 12V DC, 24V DC, 230V AC |
| Dimensions (L x W x H) | 32.9 x 42.2 x 50 cm |
| Weight | 10.5 kg |
| Special Features | Low noise operation, Digital thermostat, 3-level battery controller |
| Included Components | Cooler, DC connection cable, AC connection cable, User Manual |
| Country of Origin | China |
8. Warranty and Support
For warranty information and customer support, please refer to the contact details provided by the manufacturer or your point of purchase. Keep your proof of purchase for warranty claims.
Manufacturer: Igloo EMEA AB
For support, you may contact the seller or visit the official IGLOO website for further assistance.
Note: The provided product information indicates a manufacturer warranty period of 0 months. Please verify warranty terms with your retailer.
