1. Product Overview
The uxcell Tr8x2 T8 POM Anti-Backlash Spring Nut is a precision component designed to eliminate backlash in lead screw mechanisms, commonly found in 3D printers and other linear motion systems. Constructed from high-strength POM material, it offers excellent wear resistance, corrosion resistance, and heat resistance, ensuring reliable and long-lasting performance.
Figure 1: Exploded view of the anti-backlash nut, highlighting its corrosion resistance, high strength, hardness, and built-in spring mechanism.
Key Features:
- Material: Made from POM (Polyoxymethylene) for high strength, hardness, and wear resistance.
- Anti-Backlash Design: Incorporates a built-in spring mechanism to provide continuous clamping force, ensuring close contact between components and improving printing accuracy.
- Durability: Excellent resistance to corrosion and heat, suitable for long-term use.
- Vibration Damping: The spring's elasticity absorbs vibration energy, reducing friction and noise for improved efficiency.
2. Specifications
Detailed specifications for the uxcell Tr8x2 T8 POM Anti-Backlash Spring Nut are provided below:
Figure 2: Dimensional diagram of the anti-backlash spring nut, including lead, pitch, mounting hole, and overall sizes.
| Parameter | Value |
|---|---|
| Material | POM (Polyoxymethylene) |
| Model | Tr8 |
| Start | 1 |
| Lead | 2mm / 0.08" |
| Pitch | 2mm / 0.08" |
| Mounting Hole | 2-M3 |
| Nut Size (L*W) | 16x13mm / 0.63"x0.51" |
| Nut Size (L*W*H) | 24x12x10mm / 0.94"x0.47"x0.39" |
| Spring Size (L*W) | 29x12mm / 1.14"x0.47" |
| Package Content | 2 pieces x Anti-Backlash Spring Nuts |
Figure 3: Illustration of lead screw starts and a table detailing various Tr8 lead screw specifications, including diameter, lead, pitch, and distance per rotation.
3. Setup and Installation
Follow these steps for proper installation of the anti-backlash spring nut:
- Placement: Position the anti-backlash spring nut at the desired installation point on your lead screw system.
- Alignment: Align the mounting holes of the nut with the corresponding bolt or screw holes on your equipment.
- Initial Fastening: Insert the bolt or screw through the nut's mounting hole and begin to tighten it.
- Spring Tension Adjustment: Adjust the tension of the internal spring as necessary to achieve the desired anti-backlash effect. This typically involves compressing the spring slightly.
- Final Tightening: Securely tighten the bolt or screw to fix the nut in place. Ensure the nut can move freely along the lead screw while maintaining constant contact.

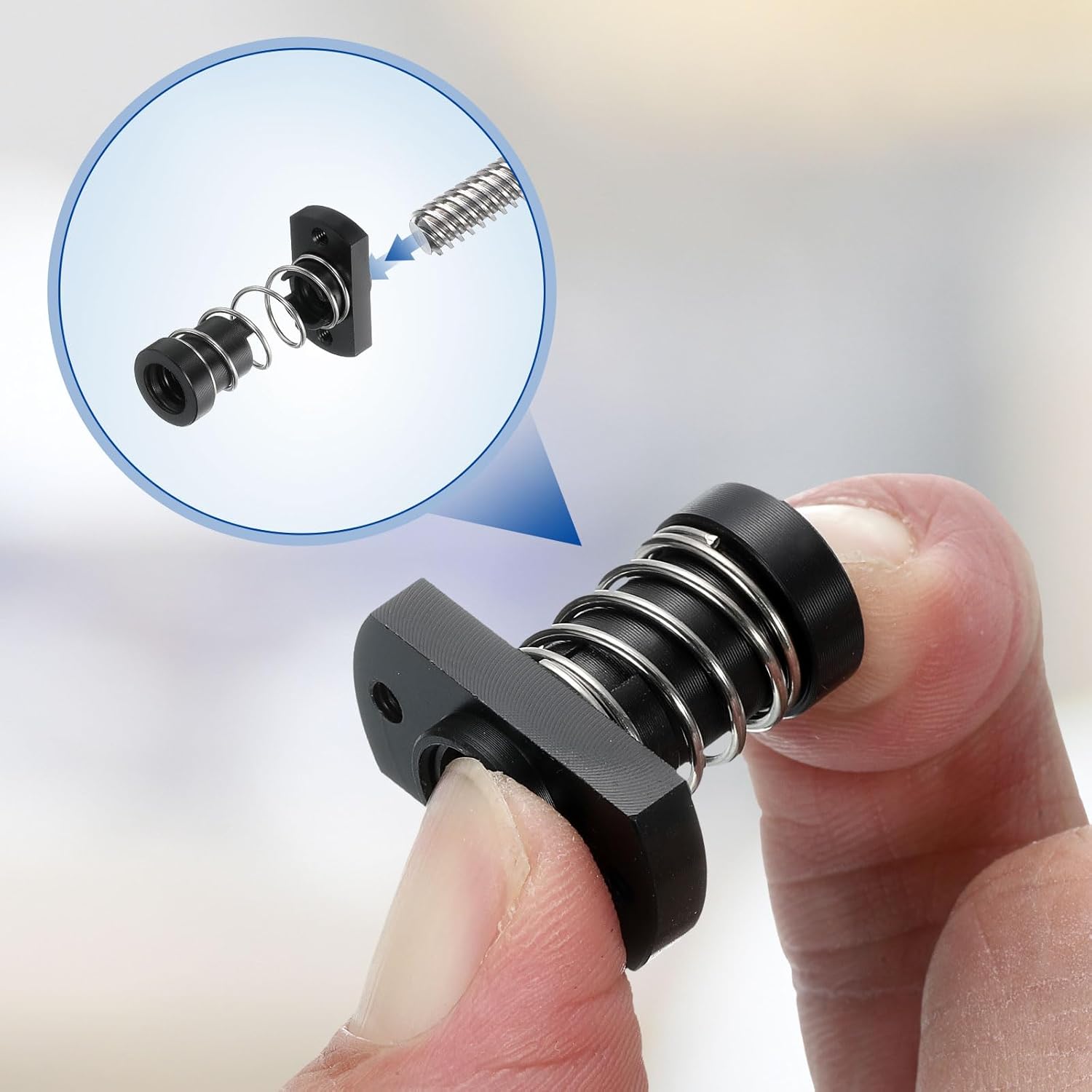

Figure 4: Demonstration of the anti-backlash spring nut being compressed, illustrating the function of the internal spring.
4. Operating Principles
The anti-backlash spring nut operates by maintaining a constant, slight pressure against the lead screw threads. This continuous contact eliminates any gaps or 'play' (backlash) that can occur due to manufacturing tolerances or wear. By removing backlash, the nut ensures precise and repeatable linear motion, which is critical for applications requiring high accuracy.
The integrated spring mechanism dynamically adjusts to minor variations, absorbing vibrations and reducing friction, thereby contributing to smoother operation and extended equipment life.
5. Maintenance
The uxcell Tr8x2 T8 POM Anti-Backlash Spring Nut is designed for low maintenance due to its durable POM material. However, periodic inspection is recommended to ensure optimal performance:
- Cleaning: Keep the nut and lead screw free from dust, debris, and foreign particles that could impede smooth operation. Use a soft cloth or brush for cleaning.
- Inspection: Regularly check for any signs of wear on the nut threads or the lead screw. While POM is highly wear-resistant, extreme conditions or prolonged use may eventually cause wear.
- Lubrication: Consult the lead screw manufacturer's recommendations for appropriate lubrication. While the POM material has inherent low friction properties, some applications may benefit from specific lubricants.
6. Troubleshooting
If you encounter issues with the anti-backlash spring nut, consider the following:
- Excessive Backlash: Ensure the nut is correctly installed and the mounting screws are tightened. Verify that the internal spring is not damaged or excessively worn.
- Sticking or Binding: Check the lead screw for any obstructions, damage, or misalignment. Ensure the nut and lead screw are clean. Proper lubrication, if recommended for your system, should be applied.
- Noise: Minor noise can occur. Ensure the lead screw is clean and properly lubricated. Excessive noise might indicate misalignment or wear.
For persistent issues, consult the manual of the equipment in which the nut is installed or contact a qualified technician.
7. Applications
The uxcell Tr8x2 T8 POM Anti-Backlash Spring Nut is suitable for a wide range of applications requiring precise linear motion and backlash elimination:
- High-Precision 3D Printing: Essential for achieving accurate layer deposition and fine detail in 3D printed objects.
- Large-Scale 3D Printing Equipment: Provides stability and precision for larger printing platforms.
- Multi-Material 3D Printing: Ensures consistent tool head positioning for complex multi-material prints.
- Complex Structure 3D Printing: Supports the intricate movements required for printing elaborate geometries.
- Long-Term 3D Printing Tasks: Maintains performance and accuracy over extended operational periods.
- General Mechanical Equipment: Used in various machinery where precise linear movement is critical.
- Automotive Industry: Applicable in certain automotive mechanisms requiring accurate positioning.
Figure 5: The anti-backlash spring nut positioned with a lead screw and a brass machine part, demonstrating its typical installation environment.
Figure 6: Examples of applications where anti-backlash nuts are utilized, including linear guides and 3D printing.
8. Warranty and Support
For information regarding product warranty, returns, or technical support, please refer to the purchase documentation or contact your retailer or the manufacturer directly. Specific warranty terms may vary based on the point of purchase and region.
