1. Introduction
This manual provides essential information for the safe and efficient operation of your VEVOR 3500W Electric Countertop Induction Cooktop. Please read these instructions thoroughly before installation and use, and retain them for future reference.
2. Safety Information
General Safety Precautions:
- Ensure the cooktop is installed by a qualified electrician in accordance with local codes and regulations.
- Do not operate the cooktop if the glass surface is cracked or broken. Disconnect power immediately.
- Use only cookware with magnetic properties. Non-magnetic cookware will not heat.
- Keep children and pets away from the cooktop during operation and while it is cooling down.
- Do not place metallic objects such as knives, forks, spoons, or lids on the cooktop surface as they can become hot.
- Avoid placing flammable materials near the cooktop.
- Do not touch hot surfaces. Use pot holders or oven mitts.
- Ensure adequate ventilation around the cooktop.
- Unplug the cooktop when not in use and before cleaning.
- This appliance is designed for household use only.
Electrical Safety:
- The cooktop requires a 220-240V, 60Hz electrical supply.
- Ensure the power cord is not damaged or pinched.
- Do not use extension cords or adapters.
3. Product Features
- High-Powered Cooking: 3500W total power (2000W + 1500W) with two independent cooking zones for efficient and fast heating.
- Precise Temperature Control: 12 adjustable power levels via knob controls for various cooking methods like stewing, frying, simmering, steaming, boiling, sautéing, and roasting.
- Wide Cookware Compatibility: Works with heat-resistant cookware types that have magnetic properties, such as cast iron and stainless steel.
- Intuitive Knob Controls: Each cooking zone has an independent knob for easy temperature adjustment.
- Integrated Safety Features: Includes automatic shut-off, over- and under-voltage protection, temperature control, and residual heat indicators for safe operation.
- Durable Surface: Features an integrated micro-crystal glass panel that is scratch-resistant and easy to clean.
- Flexible Installation: Can be installed as a built-in unit or used as a countertop appliance.

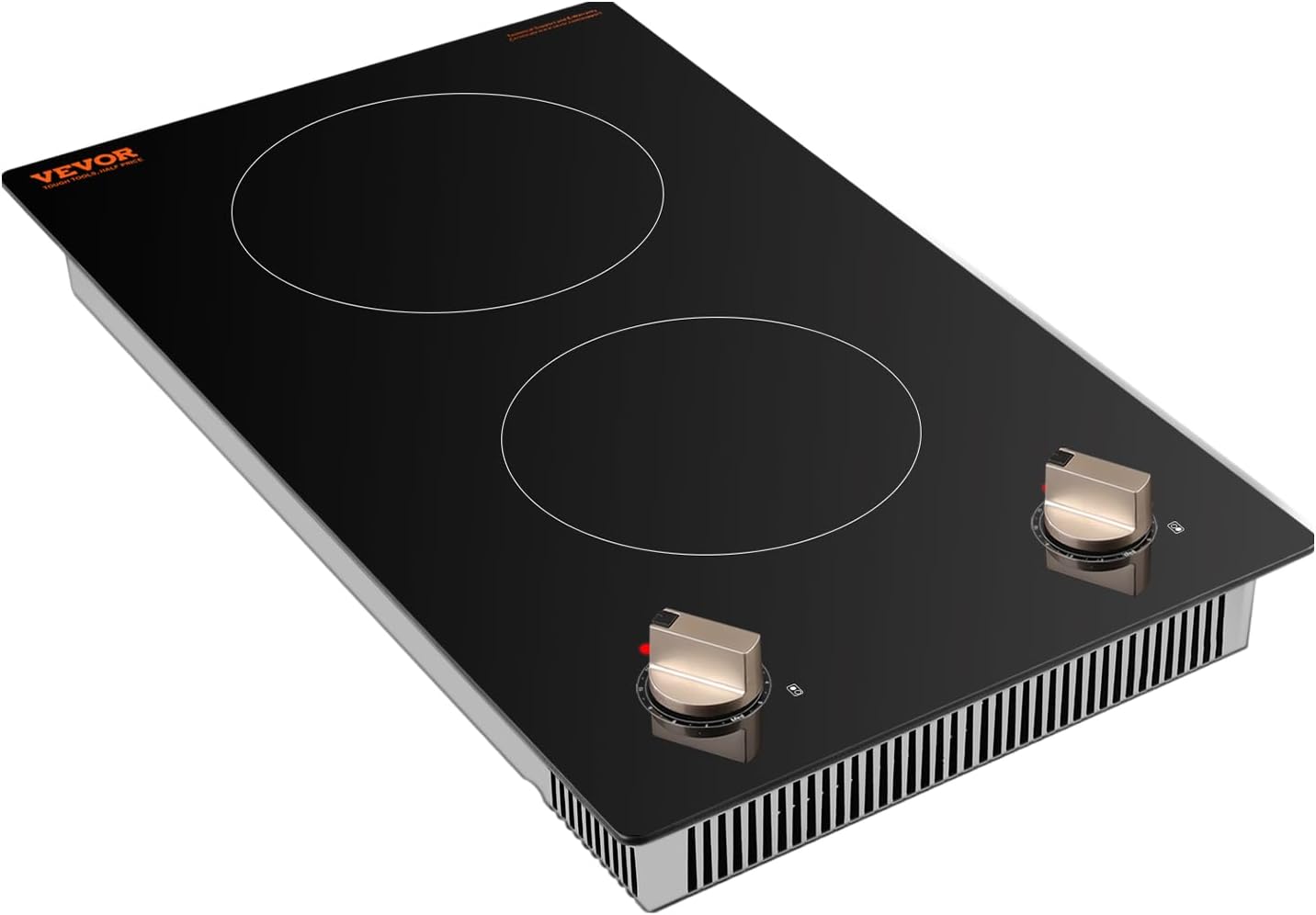

Image: VEVOR 12-inch 2-burner induction cooktop with knob controls.
Image: The cooktop demonstrating compatibility with various magnetic cookware, including cast iron and stainless steel pans.
Image: Close-up view of the cooktop's knob controls, highlighting their simple and convenient design for precise temperature adjustment.
4. Setup and Installation
Your VEVOR Induction Cooktop offers two installation methods: built-in or countertop use.
4.1 Built-in Installation
For built-in installation, ensure your countertop has a suitable cutout. The required cutout size is 285 x 500 mm (11.2 x 19.7 inches). Leave at least 50mm (2 inches) of space around the unit, with a countertop thickness of at least 30mm (1.2 inches).
- Prepare the countertop opening according to the specified dimensions.
- Ensure proper ventilation underneath the cooktop. Do not install directly above a dishwasher or washing machine.
- Secure the cooktop using the provided mounting brackets and screws.
4.2 Countertop Use
For countertop use, attach the provided rubber feet to the bottom of the unit to ensure stability and proper airflow.
- Attach the rubber feet (42mm high) to the designated points on the underside of the cooktop.
- Place the cooktop on a stable, heat-resistant surface.
4.3 Electrical Connection
The cooktop requires a 220-240V, 60Hz electrical connection. It comes with a 3-wire cable for connection to your home power supply via a junction box. Consult a qualified electrician for proper wiring.
Image: Illustration of the two installation options: built-in for a seamless look and countertop for portability, with instructions to install foot pads for desktop use.
Image: Detailed dimensions of the cooktop and its cutout size, along with a wiring diagram for electrical connection.
Image: The VEVOR Induction Cooktop packaged with its accessories, including mounting hardware and rubber feet for installation.
5. Operating Instructions
5.1 Powering On/Off
- To turn on a cooking zone, rotate the corresponding knob clockwise. The red LED indicator light will illuminate, indicating the zone is active.
- To turn off a cooking zone, rotate the knob counter-clockwise until it clicks into the "OFF" position. The LED indicator will turn off.
5.2 Adjusting Temperature/Power Levels
- The cooktop features 12 power levels. Rotate the knob to select the desired heat setting.
- Each knob independently controls its respective cooking zone.
5.3 Cookware Detection
The induction cooktop will only generate heat when compatible magnetic cookware is placed on the cooking zone. If no compatible cookware is detected, the cooktop will not activate or will shut off automatically.
Image: The cooktop displaying indicators for power status, LED light, active cooking zone, and selected power level (gear position).
Video: Demonstration of the VEVOR Induction Cooktop's operation, including turning on a burner and the safety feature of the surface remaining cool while the pot heats up.
6. Maintenance
6.1 Cleaning the Cooktop Surface
- Allow the cooktop to cool completely before cleaning.
- Wipe the glass ceramic surface with a soft cloth and a mild detergent or specialized cooktop cleaner.
- For stubborn stains, use a non-abrasive scraper designed for glass cooktops.
- Avoid using abrasive cleaners, scouring pads, or harsh chemicals that can scratch or damage the surface.
- Ensure the surface is dry before next use.
6.2 General Care
- Avoid dropping heavy objects on the glass surface to prevent cracks or breakage.
- Do not slide rough-bottomed cookware across the surface to prevent scratches.
- Keep the ventilation openings clear of dust and debris to ensure proper cooling of internal components.
Image: A hand wiping the cooktop surface clean, demonstrating its easy-to-clean micro-crystal panel.
7. Troubleshooting
If you encounter issues with your cooktop, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Cooktop does not turn on. | No power supply, power cord not connected, or main circuit breaker tripped. | Check power connection, ensure cooktop is plugged in, and reset circuit breaker if necessary. |
| Cooking zone not heating. | Incompatible cookware, cookware not centered, or no pot detected. | Use magnetic cookware, center the pot on the zone, or ensure a pot is present. |
| Error code displayed. | Specific internal fault, over-temperature, or voltage issue. | Refer to the specific error code in the full manual (if available) or contact customer support. Disconnect power for a few minutes and try again. |
| Unusual noise during operation. | Normal fan operation for cooling, or slight hum from induction technology. | This is usually normal. If the noise is excessive or unusual, contact customer support. |
| Cooktop surface is hot after use. | Residual heat from the cookware. | This is normal. The residual heat indicator will show when the surface is still warm. Allow to cool before cleaning. |
Image: Visual representation of the cooktop's smart reminders, including error code display, residual heat indicator, and overheat protection.
8. Specifications
| Feature | Detail |
|---|---|
| Item Model Number | SK-35IHA12CK03 |
| Power | 3500W (2000W + 1500W) |
| Control Method | Knob Control |
| Power Levels | 12 Levels |
| Cutout Size | 285 x 500 mm (11.2 x 19.7 inches) |
| Product Dimensions (D x W x H) | 11.81" x 20.47" x 4.21" (300 x 520 x 107 mm) |
| Item Weight | 12.57 pounds (5.7 kg) |
| Voltage | 220-240V, 60Hz |
| Heating Elements | 2 Burners |
| Color | Black |
| Heater Surface Material | Glass Ceramic |
| Special Features | Automatic Shut-Off, Cool Surface Indicator, Adjustable Temperature |
9. Warranty and Support
For warranty information, technical support, or service inquiries, please refer to the contact details provided with your product packaging or visit the official VEVOR website. Keep your purchase receipt as proof of purchase for warranty claims.
