FEIN Angle Grinder CG 7-125 750 W User Manual

Introduction

Thank you for choosing the FEIN Angle Grinder CG 7-125 750 W. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new power tool. Please read these instructions carefully before using the angle grinder and keep them for future reference. Proper use and maintenance will ensure optimal performance and extend the lifespan of your tool.

Safety Instructions

Always observe the following safety precautions to prevent electric shock, fire, and serious injury.

• Work Area Safety: Keep the work area clean and well-lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
• Electrical Safety: Power tool plugs must match the outlet. Never modify the plug in any way. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges, and refrigerators.
• Personal Safety: Always wear eye protection. Use hearing protection when operating the tool for extended periods. Wear a dust mask if operations create dust. Dress properly; avoid loose clothing or jewelry.
• Power Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools.
• Specific Angle Grinder Safety: Always ensure the protective guard is correctly fitted and adjusted before use. Never operate the grinder without the guard. Use only grinding wheels and accessories rated for the speed of the grinder.

Product Overview

The FEIN CG 7-125 is a compact 750W angle grinder designed for deburring, sanding, and separation work. It features a robust motor and ergonomic design for comfortable handling.

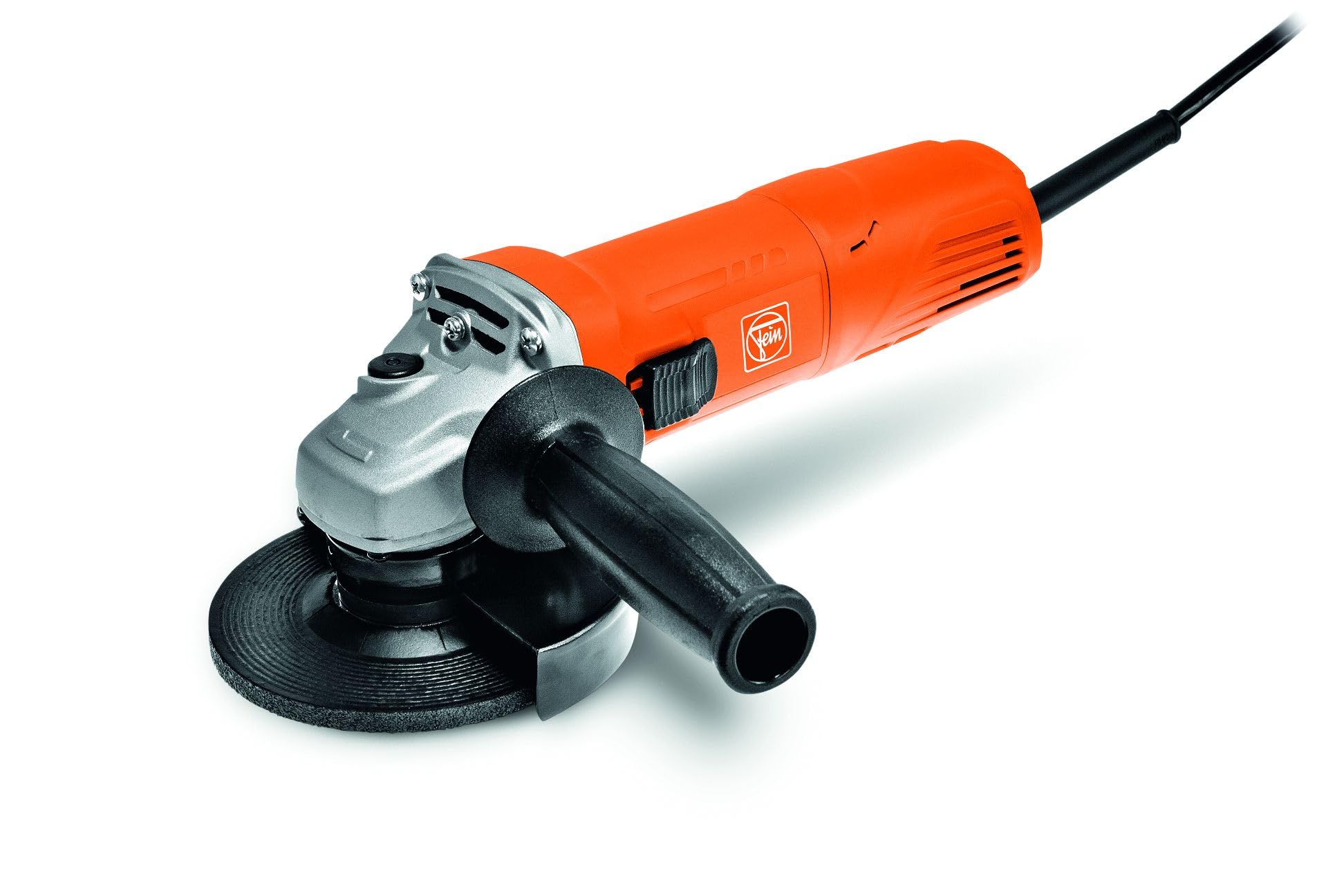

Figure 1: FEIN Angle Grinder CG 7-125 750 W. This image shows the complete angle grinder assembly, including the main body, motor housing, spindle, protective guard, and auxiliary handle. The power cord is visible extending from the rear of the tool.

Components:

• Main Body/Motor Housing: Contains the motor and internal components.
• Spindle Lock Button: Used to lock the spindle for disc changes.
• On/Off Switch: Controls power to the tool.
• Protective Guard: Shields the user from sparks and debris.
• Auxiliary Handle: Provides additional grip and control.
• Grinding Disc (not included): The abrasive disc for material removal.
• Flange Nut/Quick Release Nut: Secures the grinding disc.
• Wrench: For tightening/loosening the flange nut (if not quick release).

Setup

Before starting any work, ensure the angle grinder is unplugged from the power source.

1. Unpacking and Inspection:

Carefully remove all components from the packaging. Inspect the tool and accessories for any signs of damage. Do not use a damaged tool.

2. Attaching the Protective Guard:

1. Position the protective guard onto the collar of the gear housing.
2. Rotate the guard to the desired position, ensuring it covers the grinding disc adequately and protects the user.
3. Tighten the clamping lever or screw firmly to secure the guard in place. The guard should not be able to rotate freely.

3. Attaching the Auxiliary Handle:

1. Screw the auxiliary handle into one of the threaded holes on the gear housing.
2. Choose the hole that provides the most comfortable and secure grip for your application.
3. Tighten the handle firmly by hand.

4. Installing the Grinding Disc:

1. Press and hold the spindle lock button.
2. Place the inner flange onto the spindle.
3. Position the grinding disc onto the inner flange, ensuring it sits flat.
4. Screw on the quick-release nut (or standard flange nut) onto the spindle.
5. For quick-release nuts, tighten by hand until secure. For standard nuts, use the provided wrench to tighten firmly while holding the spindle lock button.
6. Release the spindle lock button.

Operating Instructions

Always ensure your workpiece is securely clamped or held before beginning operation.

1. Powering On/Off:

• To Turn On: Plug the tool into a suitable power outlet. Press the On/Off switch. Some models may have a slide switch that locks into the ON position.
• To Turn Off: Release the On/Off switch. If it's a locking slide switch, press the rear part of the switch to release it to the OFF position.

2. Grinding and Cutting Techniques:

• Grinding: Hold the grinder firmly with both hands. Apply light, even pressure, moving the disc across the workpiece. Maintain an angle of approximately 15-30 degrees between the disc and the workpiece surface for optimal material removal and disc life.
• Cutting: Use a thin cutting disc. Hold the grinder at a 90-degree angle to the workpiece. Do not apply side pressure to the cutting disc, as this can cause it to bind or shatter. Allow the disc to do the work.
• Deburring: Use a grinding disc or a flap disc. Apply gentle pressure to remove sharp edges or burrs.

3. Workpiece Securing:

Always secure the workpiece with clamps, a vise, or other suitable methods. Never hold the workpiece by hand while operating the angle grinder, as this can lead to loss of control and serious injury.

Maintenance

Regular maintenance ensures the longevity and safe operation of your FEIN angle grinder. Always unplug the tool before performing any maintenance.

1. Cleaning:

• After each use, clean the ventilation slots to prevent dust buildup, which can cause overheating. Use compressed air or a soft brush.
• Wipe the exterior of the tool with a damp cloth. Do not use harsh chemicals or abrasive cleaners.

2. Carbon Brush Replacement (if applicable):

If your model uses carbon brushes, they will wear down over time. When the motor performance decreases significantly or sparks become excessive, the brushes may need replacement. This procedure should ideally be performed by a qualified service technician or according to specific instructions in a detailed service manual.

3. Storage:

Store the angle grinder in a dry, secure location out of reach of children. Protect it from moisture and extreme temperatures.

Troubleshooting

Before attempting any repairs, ensure the tool is unplugged.

Specifications

Technical data for the FEIN Angle Grinder CG 7-125 750 W.

Warranty and Support

FEIN power tools are manufactured to high-quality standards and undergo strict quality control. This product comes with a manufacturer's warranty against defects in materials and workmanship. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official FEIN website.

For technical support, service, or spare parts, please contact your local authorized FEIN service center or the FEIN customer service department. Contact information can typically be found on the FEIN website or in the documentation supplied with your tool.

Online Resources: For additional information, product registration, or to find a service center, please visit the official FEIN website.
