Introduction

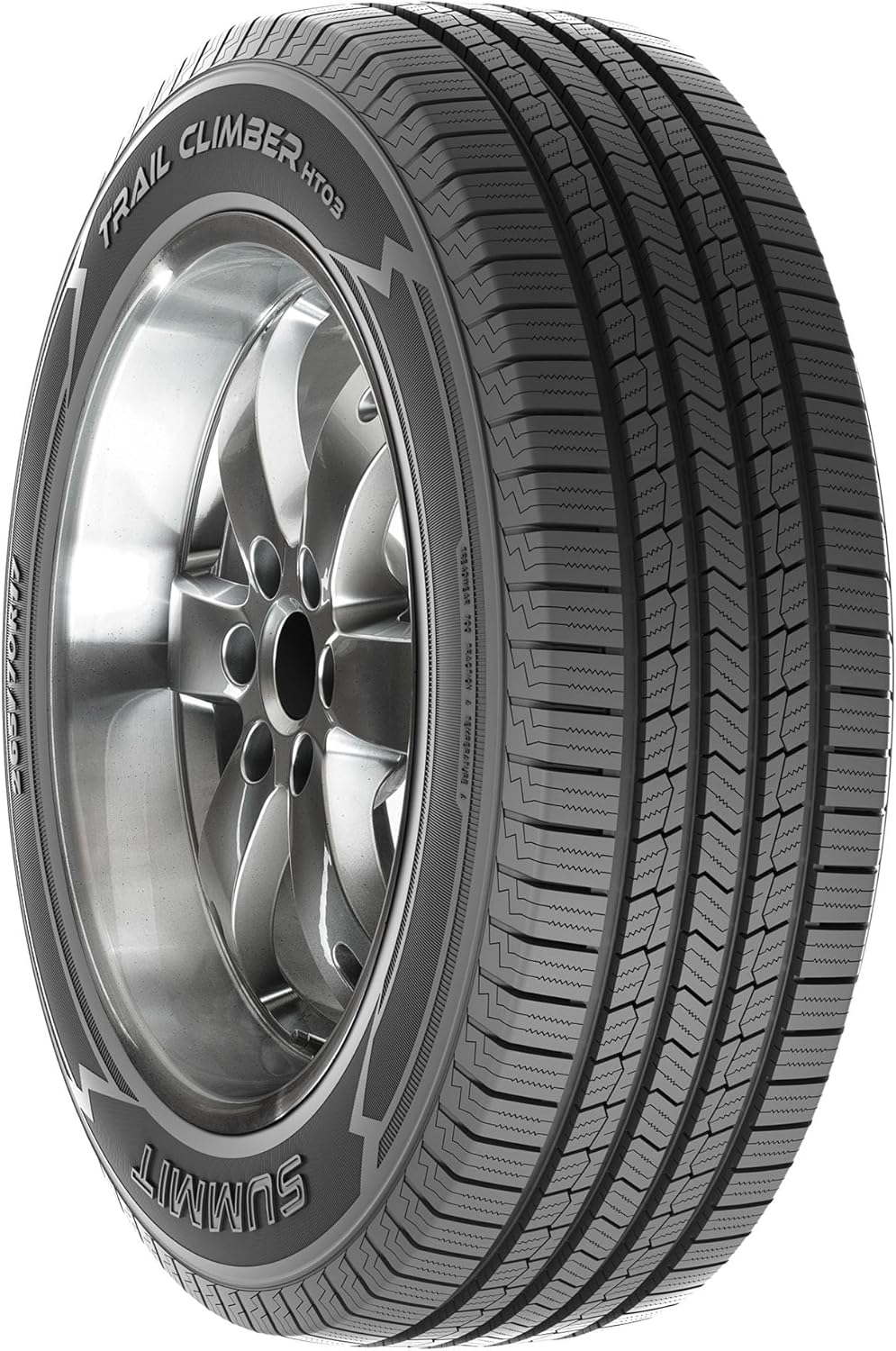

Welcome to the user manual for the SUMMIT Trail Climber HT03 highway-terrain tire. This manual provides essential information regarding the features, specifications, proper installation, operation, maintenance, and troubleshooting for your tire. Adhering to these guidelines will help ensure optimal performance, safety, and longevity of your tires.
The Trail Climber HT03 is engineered for light trucks and SUVs, offering reliable year-round performance and a comfortable ride. Its design incorporates advanced features for consistent grip in various weather conditions and reduced road noise.
Key Features
- Highway Terrain Design: Specifically developed for light trucks and SUVs, providing a balanced performance on paved roads.
- Hydroplaning Resistance: Features circumferential and angled grooves that efficiently channel water away from the tread, enhancing wet traction.
- All-Season Traction: Equipped with a 3D sipe pattern designed to deliver consistent grip across various weather conditions, including wet and wintry roads.
- Comfortable Ride: Engineered for stable road manners and a compliant ride quality, contributing to reduced road noise.
- Extended Tread Life: Backed by a limited manufacturer tread life warranty of up to 60,000 miles for P-metric sizes and 50,000 miles for LT-metric sizes.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SUMMIT |
| Model | Trail Climber HT03 |
| Size | 275/55R20 |
| Section Width | 275 Inches |
| Load Capacity | 2 Pounds (per tire) |
| Tread Depth | 11 Inches |
| Tread Type | Asymmetrical |
| Maximum Pressure | 50 PSI (Pound per Square Inch) |
| Ply Rating | 4-Ply |
| Tire Diameter | 31.89 Inches |
| Item Weight | 53 Pounds |
| Construction Type | Radial |
| UTQG | 700-A-A |
Installation Guidelines
Proper installation is crucial for tire performance and safety. It is highly recommended that tire mounting and balancing be performed by a certified professional using appropriate equipment.
- Pre-Installation Inspection: Before mounting, visually inspect the tire for any manufacturing defects or shipping damage. Ensure the tire size and specifications match your vehicle's requirements.
- Mounting: Mount the tire onto a clean, undamaged wheel rim of the correct size. Use proper lubrication and follow industry standard safety procedures to avoid injury and tire/rim damage.
- Balancing: After mounting, balance the tire and wheel assembly using a calibrated balancing machine. Proper balancing minimizes vibration and promotes even tread wear.
- Inflation: Inflate the tire to the vehicle manufacturer's recommended tire pressure, typically found on a placard inside the driver's side door jamb, glove compartment, or owner's manual. Do not exceed the maximum pressure indicated on the tire sidewall.
- Lug Nut Torque: After installation, ensure lug nuts are tightened to the vehicle manufacturer's specified torque settings using a torque wrench. Re-check torque after the first 50-100 miles of driving.
Operating and Driving Tips
- Maintain Correct Tire Pressure: Regularly check tire pressure (at least once a month and before long trips) when tires are cold. Under-inflation can lead to excessive heat buildup, reduced fuel efficiency, and premature wear. Over-inflation can reduce traction and accelerate center tread wear.
- Observe Load Capacity: Do not exceed the maximum load capacity specified for your tires and vehicle. Overloading can cause tire failure and compromise handling.
- Driving Habits: Avoid sudden acceleration, hard braking, and aggressive cornering, as these can accelerate tire wear. Drive defensively and anticipate road conditions.
- Road Hazards: Be mindful of potholes, curbs, and other road hazards that can damage tires and wheels.
Maintenance and Care
- Tire Rotation: Rotate your tires every 5,000 to 7,500 miles, or as recommended by your vehicle manufacturer. Regular rotation helps promote even tread wear across all four tires.
- Tread Depth Inspection: Periodically check tread depth using a tread depth gauge or the built-in tread wear indicators. Replace tires when tread depth reaches 2/32 inch (1.6 mm).
- Visual Inspection: Regularly inspect tires for cuts, punctures, bulges, cracks, or any signs of damage. If damage is found, have the tire inspected by a professional immediately.
- Cleaning: Clean tires with mild soap and water. Avoid harsh chemicals or petroleum-based products that can degrade rubber.
Common Issues and Troubleshooting
| Issue | Possible Cause(s) | Solution |
|---|---|---|
| Uneven Tread Wear | Improper inflation, misalignment, unbalanced wheels, worn suspension components, lack of rotation. | Check tire pressure, perform wheel alignment, balance wheels, inspect suspension, rotate tires regularly. |
| Vibration or Shimmy | Unbalanced wheels, bent rim, tire damage, loose lug nuts, worn steering/suspension parts. | Have wheels re-balanced, inspect rims and tires for damage, check lug nut torque, have vehicle inspected by a mechanic. |
| Rapid Tread Wear | Under/over inflation, aggressive driving, improper alignment, worn suspension. | Maintain correct tire pressure, adjust driving habits, check alignment, inspect suspension. |
| Loss of Air Pressure | Puncture, leaky valve stem, damaged rim, bead leak. | Inspect tire for punctures, check valve stem, have tire and rim inspected by a professional for leaks. |
For any issues not listed or if troubleshooting steps do not resolve the problem, consult a certified tire professional.
Warranty Information
The SUMMIT Trail Climber HT03 tire is backed by a limited manufacturer tread life warranty. For P-metric sizes, this warranty extends up to 60,000 miles. For LT-metric sizes, the warranty is up to 50,000 miles. This warranty covers defects in workmanship and materials for the life of the original usable tread, down to 2/32 inch (1.6 mm) remaining tread depth.
Please refer to the official SUMMIT tire warranty documentation for complete terms, conditions, and exclusions. Proof of purchase and regular tire rotation records may be required for warranty claims.
Customer Support
For further assistance, technical inquiries, or warranty claims, please contact SUMMIT customer support through their official website or authorized dealers. Always provide your tire's model, size, and any relevant purchase information when seeking support.
