Introduction
This manual provides essential instructions for the safe and efficient operation, maintenance, and setup of your Ejoyous Portable Range Hood, Model Ejoyousaciwf7k541-15. Please read this manual thoroughly before using the appliance and retain it for future reference.
Image: Front view of the Ejoyous Portable Range Hood, showcasing its compact design and filter screen.
Safety Information
- Ensure the power supply voltage matches the specifications of the appliance.
- Do not immerse the main unit in water or other liquids.
- Keep the appliance away from heat sources and direct sunlight.
- Always unplug the appliance before cleaning or performing maintenance.
- This appliance is for household use only. Do not use it for commercial or industrial purposes.
- Keep out of reach of children.
Package Contents
Please check the package contents upon unboxing to ensure all items are present:
- 1 x Ejoyous Portable Range Hood Unit
- 1 x Instruction Manual
- 1 x Power Adapter
- 1 x Filter Screen (pre-installed or separate)
- 1 x Oil Collection Cup
Product Overview
The Ejoyous Portable Range Hood is designed for efficient removal of cooking fumes and odors in various settings, including hot pot and grilling. It features a compact, modern design and adjustable settings for optimal performance.
Key Features:
- Strong Suction: Equipped with a 12W motor providing over 100 CFM suction power.
- Two Speed Settings: Adjustable ventilation to suit different cooking needs.
- Double-Layer Filter Technology: Features washable and reusable polymer and aluminum alloy oil filters.
- Adjustable Height and Angle: Flexible positioning for targeted fume extraction.
- Durable Construction: Made from high-quality ABS material for longevity and easy cleaning.
Image: The portable range hood positioned to capture smoke directly from a cooking surface, illustrating its straight smoke exhaust design.

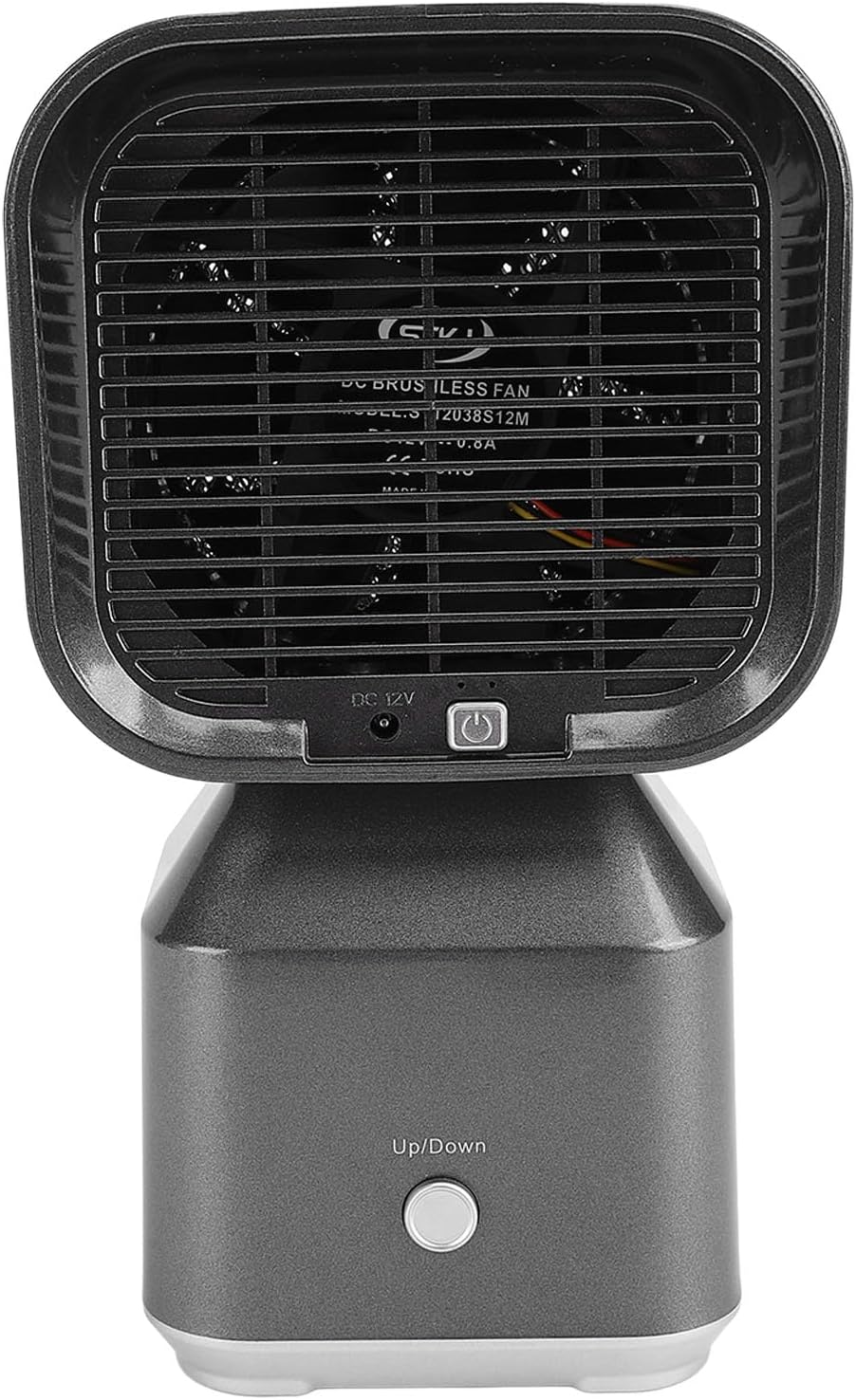

Image: Rear view of the range hood, showing the power input port and the main power button.
Setup
The Ejoyous Portable Range Hood is designed for quick and easy setup without complex tools.
- Unpack: Carefully remove all components from the packaging.
- Positioning: Place the range hood on a stable, flat surface near your cooking area. Ensure it is positioned to effectively capture fumes. The adjustable height and angle allow for flexible placement.
- Filter Installation (if not pre-installed): If the filter is separate, gently push and slide it into the designated slot until it clicks into place.
- Oil Collection Cup: Insert the oil collection cup into its slot at the base of the unit.
- Connect Power: Insert the power adapter into the DC 12V input port on the back of the unit. Plug the adapter into a suitable power outlet.
Image: Visual guide for connecting the power plug, removing the filter screen, and operating the speed control button.
Operating Instructions
Follow these steps to operate your portable range hood:
- Power On: Press the power button located on the back of the unit to turn on the range hood.
- Adjust Speed: The unit features two speed settings.
- Press the speed control button once for the first gear (lower speed).
- Press the speed control button a second time for the second gear (higher speed).
- Adjust Position: Adjust the height and angle of the hood to best capture cooking fumes.
- Power Off: Press the power button again to turn off the appliance when cooking is complete.
Image: The range hood operating with two speed selection, indicating its effectiveness in absorbing oil fumes from hot pot cooking.
Image: The portable range hood actively extracting fumes during a hot pot meal, demonstrating its practical application.
Maintenance
Regular cleaning and maintenance will ensure optimal performance and extend the lifespan of your range hood.
- Disconnect Power: Always unplug the appliance from the power outlet before cleaning.
- Clean the Filter Screen:
- Gently push the "PUSH" button or tab to release and remove the filter screen.
- Wash the filter screen with warm, soapy water. A soft brush can be used for stubborn grease.
- Rinse thoroughly and allow it to air dry completely before re-installing.
- The filter is reusable and does not require frequent replacement.
- Empty and Clean the Oil Collection Cup:
- Remove the oil collection cup from its slot.
- Discard collected oil and wash the cup with warm, soapy water.
- Rinse and dry thoroughly before re-inserting.
- Clean the Exterior: Wipe the exterior of the unit with a soft, damp cloth. Do not use abrasive cleaners or solvents.
Image: Demonstration of cleaning the detachable filter screen under running water and removing the oil collection box for maintenance.

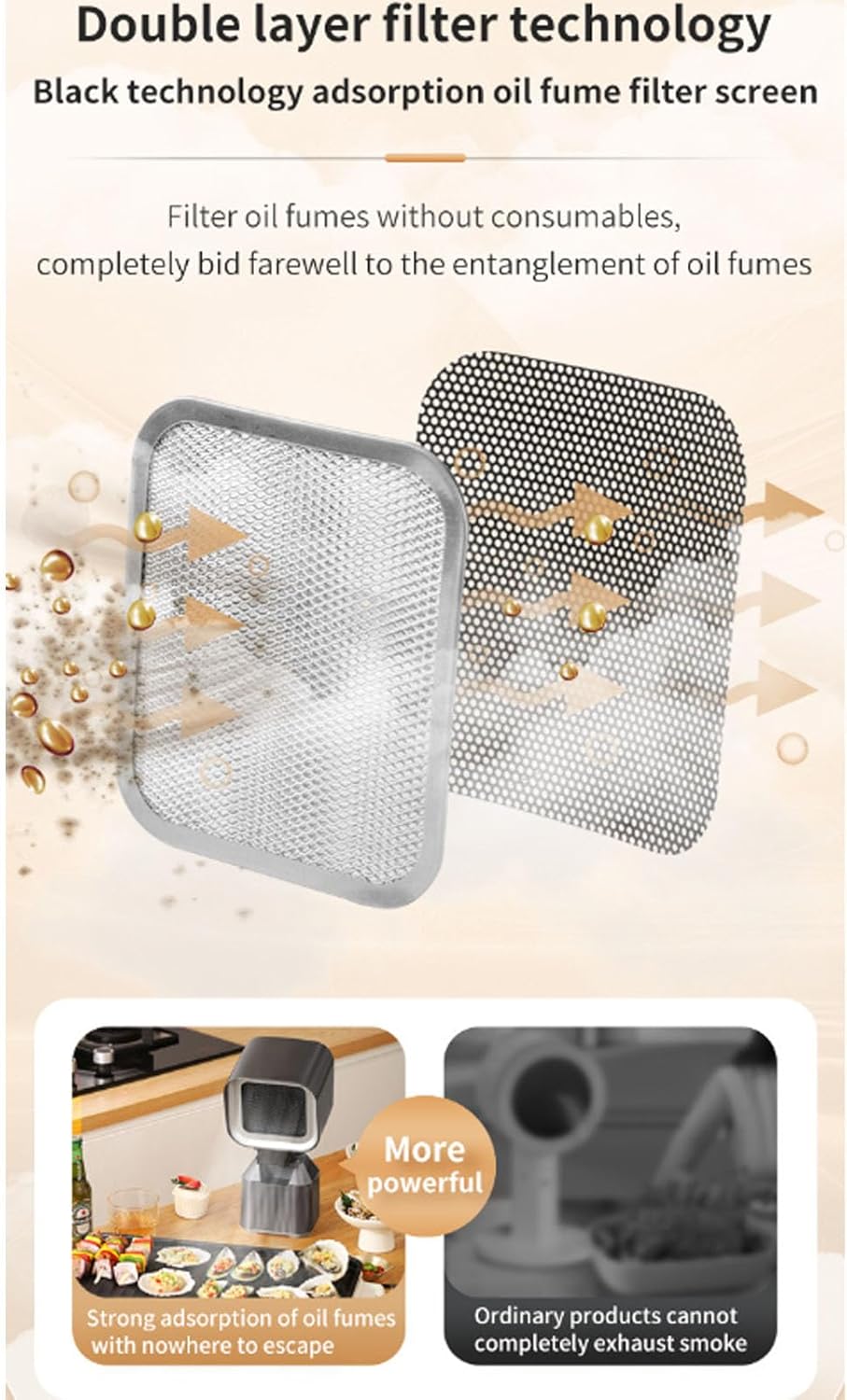

Image: Diagram illustrating the double-layer filter technology, showing how oil fumes are adsorbed and filtered.
Troubleshooting
If you encounter any issues with your Ejoyous Portable Range Hood, please refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on. | No power supply. Power button not pressed. | Ensure the power adapter is securely plugged into the unit and a working power outlet. Press the power button firmly. |
| Weak suction. | Filter screen is dirty or clogged. Unit not positioned correctly. | Clean the filter screen as described in the Maintenance section. Adjust the height and angle of the hood to be closer to the cooking fumes. |
| Unusual noise during operation. | Obstruction in the fan. Unit not stable. | Turn off and unplug the unit. Carefully check for any foreign objects near the fan blades. Ensure the unit is placed on a stable, flat surface. |
If the problem persists after attempting these solutions, please contact customer support.
Specifications
| Brand | Ejoyous |
| Model Number | Ejoyousaciwf7k541-15 |
| Product Dimensions (L x W x H) | 31 x 21 x 18 cm (12.2 x 8.27 x 7.09 inches) |
| Weight | 1.73 kg (3.81 lbs) |
| Color | Black |
| Voltage | 230 VAC |
| Power Consumption | 12 Watts |
| Suction Power | >100 CFM |
| Speed Settings | 2 |
| Filter Type | Washable Polymer and Aluminum Alloy |
| Material | ABS Plastic |

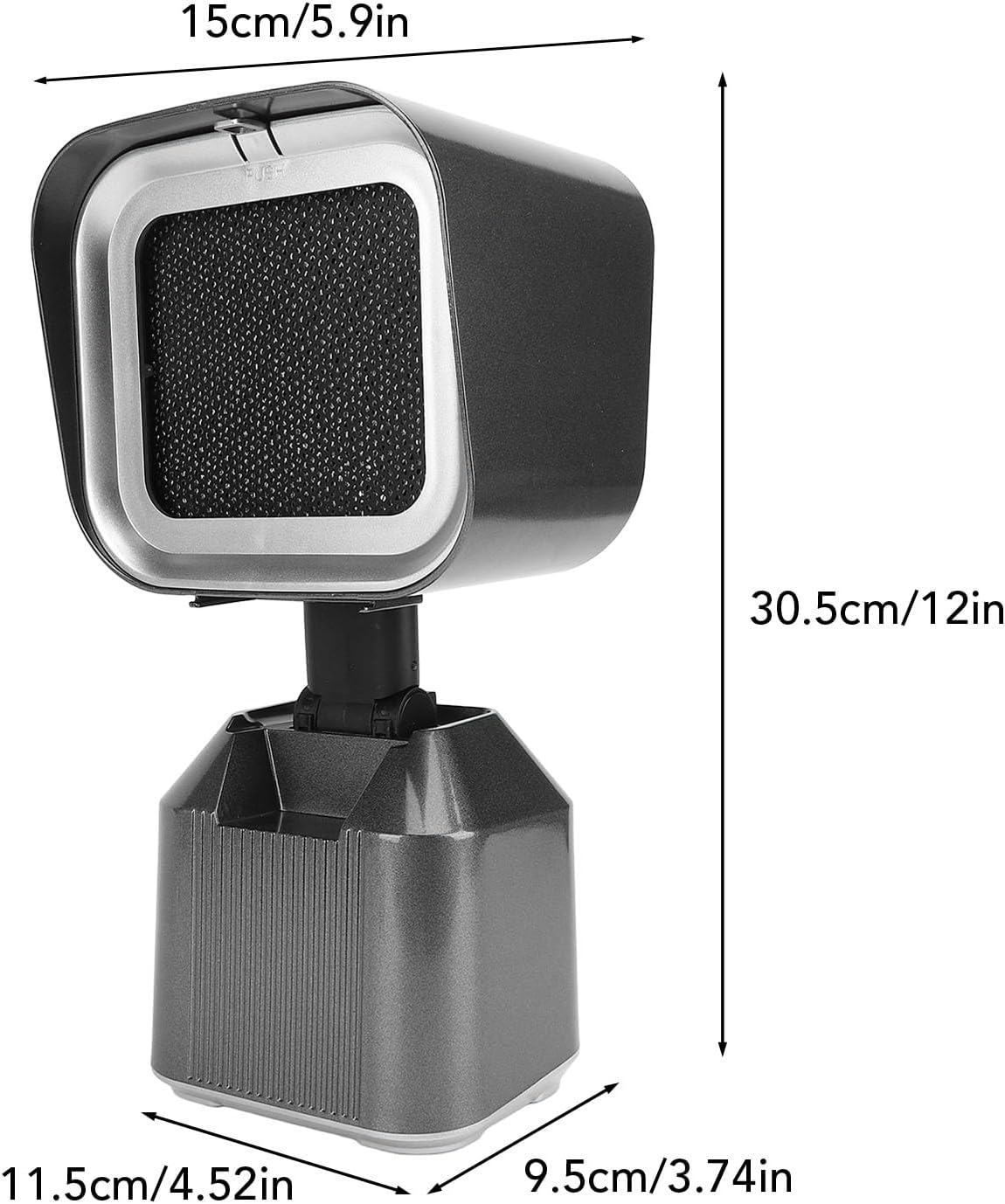

Image: Technical drawing showing the dimensions of the portable range hood in centimeters and inches.
Warranty and Support
For warranty information or technical support, please refer to the purchase documentation or contact your retailer. Keep your proof of purchase for any warranty claims.
For further assistance, you may also visit the official Ejoyous website or contact their customer service department.
