Introduction
Thank you for choosing the OLEVS Men's Stainless Steel Quartz Watch, Model QBZ-S-G5885. This manual provides essential information for the proper setup, operation, and maintenance of your timepiece. Please read these instructions carefully to ensure optimal performance and longevity of your watch.
Product Overview
The OLEVS QBZ-S-G5885 is a classic men's quartz watch featuring a durable stainless steel case and bracelet, a magnified date window, and luminous hands for visibility in low light. It is designed for everyday wear with a focus on precision and reliability.

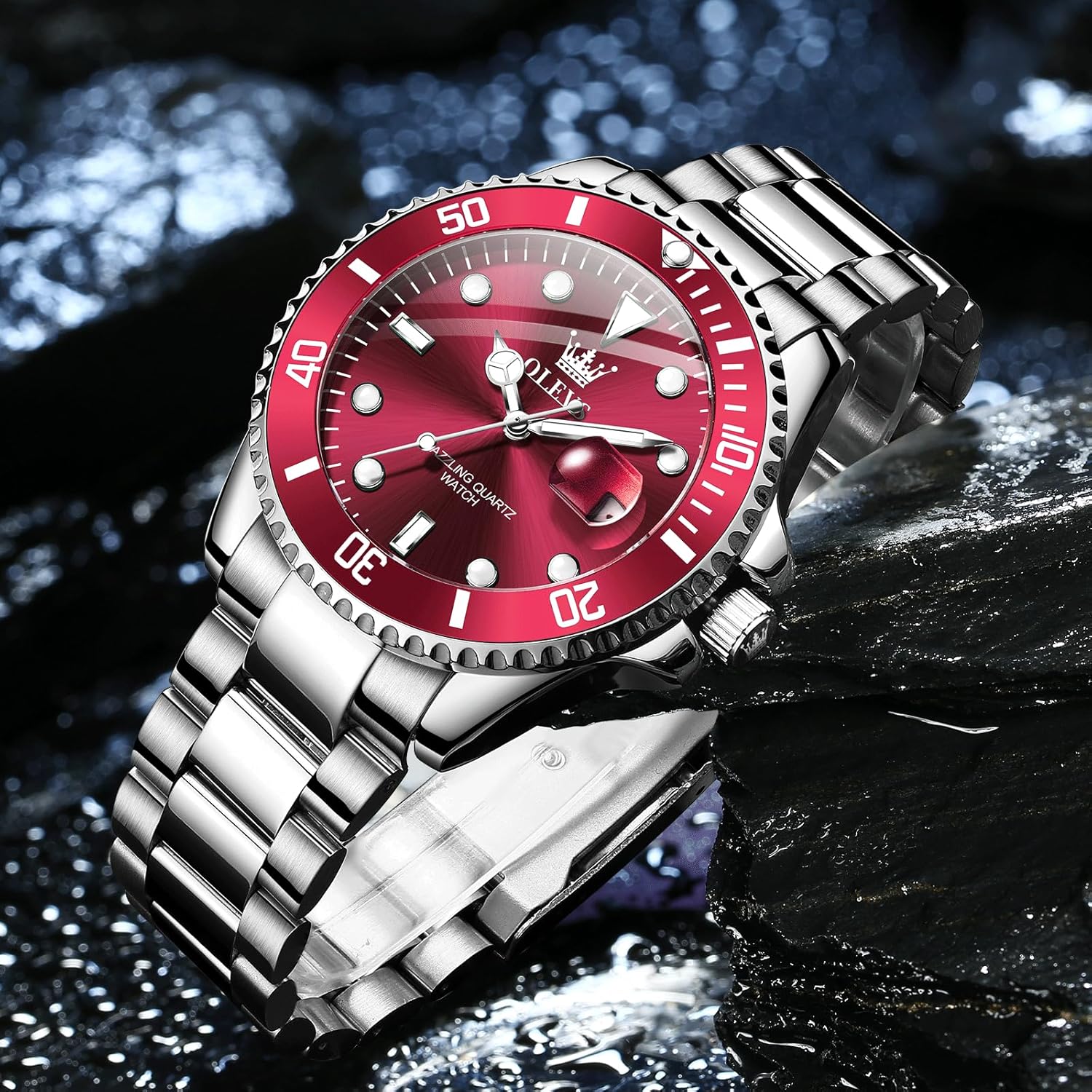

Image: Front view of the OLEVS Men's Stainless Steel Watch with a red dial and silver bracelet.

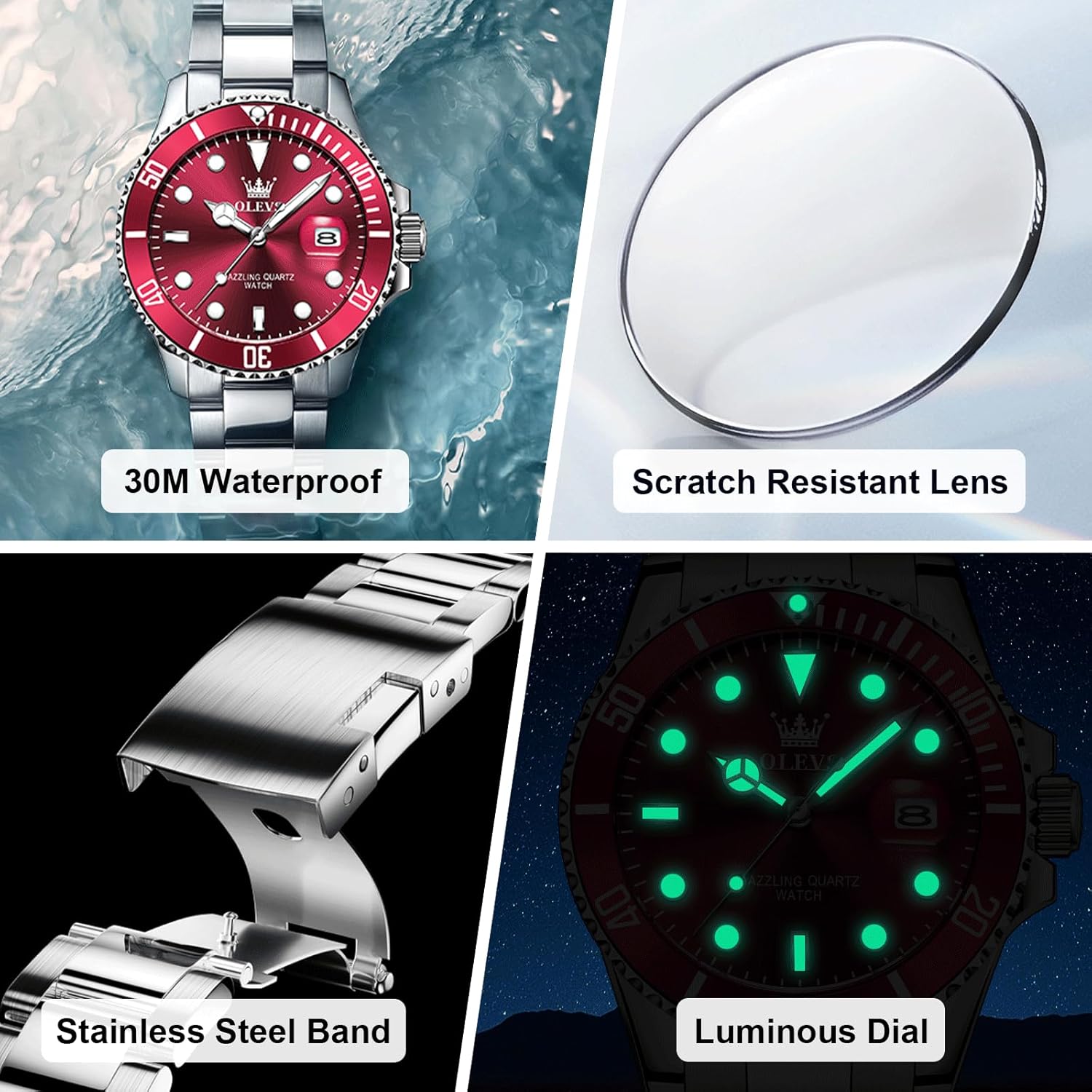

Image: A collage highlighting key features including 30M water resistance, a scratch-resistant mineral crystal lens, a stainless steel band, and a luminous dial for night visibility.
Setup
1. Setting Time and Date
- Pull out the crown: Gently pull the crown (the knob on the side of the watch) to the first click position to adjust the date, or to the second click position to adjust the time.
- Adjust the date: In the first click position, turn the crown clockwise or counter-clockwise until the correct date is displayed in the magnified date window.
- Adjust the time: In the second click position, turn the crown to set the hour and minute hands. Ensure to account for AM/PM if setting the date, as the date changes at midnight.
- Push in the crown: Once the time and date are set, push the crown back into its original position to start the watch and ensure water resistance.
2. Adjusting Bracelet Length
Your OLEVS watch comes with a stainless steel bracelet that can be adjusted to fit your wrist. A watch link remover tool is included for this purpose.
- Identify removable links: Look for small arrows on the inside of the bracelet links, indicating the direction to push out the pins.
- Use the link remover tool: Place the bracelet in the tool with the arrow pointing downwards. Align the pin of the tool with the pin in the watch link.
- Push out pins: Gently turn the screw on the tool to push the pin out. Repeat for each link you wish to remove.
- Reassemble the bracelet: After removing the desired number of links, align the remaining links and insert the pins in the opposite direction of the arrows. Gently tap the pins back into place until secure.
Image: Rear view of the watch, illustrating the stainless steel bracelet and deployment clasp mechanism.
Operation
1. Reading Time
The watch features a classic analog display with hour, minute, and second hands. The luminous coating on the hands and markers enhances readability in low-light conditions.
2. Using the Rotating Bezel
The unidirectional rotating bezel can be used to measure elapsed time, typically for up to 60 minutes. Align the zero marker on the bezel with the minute hand at the start of an event. The minute hand will then point to the elapsed time on the bezel scale.
3. Date Display
The date is displayed in a magnified window at the 3 o'clock position. Ensure the date is set correctly as described in the Setup section.
Maintenance
1. Water Resistance
This watch is water resistant to 30 meters (100 feet). This means it can withstand splashes, rain, or brief immersion in water. It is not suitable for bathing, swimming, diving, or any prolonged water activities. Avoid operating the crown or pushers when the watch is wet.
Image: The OLEVS watch partially submerged in water, illustrating its water resistance capabilities.
2. Cleaning
To maintain the appearance of your watch, wipe it regularly with the provided cleaning cloth. For more thorough cleaning, use a soft, damp cloth and mild soap, then dry thoroughly. Avoid harsh chemicals or abrasive materials.
3. Bezel Film Removal
Before the first wear, ensure you remove any protective scratch-resistant film from the watch bezel to ensure proper function and appearance.
Specifications
| Feature | Specification |
|---|---|
| Movement | Analog Quartz |
| Case Material | Stainless Steel |
| Band Material | Stainless Steel |
| Lens Material | Mineral Glass |
| Case Diameter | 41 mm (1.61 inches) |
| Case Thickness | 11 mm (0.43 inches) |
| Band Width | 20 mm (0.79 inches) |
| Band Length | 220 mm (8.66 inches) |
| Weight | 118 g (4.16 oz) |
| Water Resistance | 30 meters (100 feet) |
| Features | Date Display, Luminous Hands, Rotating Bezel |
Image: Detailed diagram illustrating the dimensions of the OLEVS watch, including case diameter, band length, and band width.
Troubleshooting
If you encounter any issues with your OLEVS watch, please consider the following common solutions:
- Watch not running: Ensure the crown is fully pushed in. If the watch still does not run, the battery may need replacement.
- Incorrect time/date: Refer to the "Setting Time and Date" section to reset.
- Water damage: If the watch has been exposed to water beyond its resistance limits, or if condensation appears inside, contact customer service immediately.
For further assistance, please refer to the Warranty and Support section.
Warranty and Support
Your OLEVS watch comes with a 12-month warranty from the date of purchase, covering manufacturing defects. This warranty does not cover damage resulting from improper use, accidents, or unauthorized repairs.
For warranty claims, technical support, or any other inquiries, please contact our customer service team:
- Online: Visit the OLEVS store on Amazon and click "Ask a Question" on the product page.
- For existing orders: Go to your order details and select "Get help" or "Get product support."
Our friendly customer service team is ready to assist you.
Product Video
Watch this video for a closer look at the OLEVS Men's Watch and its features.
Video: An official product video showcasing the OLEVS Men's Watch, highlighting its design, materials, and various features in different settings.
