Introduction
Thank you for choosing the VONROC 20V 152mm Mini Chainsaw. This tool is designed for efficient and precise cutting tasks in your garden and around your home. It combines the comfort of pruning shears with the cutting power of a chainsaw, making it ideal for pruning branches, cutting thicker limbs, maintaining trees and shrubs, and processing wood waste. Please read this manual carefully before operating the tool to ensure safe and effective use.

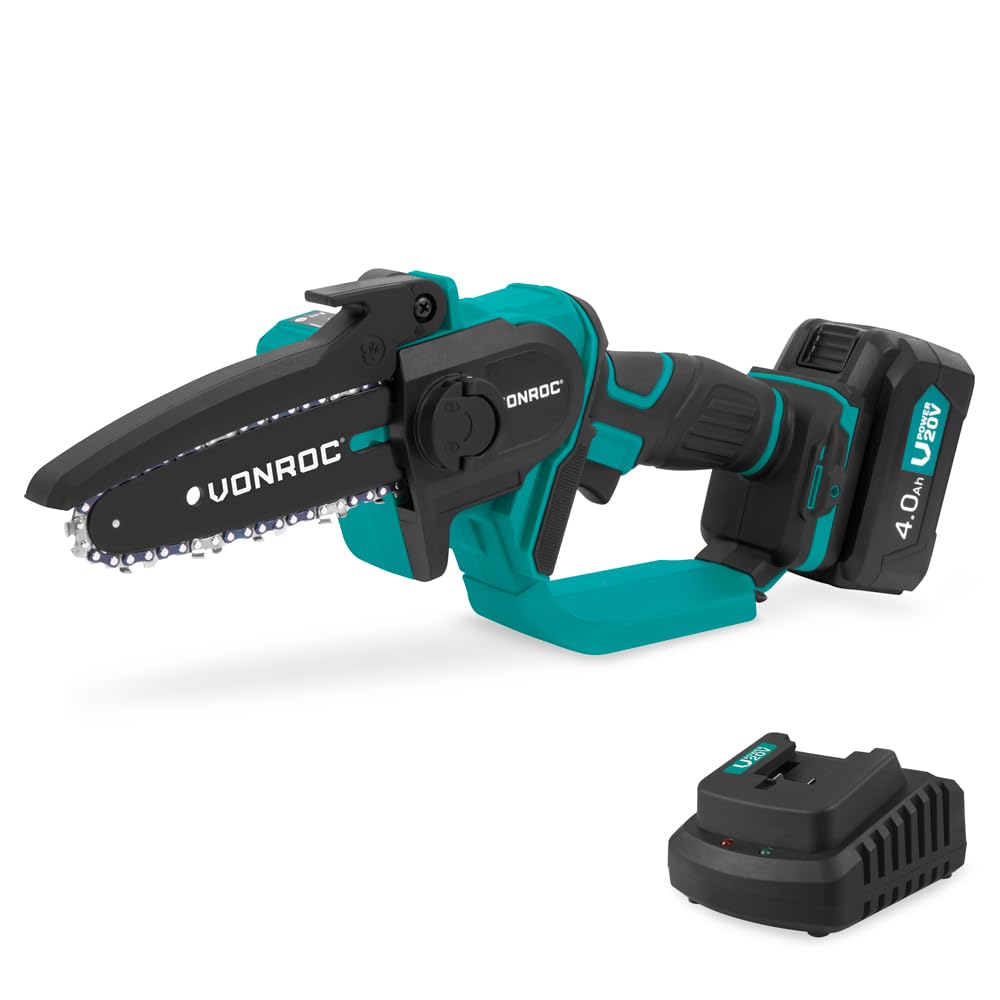

Image: The VONROC 20V 152mm Mini Chainsaw, a compact and powerful tool for various cutting tasks.
Safety Instructions
Always observe basic safety precautions to reduce the risk of fire, electric shock, and personal injury. Keep this manual for future reference.
General Safety Warnings
- Read all instructions: Familiarize yourself with the controls and proper use of the tool.
- Wear personal protective equipment (PPE): Always wear safety glasses, hearing protection, gloves, and sturdy footwear when operating the chainsaw.
- Keep work area clear: Ensure the work area is free from obstructions and well-lit. Keep bystanders, children, and animals away.
- Avoid kickback: Be aware of the chain tip and avoid contact with objects that could cause kickback. Always maintain a firm grip with both hands.
- Secure workpiece: Ensure the material you are cutting is stable and cannot shift during operation.
- Battery safety: Use only VONROC 20V batteries and chargers. Do not expose batteries to heat or fire. Do not short-circuit.
- Maintain proper footing and balance: Do not overreach. Always keep proper footing and balance for better control of the power tool in unexpected situations.
- Inspect before use: Check the chainsaw for any damaged parts, loose components, or signs of wear before each use.
Package Contents
The VONROC 20V 152mm Mini Chainsaw package includes the following components:
- VONROC 20V 152mm Mini Chainsaw (Model CS506DC)
- Blade cover
- Chain
- Chain tensioning pin
Note: Battery and charger are sold separately.
Setup
1. Battery Installation
- Ensure the chainsaw is switched off.
- Align the battery pack (2.0Ah or 4.0Ah VONROC VPOWER 20V battery, sold separately) with the battery port on the tool.
- Slide the battery into place until it clicks securely. To remove, press the release button and slide the battery out.
2. Chain and Blade Installation
The VONROC Mini Chainsaw features a quick, tool-free chain installation and tensioning system.
- Ensure the battery is removed for safety.
- Open the quick-release cover on the side of the chainsaw.
- Carefully place the chain around the guide bar and the drive sprocket. Ensure the cutting edges of the chain are facing the correct direction.
- Close the quick-release cover and secure it.
- Adjust the chain tension using the quick tensioning system. The chain should be snug but still able to be pulled around the guide bar by hand. It should not sag from the guide bar.
Image: Illustration of the quick blade change system and rapid chain tensioning system, highlighting the tool-free design.
3. Hand Guard Adjustment
The chainsaw is equipped with a rotatable hand guard for enhanced safety.
- Adjust the hand guard to a position that provides optimal protection for your hand while allowing comfortable operation.
- Ensure the guard is securely in place before starting the tool.
Image: Diagram showing the pivoting protective cover, which can be adjusted for user safety.
Operating Instructions
1. Starting the Chainsaw
- Ensure the battery is fully charged and correctly installed.
- Grip the chainsaw firmly with both hands, ensuring your hands are positioned on the soft-grip handles.
- Press the safety switch (often a button or lever that must be engaged before the trigger).
- Squeeze the trigger to start the chain. Release the trigger to stop the chain.
Image: Exploded view of the VONROC Mini Chainsaw highlighting key components such as the safety switch, included blade housing, and quick chain tensioning system.
2. Cutting Techniques
- Pruning branches: Support the branch to prevent it from splitting. Make a small undercut first, then cut from the top.
- Cutting wood: Place the chainsaw firmly against the workpiece. Let the saw do the work; do not force it.
- Avoid binding: Ensure the cut material does not pinch the chain. If cutting larger pieces, make relief cuts.
- Be cautious of falling branches: Always be aware of the direction a branch will fall and ensure your path is clear.
Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your VONROC Mini Chainsaw.
- Cleaning: After each use, remove the battery and clean the chainsaw thoroughly. Use a brush to remove sawdust and debris from the chain, guide bar, and motor housing.
- Chain tension: Periodically check and adjust the chain tension. A properly tensioned chain should be snug but still movable by hand.
- Chain sharpening: A dull chain will reduce cutting efficiency and increase strain on the motor. Sharpen the chain regularly or replace it when necessary. Refer to a professional if unsure.
- Guide bar maintenance: Clean the guide bar groove to remove any accumulated debris. Flip the guide bar periodically to ensure even wear.
- Storage: Store the chainsaw in a dry, secure place, out of reach of children. Always attach the blade cover before storage. Remove the battery when storing for extended periods.
Troubleshooting
If you encounter issues with your VONROC Mini Chainsaw, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Chainsaw does not start | Battery not charged or improperly installed; Safety switch not engaged; Faulty battery/tool. | Charge battery; Reinstall battery correctly; Engage safety switch before pressing trigger; Test with another battery if available; Contact support if issue persists. |
| Chain does not move | Chain too tight; Obstruction in chain path; Chain improperly installed; Worn chain/sprocket. | Adjust chain tension; Clear any debris; Reinstall chain correctly; Inspect chain and sprocket for wear and replace if necessary. |
| Poor cutting performance | Dull chain; Incorrect chain tension; Improper cutting technique. | Sharpen or replace chain; Adjust chain tension; Review operating instructions for proper cutting technique. |
| Excessive vibration | Loose components; Damaged chain or guide bar. | Check all fasteners and tighten if loose; Inspect chain and guide bar for damage and replace if necessary. |
Specifications
Detailed technical specifications for the VONROC 20V 152mm Mini Chainsaw (Model CS506DC).
Image: Dimensions of the VONROC Mini Chainsaw, showing a length of 45 cm, width of 14.5 cm, and height of 15 cm.
| Feature | Specification |
|---|---|
| Brand | VONROC |
| Model Number | CS506DC |
| Color | Black and Green |
| Power Source | Battery Powered (20V) |
| Blade Material | High-Speed Steel |
| Blade Length | 152 Millimeters |
| Recommended Surface | Wood |
| Voltage | 20 Volts |
| Speed | 4.9 Meters per second |
| Number of Teeth | 54 |
| Wattage | 20 Watts |
| Product Dimensions (L x W x H) | 43L x 14.5W x 15H Centimeters |
| Handle Material | Plastic |
| Special Features | Rotatable hand guard, Soft-grip handle |
Warranty and Support
VONROC products are designed for quality and durability. For specific warranty information, please refer to the warranty card included with your product or visit the official VONROC website. In case of any issues or for technical support, please contact VONROC customer service.
You can find more information and contact details on the VONROC Store on Amazon.
