Pondee X5 Cordless Robotic Pool Cleaner Instruction Manual

1. Introduction and Overview

The Pondee X5 Cordless Robotic Pool Cleaner is engineered for effortless and comprehensive pool maintenance. Designed for both in-ground and above-ground pools up to 3,229 sq. ft., it features advanced smart path planning and powerful triple brushless motors to ensure no spot is missed. With its long runtime and quick recharge, the X5 provides a convenient solution for maintaining a spotless pool.

2. What's in the Box

Your Pondee X5 package includes the following components:

• 1x Pondee X5 Pool Vacuum Cleaner
• 1x Adapter
• 1x Retrieval Hook
• 1x Multilingual Manual (EN/ES/DE/FR/IT)
• 1x FAQ Guidance

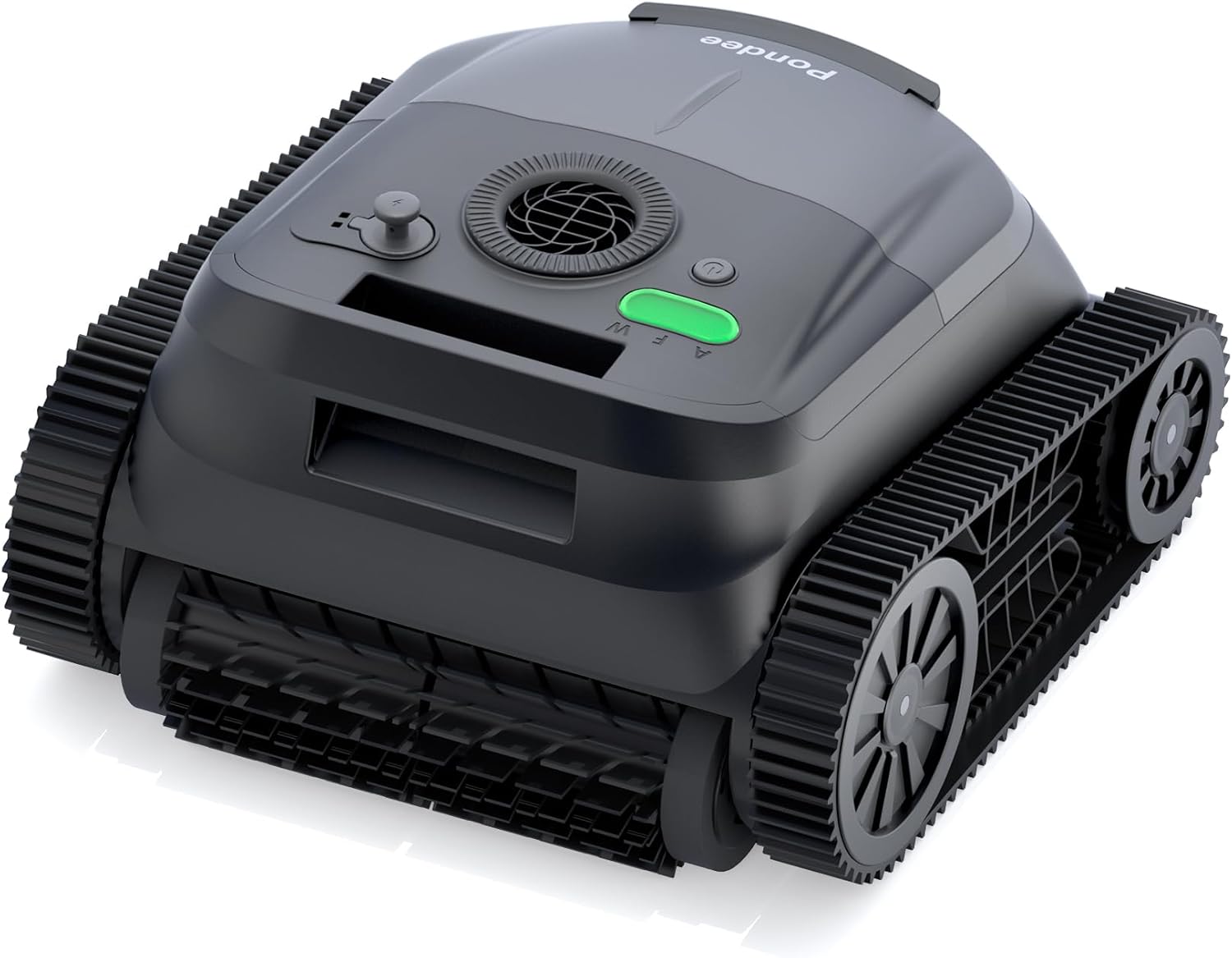

Figure 2.1: Pondee X5 Pool Vacuum Cleaner and included accessories.

3. Setup

3.1 Charging the Unit

Before first use, fully charge the Pondee X5. Connect the adapter to the charging port located on the top of the unit. A full charge takes approximately 2.5 hours. Ensure the charging port is dry before connecting the adapter.

3.2 Initial Placement in the Pool

Once fully charged, simply place the Pondee X5 into your pool. The unit will slowly sink to the bottom as it fills with water, preparing for its cleaning cycle. No complex setup or mapping is required as the device features automatic path planning.

4. Operating Instructions

4.1 Powering On and Selecting Modes

The Pondee X5 features one-click operation. Press the power button on the top of the unit to activate it. The LED indicator will light up, showing the current cleaning mode. You can cycle through the four available cleaning modes by pressing the power button repeatedly:

• Auto Mode (A): Alternates between cleaning the pool floor, walls, and waterline for comprehensive coverage.
• Floor Only Mode (F): Focuses cleaning exclusively on the pool floor.
• Wall Only Mode (W): Concentrates cleaning on the pool walls and waterline.
• Classic Mode (AFW): Engages all cleaning functions (floor, wall, waterline) in a systematic pattern.

Figure 4.1: Visual representation of the four distinct cleaning modes.

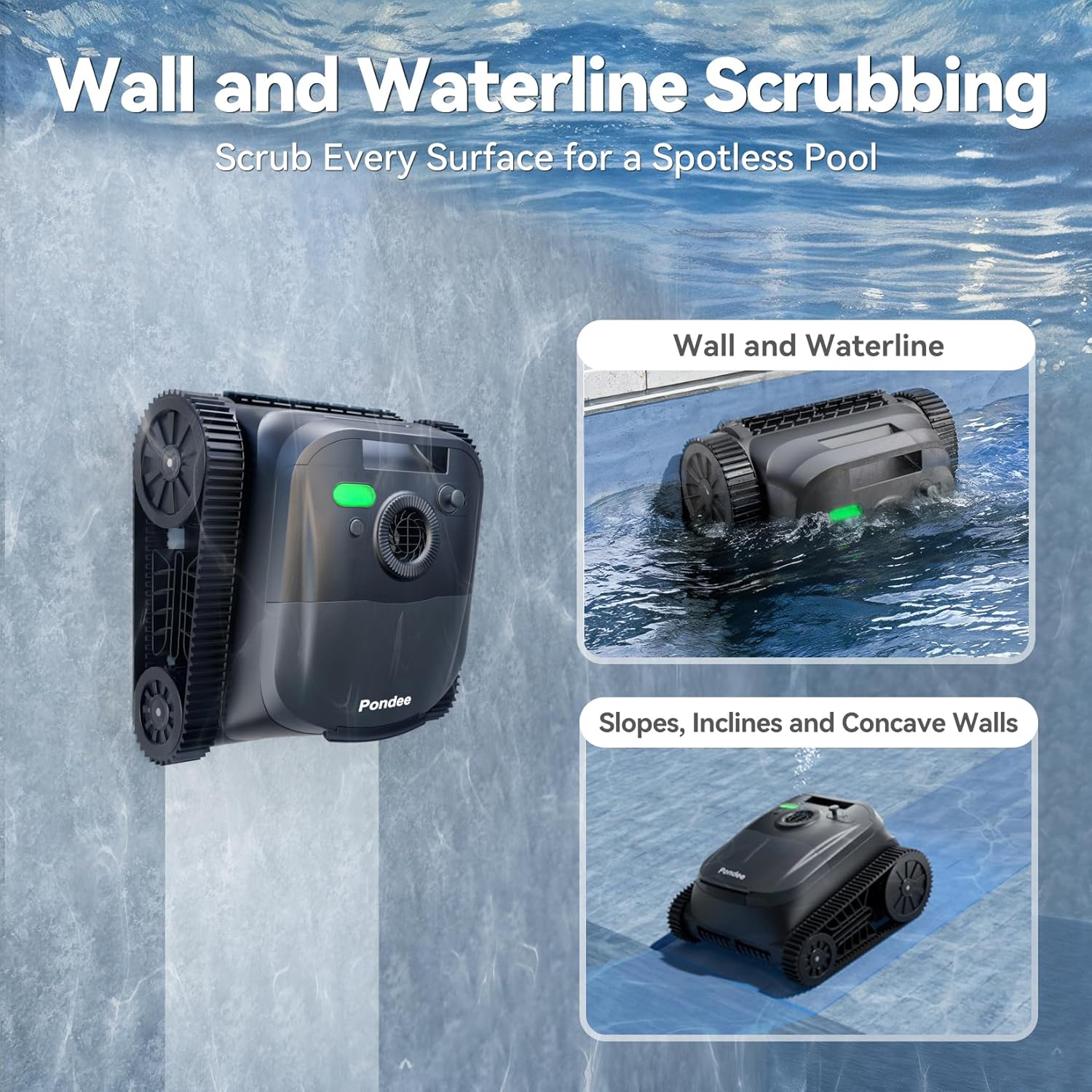

Figure 4.2: The Pondee X5 effectively scrubs pool walls and waterlines.

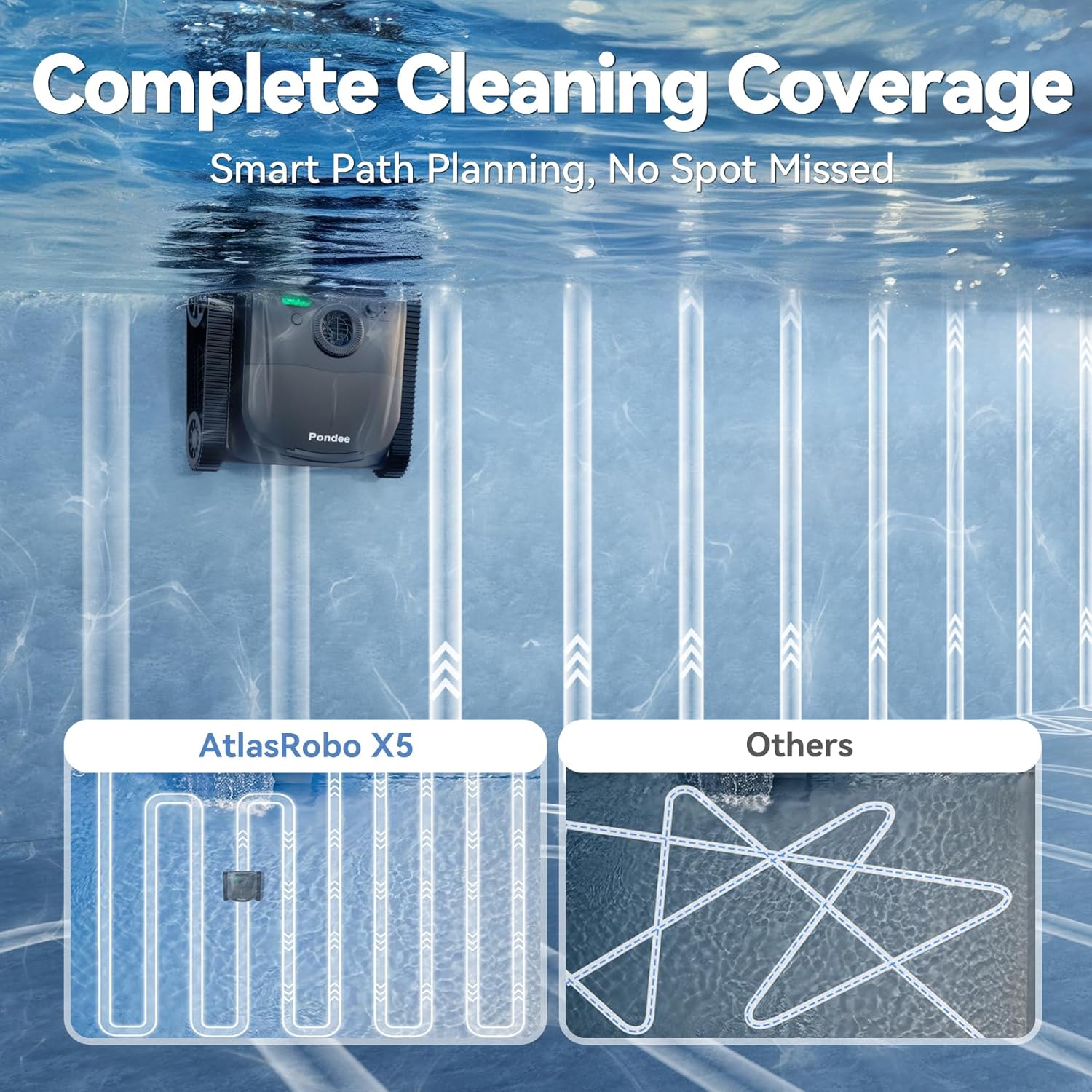

Figure 4.3: Smart Path Planning ensures complete and efficient cleaning coverage.

4.2 Smart Directional Return

Upon completion of its cleaning cycle or when the battery is low, the Pondee X5 will automatically return to a preset pickup spot at the edge of the pool. This patented Smart Directional Return technology simplifies retrieval. Use the included retrieval hook to easily lift the unit from the water.

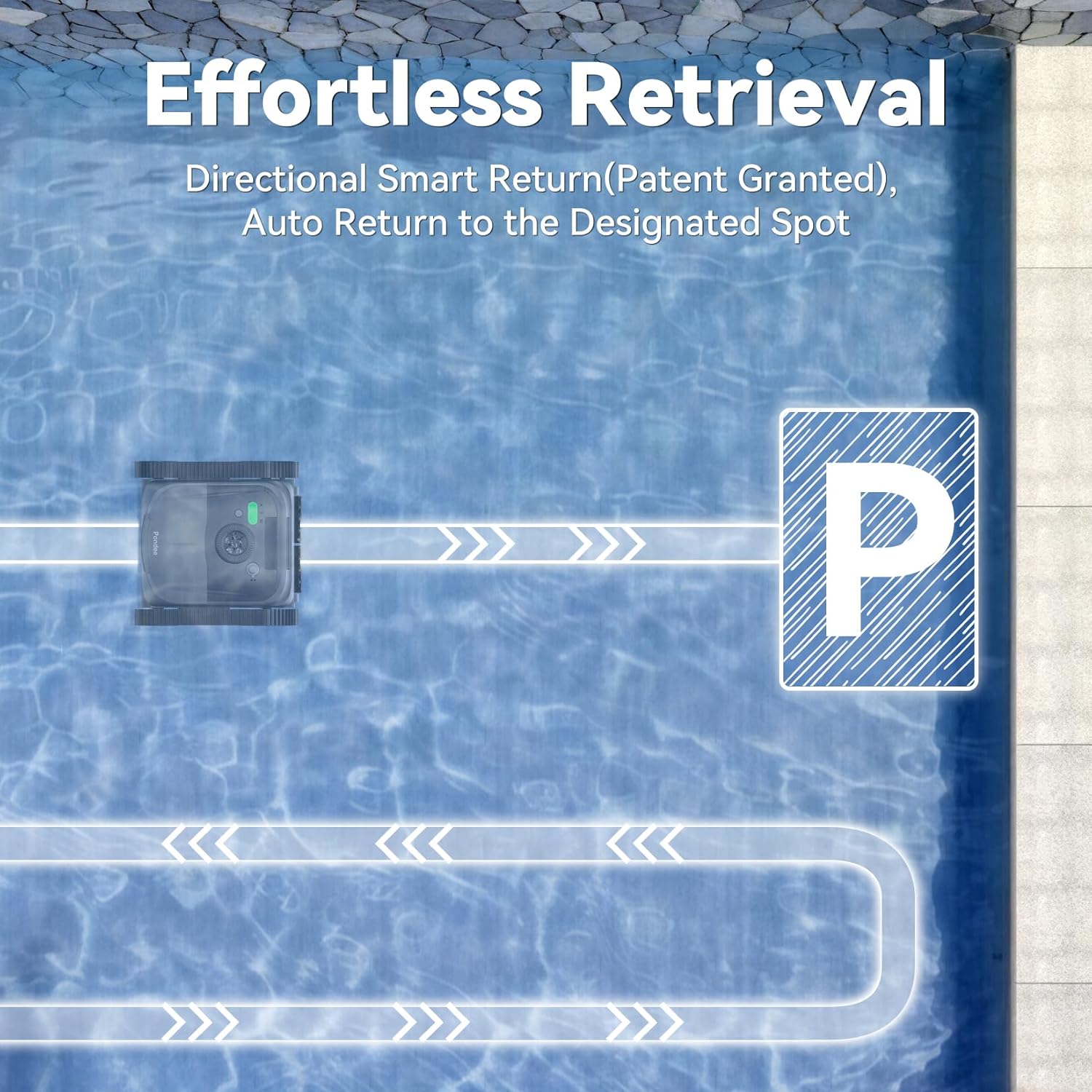

Figure 4.4: The Smart Directional Return feature for easy retrieval.

No official seller videos are available for embedding in this section.

5. Maintenance

5.1 Filter Basket Cleaning

Regular cleaning of the filter basket is crucial for optimal performance. The Pondee X5 features a large 3.5L filter basket designed to capture leaves, sand, hair, gravel, and small twigs. To clean, open the top lid of the unit, remove the filter basket, and rinse it thoroughly with a garden hose. Ensure all debris is removed before reinserting the basket and closing the lid.

Figure 5.1: The easily accessible 3.5L filter basket for debris collection.

5.2 Recharging

The Pondee X5 boasts an impressive 180-minute runtime on a single charge. When the battery is depleted, recharge the unit using the provided adapter. The rapid 2.5-hour recharge time ensures minimal downtime between cleaning sessions.

6. Troubleshooting

For any operational issues or unexpected behavior, please refer to the comprehensive FAQ Guidance included in your package. This guide provides detailed troubleshooting steps and solutions to common problems.

7. Specifications

8. Warranty and Support

The Pondee X5 Cordless Robotic Pool Cleaner comes with a 2-Year Full Protection warranty. For any inquiries or assistance, dedicated 24/7 Customer Support is available to ensure your complete satisfaction.
