Motor Circuit Protector User Manual

1. Introduction

This user manual provides essential information for the safe and efficient operation of your AUNMAS Motor Circuit Protector. This device is designed to protect your motor from damage caused by overload by timely disconnecting the circuit, thereby extending its service life. Please read this manual thoroughly before installation and operation.

2. Safety Information

Always adhere to the following safety precautions to prevent injury or damage to the device.

• Electrical Hazard: Installation and maintenance should only be performed by qualified personnel. Ensure power is disconnected before any work.
• Proper Disposal: Dispose of packaging materials properly after use to avoid choking hazards.
• Operating Environment: Do not expose the device to excessive moisture, dust, or extreme temperatures.
• Intended Use: Use the device only for its intended purpose as a motor circuit protector.

Image: A warning label indicating the importance of proper disposal of packaging materials to prevent choking hazards, translated into multiple languages.

3. Product Overview

The AUNMAS Motor Circuit Protector is a robust device designed for reliable motor protection. It features a durable construction and intuitive controls.

3.1 Components and Features

• Motor Protector: Timely disconnects the circuit to prevent overload damage.
• Premium Button: Ensures erosion resistance and flexibility for reliable operation.
• Precise Adjustment Dial: Allows continuous adjustment for safety and precise control.
• Easy Installation: Designed for 35mm mounting with tunnel crimp wiring and screw fixing.
• Versatile Application: Suitable for resistive, capacitive, and inductive loads in various motor applications.

Image: Main view of the AUNMAS Motor Circuit Protector, showing the overall design, control buttons (red OFF, green START), and terminal connections.

Image: Side view of the motor circuit protector, highlighting the "OFF" and "START" buttons and the "TEST" switch for functional verification.

Image: A detailed close-up of the product's specification label, displaying electrical ratings such as voltage (690V), frequency (50/60Hz), and current ratings.

Image: Front view of the motor circuit protector, clearly showing the red "STOP" button, green "START" button, and the "TEST" mechanism.

4. Setup and Installation

The AUNMAS Motor Circuit Protector is designed for easy installation. Follow these steps carefully.

4.1 Pre-installation Checklist

• Ensure the power supply to the motor circuit is completely disconnected.
• Verify that the motor circuit protector's specifications match your motor's requirements (e.g., current range, voltage).
• Gather necessary tools: screwdriver, wire strippers, DIN rail (if not already present).

4.2 Installation Steps

1. Mounting: The device supports 35mm DIN rail mounting. Snap the protector onto the DIN rail securely.
2. Wiring: Connect the motor circuit wires to the appropriate terminals (L1, L2, L3 for input; T1, T2, T3 for output to motor) using tunnel crimp wiring. Ensure all connections are tight and secure with screw fixing. Refer to the wiring diagram on the device label for correct connections.
3. Current Setting: Adjust the precise setting dial to the nominal current of your motor. This ensures accurate overload protection.
4. Verification: After wiring, double-check all connections for tightness and correctness.

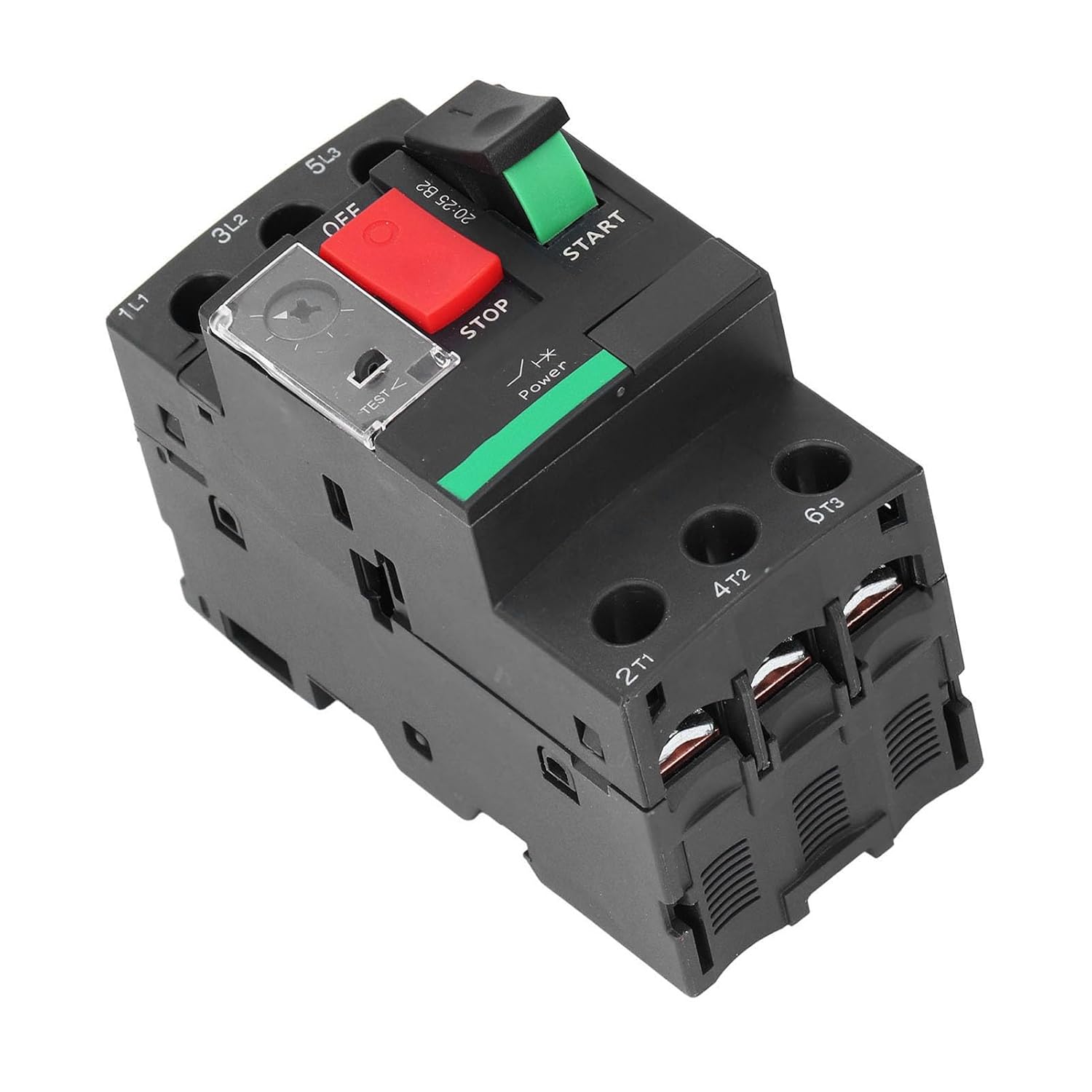

Image: Side view of the motor circuit protector, illustrating the integrated mechanism for 35mm DIN rail mounting, which simplifies installation.

5. Operating Instructions

Once installed, operating the motor circuit protector is straightforward.

1. Power On: Restore power to the circuit.
2. Start Motor: Press the green "START" button to energize the motor circuit. The "Power" indicator (if present) should illuminate.
3. Stop Motor: Press the red "STOP" button to de-energize the motor circuit.
4. Testing Trip Function: Periodically, you can test the trip mechanism by pressing the "TEST" button. This will simulate an overload and trip the protector. Reset the protector by pressing the "START" button after testing.

Image: Top view of the motor circuit protector, clearly showing the red "OFF" (STOP) button, green "START" button, and the "Power" indicator area.

6. Maintenance

The AUNMAS Motor Circuit Protector requires minimal maintenance to ensure long-term reliable operation.

• Regular Inspection: Periodically inspect the device for any signs of physical damage, loose connections, or discoloration.
• Cleaning: If necessary, gently clean the exterior of the device with a dry, soft cloth. Do not use abrasive cleaners or solvents.
• Functional Test: Perform the "TEST" button function test annually to ensure the trip mechanism is working correctly.
• Professional Check: For any complex issues or if you suspect internal damage, consult a qualified electrician.

7. Troubleshooting

This section addresses common issues you might encounter with your motor circuit protector.

8. Specifications

Detailed technical specifications for the AUNMAS Motor Circuit Protector.

9. Warranty and Support

For warranty information or technical support, please refer to the purchase documentation or contact your retailer. Keep your purchase receipt as proof of purchase.

For further assistance, you may also visit the AUNMAS official website or contact their customer service department.
