XK-1400L Truck Hoist Vehicle Lift Instruction Manual

1. Safety Instructions

Read and understand all safety warnings and instructions before installing, operating, or maintaining this vehicle lift. Failure to follow these instructions may result in serious injury or death.

• Qualified Personnel Only: Installation and major maintenance should only be performed by qualified and trained personnel.
• Load Capacity: Do not exceed the maximum rated lifting capacity of 14,000 lbs.
• Proper Foundation: Ensure the installation site has a level concrete foundation that meets the minimum thickness and strength requirements specified in the installation guide.
• Clear Area: Keep the area around the lift clear of obstructions, personnel, and tools during operation.
• Vehicle Positioning: Always center the vehicle on the lift and ensure lifting arms are properly positioned and locked before raising.
• Safety Locks: Always engage the safety locks after raising the vehicle to the desired height. Never work under a lift that is not supported by its safety locks.
• Emergency Procedures: Familiarize yourself with emergency lowering procedures and the location of the power disconnect.
• Personal Protective Equipment (PPE): Wear appropriate PPE, including safety glasses and steel-toed boots, when working with the lift.

2. Package Contents

Upon receiving your XK-1400L Truck Hoist, verify that all components are present and undamaged. Contact your supplier immediately if any items are missing or damaged.

• Two Vertical Columns
• Four Lifting Arms (3+3 Enhanced Lifting Arm configuration)
• Hydraulic Power Unit (220V)
• Hydraulic Hoses and Fittings
• Equalization Cables and Pulleys
• Anchor Bolts and Mounting Hardware
• Arm Restraints
• Ultra-High Molecular Weight (UHMW) Rub Blocks
• Instruction Manual

3. Specifications

The following table outlines the key specifications for the XK-1400L Truck Hoist Vehicle Lift:

Note: A forklift or tractor is required for unloading the product upon delivery.

Image: The XK-1400L Truck Hoist with a vehicle lifted, illustrating the lift's dimensions and operational stance.

4. Setup and Installation

Proper installation is critical for the safe and effective operation of the XK-1400L Truck Hoist. It is highly recommended that installation be performed by a certified professional or a qualified technician.

4.1 Site Preparation

• Ensure the installation area is level and composed of concrete that meets the minimum specifications for thickness and strength (refer to the detailed installation manual for specific requirements).
• Verify adequate overhead clearance for the lift's maximum height and the vehicles to be serviced.
• Confirm access to a dedicated 220V, 60Hz, 3HP single-phase power supply with at least a 30A breaker.

4.2 Assembly Steps (Overview)

1. Uncrating and Inspection: Carefully uncrate all components and inspect for shipping damage.
2. Column Placement: Position the two columns according to the specified dimensions, ensuring they are plumb and level.
3. Anchor Bolt Installation: Drill holes and secure the columns to the concrete floor using the provided anchor bolts. Torque to specifications.
4. Hydraulic Unit Mounting: Mount the hydraulic power unit to the designated column.
5. Hydraulic and Electrical Connections: Connect hydraulic hoses between the power unit and cylinders, and route electrical wiring. Fill the reservoir with 3-5 gallons of AW32/AW46 hydraulic oil.
6. Cable Installation: Install and tension the equalization cables.
7. Arm Assembly: Attach the lifting arms and ensure the automatic arm restraints function correctly.
8. Initial Test: Perform a test run without a vehicle to check for proper operation, leaks, and safety lock engagement.

Image: The XK-1400L Truck Hoist, a two-post vehicle lift, shown without a vehicle, illustrating its structural components.

5. Operating Instructions

Follow these steps for safe and effective operation of your XK-1400L Truck Hoist.

5.1 Pre-Operation Checks

• Ensure the lift area is clear of personnel and obstructions.
• Check hydraulic fluid level.
• Inspect cables, chains, and hoses for wear or damage.
• Verify that safety locks are disengaged before lifting and engaged after lifting.

5.2 Lifting a Vehicle

1. Position Vehicle: Drive the vehicle onto the lift, centering it between the columns.
2. Position Arms: Swing the lifting arms into position under the vehicle's designated lifting points. Ensure the arm pads make full contact with the vehicle's frame or pinch welds.
3. Engage Arm Restraints: Confirm that the automatic arm restraints are engaged, preventing the arms from swinging out.
4. Raise Vehicle: Press and hold the 'UP' button on the hydraulic power unit. Raise the vehicle slowly until the tires are just off the ground. Re-check arm pad contact and vehicle stability.
5. Engage Safety Locks: Continue raising the vehicle to the desired working height. Once at height, lower the lift slightly until the safety locks engage with an audible click. This transfers the load from the hydraulic system to the mechanical locks.
6. Verify Locks: Visually confirm that all safety locks are fully engaged before working under the vehicle.

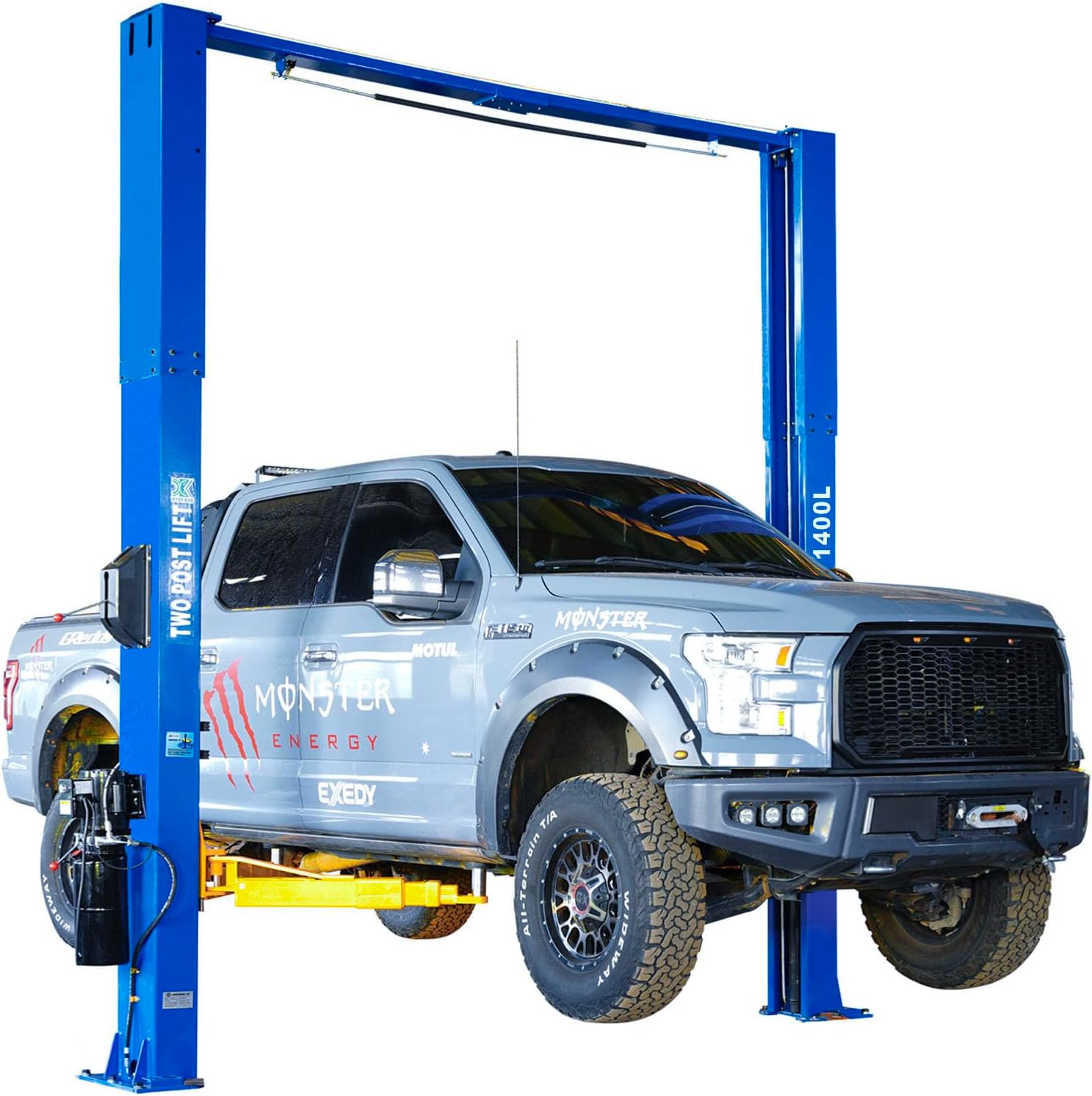

Image: A gray pickup truck positioned on the XK-1400L Truck Hoist, partially lifted, demonstrating vehicle placement.

5.3 Lowering a Vehicle

1. Clear Area: Ensure no tools, equipment, or personnel are under or near the vehicle.
2. Raise Slightly: Press the 'UP' button briefly to lift the vehicle off the safety locks.
3. Disengage Safety Locks: Pull the single point lock release handle to disengage all safety locks.
4. Lower Vehicle: Press and hold the 'DOWN' lever on the hydraulic power unit. The vehicle will begin to descend. Control the descent speed as needed.
5. Remove Arms: Once the vehicle is fully on the ground, swing the lifting arms clear.
6. Drive Off: Carefully drive the vehicle off the lift.

Image: A gray pickup truck fully elevated on the XK-1400L Truck Hoist, demonstrating the lift's maximum working height.

6. Maintenance

Regular maintenance is essential to ensure the longevity and safe operation of your XK-1400L Truck Hoist.

6.1 Daily Checks

• Inspect all cables, chains, and hydraulic hoses for signs of wear, fraying, or leaks.
• Check for proper function of safety locks and arm restraints.
• Ensure anchor bolts are tight and secure.
• Clean any debris from the columns and lifting mechanisms.

6.2 Monthly Checks

• Check hydraulic fluid level and top off if necessary (use AW32/AW46 hydraulic oil).
• Lubricate all moving parts, including pulleys, chains, and arm pivot points, as specified in the detailed maintenance schedule.
• Inspect UHMW rub blocks for wear and replace if excessively worn.
• Verify electrical connections are secure.

6.3 Annual Inspection

• A thorough inspection by a qualified technician is recommended annually.
• This includes checking structural integrity, hydraulic system pressure, and overall operational performance.

Image: A detailed view of the hydraulic power unit, showing the motor, reservoir, and control levers.

Image: A close-up of the internal chain and cable mechanism within one of the lift's columns, indicating the lifting system.

7. Troubleshooting

This section provides solutions for common issues. For problems not listed or if solutions do not resolve the issue, contact customer support.

If troubleshooting steps do not resolve the issue, discontinue use and contact a qualified service technician or XK customer support.

8. Warranty and Support

The XK-1400L Truck Hoist Vehicle Lift includes a 12-month parts replacement warranty. This warranty covers defects in materials and workmanship under normal use and service.

For warranty claims, technical assistance, or to order replacement parts, please contact XK customer support through the retailer where the product was purchased or refer to the contact information provided with your purchase documentation.

Always provide your model number (XK-1400L) and purchase date when contacting support to ensure efficient service.
