Kismile Ice Maker Countertop User Manual

1. Introduction

Thank you for purchasing the Kismile Ice Maker Countertop. This manual provides important information regarding the safe operation, installation, maintenance, and troubleshooting of your new ice maker. Please read this manual thoroughly before using the appliance and retain it for future reference.

Image: The Kismile Ice Maker Countertop in black, featuring a clear water tank on top, an ice basket filled with ice cubes, and a glass of chilled beverage with ice.

2. Safety Instructions

To ensure safe operation and reduce the risk of injury or damage, please adhere to the following safety precautions:

• Read all instructions before using the appliance.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• Do not immerse the power cord, plug, or any part of the appliance in water or other liquids.
• Ensure the appliance is placed on a stable, flat surface, away from direct sunlight or heat sources.
• This appliance uses R290a refrigerant. Do not puncture the refrigerant tubing.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Keep ventilation openings clear of obstruction.
• Unplug the ice maker before cleaning or when not in use for extended periods.
• This appliance is for household use only.

3. Package Contents

Upon unpacking, please ensure all items listed below are present and in good condition:

• Kismile Ice Maker Unit
• Ice Basket
• Ice Scoop
• User Manual

4. Product Features and Components

The Kismile Ice Maker is designed for convenience and efficiency, offering several key features:

• Fast Ice Making: Produces up to 33 pounds of ice per day, with the first batch ready in 5-18 minutes (16 pieces per cycle).
• 1.5L Detachable Water Tank: Easy to fill and clean, also functions as an ice storage box.
• Adjustable Ice Thickness: Customize ice cubes from hollow (5-9 mins, ideal for smoothies), half-hollow (10-14 mins, ideal for juices), to solid (15-18 mins, ideal for cocktails/whiskey).
• LCD Digital Display: Provides real-time status updates including "Add Water," "Ice Full," "Timer," "Self-Cleaning," and allows adjustment of ice thickness.
• 24-Hour Timer: Program the ice maker to start or stop at a specific time.
• Self-Cleaning Function: Simplifies maintenance and ensures hygienic ice production.
• Compact and Portable Design: Fits seamlessly into various spaces without occupying excessive room.

Component Overview:

Image: Close-up of the Kismile Ice Maker's LCD digital display panel, showing indicators for "Add Water," "Ice Full," "Timer," "Self-Cleaning," and buttons for adjusting ice thickness and On/Off.

Image: The Kismile Ice Maker highlighting the 1.5L removable water tank on top, which also serves as an ice storage box.

Image: Visual representation of the three adjustable ice cube thicknesses: hollow, half-hollow, and solid, with suggested uses.

5. Setup

1. Unpacking: Carefully remove the ice maker from its packaging. Remove all packing materials, tapes, and labels.
2. Initial Cleaning: Before first use, clean the interior of the ice maker, including the water tank and ice basket, with a soft cloth and mild detergent. Rinse thoroughly with clean water.
3. Placement: Place the ice maker on a flat, stable, and level surface. Ensure there is adequate ventilation around the unit (at least 4 inches of space on all sides). Avoid placing it near heat sources or in direct sunlight.
4. Power Connection: Plug the ice maker into a grounded electrical outlet. Ensure the voltage matches the specifications of the appliance.
5. Water Filling: Open the water tank lid and fill the 1.5L detachable water tank with clean, potable water up to the MAX fill line. Do not overfill.

6. Operating Instructions

1. Power On: Press the "On/Off" button on the control panel to turn on the ice maker.
2. Select Ice Thickness: Use the "+/-" buttons to adjust the desired ice cube thickness. The display will show the selected setting.
   • Hollow Ice Cube: For smoothies (5-9 minutes)
   • Half-Hollow Ice Cube: For juices (10-14 minutes)
   • Solid Ice Cube: For cocktails, whiskey (15-18 minutes)
3. Ice Making Process: The ice maker will begin the ice production cycle. The LCD display will show the remaining time for the current batch.
4. "Ice Full" Indicator: When the ice basket is full, the "Ice Full" indicator will illuminate, and the ice making process will pause. Remove ice from the basket to resume operation.
5. "Add Water" Indicator: If the water level in the tank is too low, the "Add Water" indicator will light up. Refill the water tank to continue ice production.
6. Using the Timer: Press the "Timer" button to set a delayed start or stop time for the ice maker. Use the "+/-" buttons to adjust the hours.
7. Collecting Ice: Once ice cubes are formed and dropped into the basket, use the provided ice scoop to remove them. For best results, transfer ice to a freezer for storage.
8. Power Off: Press the "On/Off" button again to turn off the ice maker.

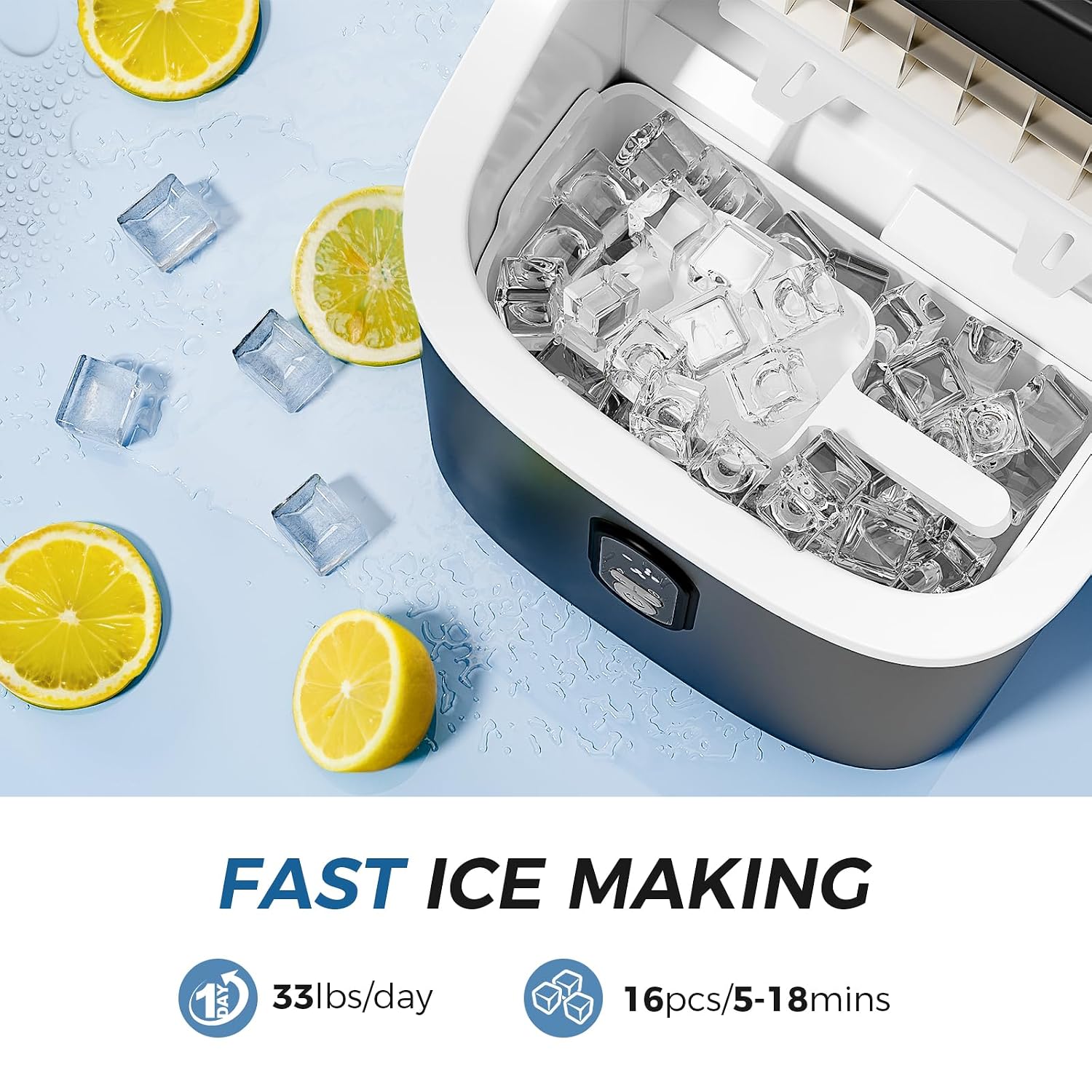

Image: The Kismile Ice Maker with text indicating its fast ice making capability: 33 lbs/day and 16 pieces in 5-18 minutes.

7. Maintenance and Cleaning

Regular cleaning and maintenance will prolong the life of your ice maker and ensure hygienic ice production.

7.1 Self-Cleaning Function:

1. Ensure the water tank is filled with clean water.
2. Press and hold the "+" button for 5 seconds to activate the self-cleaning mode.
3. The machine will run a cleaning cycle, circulating water through its internal components.
4. Once the cycle is complete, drain any remaining water from the tank and wipe the interior dry.

Image: A transparent view of the Kismile Ice Maker demonstrating the self-cleaning function with water circulating inside.

7.2 Manual Cleaning:

• Exterior: Wipe the exterior of the ice maker with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
• Water Tank and Ice Basket: Regularly remove and clean the detachable water tank and ice basket with warm, soapy water. Rinse thoroughly and dry before reinserting.
• Internal Components: For deeper cleaning, a solution of water and vinegar (10:1 ratio) can be used in the water tank. Run a few ice-making cycles with this solution (discarding the ice), then rinse thoroughly by running several cycles with clean water.
• Storage: If storing the ice maker for an extended period, ensure it is completely drained and dry. Store in a cool, dry place.

8. Troubleshooting

Before contacting customer service, please refer to the following troubleshooting guide for common issues:

9. Specifications

Image: The Kismile Ice Maker with its dimensions labeled, emphasizing its portable size.

10. Warranty and Support

Kismile products are manufactured to the highest quality standards. For detailed warranty information, please refer to the warranty card included with your product or visit the official Kismile website.

If you encounter any issues or have questions regarding your Kismile Ice Maker, please contact Kismile Customer Support. Contact information can typically be found on the product packaging or the brand's official website.
