CUIPPWRJ M0802 Series Brushless Motor User Manual

1. Introduction

This manual provides essential information for the installation, operation, and maintenance of your CUIPPWRJ M0802 series brushless motors. These motors are designed for optimal performance and durability in 65-75MM Tinywhoop racing drones, offering exceptional thrust and efficiency for an enhanced flight experience.

2. Product Overview

The M0802 series brushless motors are engineered for lightweight and agile drone applications. They are available in multiple KV ratings to suit various flight characteristics and pilot preferences.

Key Features:

• Model: M0802 brushless motor designed for optimal performance in various racing drones.
• Speed Options: Available in 19000KV, 25000KV, and 27000KV for tailored acceleration and responsiveness.
• Compatibility: Ideal for 65-75MM Tinywhoop racing drones, enhancing flight agility and control.
• Energy Efficiency: Optimized for 1S battery use, providing longer flight times and improved energy management.
• Lightweight Design: Compact construction minimizes weight, ensuring nimble maneuvers and quick reactions in the air.

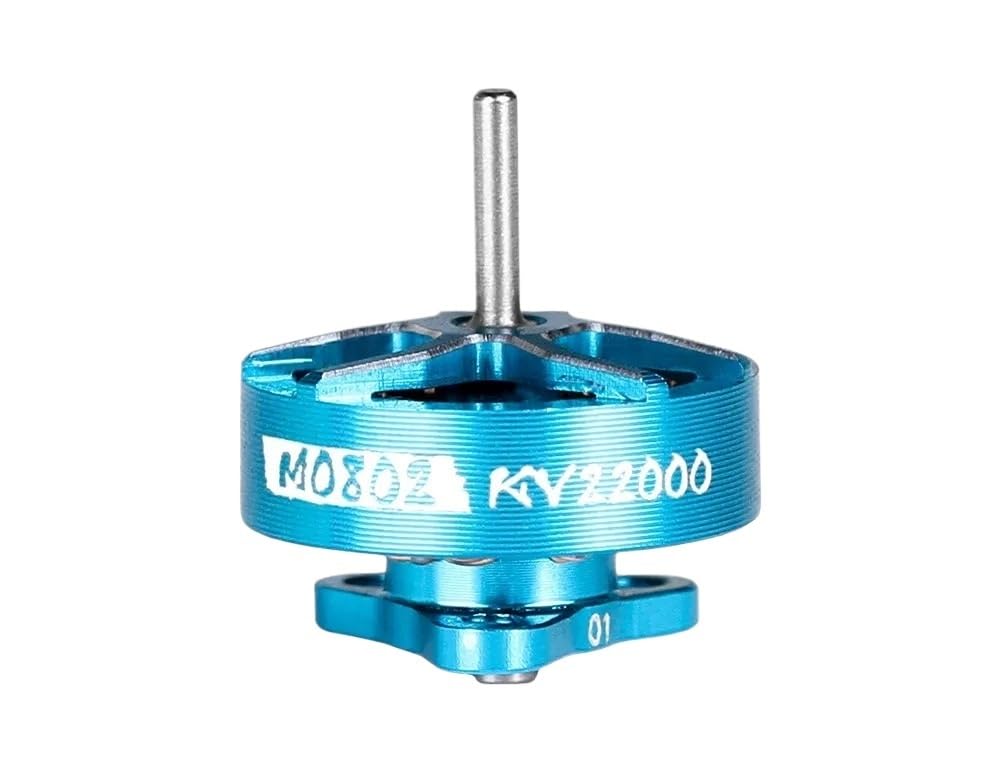

Image 1: CUIPPWRJ M0802 Brushless Motor. This image displays a single M0802 brushless motor, highlighting its compact size and design suitable for Tinywhoop drones.

3. Installation and Setup

Proper installation is crucial for the safe and efficient operation of your motors.

3.1 Package Contents

• CUIPPWRJ M0802 Brushless Motor(s)
• Mounting Screws

3.2 Required Tools

• Small Phillips head screwdriver
• Soldering iron and solder (for ESC connections)
• Heat shrink tubing (optional, for insulation)

3.3 Installation Steps

1. Mounting: Securely attach the motor to your drone's motor mount using the provided screws. Ensure screws are not too long to avoid damaging motor windings.
2. Wiring to ESC: Connect the three motor wires to the corresponding ESC (Electronic Speed Controller) pads. The order of connection determines the motor's rotation direction. If the motor spins in the wrong direction, swap any two of the three wires.
3. Insulation: After soldering, ensure all connections are properly insulated with heat shrink tubing or electrical tape to prevent short circuits.
4. Propeller Attachment: Attach propellers according to your drone frame's specifications and desired rotation direction. Ensure propellers are balanced and free from damage.

4. Operating Instructions

Understanding the motor's characteristics will help optimize your drone's performance.

4.1 Power Supply

These motors are optimized for 1S LiPo battery use. Using batteries with higher voltage than recommended can lead to motor damage or reduced lifespan.

4.2 KV Ratings Explained

• 19000KV: Offers a balance of thrust and efficiency, suitable for longer flight times and smoother control.
• 25000KV: Provides increased power and responsiveness, ideal for agile flying and moderate racing.
• 27000KV: Delivers maximum thrust and acceleration for aggressive racing and high-speed maneuvers.

Select the KV rating that best matches your flying style and drone setup.

4.3 First Flight Considerations

Before your first flight, perform a thorough check:

• Verify all motor connections are secure.
• Confirm correct propeller direction and attachment.
• Test motor spin direction and responsiveness at low throttle without propellers.
• Ensure your flight controller settings are appropriate for the motor and propeller combination.

5. Maintenance

Regular maintenance extends the lifespan and ensures consistent performance of your motors.

• Cleaning: Periodically clean the motors to remove dust, dirt, and debris, especially from around the bearings and stator. Use compressed air or a soft brush.
• Inspection: Regularly inspect motor wires for fraying or damage. Check for any signs of physical damage to the motor bell or stator.
• Bearing Check: Listen for unusual noises during operation, which may indicate worn bearings. Worn bearings can be replaced by experienced users.
• Storage: Store motors in a dry, clean environment away from extreme temperatures and direct sunlight.

6. Troubleshooting

Refer to the table below for common issues and their potential solutions.

7. Technical Specifications

Detailed specifications for the CUIPPWRJ M0802 series brushless motors.

8. Warranty and Support

CUIPPWRJ products are manufactured to high standards. For any questions, technical support, or warranty inquiries, please contact CUIPPWRJ customer service through your retailer or the official CUIPPWRJ website. Please retain your proof of purchase for warranty claims.
