1. Product Overview
The Sophos XGS 88W (Gen2) is a wireless security appliance designed for small offices, offering robust network protection and connectivity. It integrates dual-band Wi-Fi 6 and features 4 x 2.5 GE ports, providing up to 9.9 Gbps firewall performance. Key security features include TLS 1.3 and DPI inspection to counter encrypted threats, alongside SD-WAN and VPN capabilities for secure hybrid networking. All functionalities are managed through the Sophos Central cloud console, ensuring unified policy management and reporting.
Key Features:
- Xstream Protection: Includes zero-day defense, cloud sandboxing, email filtering, intrusion prevention, and advanced reporting.
- Integrated Wi-Fi 6: Provides high-speed wireless connectivity.
- High Throughput: Up to 9.9 Gbps firewall performance with 4 x 2.5 GE copper ports.
- Advanced Threat Protection: TLS inspection and next-generation intrusion prevention block hidden threats and sophisticated attacks.
- Centralized Management: Managed through Sophos Central for simplified administration.
Figure 1: Diagram illustrating the Sophos XGS 88W's powerful protection and performance capabilities, including AI-powered NDR, file analysis, sandboxing, and secure SD-WAN, all managed via Sophos Central.
2. Setup Instructions
2.1 Unpacking and Initial Inspection
Carefully unpack the Sophos XGS 88W appliance and its accessories. Verify that all components listed in the packing slip are present and inspect the device for any physical damage. If any items are missing or damaged, contact your vendor immediately.
2.2 Connecting the Appliance
- Power Connection: Connect the power adapter to the 'DC IN 12V' port on the rear of the appliance and then to a power outlet.
- Network Connections:
- Connect your internet service provider's modem or router to the '2/WAN' port using an Ethernet cable.
- Connect your internal network switch or a computer directly to one of the '1/LAN' or '3/DMZ' ports.
- USB and Console Ports: The USB ports can be used for external storage or 5G/LTE modems (on supported models). The 'COM' port is for console access for advanced configuration.
- Antenna Installation: Attach the two external Wi-Fi antennas to the designated connectors on the rear of the appliance. Ensure they are securely fastened.
Figure 2: Rear view of the Sophos XGS 88W appliance, showing the DC power input, COM port, USB ports, 1/LAN, 3/DMZ, and 2/WAN ports, along with antenna connectors and the reset button.
2.3 Powering On
Once all connections are made, the appliance will power on automatically. Observe the LED indicators on the front panel. Refer to the LED status guide in the appendix for detailed information on indicator meanings.
3. Operating the Appliance
3.1 Initial Configuration via Sophos Central
The Sophos XGS 88W is primarily managed through Sophos Central, a cloud-based management platform. To begin, access Sophos Central via a web browser and follow the on-screen instructions to register your appliance and perform the initial setup. This includes defining network zones, setting up firewall rules, and configuring Wi-Fi settings.
3.2 Network Security Features
- Firewall Rules: Configure inbound and outbound traffic rules to control network access.
- Intrusion Prevention System (IPS): Enable IPS to detect and block network attacks.
- Web Filtering: Apply policies to control access to websites based on categories and reputation.
- Application Control: Manage and prioritize network application usage.
- VPN: Set up Virtual Private Network connections for secure remote access or site-to-site connectivity.
- Wi-Fi 6: Configure wireless networks (SSIDs), security protocols (WPA2/WPA3), and guest access.
Figure 3: The Sophos Central dashboard displayed on a laptop, illustrating the centralized management interface for the XGS appliance, showing network activity, security events, and configuration options.
4. Maintenance
4.1 Firmware Updates
Regularly update the appliance firmware to ensure optimal performance, security, and access to the latest features. Firmware updates are typically managed through Sophos Central. Follow the prompts within the management interface to apply updates.
4.2 Monitoring and Reporting
Utilize the monitoring and reporting features in Sophos Central to keep track of network activity, security incidents, and appliance health. This helps in proactive identification and resolution of potential issues.
4.3 Backup Configuration
Regularly back up your appliance configuration. This allows for quick restoration of settings in case of a system failure or misconfiguration.
5. Troubleshooting
5.1 No Power
- Ensure the power adapter is securely connected to both the appliance and a working power outlet.
- Check the power outlet with another device to confirm it is functional.
5.2 No Internet Connectivity
- Verify that the Ethernet cable from your modem/router is correctly connected to the '2/WAN' port.
- Check the status of your internet service provider's modem/router.
- Confirm that your Sophos XGS 88W has obtained an IP address from your ISP. This can be checked in Sophos Central.
- Ensure that firewall rules are not inadvertently blocking internet access.
5.3 Wi-Fi Issues
- Check that the external Wi-Fi antennas are properly attached.
- Verify Wi-Fi settings (SSID, password, security protocol) in Sophos Central.
- Ensure the Wi-Fi radio is enabled.
5.4 Appliance Reset
If the appliance is unresponsive, a soft reboot can be performed via Sophos Central. For a factory reset, locate the 'Reset' button on the rear panel (refer to Figure 2). Use a paperclip to press and hold the button for approximately 10 seconds until the status LEDs change, indicating a reset. Warning: A factory reset will erase all configurations and restore the appliance to its default settings.
6. Technical Specifications

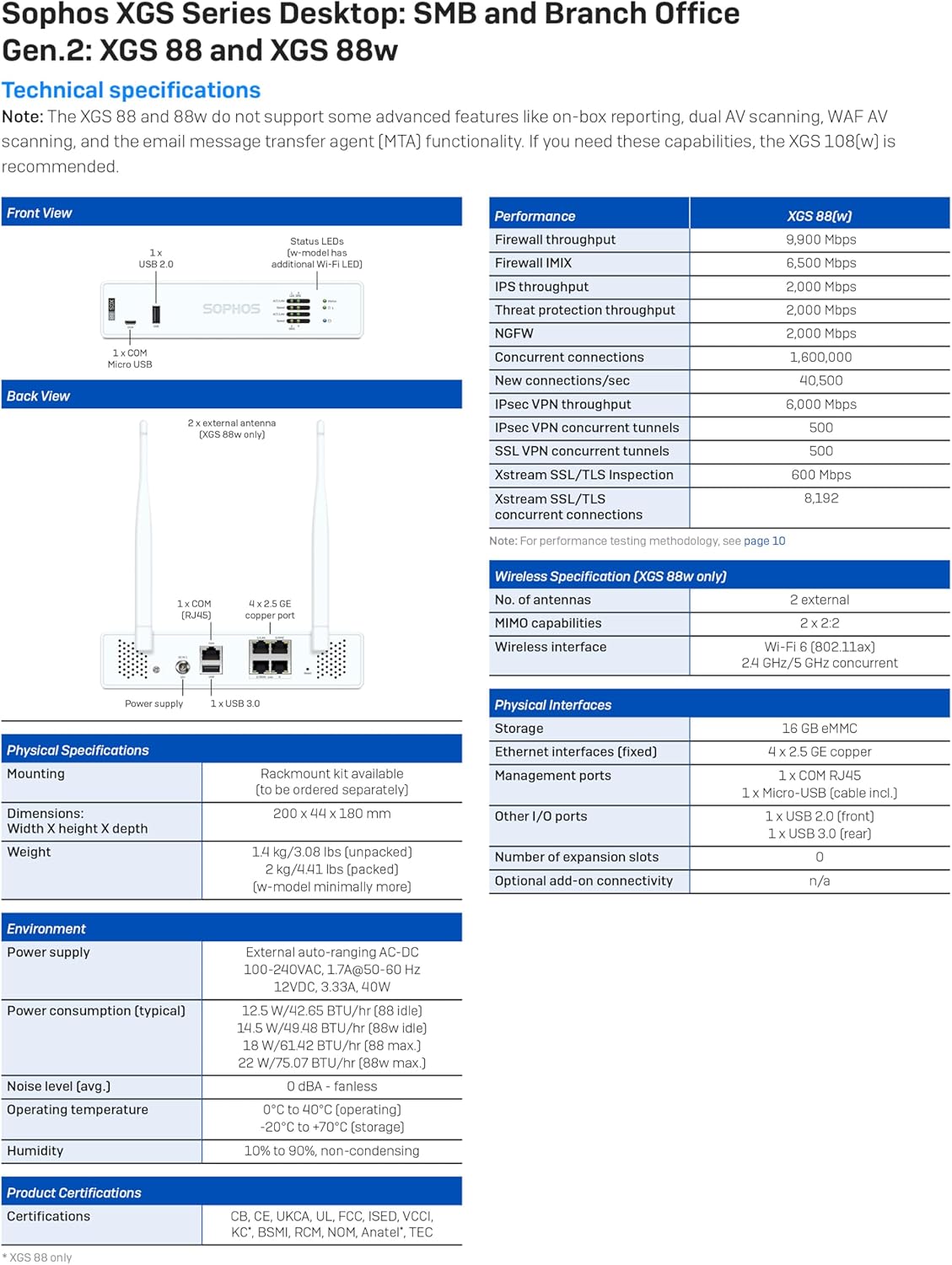

Figure 4: Detailed technical specifications for the Sophos XGS 88W, including performance metrics, wireless specifications, physical interfaces, environmental conditions, and certifications.
| Feature | Specification |
|---|---|
| Model Name | XGS 88W |
| Firewall Throughput | 9.9 Gbps |
| Ports | 4 x 2.5 GE copper ports |
| Wireless Standard | 802.11ax (Wi-Fi 6) Dual-Band |
| Security Protocols | WPA2, WPA3 |
| Operating System | Sophos OS |
| Special Features | Internet Security, Cloud Sandboxing, Email Filtering, Intrusion Prevention, TLS Inspection, SD-WAN |
| Dimensions (HxWxD) | 200 x 44 x 180 mm |
| Weight | 1.4 kg / 3.08 lbs (unpacked) |
| Power Consumption (typical) | 12.5 W / 42.65 BTU/hr (idle) |
| Noise Level | 0 dBA - fanless |
7. Warranty and Support
This Sophos XGS 88W appliance includes 3 Years Xstream Protection, which provides advanced security features and support. For detailed warranty information, service agreements, and technical support, please refer to the official Sophos website or contact your authorized Sophos reseller.
You can find additional resources and contact information on the Sophos Brand Store.
7.1 Official Product Video
Video 1: An overview of the Sophos XGS Series 2nd Gen Desktop Appliances, highlighting their features, performance, and benefits for SMB and branch office network security.
