Retoo 1200W Immersion Blender User Manual

Important Safety Instructions

Please read all instructions carefully before using the appliance and retain them for future reference. Incorrect operation may cause damage to the appliance or injury to the user.

• Always unplug the appliance from the power supply before assembly, disassembly, or cleaning.
• Do not immerse the motor unit in water or any other liquid. Clean with a damp cloth only.
• Keep hands, hair, clothing, and other utensils away from moving blades during operation to prevent injury.
• Blades are sharp. Handle with care when cleaning.
• This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• For household use only. Do not use outdoors.
• Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
• Ensure the voltage indicated on the appliance corresponds to your local mains voltage before connecting.

Product Overview

The Retoo Immersion Blender is a versatile kitchen tool designed for blending, chopping, whisking, and kneading. It features a powerful 1200W motor, 8-speed settings, and a turbo function for efficient food preparation.

Components

• Motor Unit with Speed Control and Turbo Button
• Metal Blending Shaft with Splash Guard
• Whisk Attachment
• Dough Hooks (2)
• 600 ml Measuring Cup
• 860 ml Food Processor Attachment with Chopping Blade

Image: All components included in the Retoo Immersion Blender set, showing the motor unit, blending shaft, whisk, dough hooks, measuring cup, and food processor attachment.

Setup and Assembly

Before first use, wash all detachable parts in warm soapy water, rinse thoroughly, and dry. Wipe the motor unit with a damp cloth.

1. Attaching the Blending Shaft: Align the blending shaft with the motor unit and twist until it locks into place. To detach, twist in the opposite direction and pull apart.
2. Attaching the Whisk/Dough Hooks: Insert the whisk or dough hook attachment into the motor unit until it clicks. Ensure both dough hooks are inserted correctly if using them.
3. Attaching the Food Processor: Place the chopping blade onto the central pin inside the 860 ml food processor bowl. Secure the lid onto the bowl, then attach the motor unit to the lid, twisting to lock.

Image: The Retoo Immersion Blender main unit shown with its various attachments, including the blending shaft, whisk, and dough hooks, alongside examples of blended food like a smoothie and chopped ingredients.

Operating Instructions

General Operation

1. Ensure the appliance is correctly assembled and plugged into a suitable power outlet.
2. Place ingredients into a suitable container (e.g., the provided measuring cup or food processor bowl).
3. Select the desired speed using the 8-level speed control dial on the top of the motor unit.
4. Press and hold the power button to start blending. For an extra burst of power, press the Turbo button.
5. Release the button to stop operation.

Using the Blending Shaft

Ideal for soups, sauces, smoothies, and purees.

• Insert the blending shaft into the ingredients before starting the motor.
• Move the blender up and down gently to ensure even blending.
• The splash guard collar helps prevent spills.

Image: The immersion blender in action, blending a red soup in a clear measuring jug. An overlay indicates "8X" and a speed dial, emphasizing the 8-speed control feature.

Image: A close-up view of the metal blending shaft's end, showing the sharp blades and the protective splash guard designed to minimize mess during operation.

Using the Whisk Attachment

Suitable for whipping cream, beating eggs, and mixing light batters.

• Attach the whisk to the motor unit.
• Use in the 600 ml measuring cup or another suitable bowl.
• Start at a lower speed and gradually increase as needed.

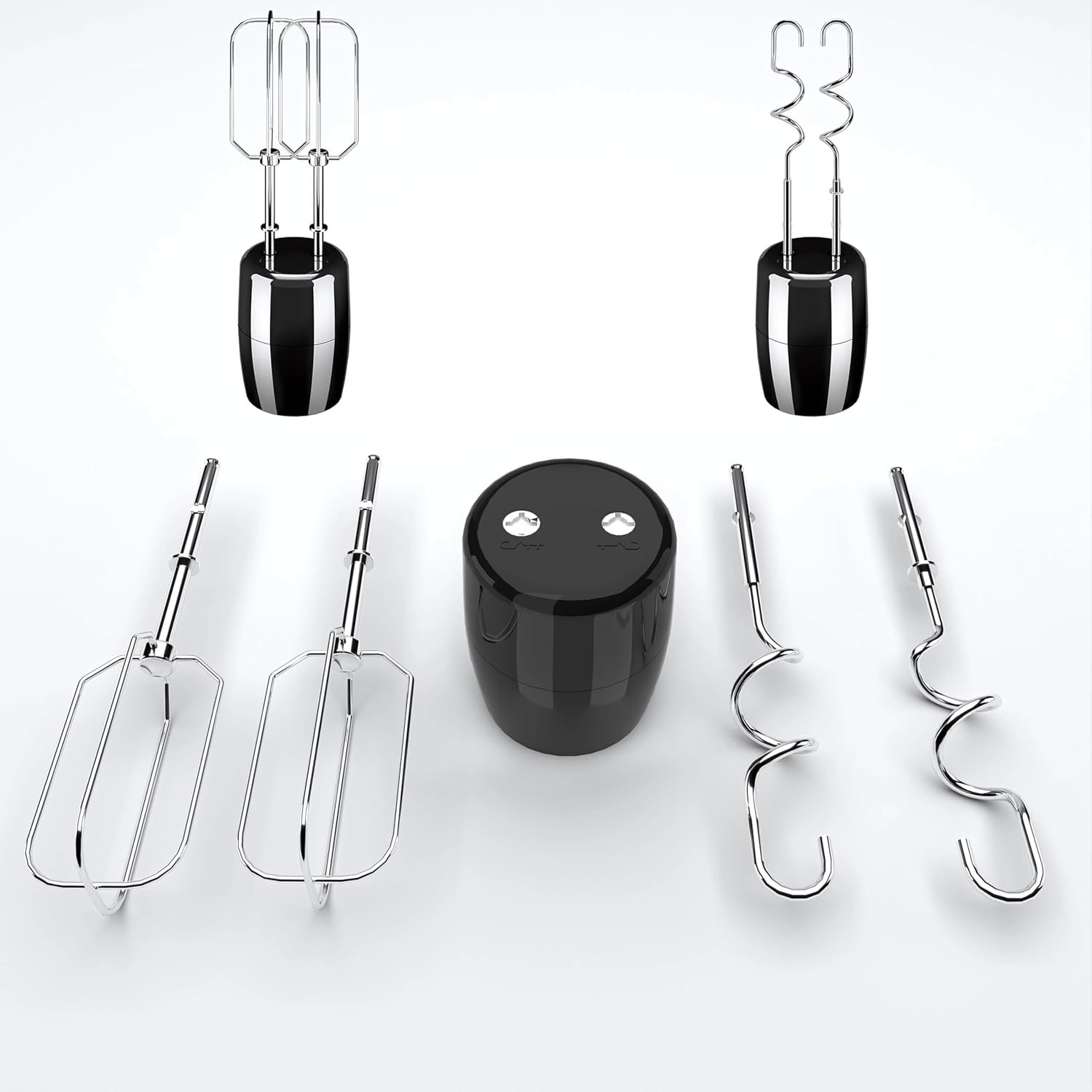

Image: The whisk attachment and dough hook attachments, ready to be connected to the motor unit for various mixing tasks.

Using the Dough Hooks

For kneading light doughs and mixing heavier batters.

• Attach both dough hooks to the motor unit.
• Use in a sturdy bowl.
• Start at a low speed to combine ingredients, then increase for kneading.

Using the Food Processor Attachment

For chopping vegetables, nuts, herbs, and making dips.

• Ensure the chopping blade is correctly placed in the 860 ml bowl.
• Do not overfill the bowl.
• Use short pulses for coarse chopping, or blend continuously for finer results.

Image: A person holding the motor unit attached to the 860 ml food processor bowl, which contains chopped vegetables. This illustrates the use of the food processor attachment.

Maintenance and Cleaning

Proper maintenance ensures the longevity and performance of your Retoo Immersion Blender.

1. Before Cleaning: Always unplug the appliance from the power outlet.
2. Motor Unit: Wipe the motor unit with a damp cloth. Never immerse it in water or other liquids.
3. Attachments (Blending Shaft, Whisk, Dough Hooks, Food Processor Bowl & Blade, Measuring Cup): These parts are detachable and can be washed in warm soapy water. Rinse thoroughly and dry immediately. Be extremely careful when handling the sharp blades of the blending shaft and food processor.
4. Storage: Store the appliance and its attachments in a dry place, out of reach of children.

Troubleshooting

Specifications

Warranty and Support

Retoo products are manufactured with quality and durability in mind. For specific warranty information, please refer to the warranty card included with your purchase or contact Retoo customer support.

If you encounter any issues or have questions regarding your Retoo Immersion Blender, please contact our customer support team. Contact details can typically be found on the product packaging or on the official Retoo website.

Please have your model number (OR1106) and purchase date ready when contacting support.
