Happybuy BL300G-A Foldable 3-Wheel Mobility Scooter

1. Introduction and Overview

Thank you for choosing the Happybuy BL300G-A Foldable 3-Wheel Mobility Scooter. This manual provides essential information for the safe and efficient operation, maintenance, and care of your new mobility device. Please read this manual thoroughly before using the scooter to ensure proper understanding and to prevent injury or damage.

The Happybuy BL300G-A is a portable electric powered scooter designed for seniors and individuals requiring mobility assistance. It features a 3-wheel design, a 48V 5.2Ah lithium-ion battery offering up to 12 miles of range, and supports a maximum weight capacity of 330 lbs. Its foldable design allows for convenient storage and transport.

Figure 1: Happybuy BL300G-A Mobility Scooter in use with key dimensions.

2. Safety Information

Your safety is paramount. Always adhere to the following safety guidelines:

• Weight Capacity: Do not exceed the maximum weight capacity of 330 lbs (150 kg) on flat surfaces. When operating on inclines, the maximum recommended weight is 220 lbs (100 kg) for inclines up to 5 degrees. Exceeding these limits can compromise stability and performance.
• Incline Limits: The scooter is designed for inclines up to 5 degrees. Avoid steeper slopes to prevent tipping or loss of control.
• Terrain: The 8-inch anti-slip wheels are suitable for various terrains including cement paths and grass. Exercise caution on uneven, slippery, or soft surfaces.
• Folding and Transport: When folding the scooter for transport, ensure the seat is removed and the steering yoke is laid down. Confirm that your vehicle's trunk dimensions (minimum L*H=43.3in * 19.6in) can accommodate the folded scooter.
• Battery Safety: Use only the provided charger. Do not expose the battery to extreme temperatures or puncture it. Refer to the charging instructions for safe battery management.
• Operation: Always operate the scooter at a safe speed, especially in crowded areas or unfamiliar environments. Be aware of your surroundings and potential obstacles.
• Braking: Familiarize yourself with the hand brake and push-to-lock mechanism. Test brakes before each use.

3. Package Contents

Upon unpacking, please verify that all components are present and undamaged:

• 1 x Happybuy BL300G-A Foldable 3-Wheel Mobility Scooter
• 1 x Instruction Manual (this document)
• 1 x Charger
• 1 x 48V 5.2Ah Battery Pack
• Keys for operation

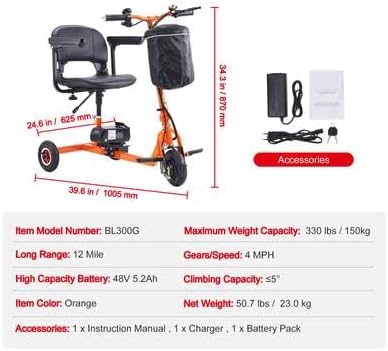

Figure 2: Scooter components and included accessories.

4. Setup and Assembly

The Happybuy BL300G-A scooter comes largely pre-assembled but requires some minor setup before first use.

1. Unfolding the Scooter: Carefully remove the scooter from its packaging. Locate the folding mechanism and gently unfold the main frame until it locks securely into place.
2. Attaching the Seat: Insert the seat post into the designated receiver on the scooter frame. Ensure it is firmly seated and secured. Adjust the seat height for comfortable operation.
3. Attaching the Battery: Locate the battery compartment, typically under the seat or footrest. Insert the 48V 5.2Ah battery pack and ensure it is properly connected.
4. Handlebar Adjustment: Adjust the U-shaped handlebar to a comfortable height and angle. Ensure all locking mechanisms are tightened.
5. Initial Charge: Before first use, fully charge the battery. Connect the charger to the scooter's charging port and then to a standard wall outlet. The charging indicator on the charger will typically change color when fully charged.

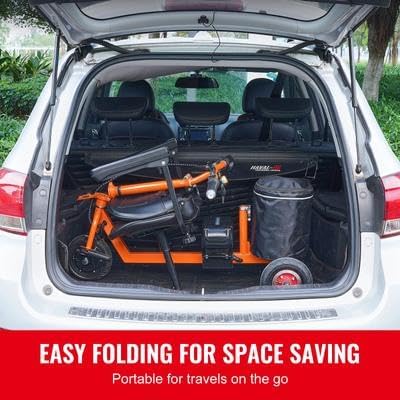

Figure 3: Scooter folded for transport, highlighting its portability.

5. Operating Instructions

Familiarize yourself with the control panel and operating procedures before riding.

Figure 4: Intuitive Control Panel.

1. Power On/Off: Insert the key into the Switch Key (1) and turn it to the 'ON' position to power on the scooter. Turn it to 'OFF' to power off.
2. Battery Level: Check the Battery Power Display (4) to ensure sufficient charge before riding.
3. Direction Control: Use the Forward and Backward Switch (3) to select your desired direction of travel.
4. Speed Control: Gently press the Throttle (2) to accelerate. The Speed Display (5) shows your current speed. The maximum forward speed is 4 MPH, and reverse speed is 2 MPH.
5. Braking: To slow down or stop, release the Throttle (2) and apply the Left Brake Handle (7). The scooter features a hand brake with a push-to-lock function for parking.
6. Horn/Bell: Use the Small Bell (6) to alert others of your presence.

The scooter offers an extended range of up to 12 miles on a single charge, depending on terrain, rider weight, and driving style.

Figure 5: Charging the scooter for extended range.

Figure 6: Scooter operating at its maximum driving speed.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your scooter.

• Battery Care: Always fully charge the battery after each use. If storing the scooter for an extended period, charge the battery at least once a month to maintain its health. Do not allow the battery to fully discharge for prolonged periods.
• Cleaning: Clean the scooter regularly with a damp cloth. Avoid using harsh chemicals or abrasive cleaners. Do not spray water directly onto electrical components.
• Tire Inspection: Periodically check the 8-inch solid wheels for wear and tear. While solid wheels do not require air pressure, ensure they are free from debris and damage.
• Brake Check: Regularly inspect the brake system for proper function. Ensure the brake handle operates smoothly and the push-to-lock mechanism engages correctly.
• Fasteners: Periodically check all nuts, bolts, and fasteners to ensure they are tight.
• Storage: Store the scooter in a dry, cool place, away from direct sunlight and extreme temperatures.

7. Troubleshooting

If you encounter issues with your scooter, refer to the following common troubleshooting steps:

• Scooter does not power on:
  • Ensure the key is fully inserted and turned to the 'ON' position.
  • Check if the battery is properly connected and fully charged.
  • Verify that the battery pack is securely seated in its compartment.
• Scooter moves slowly or has reduced range:
  • The battery may be low. Recharge the battery fully.
  • Check for excessive load; ensure the weight capacity is not exceeded.
  • Operating on steep inclines or rough terrain will consume more battery power.
• Brakes are not effective:
  • Inspect the brake handle and cable for any damage or looseness.
  • Ensure the brake mechanism is free of debris.
• Unusual noises during operation:
  • Stop the scooter immediately and inspect for any loose parts or obstructions.
  • Check the wheels for debris or damage.

If these steps do not resolve the issue, please contact Happybuy customer support for further assistance.

8. Specifications

9. Warranty and Support

Happybuy is committed to providing quality products. For specific warranty information regarding your BL300G-A mobility scooter, please refer to the warranty card included with your purchase or visit the official Happybuy website.

For technical support, spare parts, or any questions not covered in this manual, please contact Happybuy customer service. Contact details can typically be found on the Happybuy website or on your purchase documentation.

Note: If you require an additional battery, a compatible battery can be found by searching for ASIN B0FDQ32FRQ.
