1. Introduction
Thank you for choosing the AAOBOSI 74.9L Portable Electric Cooler. This manual provides essential information for the safe and efficient operation of your new appliance. Please read it thoroughly before use and retain it for future reference.
This electric cooler is designed for versatile use, offering both refrigeration and freezing capabilities with a temperature range of -20°C to 20°C. Its dual-zone design allows for independent temperature control, making it ideal for various outdoor activities and travel scenarios.
2. Safety Instructions
- Ensure the power supply voltage matches the cooler's requirements (12V/24V DC or 100-240V AC).
- Do not immerse the cooler in water or expose it to heavy rain. While it features IPX4 water resistance for light splashes, it is not waterproof.
- Keep ventilation openings clear of obstructions to ensure proper airflow for the compressor.
- Avoid placing hot items directly into the cooler. Allow them to cool down first.
- Do not use electrical appliances inside the cooler unless they are recommended by the manufacturer.
- Always disconnect the power supply before cleaning or performing maintenance.
- Keep out of reach of children.
3. Product Overview
The AAOBOSI 74.9L Portable Electric Cooler features a robust design with integrated handles and a user-friendly control panel. It includes two independent compartments for flexible cooling and freezing options.

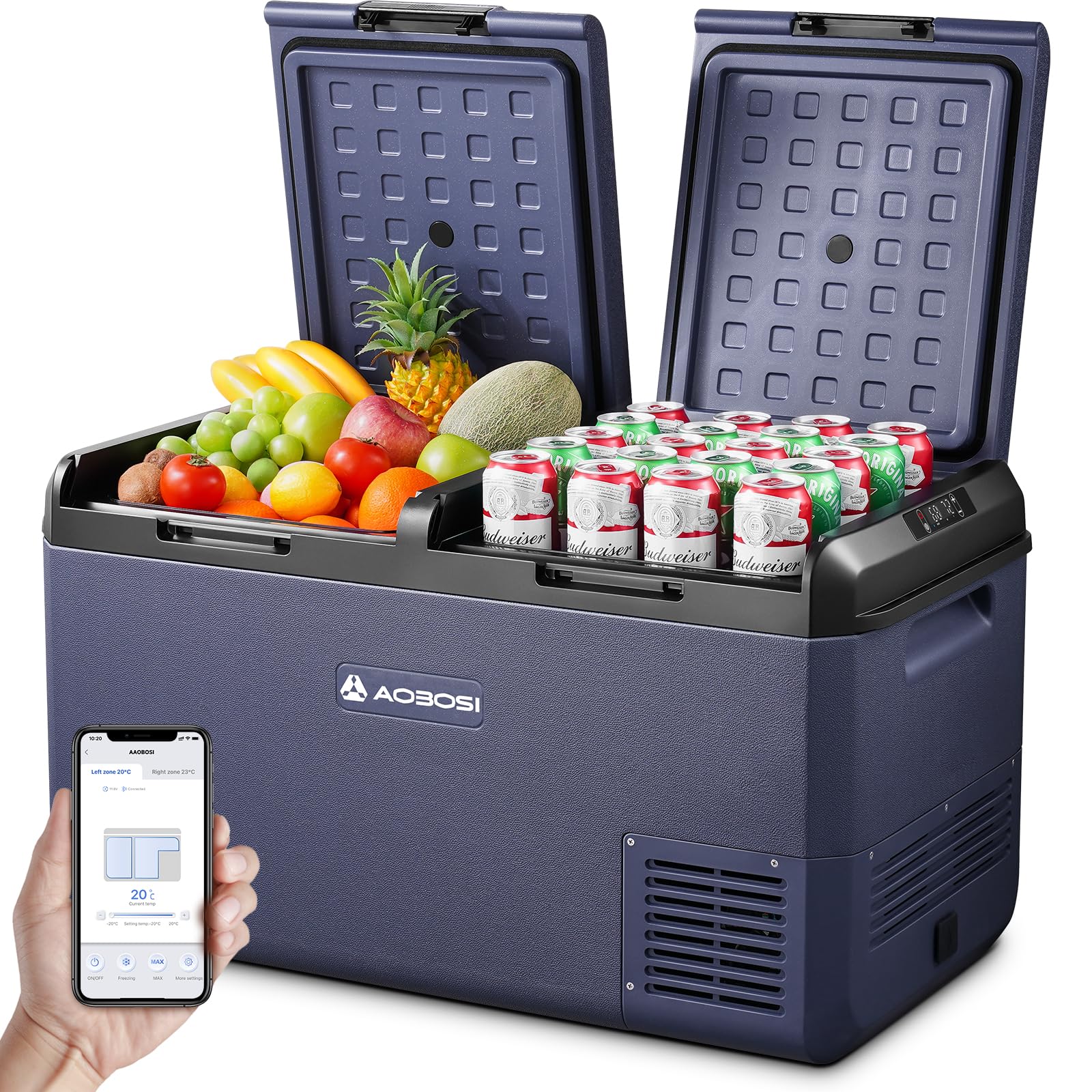

Image: The AAOBOSI 74.9L Portable Electric Cooler, showcasing its compact design and dual-lid access.
Key Features:
- Dual-Zone Cooling: Two compartments with independent temperature control.
- Wide Temperature Range: -20°C to 20°C (-4°F to 68°F).
- App Control: Manage settings via a smartphone application.
- Multiple Power Options: 12V/24V DC for vehicles, 100-240V AC for home use.
- Low Noise Operation: Operates at less than 31 dB.
- IPX4 Water Resistance: Protection against light splashes.
- Battery Protection System: H/M/L modes to prevent vehicle battery drain.
4. Setup
Unpacking and Placement:
- Carefully remove the cooler from its packaging.
- Place the cooler on a flat, stable surface. Ensure there is adequate ventilation around the unit (at least 10 cm clearance on all sides).
- Allow the cooler to stand upright for at least 6 hours before connecting it to power. This allows the refrigerant to settle.
Power Connection:
The cooler supports both DC (12V/24V) and AC (100-240V) power inputs.
- For Vehicle Use (12V/24V DC): Connect the DC power cable to the cooler's DC input port and then to your vehicle's cigarette lighter socket or a compatible 12V/24V power source.
- For Home Use (100-240V AC): Connect the AC adapter to the cooler's AC input port, then plug the adapter into a standard wall outlet.
Image: The cooler demonstrating various charging options, including car charging, home AC, and solar panel/power station compatibility.
5. Operating Instructions
Control Panel:
The cooler features an intuitive control panel with a digital LED display for easy temperature management.
Image: Close-up of the digital LED display showing temperature and control buttons.
Temperature Control:
- Press the power button to turn the cooler ON/OFF.
- Use the '+' and '-' buttons to adjust the desired temperature for each compartment. The display will show the current temperature and the set temperature.
- The cooler will automatically reach and maintain the set temperature.
MAX/ECO Mode:
Select between MAX and ECO modes based on your cooling needs.
- MAX Mode: Provides rapid cooling for quick temperature reduction. This mode consumes more power.
- ECO Mode: Optimizes power consumption for energy efficiency, ideal for maintaining temperature over longer periods.
Image: The cooler's interior showing food and drinks, illustrating the MAX (rapid cooling) and ECO (energy saving) modes.
Battery Protection System (H/M/L):
This feature prevents your vehicle's battery from draining completely. You can select one of three protection levels:
- H (High): Highest protection, cooler cuts off at a higher voltage.
- M (Medium): Moderate protection.
- L (Low): Lowest protection, cooler operates longer before cutting off.
Refer to the table below for specific voltage cut-off points:
Image: A table detailing the start-up and cut-off voltages for H, M, and L battery protection modes for both 12V and 24V systems.
App Control:
Download the 'OUTDOOR JOY' application to control your cooler remotely via Bluetooth.
- Download the 'OUTDOOR JOY' app from your smartphone's app store.
- Enable Bluetooth on your smartphone and ensure the cooler is powered on.
- Open the app and follow the instructions to pair with your AAOBOSI cooler.
- Once connected, you can monitor temperatures, adjust settings, and switch modes directly from your phone.
Image: A smartphone displaying the 'OUTDOOR JOY' app interface, controlling the cooler's temperature and settings.
6. Maintenance
Cleaning:
- Always disconnect the power before cleaning.
- Wipe the interior and exterior surfaces with a damp cloth and mild detergent.
- Do not use abrasive cleaners or harsh chemicals.
- Ensure the cooler is completely dry before reconnecting power.
- The cooler features a drain hole for easy cleaning and water removal.
Storage:
When not in use for extended periods, ensure the cooler is clean and dry. Store it in a cool, dry place with the lid slightly ajar to prevent odors and mold growth.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Cooler not turning on | No power supply; faulty cable; vehicle battery low. | Check power connections; try a different power source; check vehicle battery voltage. |
| Cooling performance is poor | Lid not closed properly; insufficient ventilation; ambient temperature too high; too many items inside. | Ensure lid is sealed; clear ventilation openings; operate in a cooler environment; do not overfill. |
| Display shows an error code | Internal fault. | Refer to the full user manual for specific error codes or contact customer support. |
| Unusual noise | Cooler not on a flat surface; fan obstruction. | Place on a stable, flat surface; check for obstructions around the fan. |
8. Specifications
- Model Name: MCD75D
- Brand: AAOBOSI
- Capacity: 74.9 Liters
- Product Dimensions (D x W x H): 85 cm x 45.1 cm x 46.4 cm
- Item Weight: 19.1 Kilograms
- Temperature Range: -20°C to 20°C
- Voltage: 12V/24V DC, 100-240V AC
- Cooling Method: Compressor
- Noise Level: <31 dB
- Annual Energy Consumption: 64 kWh
- Special Features: Touch Control, Automatic Defrost, Low Noise, Lightweight, Drain Hole, App Control, Dual Zone, Reversible Doors
- UPC: 717206493825
9. Warranty and Support
Warranty Information:
This AAOBOSI electric cooler comes with a manufacturer's warranty. Please refer to the warranty card included with your product or visit the official AAOBOSI website for detailed warranty terms and conditions. Typically, a 1-year warranty covers manufacturing defects.
Customer Support:
For any questions, technical assistance, or warranty claims, please contact AAOBOSI customer support. Contact details can usually be found on the manufacturer's website or in the product packaging.
Image: Customer service representatives ready to assist with product inquiries.
