Introduction
Thank you for choosing the Qaba 12V Electric Toyota Land Cruiser for your child. This officially licensed ride-on car is designed to provide a realistic and enjoyable driving experience with features like dual headlights, a horn, FM radio, USB port, and pre-loaded songs. This manual provides essential information for assembly, operation, maintenance, and safety to ensure a safe and fun experience for your child.
Image: The Qaba 12V Electric Toyota Land Cruiser in red, showcasing its detailed front design and headlights.
Safety Information
WARNING: No Warning Applicable. However, always ensure adult supervision during operation.
- Always supervise children when operating the vehicle.
- Ensure the child wears appropriate safety gear, such as a helmet, if riding outdoors.
- Do not operate the vehicle near roads, motor vehicles, steep inclines, swimming pools, or other bodies of water.
- Only operate on flat, dry surfaces. Avoid sand, loose dirt, gravel, or wet areas.
- Ensure the battery is fully charged before each use.
- Do not exceed the maximum weight capacity of 66 lbs (30 kg).
- This product is suitable for children aged 37-72 months.
Setup and Assembly
Assembly of the Qaba 12V Electric Car is required. Please follow the instructions carefully. While the manual aims to be detailed, patience is key during this process.
Unpacking and Inspection:
- Carefully remove all components from the packaging.
- Verify that all parts listed in the packing list are present and undamaged. If any parts are missing or damaged, contact customer support immediately.
Image: Various angles of the Qaba Electric Toyota Land Cruiser, illustrating its design from front, rear, and side perspectives.
Assembly Steps:
- Wheel Installation: Attach the wheels securely to the axles, ensuring all washers and pins are in place.
- Steering Wheel Assembly: Connect the steering wheel to the steering column, ensuring all electrical connections for the horn and music are properly seated.
- Seat and Backrest: Secure the seat and backrest to the vehicle chassis.
- Battery Connection: Connect the battery terminals. Ensure correct polarity. The battery is a 12V 4.5AH type and is included.
- Accessory Attachment: Install any remaining accessories such as mirrors, windshield, or decorative elements.
Refer to the detailed diagrams provided in the physical manual for specific component placement and fastening instructions.
Operating Instructions
Charging the Battery:
- Before first use, charge the battery for a minimum of 8-12 hours. Do not overcharge for more than 20 hours.
- Plug the charger into the charging port on the vehicle and then into a standard wall outlet.
- The charging indicator light on the charger will typically change color when charging is complete.
Driving Modes:
The Qaba Electric Car offers two primary driving modes:
- Manual Driving Mode: The child operates the vehicle using the steering wheel and foot pedal.
- Parent Remote Control Mode: An adult can control the vehicle's movement and speed using the included remote control. This mode offers three adjustable speeds between 1.9-3.1 mph (3-5 km/h) for enhanced safety and supervision.
Image: Demonstrates the dual control feature, where the child can drive manually or a parent can take control using the remote.
Vehicle Features:
- Start-up: The car features a soft-start function for a smooth acceleration, preventing sudden jolts.
- Headlights: Dual LED headlights provide realistic illumination.
- Horn: Press the horn button on the steering wheel for an authentic sound.
- Multimedia Center: Includes FM radio, a USB port for playing your own music, and three pre-loaded songs for entertainment.
- Suspension: Four-wheel spring suspension ensures a comfortable ride on various smooth surfaces.
Image: Detailed view of the car's interior controls, highlighting the horn, LED headlights, and multimedia center features.
Image: Illustrates the comfortable driving experience provided by the car's spring suspension and soft start mechanism.
Image: Shows the car's versatility on different smooth surfaces like cement, asphalt, and brick roads.
Maintenance
- Cleaning: Wipe the vehicle with a soft, damp cloth. Do not use abrasive cleaners or solvents. Avoid spraying water directly onto electrical components.
- Battery Care: Recharge the battery after each use. If storing the vehicle for an extended period, charge the battery once a month to prolong its lifespan. Store the battery in a cool, dry place.
- Storage: Store the vehicle indoors in a dry area, away from direct sunlight and extreme temperatures.
- Inspection: Regularly check all screws, nuts, and bolts to ensure they are tight. Inspect wheels and tires for wear and tear.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Vehicle does not move. | Battery is low or not connected. Fuse is blown. Loose wire connection. | Charge the battery. Check battery terminals. Replace fuse if necessary. Inspect and secure all wire connections. |
| Vehicle moves slowly. | Battery is undercharged. Overloaded vehicle. Driving on unsuitable surface. | Fully charge the battery. Reduce weight. Operate on flat, smooth surfaces. |
| No sound from horn/music. | Loose wire connection to speaker or multimedia unit. | Check and secure all relevant electrical connections. |
| Remote control not working. | Remote battery is dead. Remote not paired with vehicle. | Replace remote control batteries. Refer to the physical manual for remote pairing instructions. |
Specifications
| Model Number | 370-371V80RD |
| Brand | Qaba |
| Sub-brand | Toyota LAND CRUISER |
| Overall Dimensions (L x W x H) | 42.1" x 25.6" x 21.9" (107L x 65W x 55.5H cm) |
| Weight Capacity | 66 lbs (30 kg) |
| Suitable Age | 37-72 months (3-6 years) |
| Motor Power | 12V Dual Motors |
| Battery Type | 12V 4.5AH |
| Speed Range | 1.9-3.1 mph (3-5 km/h) |
| Material | Polypropylene |
| Color | Red |
| Assembly Required | Yes |
| Item Weight | 10.89 kg |
| UPC | 673986350874 |

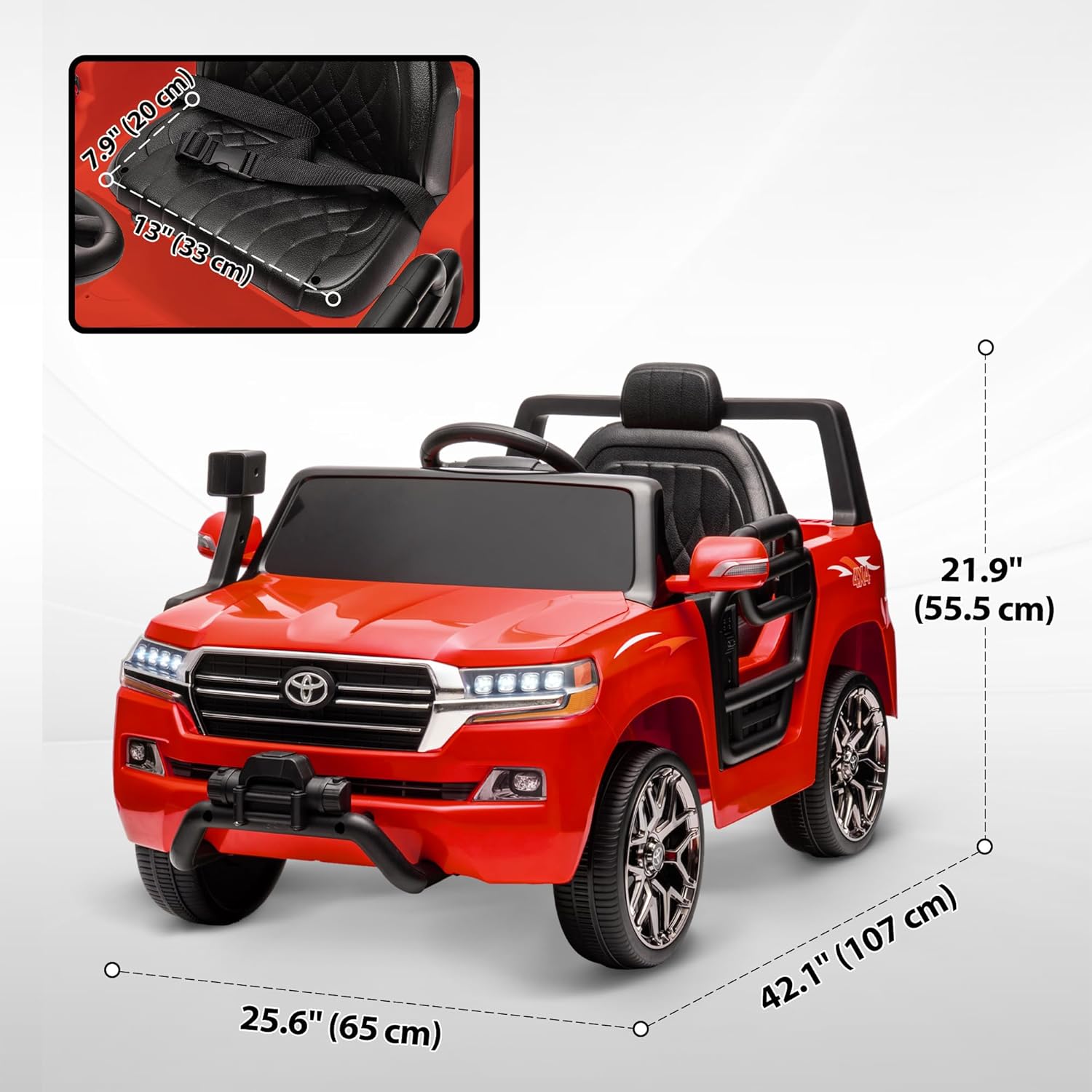

Image: Visual representation of the product dimensions for accurate measurement.
Image: Summary of key product specifications and features.
Warranty and Support
For warranty information, product support, or to inquire about replacement parts, please contact Aosom Canada, the manufacturer of Qaba products.
- Manufacturer: Aosom Canada
- Place of Business: Markham, Ontario, CA
- Telephone: 1-416-792-6088
- Return Policy: 45 days (refund/replacement) as per Amazon's buybox winner information.
Please retain your proof of purchase for any warranty claims.
