1. Introduction
This manual provides essential instructions for the safe and efficient installation, operation, and maintenance of your APlusLift HW-4P11S 11,000LB 4-Post Portable Parking Storage Service Car Lift. Please read this manual thoroughly before attempting to operate the equipment. Proper understanding and adherence to these guidelines will ensure optimal performance and longevity of your lift.
Key Features:
- 11,000 LB Capacity
- Drive Through Width: 112 inches
- Lifting Height: 88 21/32 inches
- Overall Dimensions: 247 1/8"L x 122 7/16"W x 99 15/32"H

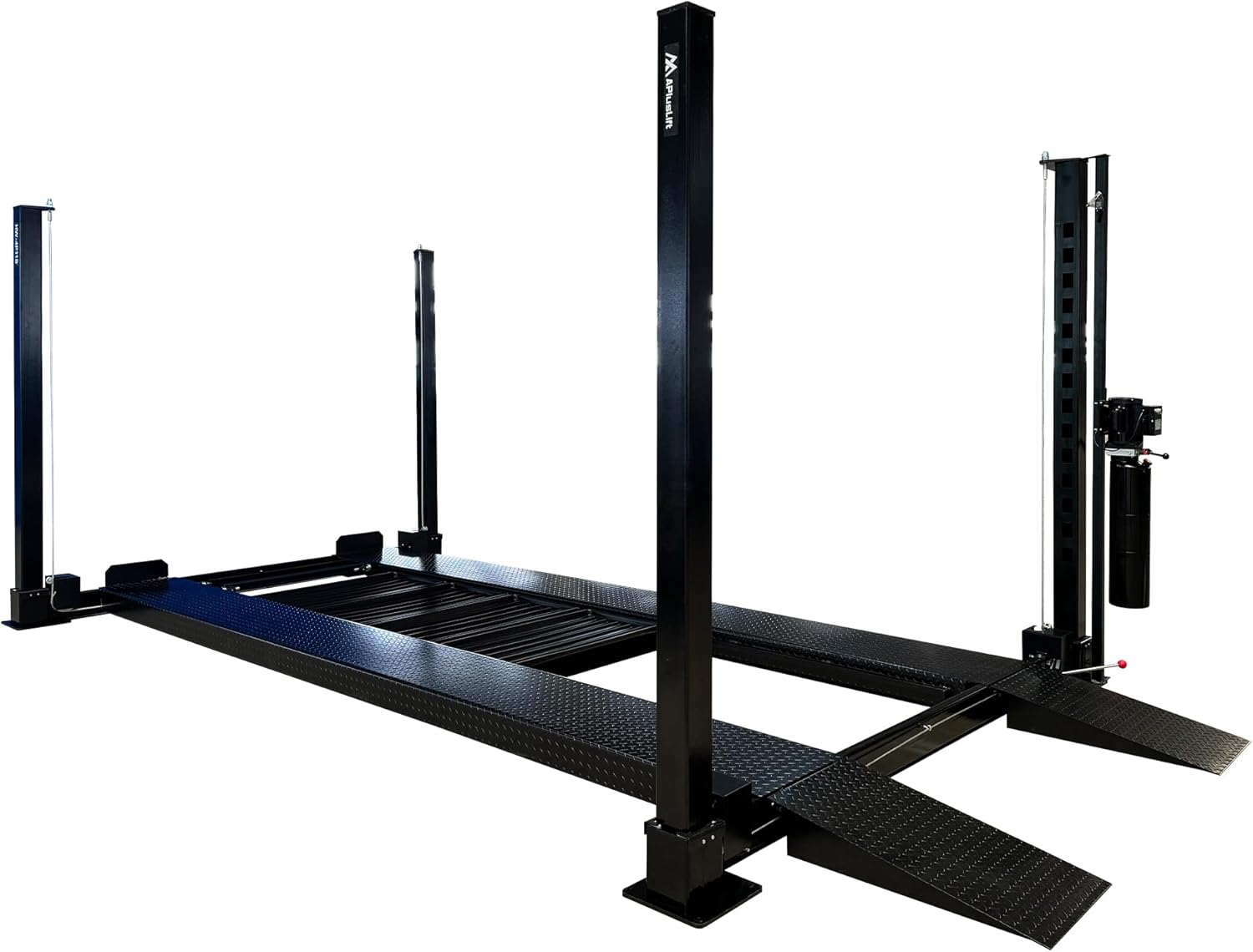

- Includes Caster Kit, Jack Tray, and Removable Approach Ramps
- CE Certified Lift Structure and Hydraulic System
- High Efficient 220V 3HP Hydraulic Power Unit
- Powder Coated Finish for Superior Corrosion Resistance
2. Safety Information
WARNING: Failure to follow these safety instructions may result in serious injury or death.
- Read and understand all instructions before operating the lift.
- Ensure the lift is installed on a level, solid concrete surface capable of supporting the lift's weight and maximum load.
- Do not exceed the maximum rated capacity of 11,000 LB.
- Always engage safety locks before working under a raised vehicle.
- Keep hands and feet clear of moving parts during operation.
- Only trained and authorized personnel should operate this equipment.
- Maintain a clear area around the lift during operation.
- Regularly inspect all components for wear, damage, or loose fasteners.
3. What's in the Box
The APlusLift HW-4P11S package includes the following components:
- APlusLift HW-4P11S 4-post car auto lift truck hoist

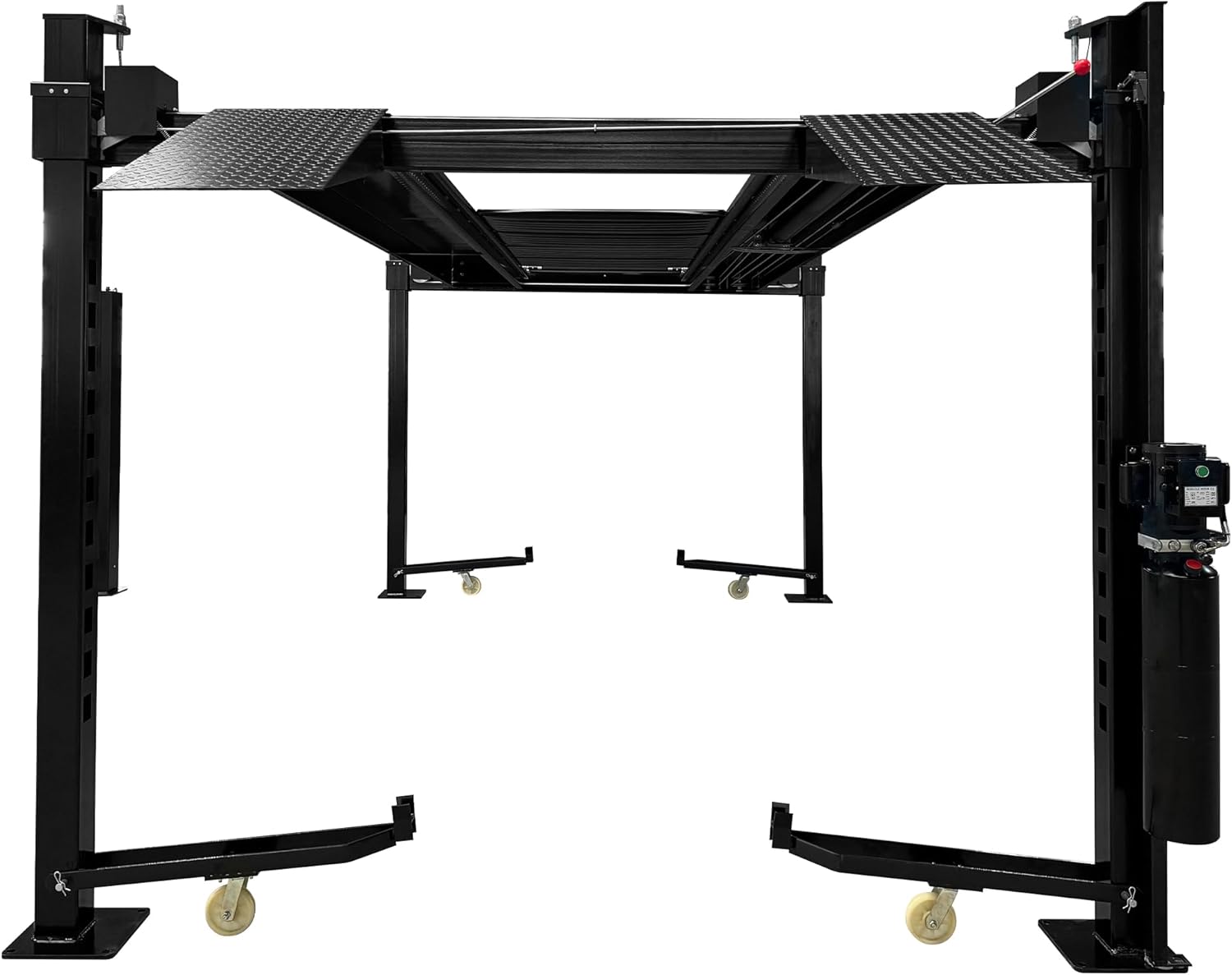

- Caster kit with polyurethane wheels
- Jack tray
- Two removable approach ramps
Optional rolling jacks and drip trays are available for separate purchase.
4. Setup and Installation
Installation of the APlusLift HW-4P11S requires careful attention to detail and adherence to local codes and safety standards. Professional installation is highly recommended.
Site Requirements:
- Foundation: A level concrete floor with a minimum thickness and strength as specified in the detailed installation manual (not included in this general overview).
- Clearance: Ensure adequate overhead clearance for the maximum lifting height (88 21/32 inches) plus the height of the vehicle. Also, allow sufficient space around the lift for safe operation and access.
- Power Supply: A dedicated 220V, 3HP electrical circuit is required for the hydraulic power unit.
Assembly Overview:
- Unpack all components and verify against the packing list.
- Position the four posts according to the provided layout diagram.
- Install the runways and secure them to the posts.
- Connect the hydraulic power unit and route hydraulic lines.
- Install the cable system and ensure proper tensioning.
- Perform initial functional tests and adjust safety mechanisms.
Refer to the comprehensive installation manual provided with your lift for detailed step-by-step instructions, diagrams, and torque specifications.
5. Operating Instructions
Follow these general steps for safe operation of your APlusLift HW-4P11S car lift:
- Pre-Operation Check: Before each use, inspect the lift for any visible damage, leaks, or obstructions. Ensure all cables are intact and properly routed.
- Position Vehicle: Carefully drive the vehicle onto the runways, ensuring it is centered and within the lift's capacity.
- Raise Lift: Activate the hydraulic power unit to raise the lift. Monitor the vehicle as it ascends to ensure stability.
- Engage Safety Locks: Once the desired working height is reached, lower the lift slightly until the safety locks engage securely on all four posts. This transfers the load from the hydraulic system to the mechanical locks.
- Lower Lift: To lower the lift, first raise it slightly to disengage the safety locks. Then, activate the lowering mechanism while ensuring the area beneath the lift is clear.
- Post-Operation: Once the vehicle is off the lift, return the lift to its lowest position and turn off the power.
6. Maintenance
Regular maintenance is crucial for the safe and reliable operation of your APlusLift HW-4P11S. Establish a routine inspection and maintenance schedule.
Daily Checks:
- Inspect cables for fraying, kinks, or damage.
- Check for hydraulic fluid leaks around cylinders, hoses, and fittings.
- Ensure all safety locks engage and disengage properly.
- Verify that all fasteners are tight.
Monthly Checks:
- Lubricate all pivot points, pulleys, and cable ends as specified in the detailed manual.
- Check hydraulic fluid level and top up if necessary with recommended fluid.
- Inspect electrical connections for corrosion or damage.
Annual Checks:
- Perform a thorough inspection of all structural components for cracks or deformation.
- Have a qualified technician inspect and service the hydraulic system.
7. Troubleshooting
This section provides basic troubleshooting steps for common issues. For complex problems, contact APlusLift customer support or a qualified technician.
| Problem | Possible Cause | Solution |
|---|---|---|
| Lift does not raise | No power to hydraulic unit; Low hydraulic fluid; Motor issue | Check power supply and circuit breaker; Check fluid level and add if low; Consult technician. |
| Lift lowers slowly or unevenly | Air in hydraulic system; Obstruction; Worn seals | Bleed air from system; Check for obstructions; Consult technician for seal replacement. |
| Safety locks not engaging | Cable tension incorrect; Mechanical obstruction; Worn components | Adjust cable tension; Clear obstructions; Inspect and replace worn parts. |
| Unusual noises during operation | Lack of lubrication; Loose components; Motor issue | Lubricate moving parts; Tighten fasteners; Consult technician. |
8. Specifications
| Specification | Value |
|---|---|
| Manufacturer | Songa Enterprises |
| Brand | APlusLift |
| Model | HW-4P11S |
| Item Weight | 2500 pounds |
| Product Dimensions | 247 x 122 x 99 inches |
| Item Model Number | 4P11S |
| Manufacturer Part Number | HW-4P11S |
9. Warranty and Support
The APlusLift HW-4P11S comes with an industry-leading 3-year warranty covering parts replacements. This warranty reflects APlusLift's commitment to quality and customer satisfaction.
For technical assistance, warranty claims, or to purchase optional accessories like rolling jacks and drip trays, please contact APlusLift customer support. Contact information can typically be found on the APlusLift website or your purchase documentation.
