DWVO Raised Garden Bed Kit - Instruction Manual

Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your DWVO Raised Garden Bed Kit. Designed for outdoor use, this plastic planter box offers an ergonomic solution for cultivating vegetables, flowers, and herbs. Please read all instructions carefully before beginning assembly or use.

Product Features

• Effective Drainage: Features a float system for water level monitoring and side drainage holes to remove excess water, ensuring optimal soil moisture.
• Ergonomic Height: With a 34-inch height, this elevated planter box reduces the need for bending or squatting. A bottom shelf provides additional storage space for gardening tools or supplies.
• Easy Mobility: Equipped with four swivel wheels, including two with brakes, for effortless movement and stable positioning. Assembly typically takes 15-30 minutes.
• Sturdy Design: Three built-in support poles distribute soil pressure evenly across the frame, preventing sidewalls from bending under the weight of wet soil.
• Built to Last: Constructed from sturdy, thickened, weather-resistant resin. Supports up to 21 gallons of soil. Dimensions: 43.3"L x 17.7"W x 34.1"H.

Package Contents

Verify that all components are present before beginning assembly:

• Planter Box Panels (Sides, Front, Back)
• Bottom Panel with Drainage Holes
• Support Legs (4)
• Storage Shelf Panels
• Swivel Wheels (4, 2 with locking brakes)
• Drainage Liner/Mat
• Assembly Hardware (screws, nuts, bolts)
• Assembly Tool (e.g., Allen wrench)
• Instruction Manual

Setup and Assembly

Assembly of the DWVO Raised Garden Bed is designed to be straightforward. Follow these general steps for construction:

1. Unpack all components and verify against the package contents list.
2. Attach the side panels to the front and back panels to form the main planter box. Secure with provided hardware.
3. Insert the bottom panel into the assembled planter box, ensuring drainage holes are correctly oriented.
4. Attach the four support legs to the base of the planter box.
5. Assemble the lower storage shelf and attach it to the designated points on the support legs.
6. Install the four swivel wheels onto the bottom of the legs. Ensure the two locking wheels are placed on one side for easy access.
7. Place the provided drainage liner/mat inside the planter box, covering the bottom panel.

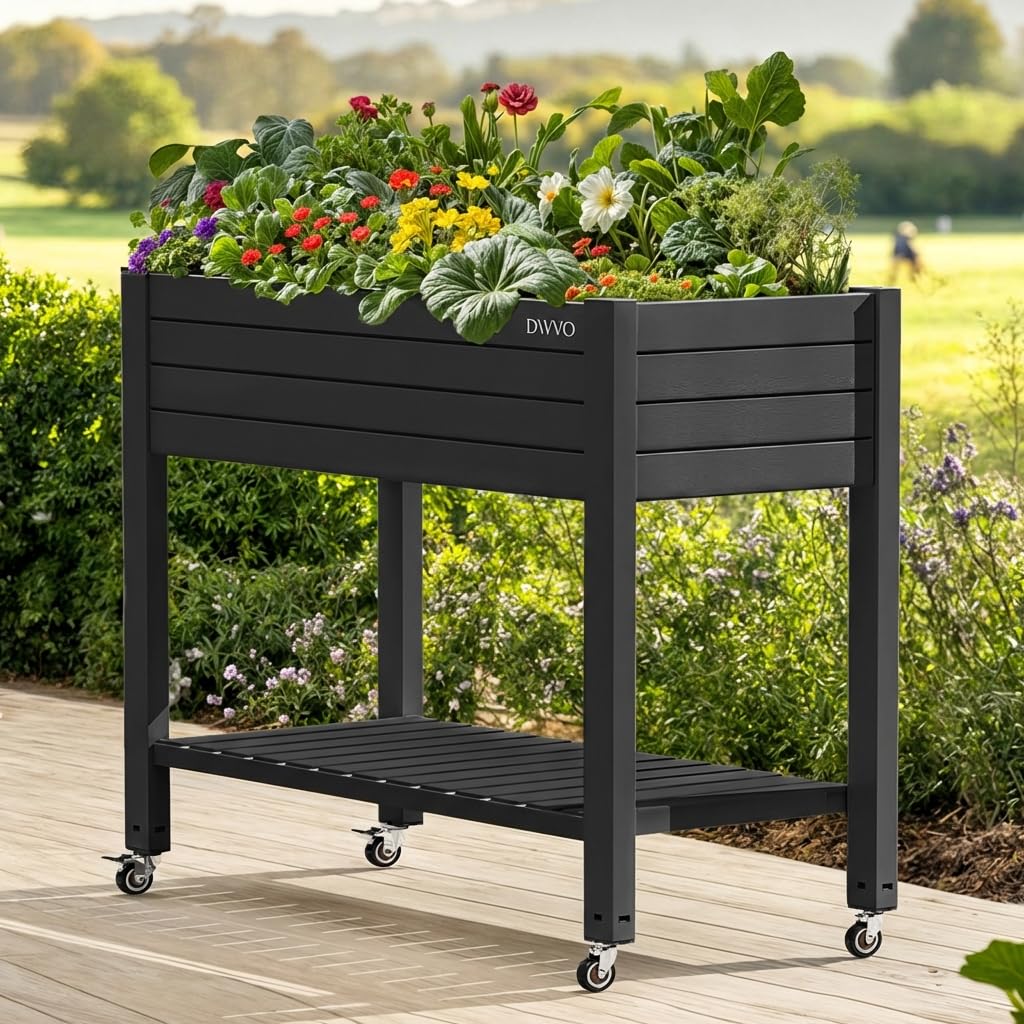

Image: The fully assembled DWVO Raised Garden Bed Kit, ready for planting.

Operating Instructions

Filling the Planter Box

The planter box has a capacity of approximately 21 gallons of soil. Fill the box with a high-quality potting mix suitable for your chosen plants. Ensure the soil level is a few inches below the rim to prevent overflow during watering.

Planting

This raised garden bed is ideal for planting a variety of vegetables, flowers, and herbs. Consider the sunlight requirements and growth habits of your plants when arranging them in the bed. The elevated design helps protect plants from ground-level pests.

Watering and Drainage

Water your plants as needed. The integrated float system allows for precise monitoring of water levels, helping to prevent both overwatering and underwatering. Excess water will drain through the side drainage holes, preventing root rot.

Image: Close-up view of the drainage system, showing the float for water level monitoring and the side drainage outlet.

Mobility

To move the garden bed, unlock the brakes on the two designated wheels. Carefully push or pull the planter to your desired location. Once positioned, engage the wheel brakes to secure the bed in place.

Image: Detail of a universal wheel with a locking brake, allowing for flexible movement and secure placement.

Maintenance

The DWVO Raised Garden Bed is designed for low maintenance due to its durable resin construction.

• Cleaning: Wipe down the surfaces with a damp cloth and mild soap as needed to remove dirt or debris. Avoid harsh abrasive cleaners.
• Material Care: The thickened resin material is weather-resistant and UV-blocking, designed to withstand outdoor elements without fading, rotting, or warping. No special treatments or sealants are required.

Image: Close-up of the resin material, highlighting its waterproof and UV-resistant properties.

Troubleshooting

• Water Accumulation: If water is not draining properly, ensure the drainage holes in the bottom panel are clear and not obstructed by soil or debris. Check that the drainage liner is correctly positioned.
• Instability: Ensure all screws and fasteners are tightened securely during assembly. If using the wheels, verify that the brakes are engaged when the planter is stationary.
• Warping/Bending: The design includes internal support poles to prevent warping. Ensure the planter is not overloaded beyond its 21-gallon soil capacity.

Specifications

Warranty and Support

For warranty information or customer support, please refer to the contact details provided with your purchase or visit the official DWVO website. Keep your purchase receipt for any warranty claims.
