Farberware FMO11WEIWH 1.1 Cu. Ft. 1000-Watt Countertop Microwave Oven

1. Important Safety Instructions

When using electrical appliances, basic safety precautions should be followed, including the following:

• Read all instructions before using the appliance.
• Do not operate the microwave oven if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped.
• Do not heat liquids or other foods in sealed containers as they are liable to explode.
• Do not use corrosive chemicals or vapors in this appliance.
• Close supervision is necessary when the appliance is used by or near children.
• Ensure the microwave is properly grounded.
• Do not attempt to service or repair this appliance yourself. Contact qualified service personnel.
• Always ensure the turntable and roller ring are correctly positioned before operation.

2. Product Overview

The Farberware FMO11WEIWH is a 1.1 cubic foot, 1000-watt countertop microwave oven designed for efficient and convenient cooking. It features multiple power levels, auto-cook menus, and a child safety lock.

Image: The Farberware FMO11WEIWH microwave highlighting its 1.1 cubic feet capacity, 10 power levels, and 1000 watts of cooking power.

Key Features:

• 1.1 Cu. Ft. Capacity: Spacious interior to accommodate various dish sizes.
• 1000 Watts Cooking Power: Provides fast and even heating.
• 10 Power Levels: Offers flexibility for different cooking needs.
• Auto Cook Menus: Pre-programmed settings for popular foods like popcorn, potato, pizza, frozen vegetable, fresh vegetable, beverage, meat, reheat, and bread.
• Defrost Function: Defrosts by weight or time.
• Express Cook: One-touch cooking for 1 to 6 minutes.
• Kitchen Timer: Functions as a standalone timer.
• Child Safety Lock: Prevents unsupervised operation.

Image: Detailed view of the microwave's control panel, illustrating the various buttons and functions for easy operation.

3. Setup

Unpacking and Placement:

• Remove all packing materials from inside the oven cavity and from the door.
• Check the oven for any damage, such as dents or a misaligned door. Do not operate if damaged.
• Place the microwave on a flat, stable surface strong enough to hold its weight (approximately 23.8 pounds).
• Ensure adequate ventilation: leave at least 4 inches (10 cm) of space on the top, sides, and back for proper airflow.

Image: The microwave with its external dimensions (20.1"W x 14.5"D x 11.9"H) indicated, useful for placement planning.

Turntable Installation:

1. Place the roller ring in the depression on the bottom of the microwave oven.
2. Place the glass turntable on top of the roller ring, ensuring it sits securely.

Electrical Requirements:

The microwave oven operates on 120 Volts AC, 60 Hz. Ensure it is plugged into a dedicated 3-prong grounded outlet to prevent electrical hazards.

4. Operating Instructions

Setting the Clock:

1. Press the CLOCK button once.
2. Use the number pads to enter the current time (e.g., 1-2-3-0 for 12:30).
3. Press the CLOCK button again to confirm.

Basic Cooking (Time Cook):

1. Place food in the microwave. Close the door.
2. Press the POWER button. The display will show "PL10" (100% power). Press POWER repeatedly to select desired power level (e.g., PL5 for 50% power).
3. Use the number pads to enter the cooking time (e.g., 1-0-0 for 1 minute).
4. Press START/+30SEC to begin cooking.

Express Cook:

For quick cooking at 100% power, simply press a number pad (1-6) for 1 to 6 minutes of cooking time. Press START/+30SEC to add 30 seconds during cooking.

Auto Cook Menus:

The microwave has pre-programmed settings for common foods. Refer to the control panel for specific options like Popcorn, Potato, Pizza, etc.

1. Press the desired auto-cook button (e.g., POPCORN).
2. Press the button repeatedly to select the desired serving size or weight, if applicable.
3. Press START/+30SEC to begin.

Defrost Function:

The microwave offers defrosting by weight or by time.

• Defrost by Weight: Press DEFROST once. Enter the weight of the food using the number pads. Press START/+30SEC.
• Defrost by Time: Press DEFROST twice. Enter the desired defrosting time. Press START/+30SEC.

Kitchen Timer:

This function operates independently of microwave cooking.

1. Press the KITCHEN TIMER button.
2. Enter the desired time using the number pads.
3. Press START/+30SEC. The timer will count down without cooking.

Child Safety Lock:

To activate the child lock, press and hold the STOP/Cancel button for 3 seconds. The display will show "LOCK". To deactivate, press and hold STOP/Cancel again for 3 seconds.

5. Maintenance and Cleaning

Regular cleaning helps maintain the performance and appearance of your microwave oven.

Interior Cleaning:

• Wipe the interior with a damp cloth after each use to prevent food buildup.
• For stubborn stains, place a bowl of water with lemon slices inside and microwave for 2-3 minutes. The steam will loosen the grime, making it easier to wipe away.
• Do not use abrasive cleaners or scouring pads.

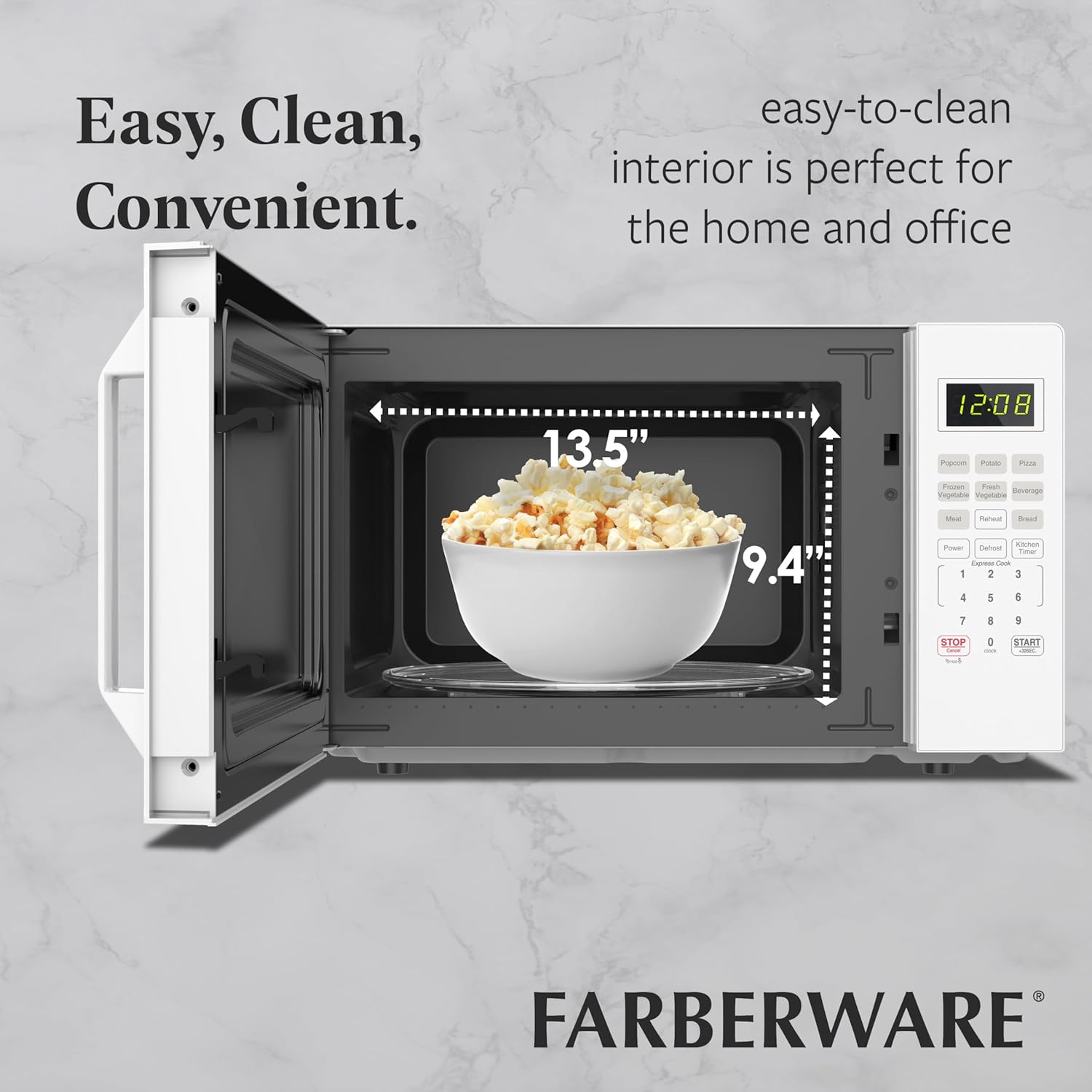

Image: The microwave's interior, showing the turntable and the ease of access for cleaning.

Exterior Cleaning:

• Wipe the exterior surfaces with a soft, damp cloth.
• Avoid getting water into the ventilation openings.

Turntable and Roller Ring:

• The glass turntable and roller ring can be removed for cleaning. Wash them in warm, soapy water or in the dishwasher.
• Ensure they are completely dry before placing them back in the oven.

6. Troubleshooting Guide

If you experience issues with your microwave, consult the following table for common problems and solutions.

If the problem persists after attempting these solutions, please contact customer support.

7. Specifications

8. Warranty and Support

For warranty information or technical support, please refer to the warranty card included with your product or visit the official Farberware website. Keep your purchase receipt for warranty claims.
