Introduction
Thank you for choosing homdiy Brushed Nickel Cabinet Handles. This manual provides essential information for the proper installation, use, and maintenance of your new cabinet pulls. Please read these instructions carefully before beginning installation to ensure a smooth process and optimal performance.
Image: Two homdiy brushed nickel cabinet handles, showcasing their sleek, half-round design and brushed finish.
Product Overview and Specifications
The homdiy cabinet handles are designed to provide a modern and functional upgrade to your cabinets and drawers. Crafted from durable zinc alloy with a brushed nickel finish, these pulls offer both aesthetic appeal and long-lasting performance.
Key Features:
- Design Style: Classic half-round design for comfortable grip and ease of use.
- Material: Constructed from sturdy zinc alloy for enhanced durability and resistance to wear.
- Finish: Elegant brushed nickel finish, suitable for various interior styles.
- Accessories: Each pull includes two sets of screws (1-inch and 1.77-inch cuttable) for versatile installation.
Dimensions:
Image: A detailed diagram illustrating the dimensions of the homdiy cabinet handle, including total length, hole centers, height, and width, along with screw lengths.
| Specification | Value |
|---|---|
| Material | Zinc Alloy |
| Brand | homdiy |
| Color | Brushed Nickel |
| Hole Centers | 96mm (3-3/4 inches) |
| Total Length | 129mm (5.08 inches) |
| Height | 24mm (0.94 inches) |
| Width | 14mm (0.55 inches) |
| Item Weight | Approximately 1 pound (for the pack) |
| Included Screws | 1 inch (25mm) and 1.77 inch (45mm) cuttable |
Installation Instructions
Follow these steps for proper installation of your homdiy cabinet handles. Ensure you have the necessary tools: a drill, drill bits, a measuring tool (ruler or template), and pliers.
Image: A visual guide demonstrating the four steps for installing cabinet handles, including measuring, marking, and adjusting screw length using pliers.
- Measure and Mark: Measure the thickness of your cabinet door or drawer front. Using a measuring tool or template, mark the desired location for the handle, ensuring the 96mm hole center distance is accurate.
- Drill Holes: Carefully drill holes through the cabinet door or drawer front at the marked locations. Use a drill bit appropriate for the screw size and cabinet material.
- Determine Screw Length: Select the appropriate screw length (1-inch or 1.77-inch). If using the 1.77-inch cuttable screws, measure the required length by inserting the screw through the cabinet from the inside and noting where it extends past the handle. Leave a small dent on the screw at the breaking point.
- Adjust Screw Length (if necessary): Use pliers to secure both sides of the screw at the breaking point. Bend the screw end upward or downward at a 90-degree angle to snap it off. Do not twist the screws, as this may damage the threading.
- Attach Handle: Align the handle with the drilled holes. Insert the screws from the inside of the cabinet door or drawer front and thread them into the handle. Tighten securely with a screwdriver, but do not overtighten.

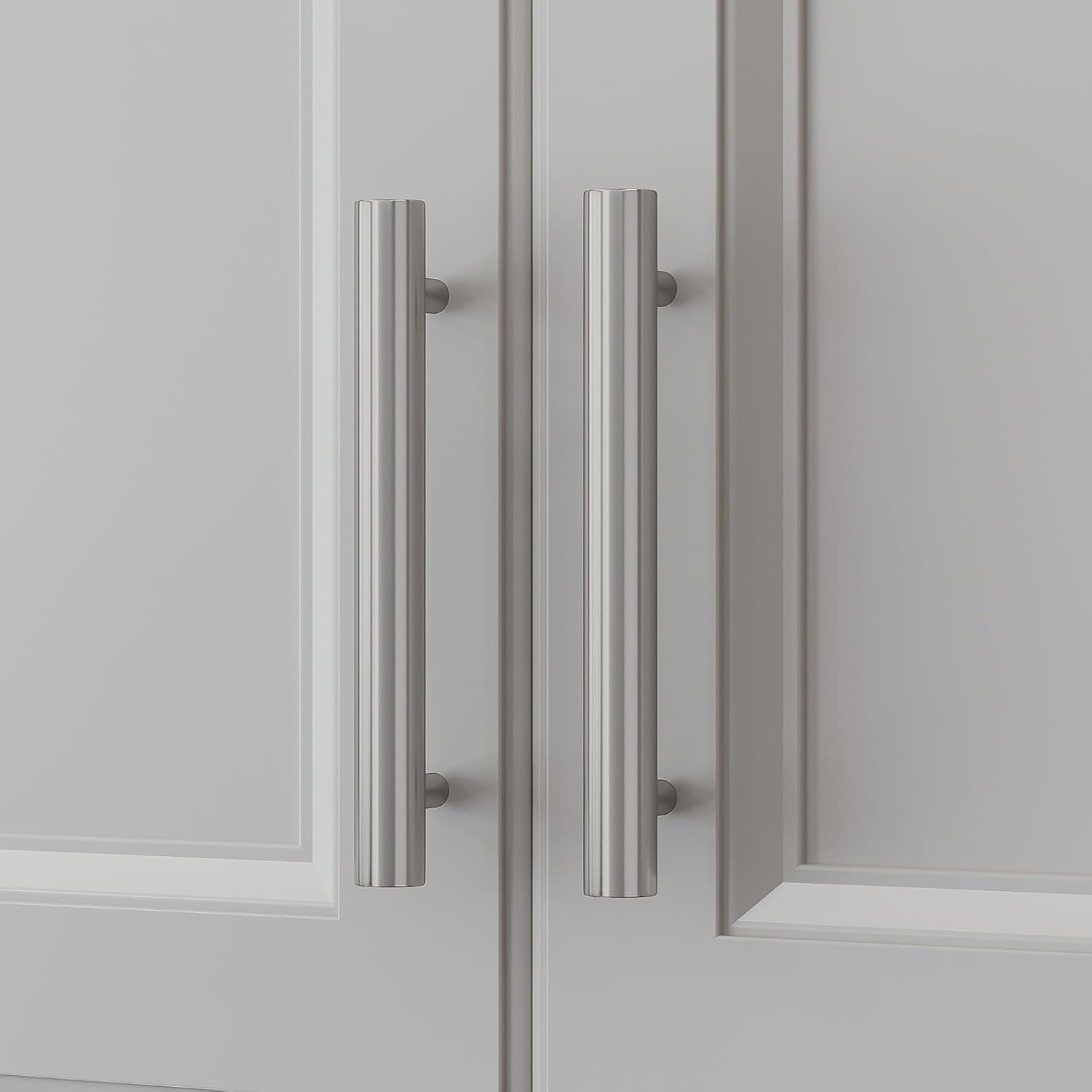

Image: Two homdiy brushed nickel cabinet handles professionally installed on light gray cabinet doors, demonstrating their appearance in a typical setting.
Operating the Handles
Once installed, the homdiy cabinet handles function as standard pulls. Simply grasp the handle and pull to open or push to close your cabinet doors and drawers. The ergonomic half-round design ensures a comfortable and secure grip.
Maintenance
To maintain the appearance and longevity of your brushed nickel cabinet handles, follow these simple care instructions:
- Regular Cleaning: Wipe the handles regularly with a soft, damp cloth to remove dust and fingerprints.
- Avoid Harsh Chemicals: Do not use abrasive cleaners, ammonia-based products, or harsh chemicals, as these can damage the brushed nickel finish.
- Gentle Drying: After cleaning, dry the handles immediately with a soft, dry cloth to prevent water spots.
- Periodic Inspection: Periodically check the tightness of the mounting screws. If a handle feels loose, gently tighten the screws with a screwdriver.
Image: A comparison graphic emphasizing the premium construction and rust prevention qualities of homdiy hardware, indicating extended service life and enhanced durability.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Handle feels loose | Mounting screws are not tight | Gently tighten the screws from the inside of the cabinet door/drawer. Do not overtighten. |
| Handle is difficult to install | Incorrect hole spacing or screw length | Verify that the drilled holes match the 96mm center-to-center distance. Ensure the screw length is appropriate for your cabinet thickness. Refer to the installation steps for adjusting screw length. |
| Scratches or finish damage | Use of abrasive cleaners or sharp objects | Avoid using harsh chemicals or abrasive materials. Clean only with a soft, damp cloth. |
Customer Support
For further assistance or inquiries regarding your homdiy cabinet handles, please contact homdiy customer service through the retailer's platform or visit the official homdiy store online. We are committed to ensuring customer satisfaction.
