1. Introduction
This manual provides essential information for the safe and proper use, assembly, and maintenance of your Kkdi Toddler Tricycle Model WJ121503. Designed for children aged 2 to 5 years, this tricycle features a stable design, adjustable seat, light-up wheels, and storage baskets for an enjoyable riding experience. Please read all instructions carefully before assembly and use.

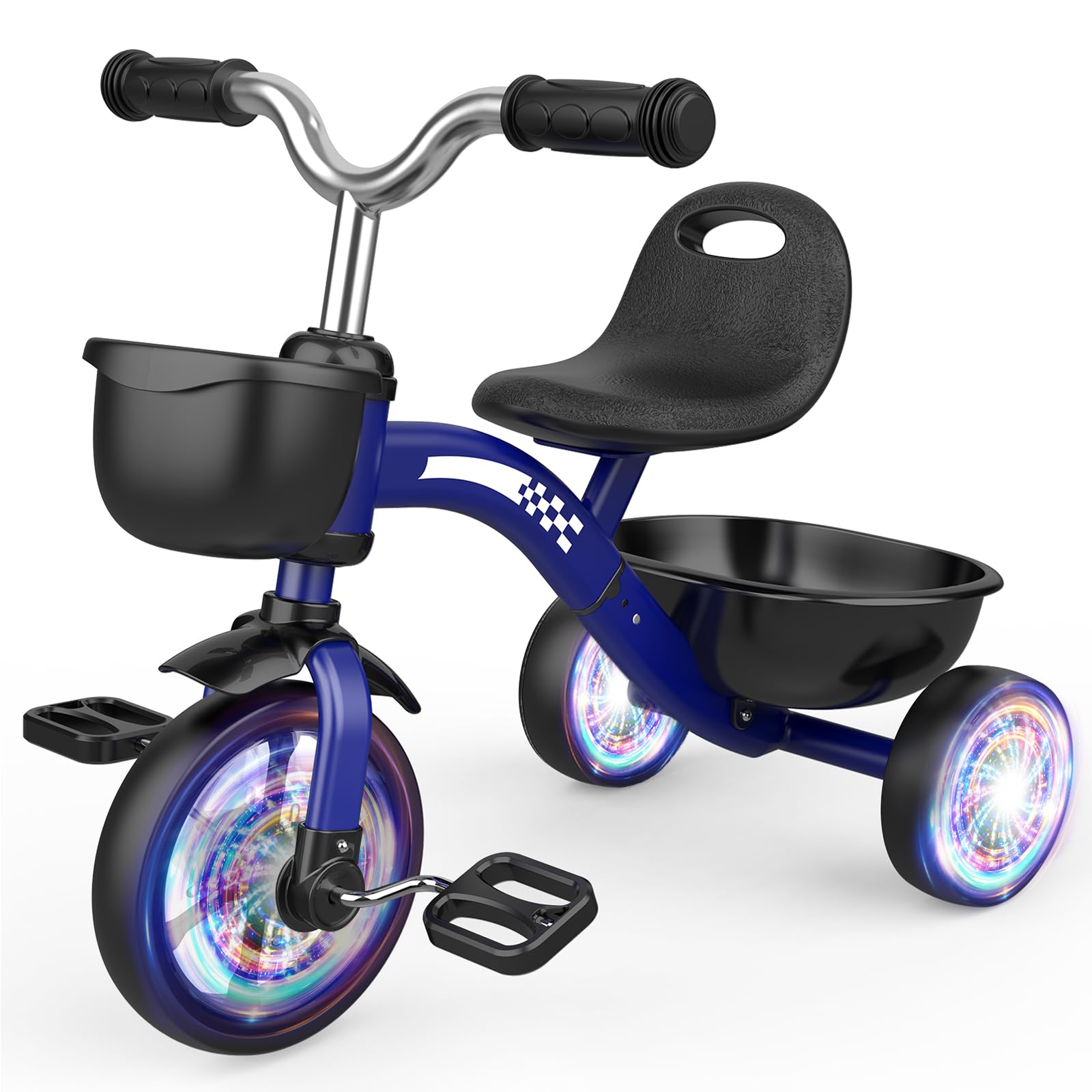

Figure 1: Kkdi Toddler Tricycle Model WJ121503
2. Safety Information
Your child's safety is paramount. Always ensure adult supervision during use. This tricycle is designed with multiple safety features:
- 135° Steering Limit: Prevents over-steering and reduces the risk of tipping.
- Widened Wheels: Enhances stability and prevents accidental tipping.
- Ultra-Sturdy Carbon Steel Frame: Provides exceptional durability and supports up to 77 lbs.
- Glowing Wheels: Increase visibility during low-light conditions, no batteries required.
- Non-slip Handlebars: Ensure a secure grip for better control.
- CPC Certified & Tested: Complies with ASTM F963 and CPSIA safety standards.
Important: Children must be accompanied by an adult. Always ensure the child wears appropriate safety gear, including a helmet, when riding.
Figure 2: Stable Design with 135° Steering Limit
3. Parts List
Before assembly, verify that all parts are present and undamaged. The package should include:
- Tricycle Frame (main body)
- Front Wheel with Pedals
- Rear Wheels (2)
- Handlebars
- Adjustable Seat with Ergonomic Backrest
- Front Storage Basket
- Rear Storage Basket
- Assembly Hardware (screws, washers, tools if included)
- Instruction Manual
Figure 3: Key Components of the Tricycle, highlighting features like non-slip grips, ergonomic backrest, and the carbon steel frame.
4. Assembly Instructions
Adult assembly is required. Please follow these steps carefully:
- Attach Rear Wheels: Insert the rear wheels into the designated slots on the tricycle frame until they click securely into place.
- Install Front Wheel and Handlebars: Slide the front wheel assembly into the front fork of the frame. Then, insert the handlebars into the steering column and tighten any securing mechanisms.
- Mount the Seat: Attach the adjustable seat to the frame. Ensure it is securely fastened.
- Attach Baskets: Secure the front and rear storage baskets to their respective positions on the tricycle.
- Final Check: Verify all connections are tight and secure. Ensure wheels spin freely and the steering operates smoothly.
Video 1: Assembly and Features of the Kkdi Toddler Tricycle. This video demonstrates the assembly process and highlights key features like the light-up wheels and baskets.
5. Operating Instructions
5.1 Riding the Tricycle
- Ensure the child is seated comfortably with feet on the pedals.
- Encourage the child to push the pedals forward to move the tricycle.
- Guide the child to steer using the handlebars. The 135° steering limit helps prevent sharp turns and tipping.
5.2 Adjustable Seat
The seat can be adjusted to 3 different levels to accommodate your child's growth. To adjust, locate the adjustment mechanism beneath the seat, loosen it, slide the seat to the desired position, and re-secure it firmly.
Figure 4: 3-Level Adjustable Seat
5.3 Light-Up Wheels
The tricycle features wheels that light up automatically when in motion. No batteries are required for this feature.
Figure 5: Colorful Light-Up Wheels
5.4 Storage Baskets
The tricycle includes two storage baskets, one at the front and one at the rear, for carrying small toys or snacks.
Figure 6: Two Storage Baskets
Video 2: Tricycle in Use Indoors and Outdoors. This video demonstrates the tricycle being ridden by children in various settings, showcasing its versatility.
6. Maintenance
- Cleaning: Wipe the tricycle with a damp cloth and mild soap. Avoid harsh chemicals.
- Inspection: Regularly check all nuts, bolts, and screws to ensure they are tight. Inspect wheels and pedals for any wear or damage.
- Storage: Store the tricycle in a dry place away from direct sunlight and extreme temperatures to prolong its lifespan.
- EVA Silent Wheels: These wheels are designed for both indoor and outdoor use, providing quiet operation and reducing vibration. No specific tire maintenance is required.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Wheels not lighting up. | Wheels are not spinning fast enough or are stationary. | The lights are motion-activated and do not require batteries. Ensure the wheels are in motion for the lights to activate. |
| Tricycle feels unstable. | Loose connections or improper assembly. | Re-check all assembly points, especially wheel and handlebar connections, to ensure they are securely fastened. Ensure the child is within the recommended age and weight limits. |
| Difficulty steering. | Handlebars not properly installed or tightened. | Verify the handlebars are correctly inserted and tightened in the steering column. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Kkdi |
| Model Number | WJ121503 |
| Material Type | Carbon Steel |
| Recommended Age | 2 to 5 years (Manufacturer Minimum Age: 2 months, Manufacturer Maximum Age: 60 months) |
| Max Weight Capacity | 77 lbs |
| Item Dimensions (L x W x H) | 23.6" x 14" x 19" |
| Adjustable Seat | 3-level adjustable |
| Steering Limit | 135° to prevent tipping |
| Wheels | EVA Silent Wheels with motion-activated lights |
| Storage | 2 detachable baskets (front and rear) |
| Assembly Required | Yes |
| UPC | 763344544752 |
| ASIN | B0DRSBQPDZ |
Figure 7: Tricycle Dimensions and Capacity
9. Warranty and Support
For warranty information or product support, please contact the seller or manufacturer directly. Keep your purchase receipt as proof of purchase. The manufacturer is Fengchuangda, and the seller is HUIGUAN.
