SHISHISHUN 5304517872 Microwave LED Lamp Instruction Manual

Introduction

This instruction manual provides essential information for the safe and effective installation and use of the SHISHISHUN 5304517872 Microwave LED Lamp. This lamp is designed as a replacement part for various microwave ovens, offering energy-efficient illumination. Please read this manual thoroughly before proceeding with installation.

Safety Information

WARNING: Always disconnect power to the appliance before servicing. Failure to do so can result in electrical shock, personal injury, or death. Microwave ovens contain high-voltage capacitors that can retain a dangerous electrical charge even after the power is disconnected. It is recommended that only qualified service technicians perform repairs on microwave ovens.

Ensure the microwave oven is unplugged from the power outlet before beginning any work.
Wear appropriate personal protective equipment, such as gloves and safety glasses.
Handle the new LED lamp carefully to avoid damage.
Do not attempt to modify the lamp or its wiring.

Product Overview

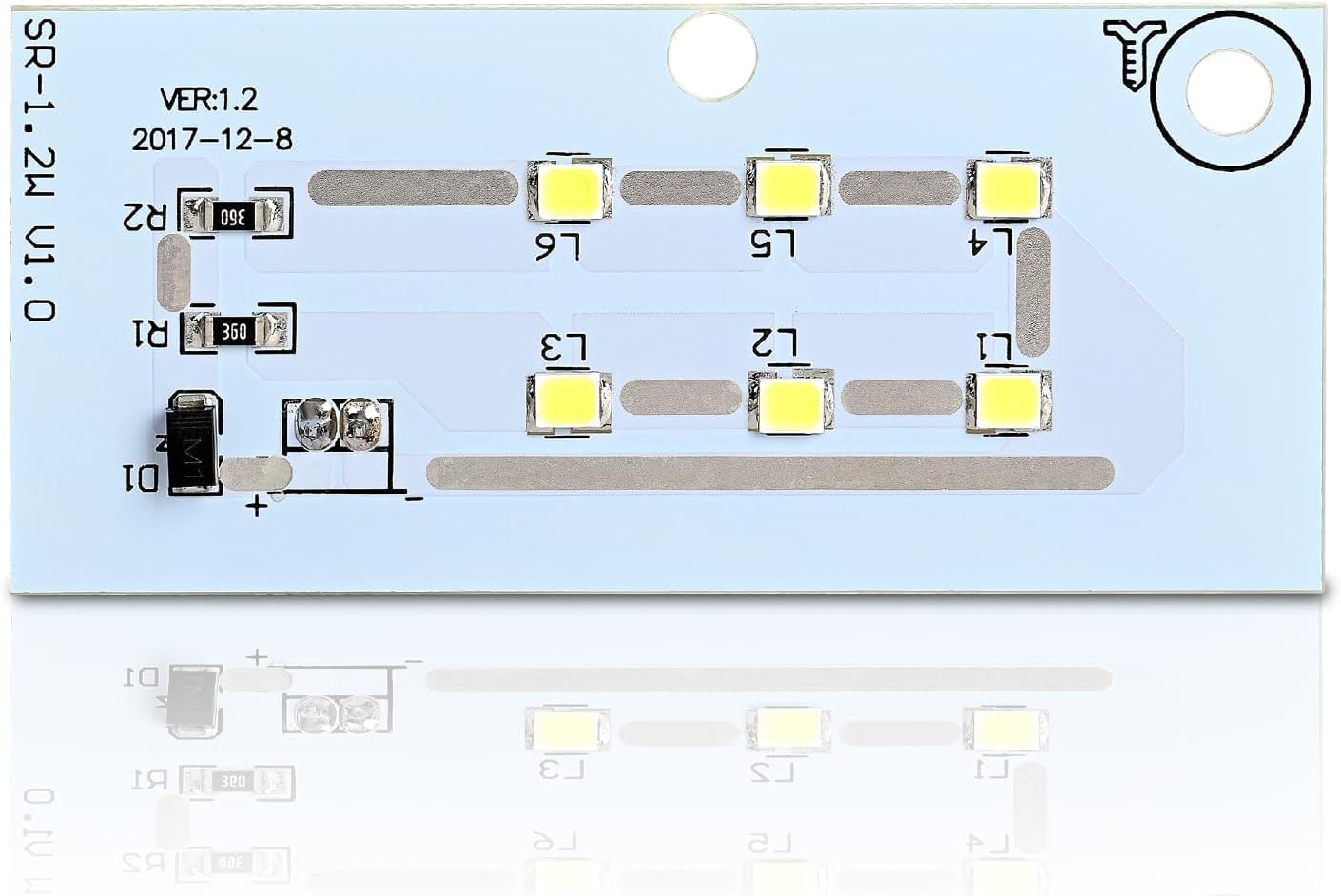

Image of the SHISHISHUN 5304517872 Microwave LED Lamp circuit board.

Figure 1: SHISHISHUN 5304517872 Microwave LED Lamp. This image displays the SHISHISHUN 5304517872 Microwave LED Lamp, showing its circuit board with multiple LED components, resistors (R1, R2), and a diode (D1). The board is labeled 'SR-1.2W V1.0' and 'VER:1.2 2017-12-8', indicating its version and manufacturing date. The positive and negative terminals are also marked.

The SHISHISHUN 5304517872 is a 1.2W V1.0 LED replacement lamp designed for microwave ovens. It offers a long operational lifespan of up to 3,000 hours and an energy-efficient design. The lamp features a shatter-resistant construction for enhanced safety. It is compatible with various microwave models from brands such as Frigidaire, IKEA, and Electrolux.

Replacement Part Numbers: This lamp replaces part numbers 5304499540, 5304509445, 123462-A0, 4920115, AP6809088, PS12585761, and EAP12585761.

Installation Instructions

The following steps outline the general procedure for replacing a microwave LED lamp. Specific steps may vary depending on your microwave model. Refer to your microwave oven's service manual for detailed instructions.

Disconnect Power: Unplug the microwave oven from the electrical outlet to ensure no power is supplied to the unit.
Access the Lamp: Depending on your microwave model, you may need to remove a vent grille, control panel, or outer casing to access the lamp assembly. Consult your microwave's user manual or service manual for specific access points.
Locate the Old Lamp: Identify the existing LED lamp or bulb assembly that needs replacement.
Remove the Old Lamp: Carefully disconnect any wiring harnesses or mounting screws securing the old lamp. Note the orientation of the old lamp for correct installation of the new one.
Install the New Lamp: Connect the wiring harness of the new SHISHISHUN 5304517872 LED lamp, ensuring proper polarity if applicable. Secure the lamp in its designated position using the original mounting hardware.
Reassemble the Microwave: Reattach any panels, grilles, or casings that were removed during the access step. Ensure all components are securely fastened.
Restore Power: Plug the microwave oven back into the electrical outlet.
Test Functionality: Test the microwave's light function to ensure the new LED lamp is working correctly.

Operating Instructions

The SHISHISHUN 5304517872 Microwave LED Lamp operates automatically with your microwave oven's internal lighting system. It will illuminate when the microwave door is opened or when the microwave is in operation, depending on the specific model's design.

Maintenance

Cleaning: If the lamp or its cover becomes dirty, disconnect power to the microwave and gently wipe with a soft, dry cloth. Do not use abrasive cleaners or solvents.
Inspection: Periodically inspect the lamp for any visible damage or loose connections. If any issues are observed, disconnect power and address them or consult a qualified technician.

Troubleshooting

Problem	Possible Cause	Solution
Lamp does not illuminate.	Microwave not plugged in. Loose connection. Lamp is faulty. Microwave internal fuse blown.	Ensure microwave is properly plugged into a working outlet. Disconnect power and check all connections to the lamp. If connections are secure, the lamp may be defective and require replacement. Consult a qualified technician for fuse replacement.
Lamp flickers or dims.	Loose connection. Voltage fluctuation. Lamp nearing end of life.	Disconnect power and check all connections. Ensure stable power supply to the microwave. Consider replacing the lamp if issues persist.

If troubleshooting steps do not resolve the issue, it is recommended to contact a qualified appliance technician.

Specifications

Model: 5304517872
Type: LED Lamp
Power: 1.2W V1.0
Dimensions: Approximately 3.1 x 1.9 x 0.5 inches (7.87 x 4.83 x 1.27 cm)
Weight: Approximately 4.8 ounces (136 grams)
Lifespan: Up to 3,000 hours
Compatibility: Frigidaire, IKEA, Electrolux microwave models (refer to specific model numbers for verification)
Replacement Part Numbers: 5304499540, 5304509445, 123462-A0, 4920115, AP6809088, PS12585761, EAP12585761

Warranty and Support

For warranty information or technical support, please refer to the retailer or manufacturer's official website. Keep your purchase receipt as proof of purchase.
