1. Introduction
The ThermoWorks DOT is a simple alarm thermometer designed for accurate temperature monitoring in various cooking applications. This manual provides instructions for its proper setup, operation, and maintenance.
2. Package Contents
- DOT Thermometer Unit
- Pro-Series Temperature Probe
- 2 AAA Batteries (pre-installed or included separately)
3. Product Overview

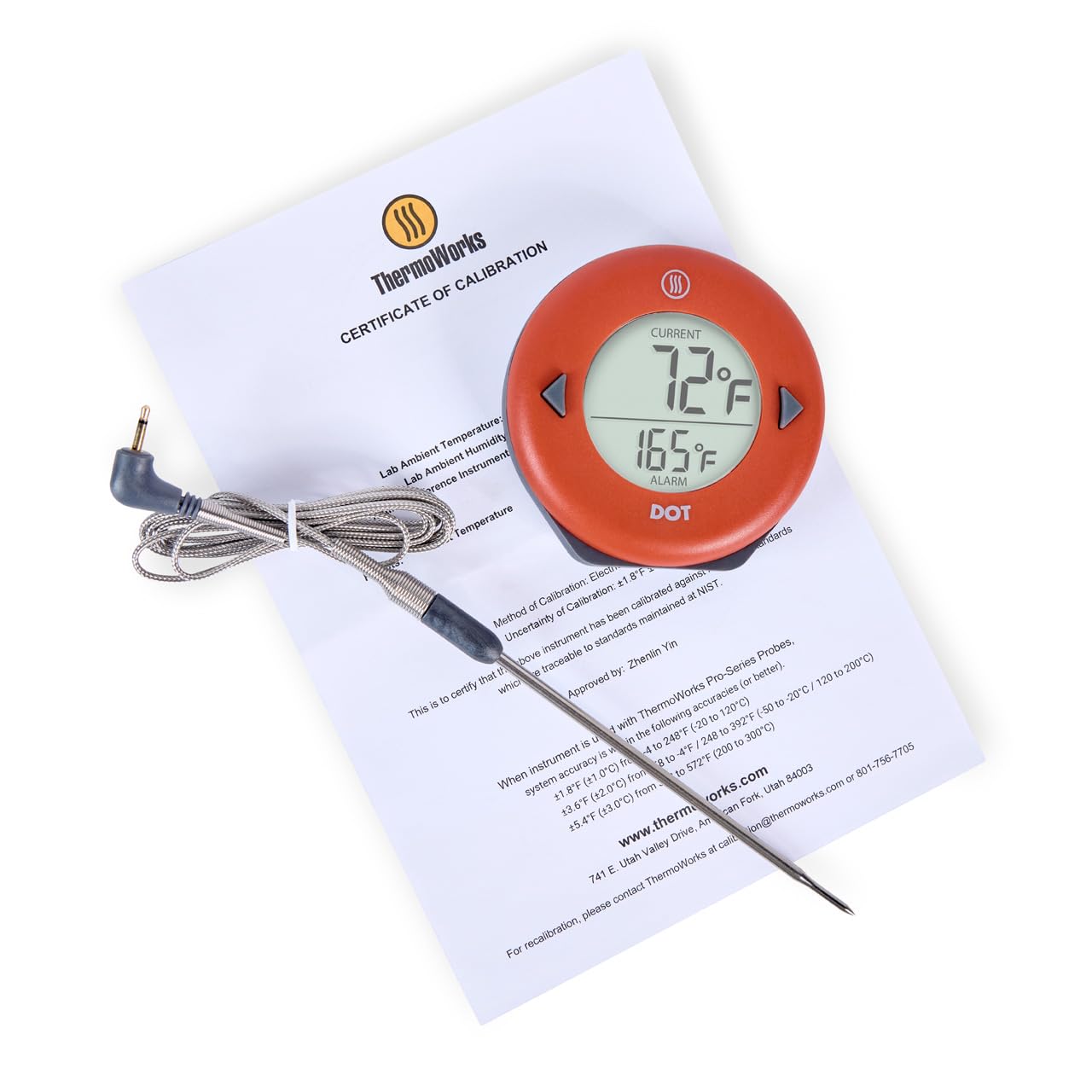

The DOT thermometer features a large, easy-to-read digital display. It includes two buttons for setting the alarm temperature and a backlight button on the rear. The unit is designed with a magnetic backing for attachment to metal surfaces and a fold-out kickstand for tabletop placement. The included Pro-Series probe is durable and designed for high-accuracy temperature measurement.
4. Setup
4.1 Battery Installation
The DOT thermometer requires 2 AAA batteries. These are typically included. If not pre-installed, open the battery compartment on the back of the unit and insert the batteries, observing the correct polarity (+/-) markings.
4.2 Probe Connection
Insert the stainless steel probe's jack firmly into the port on the side of the DOT unit. Ensure a secure connection for accurate readings.
4.3 Initial Power On
The unit will power on automatically when the probe is connected. The display will show the current temperature measured by the probe and the set alarm temperature.
4.4 Mounting Options
- Magnetic Backing: Attach the DOT unit to any magnetic surface, such as an oven door or refrigerator.

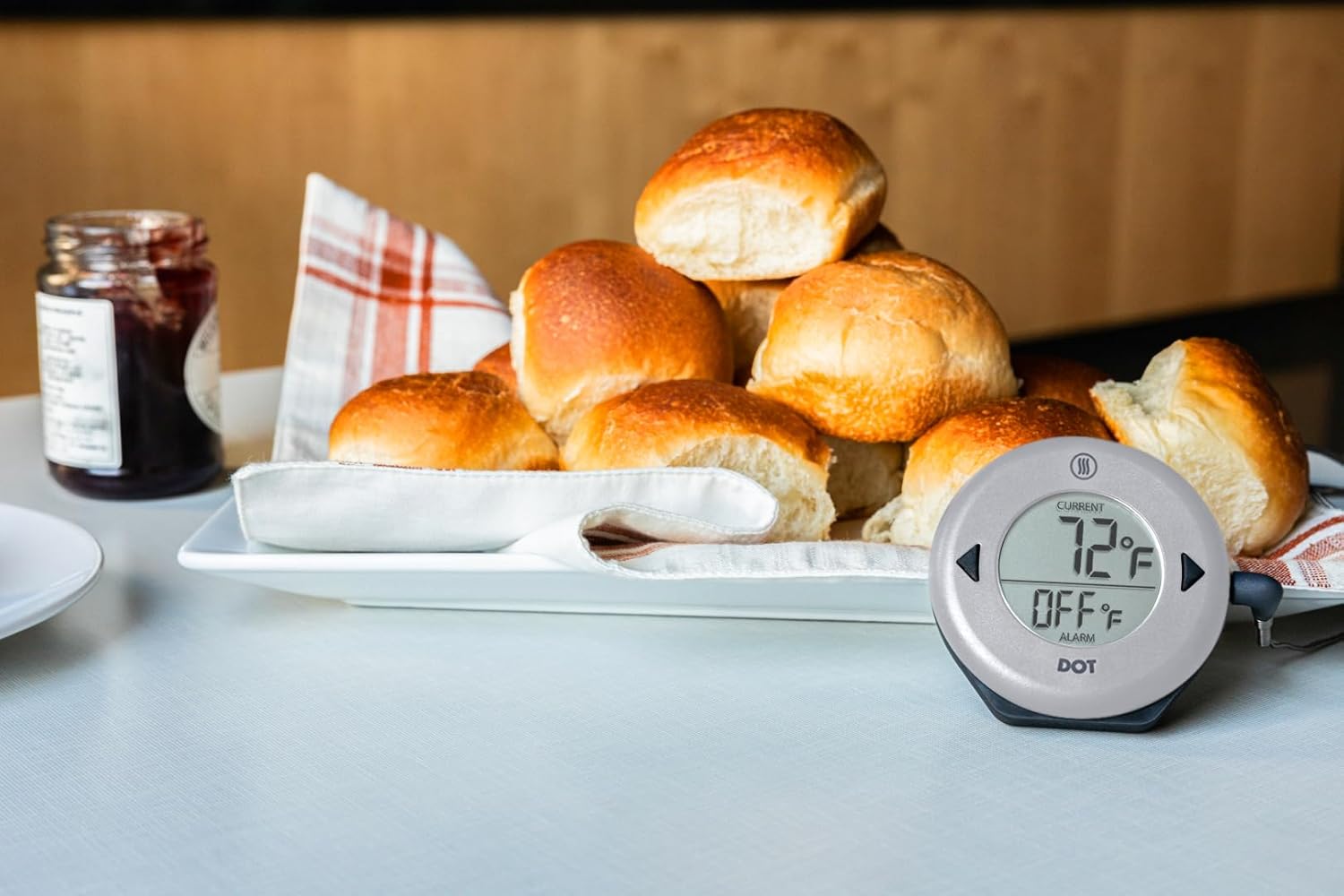

- Kickstand: Fold out the integrated kickstand on the back of the unit to place it on a countertop or flat surface.
5. Operating Instructions
5.1 Setting the Alarm Temperature
- Press the ▲ (Up) or ▼ (Down) buttons to adjust the desired alarm temperature. The alarm temperature is displayed on the lower part of the screen.
- Hold the ▲ or ▼ buttons to rapidly scroll through temperatures.
- The alarm will automatically set after a few seconds of inactivity.
5.2 Monitoring Temperature

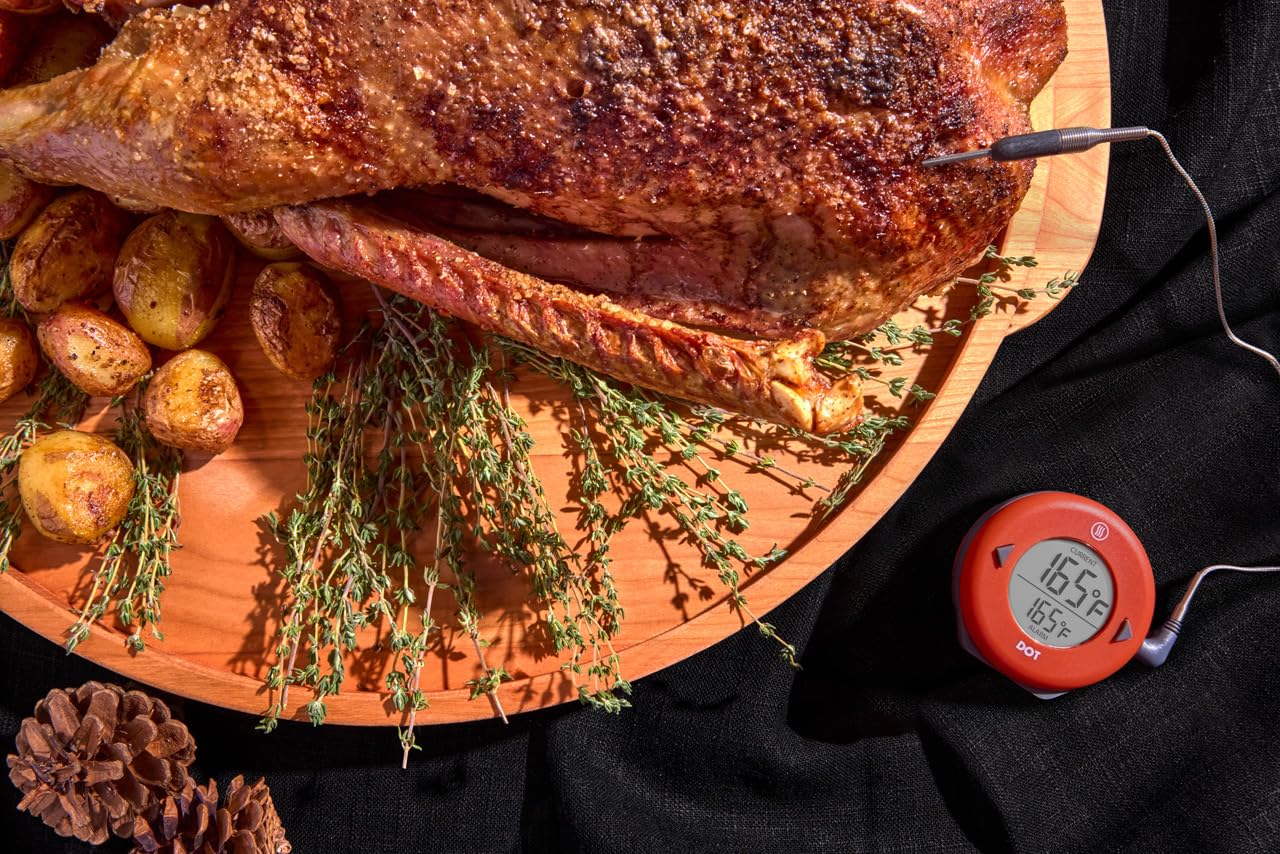

Insert the tip of the Pro-Series probe into the thickest part of the food item, avoiding bone or gristle. The current internal temperature will be displayed on the upper part of the screen.
5.3 Alarm Function
When the current temperature reaches the set alarm temperature, the DOT will emit an audible alarm. To silence the alarm, press any button on the unit.
5.4 Backlight
Press the light bulb button on the back of the unit to activate the display backlight for improved visibility in low-light conditions.
5.5 Temperature Unit Selection
To switch between Fahrenheit (°F) and Celsius (°C), locate the small switch inside the battery compartment. Use a small tool to toggle the switch to your preferred unit.
6. Maintenance
6.1 Cleaning
- Probe: Clean the stainless steel probe with a damp cloth and mild detergent after each use. Rinse thoroughly and dry completely. Do not immerse the probe connector in water.
- Unit: The DOT unit has an IP65 waterproof rating, meaning it is protected against water jets. Wipe the unit clean with a damp cloth. Do not immerse the unit in water.
6.2 Battery Replacement
When the display dims or the unit fails to power on, replace the 2 AAA batteries. Open the battery compartment on the back, remove old batteries, and insert new ones, ensuring correct polarity.
6.3 Storage
Store the DOT thermometer and probe in a clean, dry place when not in use. Avoid extreme temperatures or direct sunlight.
7. Troubleshooting
- No Display/Unit Not Turning On: Check battery installation and ensure batteries are fresh. Verify the probe is securely plugged into the unit.
- Inaccurate Readings: Ensure the probe tip is fully inserted into the food and not touching bone or the cooking vessel. Calibrate the thermometer if necessary (refer to ThermoWorks support for calibration procedures).
- Alarm Not Sounding: Confirm the alarm temperature is set correctly and the current temperature has reached or exceeded it.
- Probe Error Message: If an error message related to the probe appears, try unplugging and re-plugging the probe. If the issue persists, the probe may need replacement.
8. Specifications
| Feature | Specification |
|---|---|
| Model Name | DOT |
| Temperature Range | -58°F to 572°F (-50°C to 300°C) |
| Display Type | Digital, Backlit |
| Power Source | 2 AAA Batteries (included) |
| Waterproof Rating | IP65 |
| Outer Material | Acrylonitrile Butadiene Styrene |
| Product Dimensions | 3.12 x 3.12 x 0.75 inches |
| Item Weight | 5.61 ounces |
| Included Components | DOT Thermometer and Probe |
9. Warranty Information
The ThermoWorks DOT thermometer comes with a 2-year warranty against defects in materials and workmanship. For warranty claims or further details, please contact ThermoWorks Customer Support.
10. Customer Support
For any questions regarding product features, setup, troubleshooting, or technical assistance, please contact ThermoWorks Customer Care and Tech Support. Our team is based in American Fork, Utah, and is available to assist you.
Visit the official ThermoWorks website for contact information and additional resources.
